EBND-4NVME-S EDGEBoost Node with 4x 15mm U.2 NVMe, Software RAID

EDGEBoost Nodes are a modular solution for the edge computers that require additional 2.5" U.2 NVMe SSDs (15mm), PCIe expansions for additional performance accelerators, and Software RAID options
EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
Lockable NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (15 mm, U.2)
Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
Modular design for maximum workload flexibility and performance
Configurable PCIe Expansion slot options available
Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
Hot-swappable adaptive cooling fan for NVMe SSDs
Seemless Interoperability through high-speed PCIe protocols
Software RAID for Data Redundancy

See datasheet

Model:

EBND-4NVME-S

EBND-4NVME-H-G4

EBND-4NVME-H-1EXP-G4

EBND-2-4SATA-G4

EBND-2-2SATA-G4

EBND-2-2NVME-G4

EBND-2-PWR-G4

EBND-2-EXP-G4

EBND-4NVME-S

EBND-4NVME-H-1EXP

EBND-4NVME-H

EBND-8NVME-S

EBND-4NVME-GPU

EBND-2NVME-GPU

EBND-2-4SATA

EBND-2-PWR

EBND-2-2SATA

EBND-2-EXP

Certifications:

*Barebone Pricing Only; Sales team to review component configuration and price

Specifications

Expansion	• 1x PCIe x4 (1-Lane)
Storage	2x NVMe EDGEBoost Brick include: • 4x Hot-Swappable 2.5" NVMe SSD (15mm, U.2)
Card Dimension	• 235 (L) x 112 (H) mm • 1 Slot High
Power Output	DC-IN: 12~48VDC Power Connector: 4-pin Terminal Block Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion) (12V requires 4-pin Terminal Block)
Construction	Extruded Aluminum with Heavy Duty Metal
Dimensions	240 (W) x 261 (D) x 88 (H) mm
Standards and Certifications	CE, FCC Class A, UL
Weights	7.1 kg

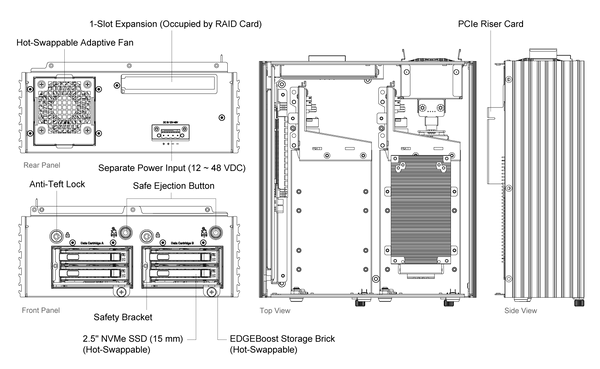

Mechanical Layout

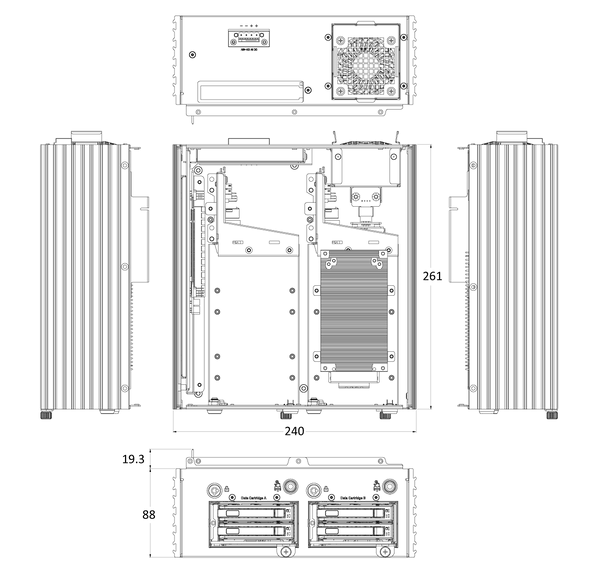

Dimensions

Unit:mm

Resources

Datasheet	DS_EBND-4NVME-S_Premio.pdf
Product Brief	PB_EDGEBoost-Nodes.pdf
