EBND-2-4SATA-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 4x 2.5" 7mm SATA SSD

  • EDGEBoost Nodes are a modular solution for the AI Edge Inference Computers that require additional 2.5" SATA SSD/HDD (15mm) storage and PCIe expansions for additional performance accelerators.
  • EDGEBoost Node Designed for the RCO-6000 Series Industrial Computers
  • Expansive SATA Storage: 4x Hot-Swappable 2.5" SATA SSD/HDD (7 mm)
  • Modular design for maximum workload flexibility
  • Configurable PCIe Gen 4 Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration
  • Adaptive Cooling Fan available for expansion cards
  • Seemless Interoperability through high-speed PCIe protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion Optional Configurations:
• 1x PCIe x16 (Gen 4), 1x PCIe x1 Open-Ended (Gen 3)
• 1x PCIe x16 (8-Lanes, Gen 4), 1x PCIe x8 (8-Lanes, Gen 4)
Storage 4x 2.5" SATA SSD/HDD (7 mm, Hot-Swappable)
Support RAID 0, 1, 5, 10
Card Dimension • 235 (L) x 112 (H) mm
• 2 Slots High
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 48 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 2.6 kg ~ 2.75 kg

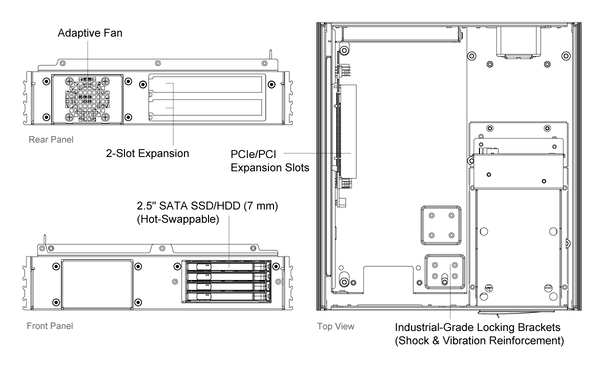

Mechanical Layout

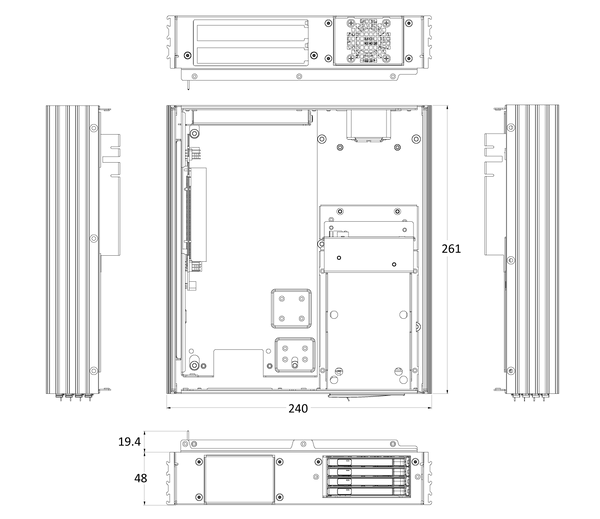

Product Dimension

Unit:mm
