EBND-4NVME-H-1EXP-G4 EDGEBoost Node with 4x 7mm U.2 NVMe, 1x PCIe Expansion, Hardware RAID Option

EDGEBoost Node Designed for the RCO-6000 Series Industrial Computers
NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (7 mm, U.2)
Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
Separate wide power input for NVMe SSDs (12-48VDC)
Modular design for maximum workload flexibility and performance
Hardware RAID Support
Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
Hot-swappable adaptive cooling fan for NVMe SSDs and Card Expansion
Seamless Interoperability through high-speed PCIe protocols

See datasheet

Model:

EBND-4NVME-H-1EXP-G4

EBND-4NVME-H-G4

EBND-4NVME-H-1EXP-G4

EBND-2-4SATA-G4

EBND-2-2SATA-G4

EBND-2-2NVME-G4

EBND-2-PWR-G4

EBND-2-EXP-G4

Certifications:

*Barebone Pricing Only; Sales team to review component configuration and price

Specifications

Expansion	EDGEBoost Node Option: • 1x PCIe x16 (8-lane, Gen 4), 1x PCIe x8 (open-ended, Gen 4) for Hardware RAID Card
Storage	1x NVMe EDGEBoost Brick includes: • 4x Hot-Swappable 2.5" NVMe SSD (7mm, U.2)
Card Dimension	• 235 (L) x 112 (H) mm • 3 Slots High
Card Expansion	Hardware RAID: MegaRAID 9560-8i
Power Output	DC-IN: 12~48VDC Power Connector: 4-pin Terminal Block Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion) (12V requires 4-pin Terminal Block)
Construction	Extruded Aluminum with Heavy Duty Metal
Dimensions	240 (W) x 261 (D) x 88 (H) mm
Standards and Certifications	CE, FCC Class A, UL
Weights	7.2 kg

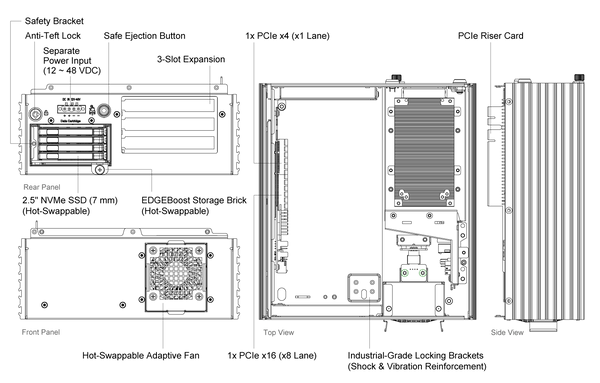

Mechanical Layout

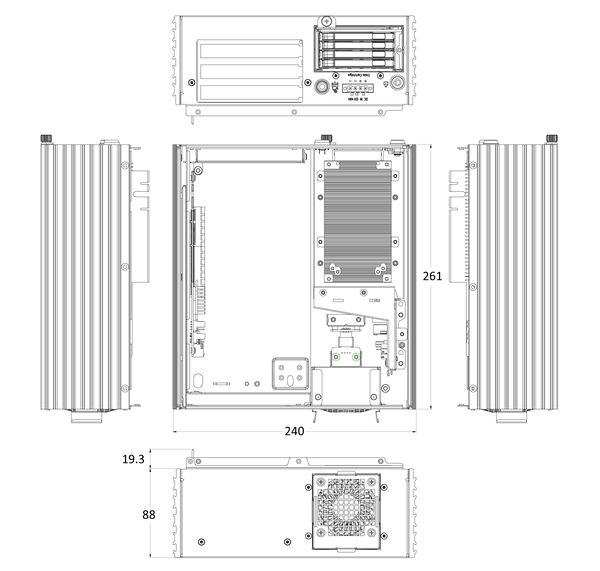

Dimensions

Unit:mm

Resources

Datasheet	DS_EBND-4NVME-H-1EXP-G4_Premio.pdf
Product Brief	PB_EDGEBoost-Nodes.pdf
