KCO-2000-RPL Fanned Industrial Computer with 2U Short-Depth,12/13th Gen Intel® Core® Processor and Q670E PCH, PCIe Gen 5, USB Type-C

  • 2U Slim Form Factor (SFF) Chassis with Tool-less Mounting Options
  • Industrial Grade Micro-ATX Motherboard with Intel® Q670E PCH
  • Support 12th/13th Gen Intel® Core™ Processors (LGA 1700, 65W Max TDP)
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 1x 1GbE, 1x 2.5GbE Ports Support Wake-on-LAN, PXE
  • 4x DP++ Independent Displays
  • 1x PCIe x16 (Gen 5), 2x PCIe x4 (Gen 4, Gen 3), 1x PCIe x16 (Gen 4, 4-lane)
  • 2x M.2 M Key, 1x M.2 E Key
  • 6x RS-232 COM Ports
  • 6x USB 3.1 Gen 2, 1x USB 3.2 Gen 2x2 Type C
  • Support uEFI Secure Boot, TPM 2.0
  • Tool-less Washable Dust Filter
  • Internal 250W Flex Power Supply
  • 12.73"(W) x 10.75:(D) x 3.45"(H)
  • UL 62368 Ed. 3, FCC, CE
See Datasheet

Model:

KCO-2000-RPL

KCO-3000-RPL

KCO-2000-RPL

Certifications:

Intel Partner
AWS Greengrass IoT


Powerful Multi-Core Intel® P&E Cores Technology

12th and 13th Generation Intel® Core™ processors features P-cores & E-cores, hybrid core architecture that allocates workload tasks accordingly to boost performance at the edge. This innovative design strikes a balance between high performance and energy efficiency, optimizing the KCO Series to excel in various industrial deployments.

Compact Size and High Performance with Micro ATX Motherboard

The KCO Series is built around Premio’s CT-MRL01 Micro-ATX motherboard that supports 12th/13th Gen Intel® Core™ Processors. The KCO Series computers are designed to be compact enough to fit in space limiting IoT deployments.

  • KCO-2000-RPL: 2U Short Depth chassis
  •   ⚬ 323 (W) x 273.05 (D) x 87.63 (H) mm
  • KCO-3000-RPL: 3U Rack Mountable chassis
  •   ⚬ 334.01 (W) x 299.35 (D) x 132.85 (H) mm

Low-Latency PCIe Gen 5 and More Bandwidth

Meet the demands of high demand AI Workloads with PCIe Gen 5 expansion to deliver exhilarating data throughput speeds, allowing for performance accelerators to operate at full efficiency.

Rich I/O

Connectivity across all types of new and legacy products is provided on the KCO-Series' single-sided interface panel. This allows system integrators and OEM designers to have easy accessibility.

On-Board NVMe & Expandable SATA Storage

The KCO Series offers blazing-fast on-board M.2 NVMe and shock/vibration resistant internal SATA SSD/HDD storage options. Exclusive to the KCO-2000-RPL Series, is a hot-swappable 7mm SATA bay for seamless data offloading procedures. The KCO-3000-RPL offers two SATA storage configurations for: 1x 3.5” SATA bay for cost-efficiency or 2x 2.5” SATA bays for even greater data storage capacity and redundancy

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $685.00

Specification

System
Processor Support 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Alder lake-S, Raptor Lake-S Processor (LGA 1700, 65W Max TDP)
- Intel® Core™ i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.2 GHz, 65W
- Intel® Core™ i7-13700E/i7-12700E, up to 16 Cores, 30MB cache, up to 5.10 GHz, 65W
- Intel® Core™ i5-13500E/i5-12500E, up to 14 Core, 18MB Cache, up to 4.5 GHz, 65W
- Intel® Core™ i3-13100E/i3-12100E, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 65W
System Chipset Intel® Q670E PCH
LAN Chipset GbE1: Intel® I219LM; 1GbE (Support Wake-on-LAN and PXE)
GbE2: Intel® I225-V; 2.5GbE (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S HD Audio Codec, support 5.1 channel
System Memory 4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max
Graphics Intel® Integrated Iris Xe Graphic (CPU Dependent)
BIOS AMI uEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec. System Reset
iAMT Intel® AMT 12.0 supported
TPM TPM 2.0
Display
Display Port 4x DP++
Storage
M.2 1x M.2 M / NVMe PCIe x4 Gen 4 / 2242, 2260, 2280
1x M.2 M / NVMe PCIe x4 Gen 4/ SATA / 2242, 2260, 2280
1x M.2 E / PCIe x2 Gen 3/ USB 2.0 / 2230
SATA 4x SATA 3 6Gb/s
SSD/HDD 1x Hot-Swappable 2.5" SATA Drive Bay (support H=7mm)
Expansion
PCIe 1x PCIe x16 Slot (Gen 5)
1x PCIe x16 Slot (Gen 4, 4-Lane)
1x PCIe x4 Slot (Gen 4, Open End)
1x PCIe x4 Slot (Gen 3, Open End)
I/O
Audio 1x Mic-in, 1x Line-in, 1x Line-out
USB 6x USB 3.1 Gen 2 (10 Gbps)
1x USB 3.2 Gen 2x2 (20 Gbps) Type C
Internal I/O
Audio 1x Front panel audio
COM 6x RS-232
DIO 1x 8-bit DIO (4-in/4-out)
SATA 4 x SATA Gen 3, support RAID 0/1/5/10)
USB 2x USB 3.0 Gen 1
4x USB 2.0
Others 1x SPI header

1x Front panel

1x CPU fan

2x System fan
Operating System
Windows Windows 10/11
Linux Linux Kernel 5.X
Power
Power Management ACPI 5.0 compliant
Power Mode 100-240V AC @ 50/60Hz
Power Connector IEC 60320 C14
Environment
Operating Temperature 0 °C to 40 °C
Storage Temperature -40 °C to 85 °C
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Certification UL 62368 Ed. 3, FCC, CE
Vibration 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 20G, half sine, 11ms
Physical
Form Factor 2U
Dimension 324(W) x 276(D) x 89(H) mm
Weights 11 lbs (barebone w/ chassis, mb, and PSU only)
Construction Heavy Duty Metal
Mounting Options Rack Mountable

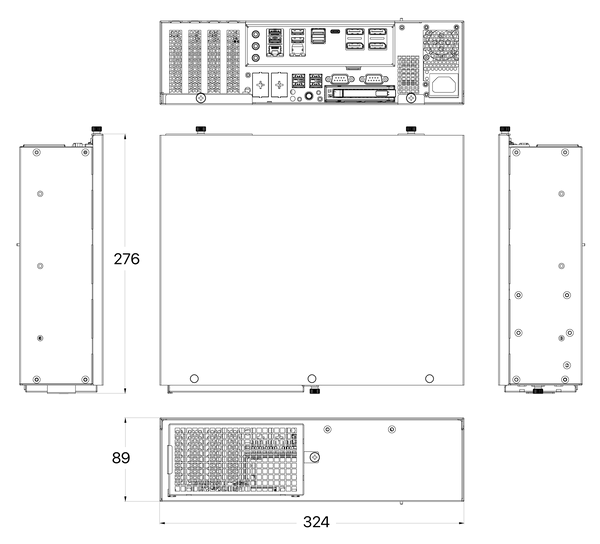

Product Dimension

Unit:mm
