Industrial Touch Panel PCs and Monitors
IP Rated Touchscreen Computers For HMI Integration
AIO Series
All In One IP65 Industrial Touchscreen Computer and Monitor
The AIO Series is a reliable all-in-one panel PC or touch monitor solution that simplifies HMI applications with high-efficiency computing capabilities and advanced I/O connectivity. Designed with a sleek and durable panel design, the AIO Series offers a versatile and comprehensive solution for various industrial and commercial applications.
Key Features:
- Intel and Rockchip Processors
- Front Panel IP65 for dust and water protection.
- Scalable configurations with panel PC and monitor-only options.
- Multiple Display Sizes & Aspect Ratios for versatile use.
- MIL-STD-810H Certification for rugged durability.
All In One Integrated System
10-Points PCAP Touch
Range of Display Size
Multiple Independent Displays
Front Panel IP65
High Efficient Computing
AIO-200 Series
Ruggedized. Power-Efficient. All-in-One
Featured Product:
The AIO-200-ASL-2L Series combines Intel® N-Series processors, dual 2.5GbE networking, flexible I/O, and rugged touchscreen design for industrial HMI and automation applications.
AIO-200-ASL Series
- Intel® N-Series Processor
- Front IP65 rating for protection against water and dust
- Scratch-resistant 7H glass hardness
- Dual 2.5GbE LAN and flexible USB/COM I/O expansion
- Triple independent display
- Wide 9–36V DC power input
- UL certified
The Intel® Core™ Ultra 1 Series is a next-generation hybrid processor with built-in AI acceleration across CPU, GPU, and NPU cores, supporting Windows and Linux for reliable operation in rugged industrial deployments.

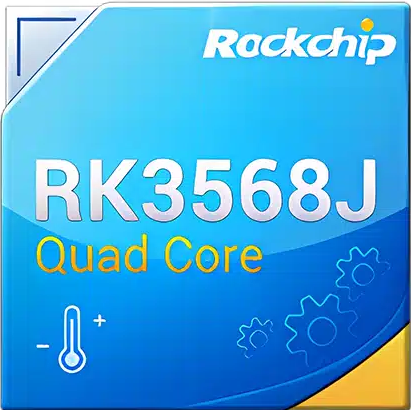

The Rockchip RK3568J is a power-efficient quad-core ARM Cortex-A55 processor with Mali-G52 GPU, supporting Android 13 and Debian 11 for low-power, reliable industrial and embedded applications.
Intel® Processor N97 and Intel® Atom® x7433RE/x7835RE processors with DDR5 memory support and Intel® UHD Graphics for reliable edge computing.
The Intel® Processor N97 is a 12th Gen Alder Lake-N processor with 4 cores and a max turbo frequency of 3.6 GHz, offering efficient performance for embedded and industrial applications.
The AIO touchscreen monitors offer front IP65 protection, scratch-resistant 7H glass (IK07), HDMI/DP outputs, and -10°C to 50°C temperatures, ensuring durability and reliability for industrial and commercial use.
Product Introduction Deep Dive
Gain valuable insights through this comprehensive overview of the AIO Series and how it addresses modern industrial demands.
| Model | Type | Processors | Memory | Display | I/O | Connectivity | LCD Size | Max. Resolution | Max Brightness | Viewing Angle (H/V) | Lifetime | Certification | Operating Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIO-200-ADL Series |
All-In-One IP65 Panel PC | 12th Gen Intel® Alder Lake N97 | DDR5 4800 MT/s SODIMM. Max 16GB (Default 8GB) | Triple Independent Displays: DP, HDMI, LVDS/eDP | 2x 2.5GbE, 4x USB 3.2, 2x RS232/422/485, Audio Out | 1x M.2 E Key (Wi-Fi 6E/Bluetooth) | 10.1", 15.6", 21.5" | 1920 x 1080 (Full HD) | Up to 500 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class B, CB, UL, UKCA, IC | -10°C to 50°C |
|
AIO-200-ASL-2L Series |
All-In-One IP65 Panel PC | Intel® N-Series Processors | DDR5 4800 MT/s SODIMM. Max 16GB (Default 8GB) | Triple Independent Displays: DP, HDMI, LVDS/eDP | 2x 2.5GbE, 4x USB (3x Type-A + 1x Type-C), 2x COM, Audio Out | Dual Nano SIM, M.2 B-Key (4G/5G), M.2 E-Key (Wi-Fi/BT) | 10.1", 15.6", 21.5" | 1920 x 1080 (Full HD) | Up to 500 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class B, UL, CB, UKCA, ICES-003 | -10°C to 50°C |
|
AIO-200-ASL-3L Series |
All-In-One IP65 Panel PC | Intel® Atom® x7835RE / 12th Gen N97 | DDR5 4800 MT/s SODIMM. Max 16GB (Default 8GB) | Triple Independent Displays: DP, HDMI, LVDS/eDP | 3x 2.5GbE, 2x USB 3.2, 1x RS-232/422/485, 1x RS-232 | Dual Nano SIM (4G LTE), M.2 B Key, M.2 E Key | 10.1", 15.6", 21.5" | 1920 x 1080 (Full HD) | Up to 500 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class A, CB, UL, UKCA, IC | -10°C to 50°C |
|

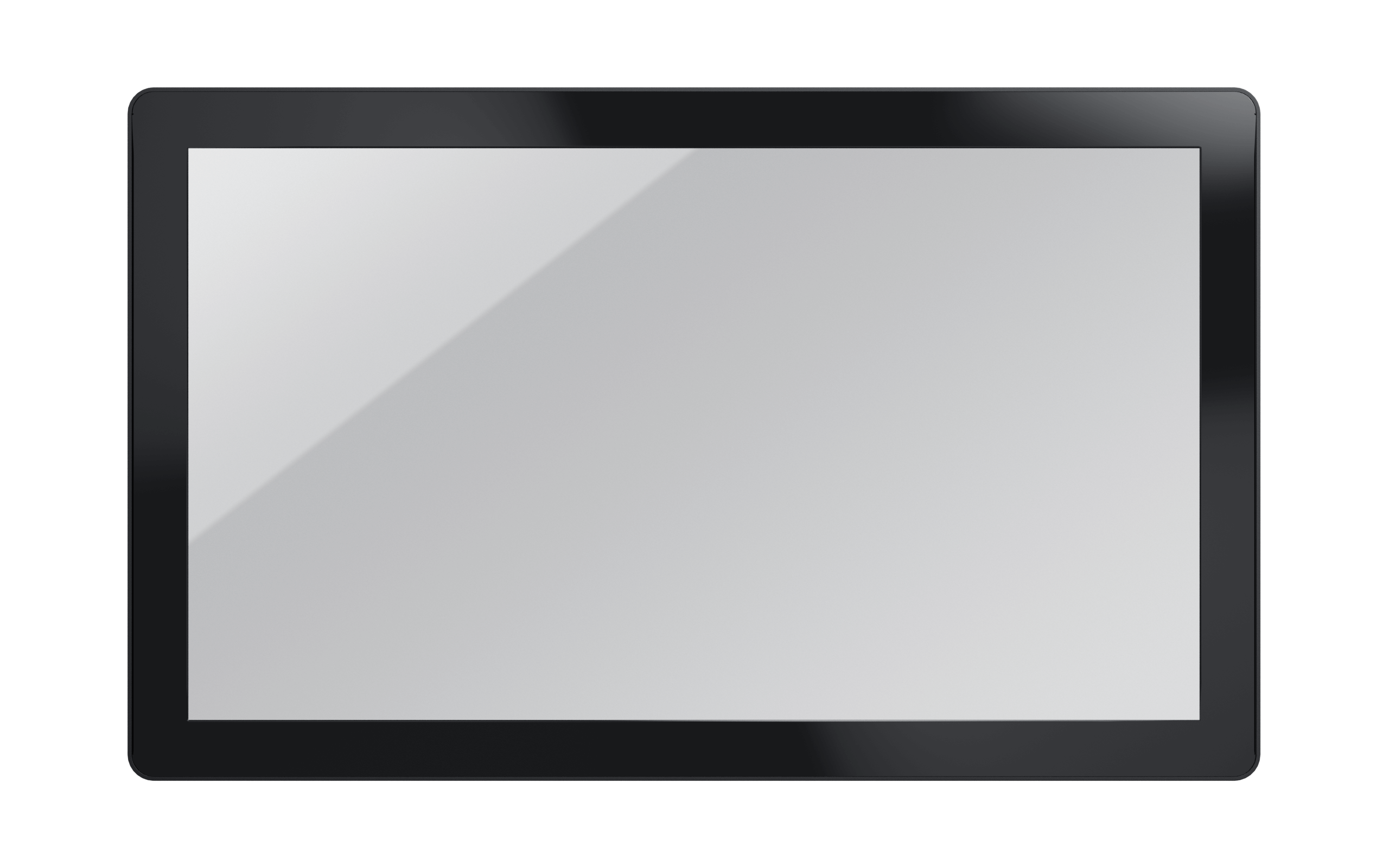

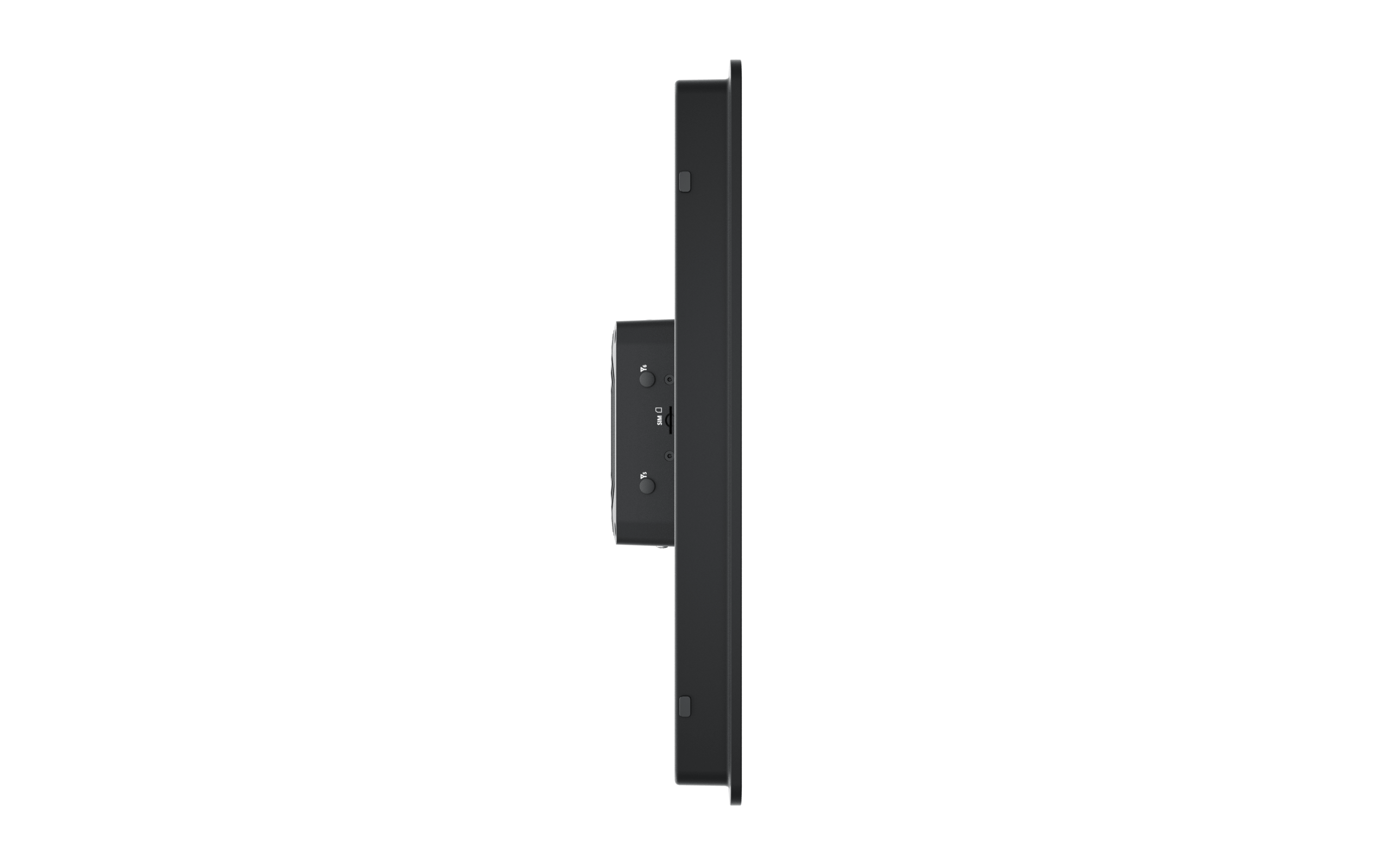

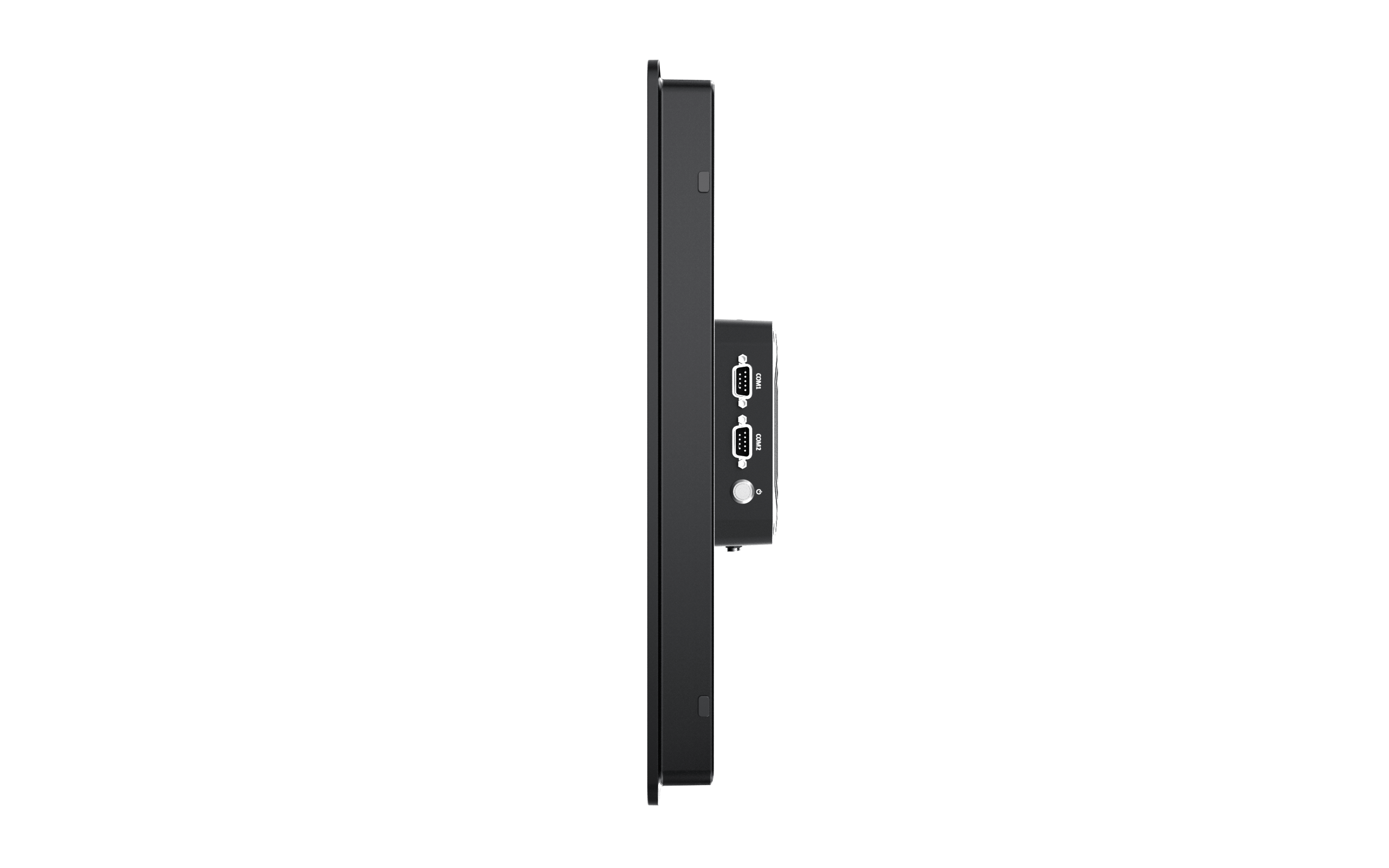

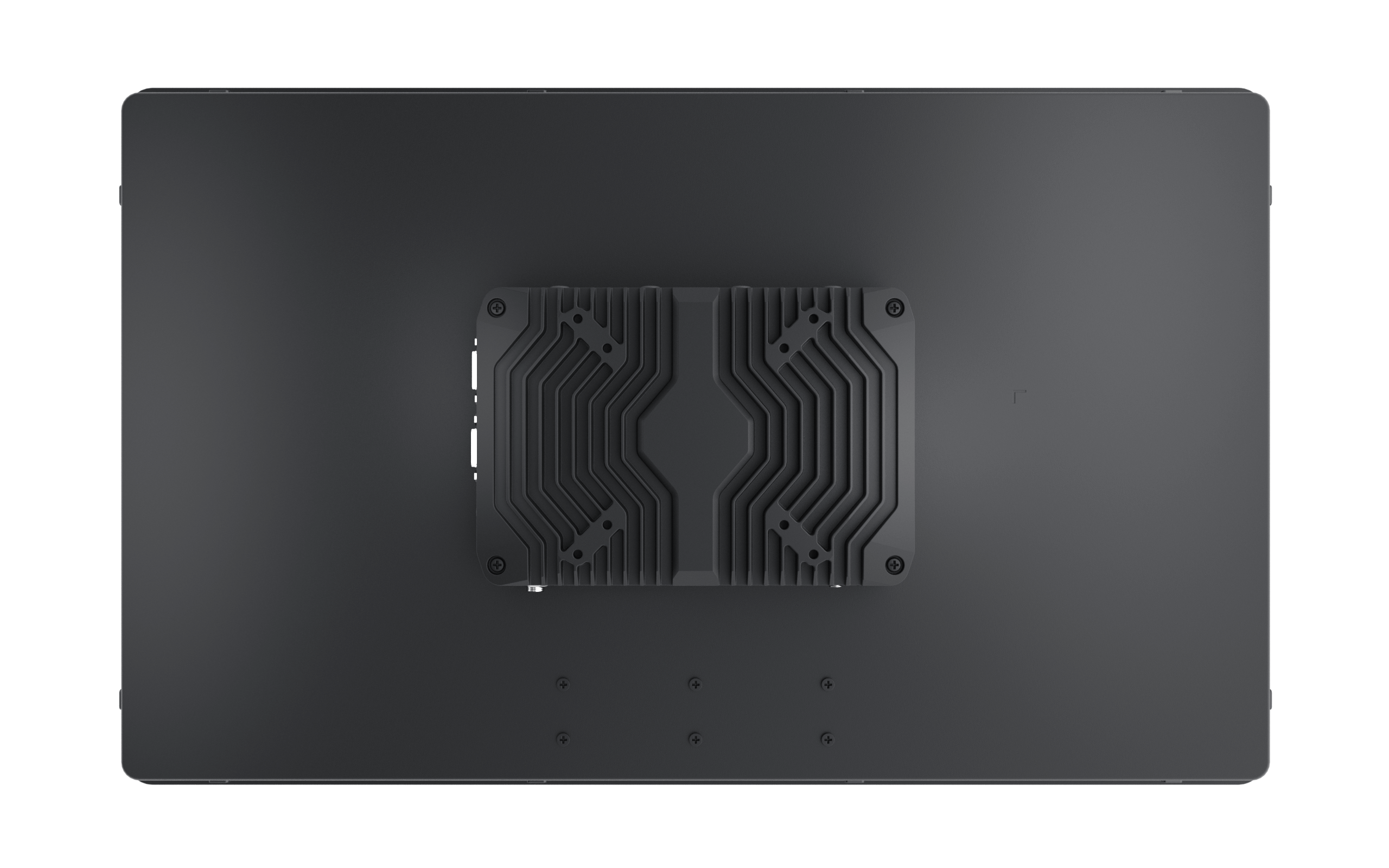

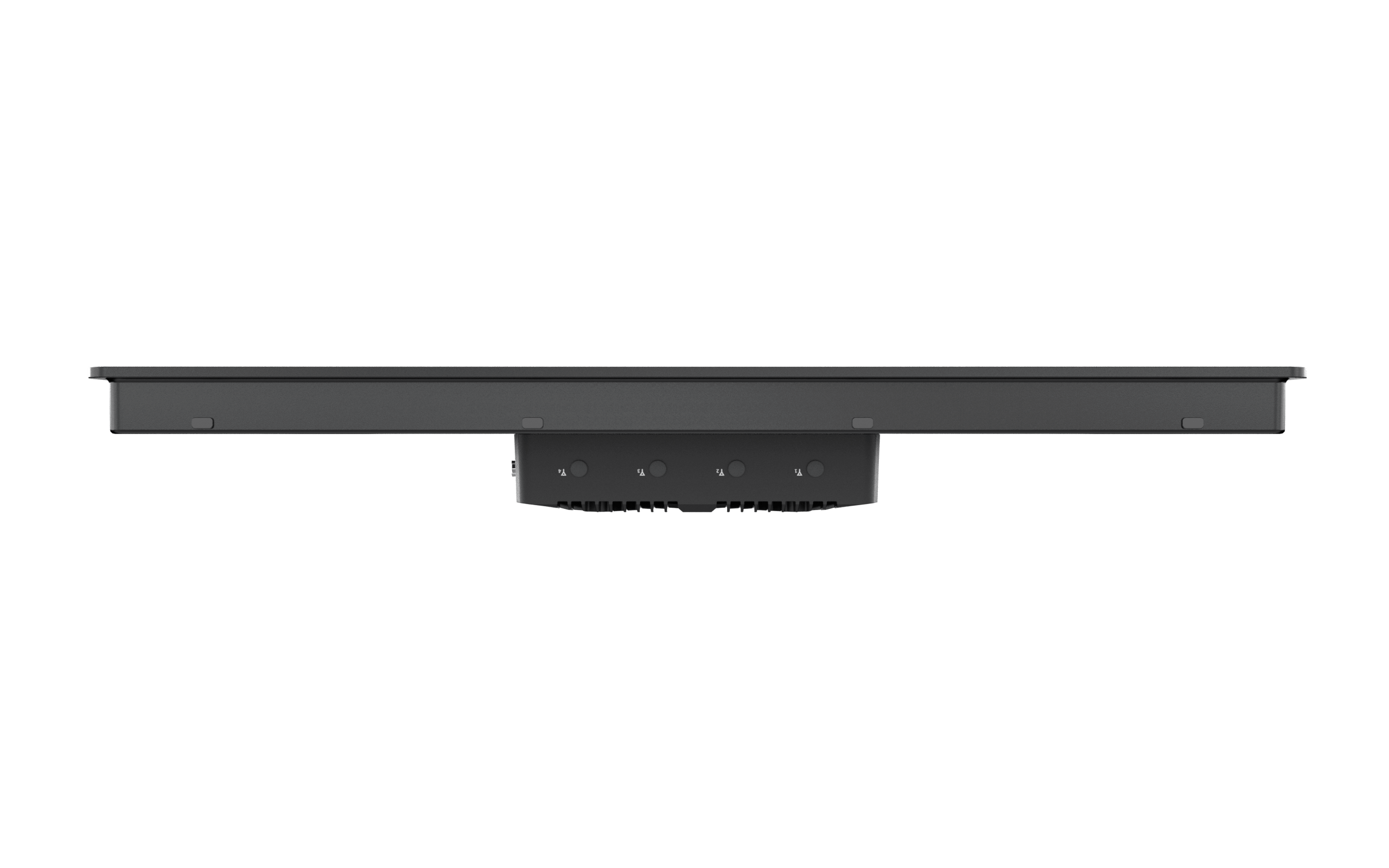

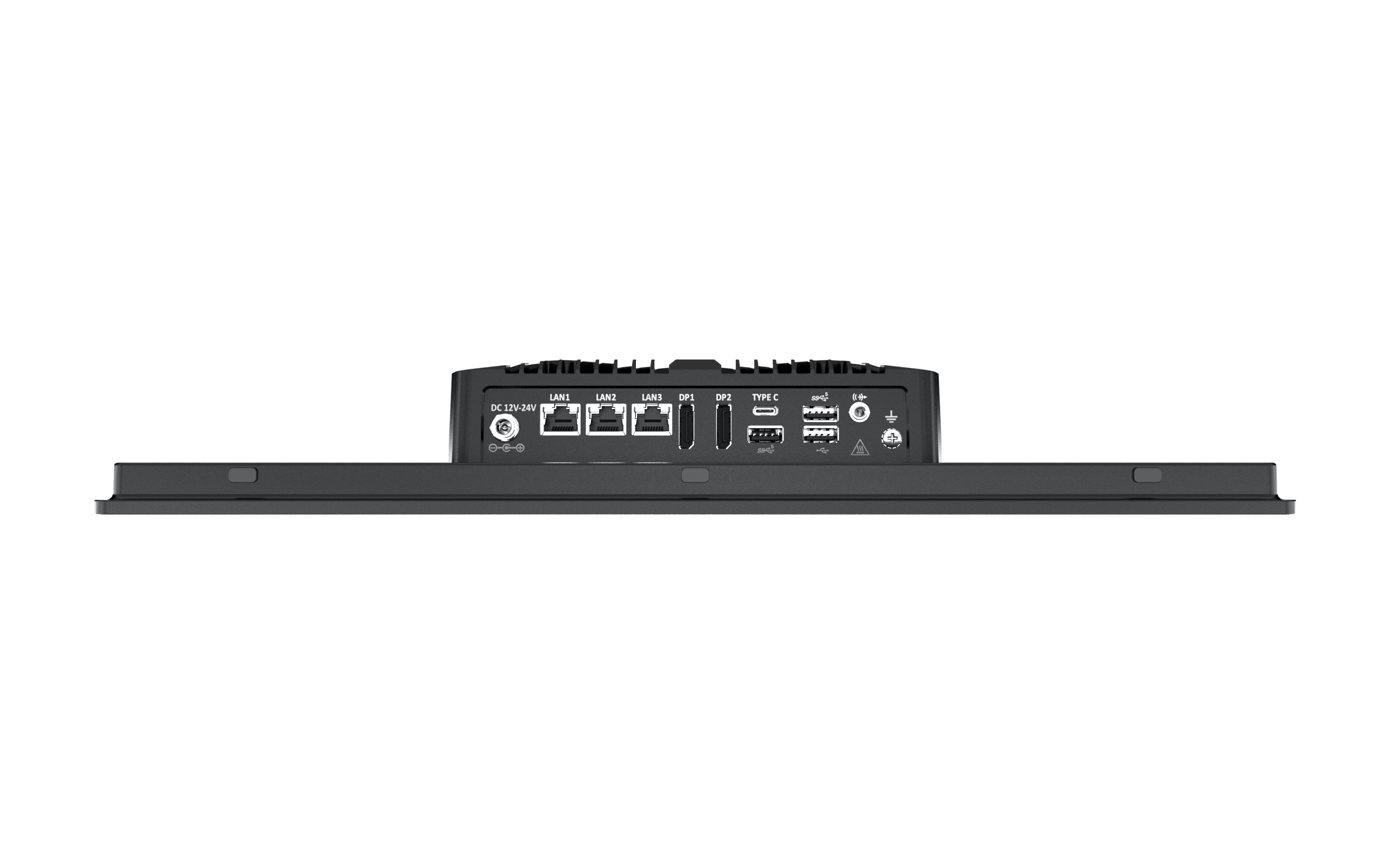

AIO-200-MTL Series |
All-In-One IP65 Panel PC | Intel® Core™ Ultra 5 125U / Ultra 7 155U | DDR5 5600 MT/s SODIMM, up to 48GB | 2x DP++, LVDS/eDP | 3x 2.5GbE, USB-C, 2x USB 3.2, USB2.0, COM1/2, Audio Out | M.2 E Key (Wi-Fi 6E/BT), M.2 B Key (4G/5G) | 10.1", 15.6", 21.5" | 1920 x 1080 (Full HD) | Up to 500 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class A, CB, UL, UKCA, IC | -10°C to 50°C |
|
AIO-200-ROK Series |
All-In-One IP65 Panel PC | Rockchip RK3568J | 4GB LPDDR4 2133 MT/s | HDMI | 2x GbE, 2x USB3.0, 2x RS232/422/485, CAN Bus, HDMI, Audio | M.2 E Key (Wi-Fi 6/BT 5.2), M.2 B Key (4G LTE) | 10.1", 15.6" | 1920 x 1080 (Full HD) | Up to 500 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class A, CB, UL, UKCA, IC | -20°C to 50°C (Max. Range) |
|
AIO-200-MX Series |
All-In-One IP65 Touch Monitor | N/A | N/A | Dual Video Inputs: DP, HDMI | 2x USB 2.0 Type-A, 1x USB Type-B (Touch), Audio Out | N/A | 10.1", 15.6", 21.5" | 1920 x 1080 (Full HD) | Up to 450 nits | 89/89/89/89 | 30,000 / 50,000 Hours | CE, FCC Class A, CB, UL, UKCA, IC | -10°C to 50°C (Max. Range) |
Case Study:
AIO Series for a Luxury Refrigerator Brand
Dive into a case study about how a refrigerator manufacturer efficiently transformed their assembly line by integrating Premio’s AIO Series Touchscreen Computer.
Download Our Solution Guide For Embedded Computer and Industrial Touch Display Solutions.
Versatile Mounting Solution
The AIO Series’s All In One design allows it to be easily mounted in various applications for tailored solutions, using either VESA Mounting or Panel Mounting.
Discover Mounting Options

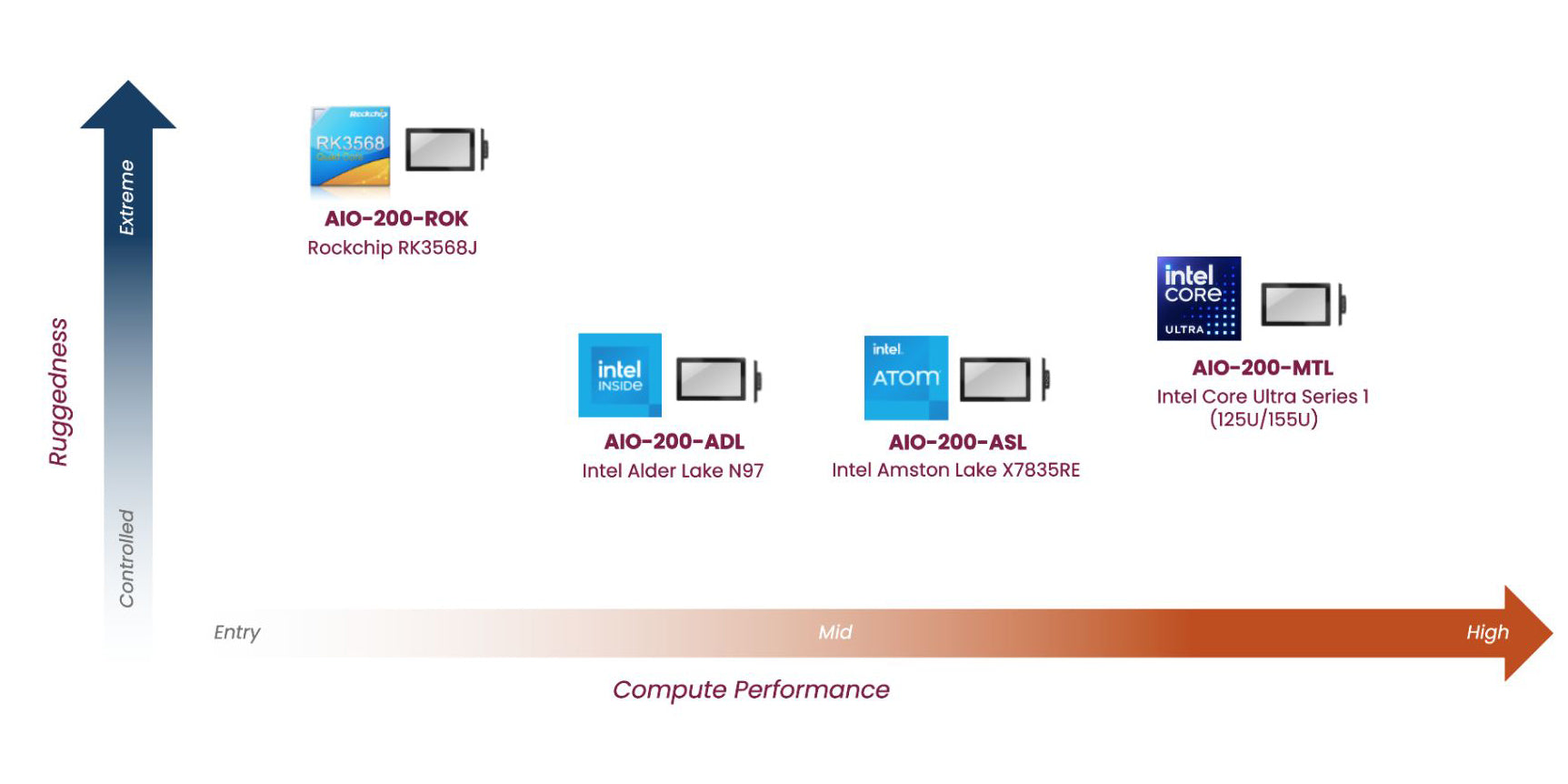

Intel & Rockchip: Low-Power, High-Performance Processors
| Processor Series | Intel® Processor N | Intel Atom® Processors | Intel® Core™ Ultra 1 | Intel® Core™ Ultra 1 | Rockchip RK |
|---|---|---|---|---|---|
|
|
|
|
|
|
| Processor Model | Intel® Processor N97 | Intel Atom® x7835RE / x7433RE Processor | Intel® Core™ Ultra 5 Processor 125U | Intel® Core™ Ultra 7 Processor 155U | Rockchip RK3568J |
| Total Cores | 4 | 4-8 Cores | 12 | 12 | 4 |
| Max Turbo Frequency | 3.60 GHz | Up to 3.60 GHz | 4.3 GHz | 4.8 GHz | 2.0 GHz |
| TDP | 12 W | 9-12 W | 15W (Base Power) | 15W (Base Power) | 8–10 W |
| System Memory Support | DDR5 4800 MT/s | DDR5 4800 MT/s | DDR5 5600 MT/s | DDR5 5600 MT/s | LPDDR4 2133 MT/s |
| GPU | Intel® UHD Graphics with 24 Execution Units | Intel® UHD Graphics, up to 32 Execution Units | Intel® Arc™ Graphics | Intel® Arc™ Graphics | ARM G52 2EE |
| NPU | Not Supported | Not Supported | Intel® AI Boost | Intel® AI Boost | 512MAC NPU |
| Supported Series | AIO-200-ADL, AIO-200-ASL |
AIO-200-ASL | AIO-200-MTL | AIO-200-MTL |
AIO-200-ROK |
Advancing Technology with DDR5 Memory Integration
The AIO's motherboard brings a new efficiency level to HMI applications by integrating the latest DDR5 technology. This integration of DDR5 ensures stable and high-speed performance, which is vital for handling the rigorous demands of HMI applications at the edge.
Triple Independent Displays Support
Premio's AIO-200 Series supports triple independent displays on selected models, enabling expanded visualization for industrial HMI, machine monitoring, and automation applications. The integrated touchscreen serves as the primary display, while external DisplayPort and HDMI outputs allow operators to connect additional monitors.
Display capabilities vary by series:
- AIO-200-ADL: HDMI supports up to 3840 x 2160 @ 30Hz, while DisplayPort supports up to 4096 x 2304 @ 60Hz.
- AIO-200-ASL-2L: HDMI 2.1 and DisplayPort 1.4 each support up to 3840 x 2160 @ 60Hz.
- AIO-200-MTL: Supports two DisplayPort outputs (DP++) alongside the integrated touchscreen for triple-display configurations.

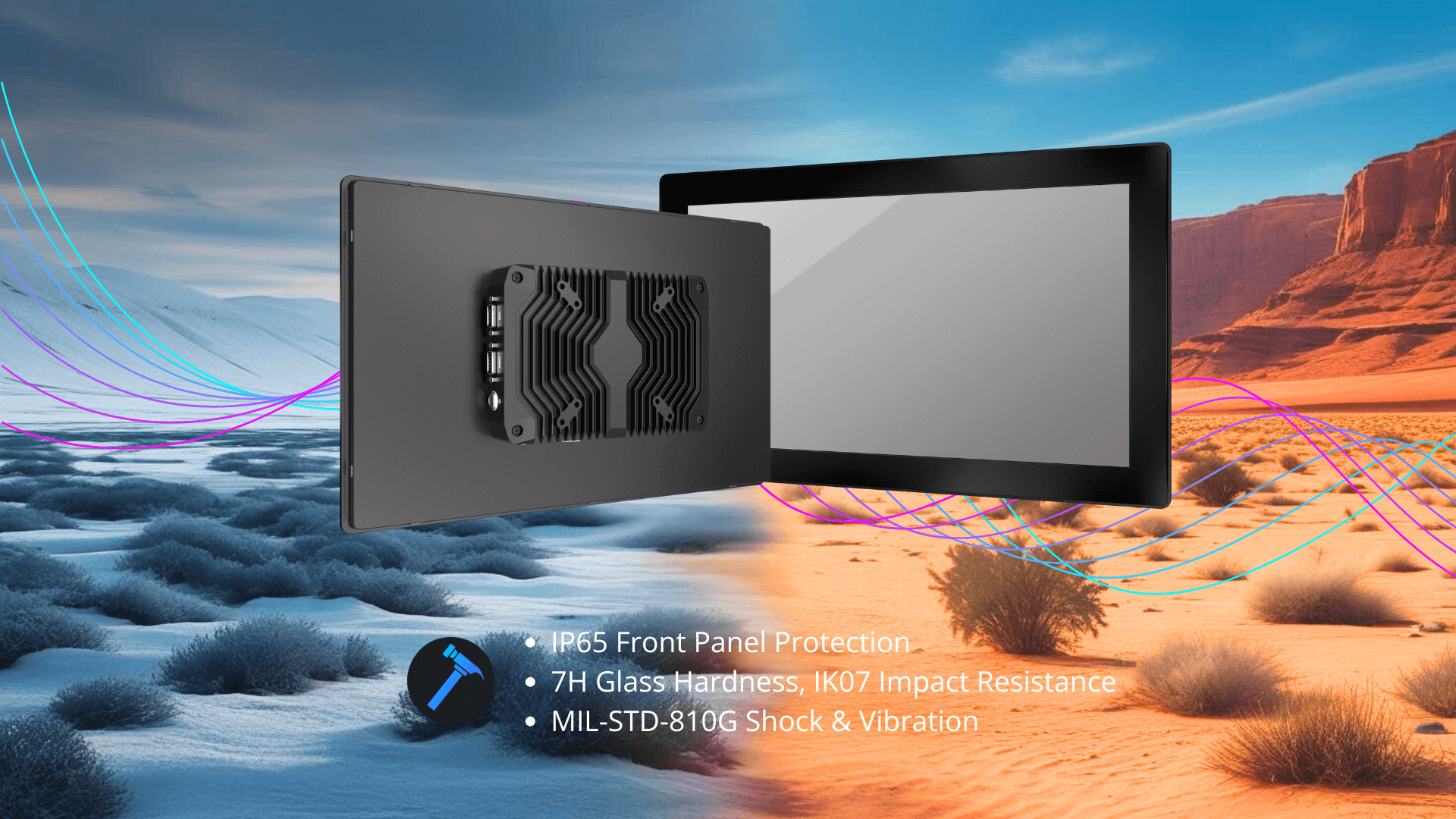

Industrial Grade Durability
With a wide operating temperature range and compliance with MIL-STD-810H standard for shock and vibration, the AIO ensures reliable performance in the harshest industrial environment.
- IP65 Front Panel
- Wide Operating Temperature
- MIL-STD-810H Shock & Vibration
Storage and Connectivity M.2 Keys
The AIO Series boosts its capabilities with M.2 slots (B & E Key) for advanced expansion—supporting wireless low-latency communication essential in IoT, and SSDs for fast, reliable data storage (feature availability varies by model).
- SSD/NVMe Storage
- Wifi 6e Support
- 5G Support
5G Connectivity Support
Designed to meet the demanding connectivity needs of modern applications with 5G network support (availability varies by model) through its integrated Nano SIM Socket. This advanced capability ensures the AIO Series maintains highly reliable connectivity in any HMI application.
• Nano SIM Socket for 4G/5G support
Enhanced Optical Clarity
The AIO Series delivers ultimate readability and clarity for industrial applications and settings. Its wide viewing angles and high contrast ratio offers flexibility and consistent high-quality visibility to accommodate operators with varying viewing positions.
Key Markets
FAQ
An all-in-one touchscreen computer integrates the display, touch interface, and computing hardware into a single compact unit. It offers a streamlined solution for various interactive and computing needs.
All-in-one touchscreen computers combine space efficiency with easy installation, offering a simplified setup process and reducing clutter compared to separate components.
Projected Capacitive Touch (10 Point-PCAP)
The AIO Series offers VESA Mounting and Back Panel Mounting.
All-in-one touchscreen computers such as the AIO are used in various applications, including retail POS systems, interactive kiosks, digital signage, industrial control panels, and more.
Yes, the AIO Series offer customization options for screen sizes, processors, memory, storage, and connectivity, allowing adaptation to specific operational requirements.
The main differences between the AIO-200-ASL-2L and AIO-200-ASL-3L Series are LAN connectivity, USB expansion, and processor options. The AIO-200-ASL-2L Series features dual 2.5GbE LAN, standard NVMe storage, and four standard USB ports (3x Type-A and 1x Type-C). Its optional side I/O bracket adds 2x USB 2.0 ports for a total of six USB ports, or an alternative COM configuration for serial connectivity. The AIO-200-ASL-3L Series offers three 2.5GbE LAN ports and an optional 8-core Intel® Atom® x7835RE processor for applications requiring additional networking or processing capacity. Both series support front IP65 protection, DDR5 memory, and HDMI/DisplayPort connectivity.
