AIO-W215-ASL-3L 15.6" Full HD Capacitive IP65 All In One Touchscreen Computer with Intel® N97 / Atom® x7835RE Processor, 3x LAN, 2x USB, 2x COM, 1x DP, 1x HDMI

  • 15.6" (16:9) Full HD All-in-One Touchscreen Computer
  • World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
  • Front IP65 Rating for protection against water and dust
  • Scratch Resistant 7H Glass Hardness
  • Versatile Display Outputs; HDMI and DP
  • MTBF 30,000 Hours
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

All In One Integrated System

10-Points PCAP Touch

Range of Display Size

Triple Independent Displays

Front Panel IP65

High Efficient Computing




Harnessing the Power of Intel Efficiency Cores

  • 4 E-Cores (Intel 7 Gracemont Architecture)
  • Supports single channel memory
  • Improve Power Efficiency
  • Lower Power Consumption

Industrial Grade Durability

  • IP65 Front Panel
  • Wide Operating Temperature: -10°C - 50°C
  • MIL-STD-810G Method 516.7 Procedure

Enhanced Optical Clarity

The AIO Series delivers ultimate readability and clarity for industrial applications and settings. Its wide viewing angles and high contrast ratio offers flexibility and consistent high-quality visibility to accommodate operators with varying viewing positions.

Triple Independent Displays Support

  • HDMI: Supports high-definition output up to 3840 x 2160 4K UHD @30Hz.
  • DP: Handles ultra-high resolutions up to 4096 × 2304 Real 4K @60Hz.
  • LVDS: Up to 1920 x 1200 WUXGA @60Hz for clear, sharp imagery.

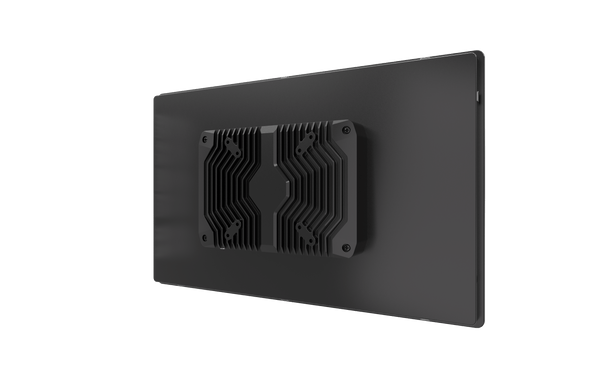

Versatile Mounting Solution

The AIO Series’s All In One design allows it to be easily mounted in various applications for tailored solutions, using either VESA Mounting or Panel Mounting.

Storage and Connectivity M.2 Keys

  • 1x M.2 B Key 128G SSD default Storage
  • 1x M.2 E Key Wifi 6e Support
  • 1x SIM slot for 5G support (AIO-200-ASL-3L series)

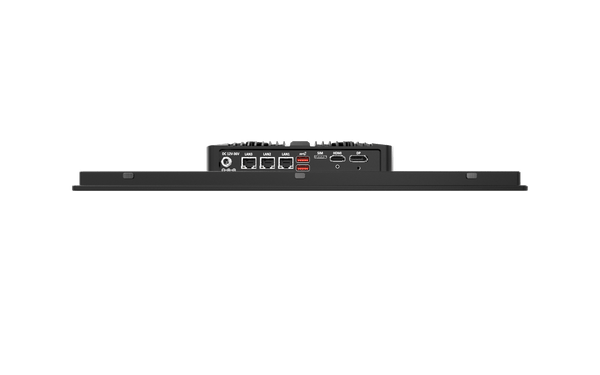

Versatile I/O Connectivity

  • Up to 3x 2.5 GbE LAN
  • Up to 4x USB 3.2 Gen 2
  • 2x COM Ports
  • 6x Pifa Antenna Ports
  • 6x USB 2.0 Header (Optional)

AIO-200-ADL Series

AIO-200-ASL-3L Series

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

Display
IP Rating Front IP65
LCD Size 15.6" (16:9)
Max. Resolution 1920 x 1080 (Full HD)
Brightness (cd/m²) 400 nits
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.17925(H) x 0.17925(V)
Viewing Angle 85 /85 /85 /85 (Typ.) (CR>=10)
Backlight MTBF 30,000 Hours (LED Backlight)
Touch
Touch Type Projected Capacitive Touch
Surface Hardness 7H / IK07
System
Processor • 12th Gen Intel® Alder Lake-N Processor N97, 6M Cache, up to 3.60 GHz, 4 core 12W
• Intel® Atom® x7835RE Processor 6M Cache, up to 3.60 GHz, 8 core 12W
System Chipset SoC integrated
System Memory 1x 262-Pin DDR5 4800MHz SO-DIMM. Max. up to 16GB (Non-ECC)
LAN Chipset GbE1~3: Intel i226V 2.5GbE LAN PXE Support
Audio Codec Realtek ALC897 High Definition Audio CODEC
BIOS AMI uEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM2.0
Storage
M.2 B Key 128G M.2 B Key SATA SSD (Default)
SATA 1x SATA 3.0 6Gb/s port Support AHCI (Option)
Expansion
M.2 1x M.2 E Key Support WiFi 6E/Bluetooth (Option)
1x M.2 B Key Support SATA/4G/5G (Option)
I/O
DisplayPort  1x DP 1.4a up to 4096×2304 @60Hz
HDMI 1x HDMI™ 1.4b up to 3840x2160 @30Hz
COM COM 1: RS-232/422/485
COM 2: RS-232
USB 2x USB 3.2 Gen 2 (10 Gbps)
LAN 3x 2.5GbE LAN
SIM 1x Dual Nano SIM
Others Support up to 6x Antenna (optional)
Operating System
Windows Windows 10 / Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter 60W (12V 5A, Default)
Power Supply Voltage DC 12~36V
Power Connector DC Jack 5.5mm/2.5mm
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10% to 80% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A, CB, UKCA, IC
Vibration With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 20G half-sin 11ms
Physical
Dimension 400 (W) x 249 (H) x 50 (D) mm
Weights 2.3 kg
Mounting VESA Mount (75mm x 75mm/100mm x 100mm)
Panel Mount (optional)

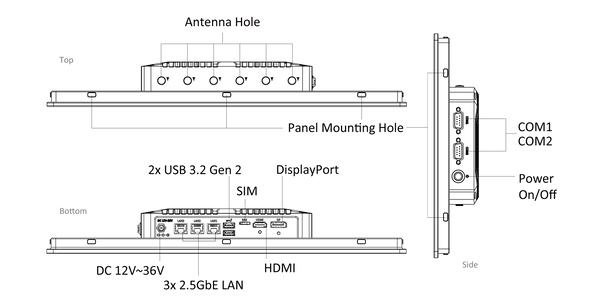

Mechanical Layout

Product Dimension

Unit:mm
