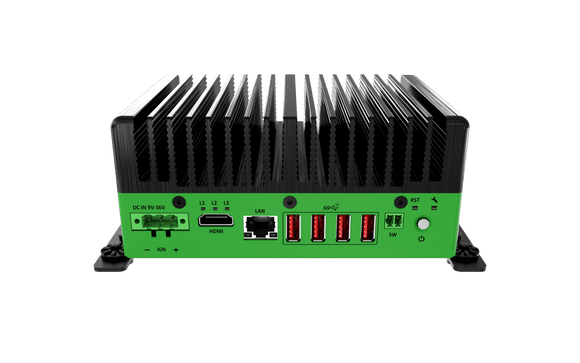

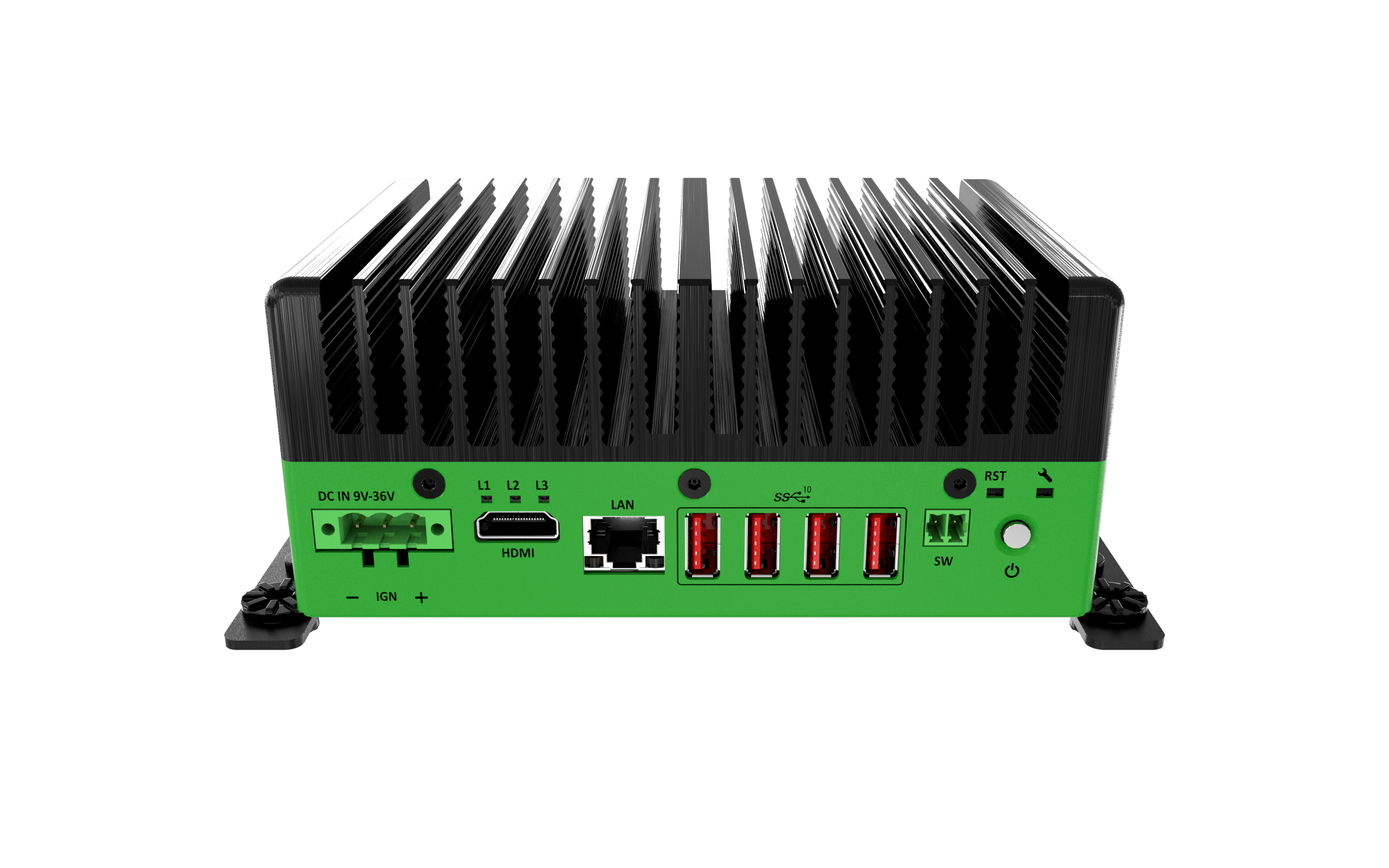

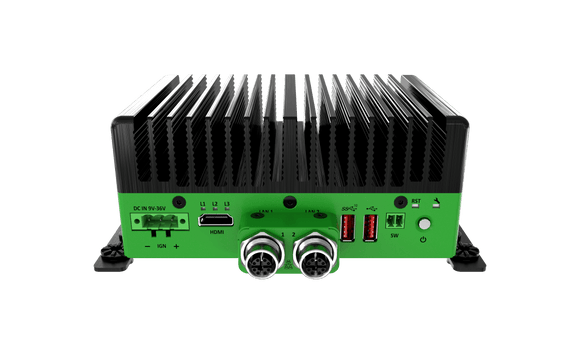

JCO-1000-ORN Series Entry-Level AI Edge Computer With NVIDIA Jetson Orin Nano & NX Processor

Featuring NVIDIA Jetson Orin NX (16GB/8GB) and Nano (8GB/4GB) Orin system-on-module (SOM), the JCO-1000 Series offers entry-level AI performance with up to 100 TOPS in the whole JCO series. With configurable power modes (7W to 25W), rugged design, NVMe data storage, and rich I/O, the JCO-1000-ORN is deployment-ready for the harshest conditions.

  • NVIDIA Jetson Orin NX & Nano Modules with 100 TOPS of AI Performance
  • 4x USB 3.2 Gen 2 (10 Gbps)
  • 4K Display
  • 1x External Dual Nano SIM socket
  • 8-bit Isolated DIO
  • CAN Bus
  • Built Rugged, Built Ready Fanless Design
  • World-Class Certification: CE, FCC, UL-Listed
Download Product Brief


Rugged Fanless

Ultra-Compact Size

Wide Temperature

Shock And Vibration Resistance

World Class Certifications

NVIDIA Jetson Orin NX Super & Orin Nano Super Modules

The NVIDIA Jetson Orin NX Super & Orin Nano Super deliver up to 157 TOPS of AI performance in the smallest Jetson form-factor, with power options between 7W and 40W, and can be widely deployed in various edge applications and industrial automation scenarios.The NVIDIA Super mode also provides MAXN SUPER power mode for peak performance and highest clock frequencies across CPU, GPU, DLA, and SOC engines.

Discover NVIDIA Jetpack 6.2 SDK

Orin NX Super
Module

70 - 157 TOPS
AI Performance

10 - 40W
TDP

AGV & AMR, Security & Surveillance
Applications

Orin Nano Super
Module

20 - 67 TOPS
AI Performance

7W - 25W
TDP

Edge Device IIoT
Applications

Built Super-Rugged. Built Ready.

The JCO-1000-ORN Series emphasizes its operational reliability and resilience for rugged edge deployments with a fanless and cableless design.

Wide Operating Temperature

Shock & Vibration Resistance

Resilience in vehicular and factory deployments

MIL-STD-810G

Power Protection

Withstanding unpredictable and abrupt power disruptions

Wide Power Input

Reliability in deployments with unstable power sources

Rich I/O for Edge AI and IoT

  • Built-in CAN Bus facilitates reliable communication in automotive and industrial environments
  • 1x 2.5GbE RJ45 delivers up to 2.5 times faster data transfer rates
  • 4x USB 3.2 Gen 2 offer high-speed data transfer, each up to 10 Gbps
  • 1x 4K HDMI provides high-definition video output for clear visual presentations and real-time data displays

High-Speed NVMe Storage

  • One high-speed PCIe x4 M.2 M Key with NVMe capabilities
  • Provide high-speed storage options for enhanced data transfer and system performance.

Isolated DIO Signal Transmission

The JCO-1000 Series is designed with 8-bit isolated DIO, providing essential digital signaling capabilities suitable for basic control and monitoring tasks. The 8-bit DIO offers electrical isolation, protecting the device and connected equipment from electrical surges and noise.

GMSL Cameras Support For Vision Systems

  • The JCO-1000-ORN-B supports 4x GMSL cameras for vision systems.
  • On-board quad port Fakra connectors for 4x GMSL cameras support
  • Purpose-built for in-vehicle vision systems, AMRs, and other smart city applications

Gain Remote Access by OOB Management Module

  • On-board Out-Of-Band (OOB) device management module accessed through 1x RJ45 (JCO-1000-ORN-A_1L)
  • Support Allxon 24/7 Edge AI device remote management with OOB disaster recovery solutions
Learn More

Wireless Connectivity

Gain wireless connectivity on JCO-1000-ORN through SIM cards, M.2 B Key and E Key.

  • 1 x External Dual Nano SIM socket for 5G, and 4G/LTE connectivity
  • M.2 E Key for Wi-Fi and Bluetooth

Versatile Mounting Options

The JCO-1000-ORN Series offers versatile mounting options with both wall mount and DIN rail mount capabilities.

Wall Mount

DIN-Rail Mount

Jetpack 6.2 SDK Support

JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, delivering cutting-edge performance for mission-critical applications.

  • JetPack 6.2 includes the latest Linux OS - Jetson Linux 36.4.3, Linux Kernel 5.15 and an Ubuntu 22.04-based root file system.
  • Super-mode configurations for Jetson Orin NX and Jetson Orin Nano allow tailored compute throughput and energy efficiency on JCO-3000-ORN and JCO-1000-ORN Series.
  • Enhanced Libraries, APIs & Developer Tools such as NVIDIA CUDA Toolkit 12.6, NVIDIA TensorRT 10.3, NVIDIA cuDNN 9.3, NVIDIA VPI 3.2 for advanced computer vision, optimized deep learning inference, and better sensor integration.
Learn More


World-Class Safety Certifications

Engineered for industrial-grade reliability, the JCO-1000 Series is tested and validated with world-class safety certifications, making it a reliable choice for industrial applications worldwide.

Explore UL Certification
