JCO-1000-ORN-A_1L Entry-Level AI Edge Computer with NVIDIA Jetson Orin™ NX Super/Nano Super
JCO-1000-ORN-B_2L Entry-Level AI Edge Computer with NVIDIA Jetson Orin™ NX Super/Nano Super

Coming Soon

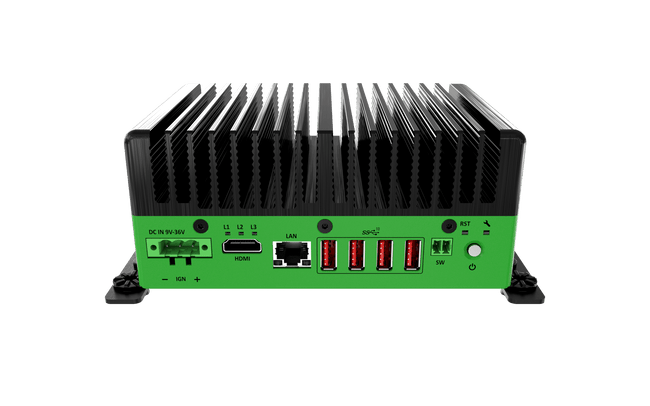

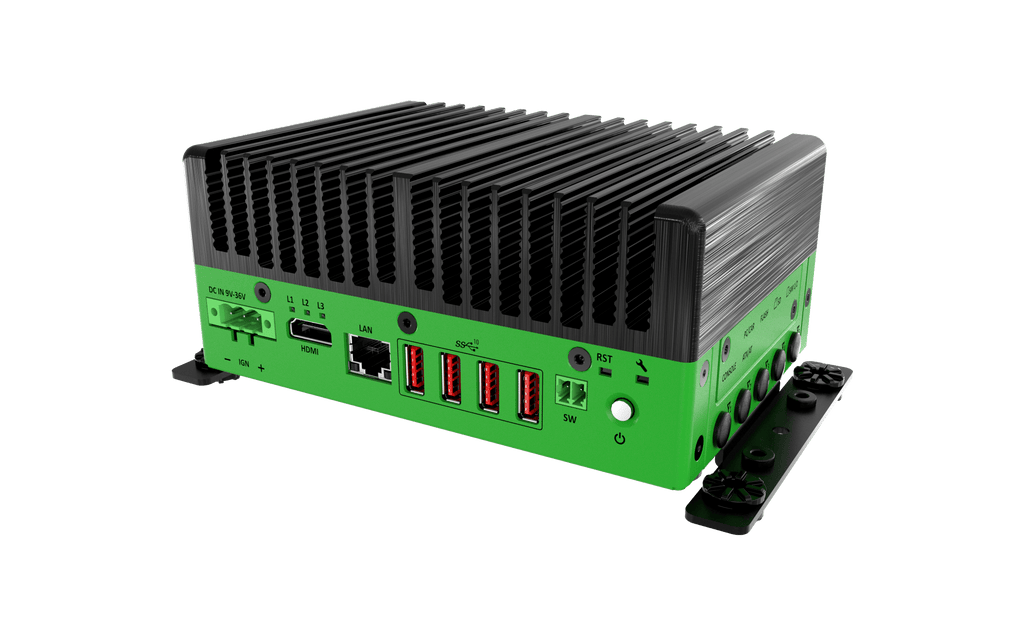

JCO-1000-ORN-A_1L Entry-Level AI Edge Computer with NVIDIA Jetson Orin™ NX Super/Nano Super

  • NVIDIA® Jetson Orin™ NX Super 8GB/16GB or Nano Super 8GB/4GB GPU with 32 Tensor Cores
  • 1x HDMI 2.0, 3840 x 2160 @ 60Hz
  • 1x GbE LAN
  • 1x External Dual Nano SIM socket
  • 1x M.2 (M Key, 2242/2280, PCIex 4, NVMe Storage) (128GB Default)
  • 4x USB 3.2 Gen 2, 1x USB Type-C (For OS Flash)
  • 4x DI + 4x DO with isolation
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -20°C up to 60°C
See Datasheet

Certifications:

NVIDIA Jetson


Rugged Fanless

Ultra-Compact Size

Wide Temperature

Shock And Vibration Resistance

World Class Certifications

NVIDIA Jetson Orin NX & Nano Super Modules

The NVIDIA Jetson Orin NX Super & Nano Super modules deliver up to 157 TOPS of AI performance in the smallest Jetson form-factor, with power options between 7W and 40W.

  • Jetson Orin NX Super & Nano Super Module
  • Up to 157 TOPS AI Performance
  • 7 – 40W TDP
  • AMRs, vision sensors, and embedded AI systems

Built Rugged, Built Ready for Edge AI

The JCO-1000 series is engineered for industrial-grade durability, ensuring reliable performance under harsh conditions.

  • Wide Operating Temperature (-20°C to 60°C)
  • Shock & Vibration Resistance (MIL-STD-810G Compliant)
  • TPM 2.0
  • Power Protection: OVP, OCP, and RPP

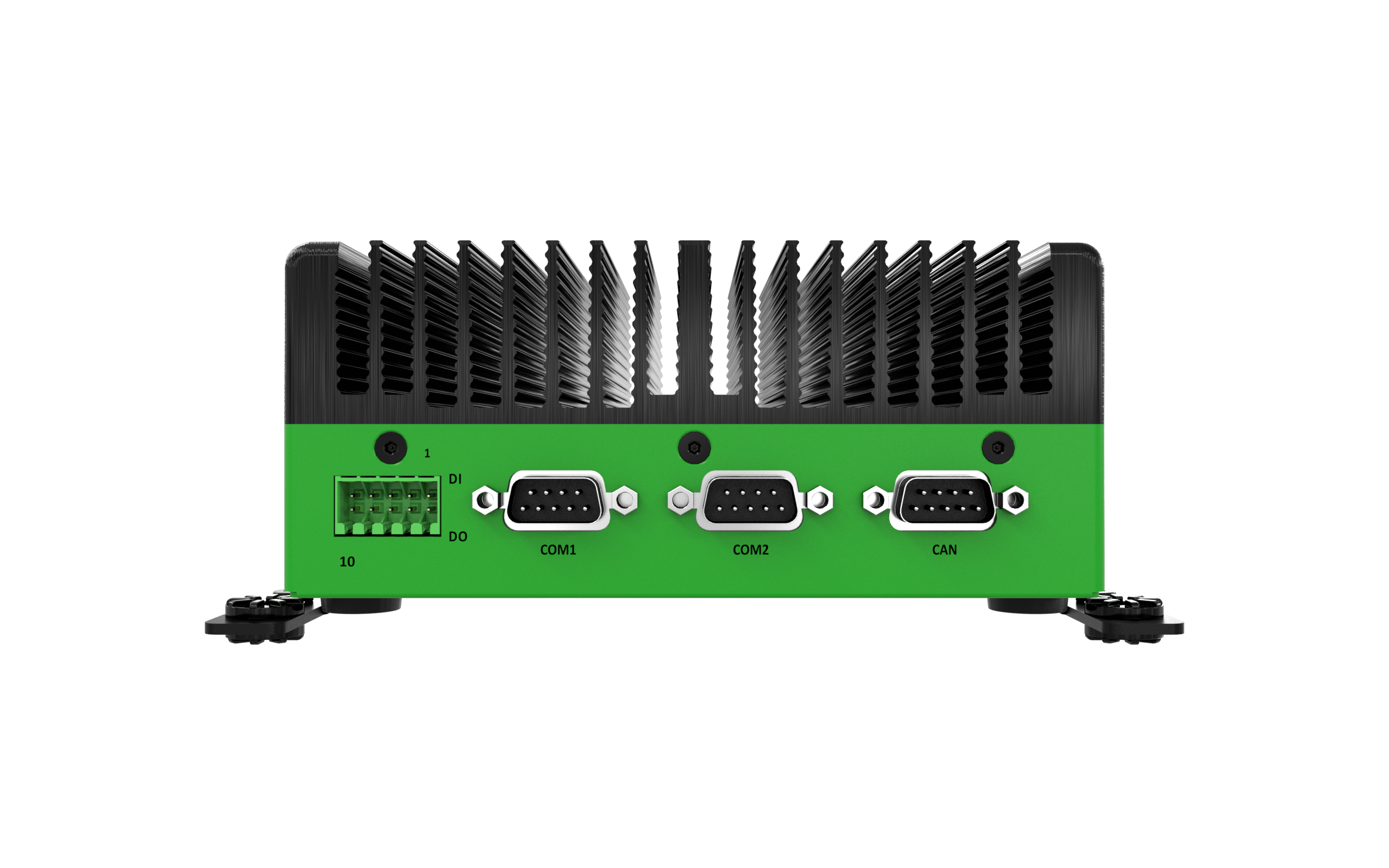

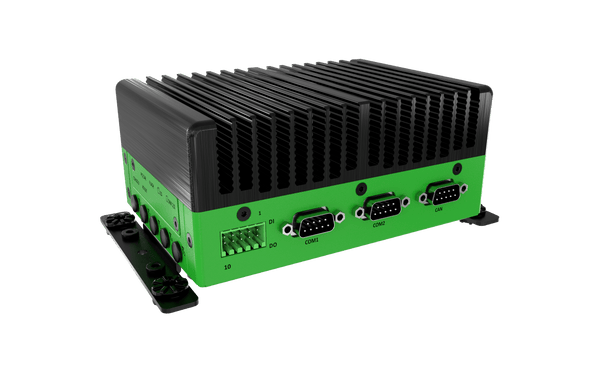

Rich I/O for Edge AI and IoT

• Built-in CAN Bus
• 1x 2.5GbE RJ45
• 4x USB 3.2 Gen 2 (10 Gbps each)
• 1 x 4K HDMI
• Dual Serial Port

High-Speed NVMe Storage

  • One high-speed PCIe x4 M.2 M Key with NVMe capabilities
  • Provide high-speed storage options for enhanced data transfer and system performance.

Isolated DIO Signal Transmission

The JCO-1000 Series is designed with 8-bit isolated DIO, providing essential digital signaling capabilities suitable for basic control and monitoring tasks.

Wireless Connectivity

Gain wireless connectivity on JCO-1000-ORN through SIM cards, M.2 B Key and E Key.

  • 1 x External Dual Nano SIM socket for 5G, and 4G/LTE connectivity
  • M.2 E Key for Wi-Fi and Bluetooth

Versatile Mounting Options

The JCO-1000-ORN Series offers versatile mounting options with both wall mount and DIN rail mount capabilities.

Wall Mount

DIN-Rail Mount

Jetpack 6.2 SDK Support

JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, latest Linux OS, and enhanced libraries, APIs & developer tools, delivering cutting-edge performance for mission-critical applications.



Beyond the Network: Out-Of-Band Management

Gain easy and reliable 24/7 remote management for your edge deployments even when the OS is unresponsive. Utilizing the Allxon Portal (a secure cloud-based management platform from Allxon), IT teams are able to tap into:

  • Dedicated RJ45 port for secure, hardware-level access,
  • Control hardware at the BIOS level for power cycling and troubleshooting
  • Recover systems remotely even when the OS or main network is down
  • Manage devices centrally across distributed edge mesh network deployments

* Barebone Pricing Only; Sales team to review component configuration and price

Interested In
JCO-1000-ORN-A_1L?

Contact Us

Specification

System
Processor - NVIDIA® Jetson Orin™ NX Super/Nano Super GPU with 32 Tensor Cores
• 16 GB: 1024-core NVIDIA Ampere architecture GPU (40W/157 TOPS)
• 8 GB: 1024-core NVIDIA Ampere architecture GPU (40W/117 TOPS)
• 8 GB: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS)
• 4 GB: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS)
LAN Chipset RJ45 GbE: RGMII
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
HDMI 1x HDMI 2.0, 3840 x 2160 @ 60Hz
Storage
M.2 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB)
SD 1x Micro SD Slot
SIM Socket 1x External Dual Nano SIM socket (Attached to M.2 B Key)
Expansion
M.2 1x M.2 (B Key, 2242/3042/3052, PCIe x1, USB 3.2 Gen1, Support 4G/5G Module)
1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth)

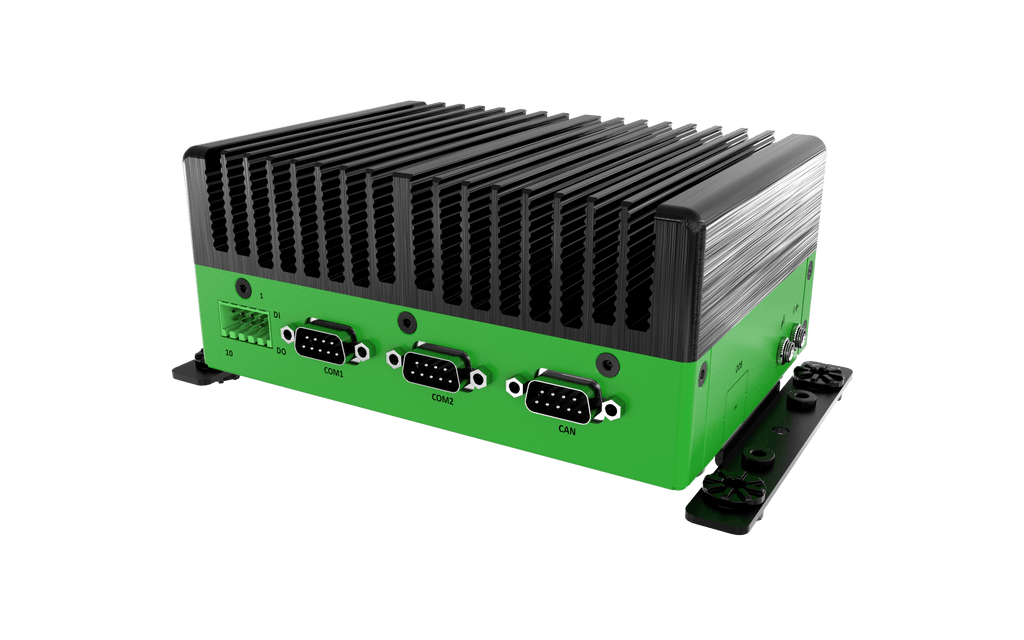

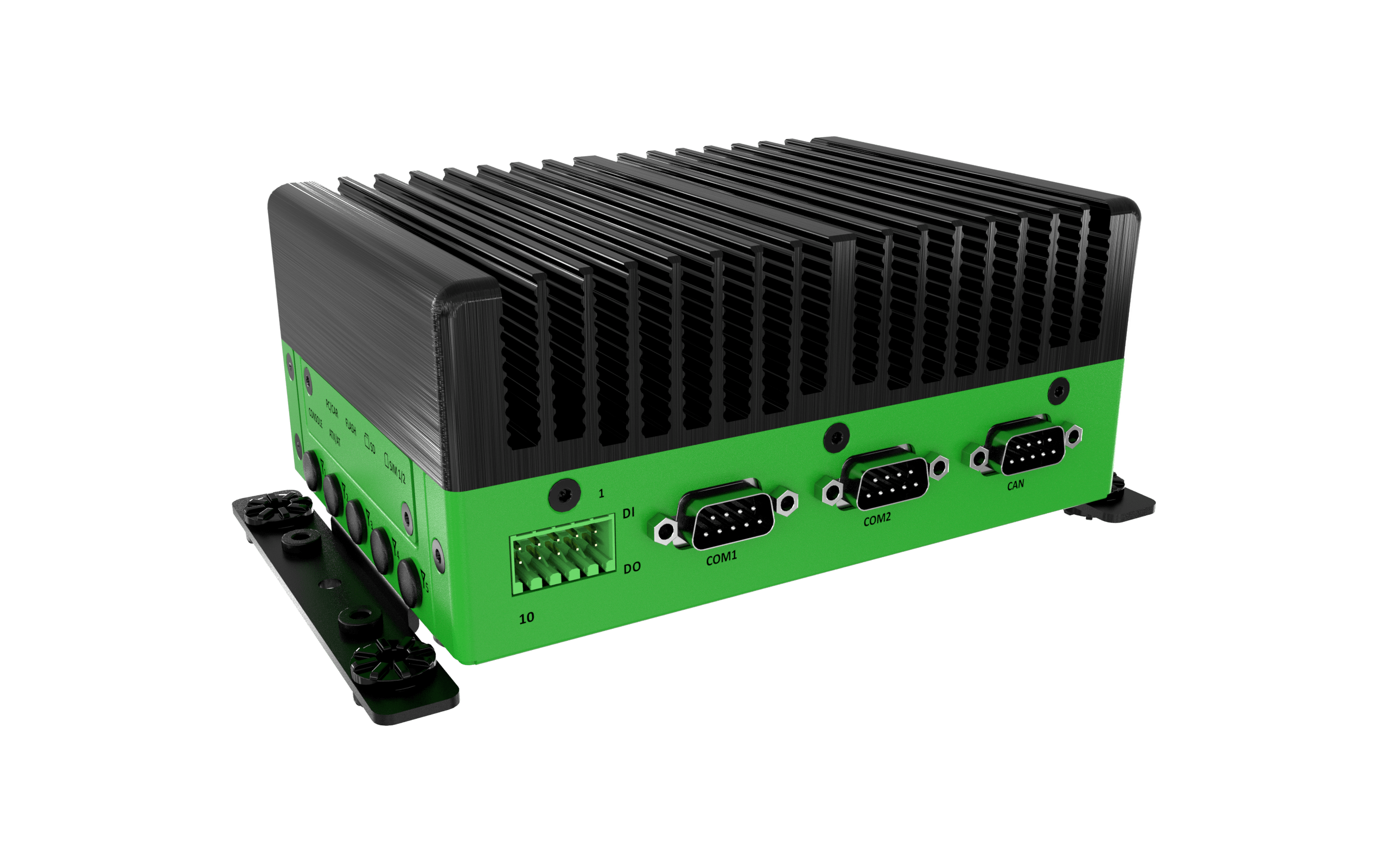

I/O

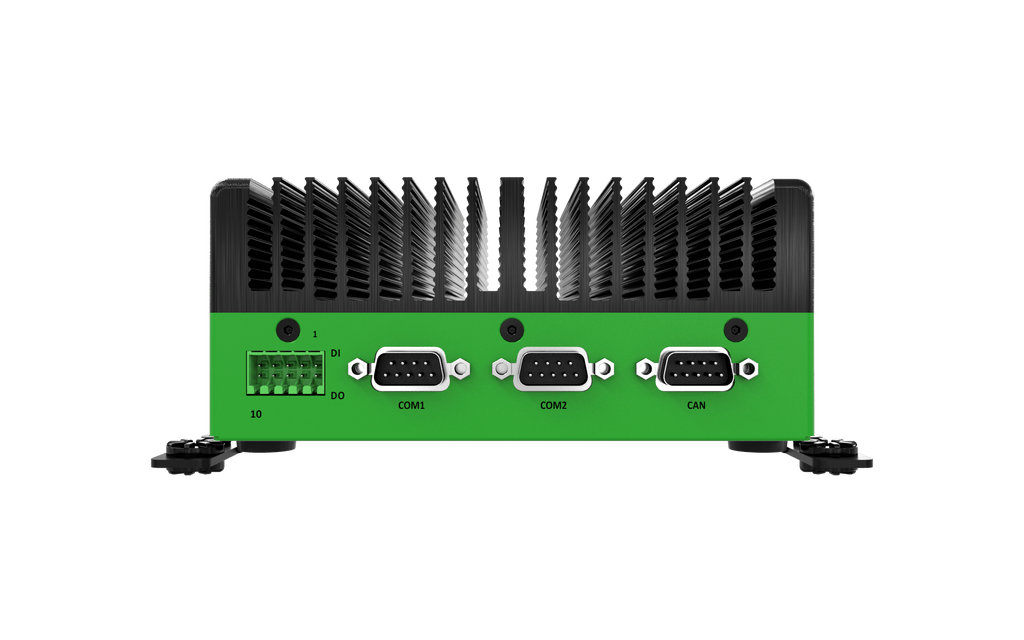

CAN CAN 2.0 B
COM 2x RS-232/422/485
DIO 4 in / 4 out (Isolated)
LAN 1x GbE RJ45

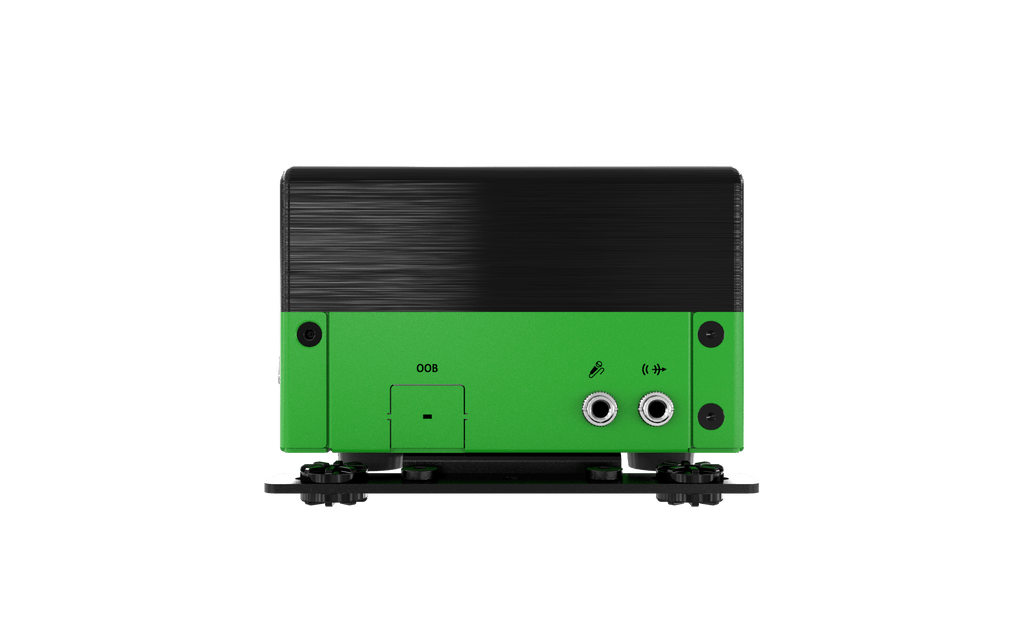

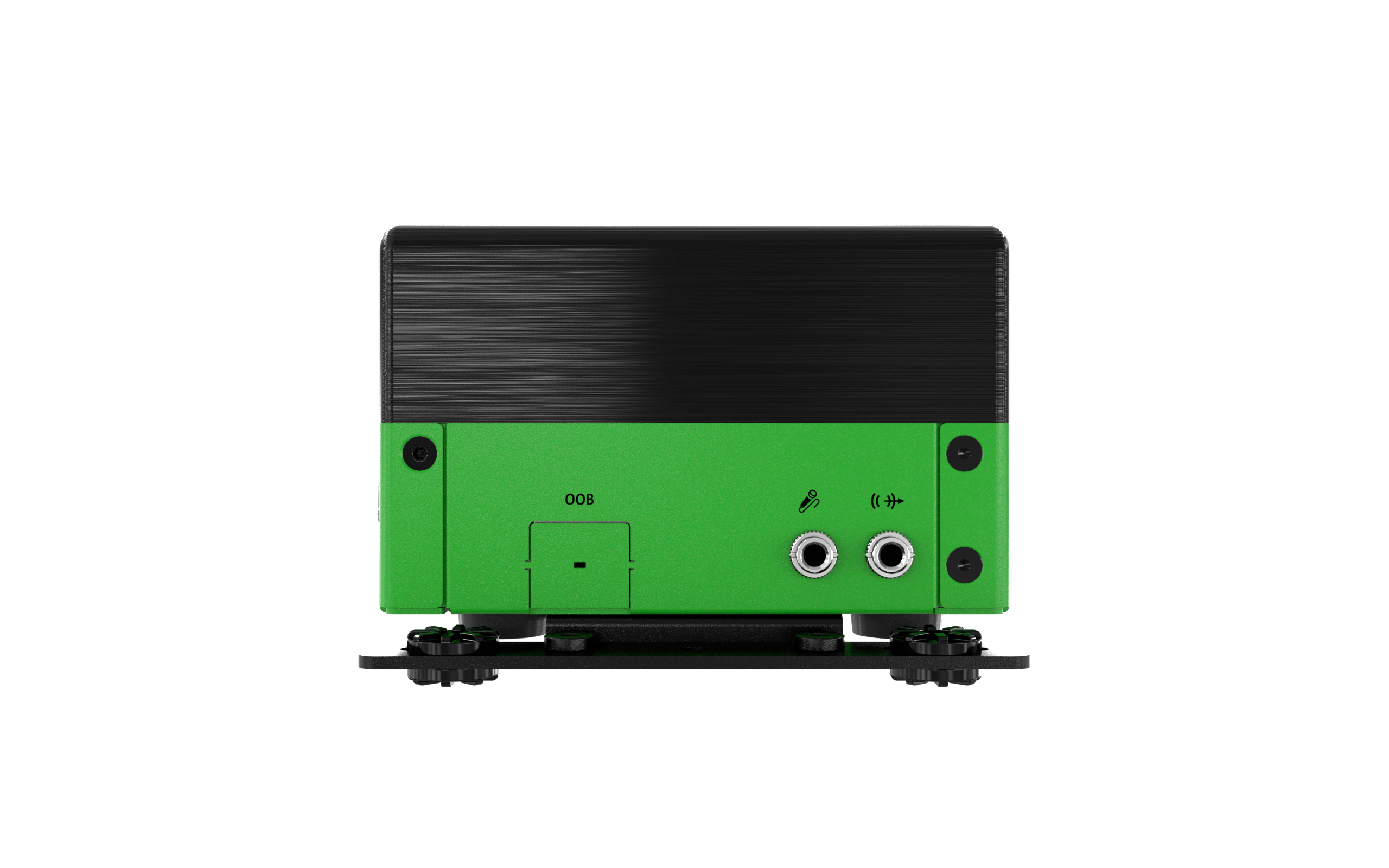

OOB 1x RJ45 (Optional OOB Management Module, Occupied 1x COM & Micro USB Console Port)
USB 4x USB 3.2 Gen 2 (10 Gbps)
1x USB Type-C (For OS Flash)
1x Micro USB (Console)
LED 3x LED
LED 1 : Programmable LED (Blue Color)
LED 2 : Programmable LED (Blue Color)
LED 3 : Programmable LED (Red Color)

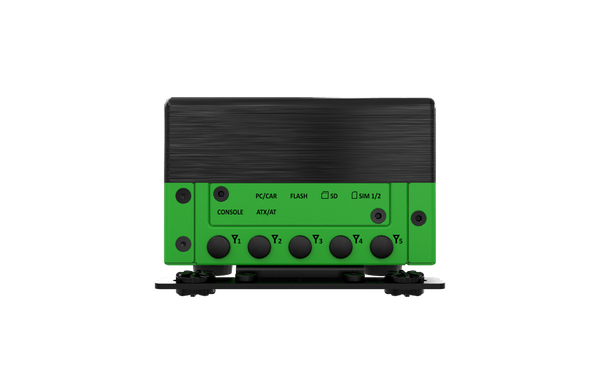

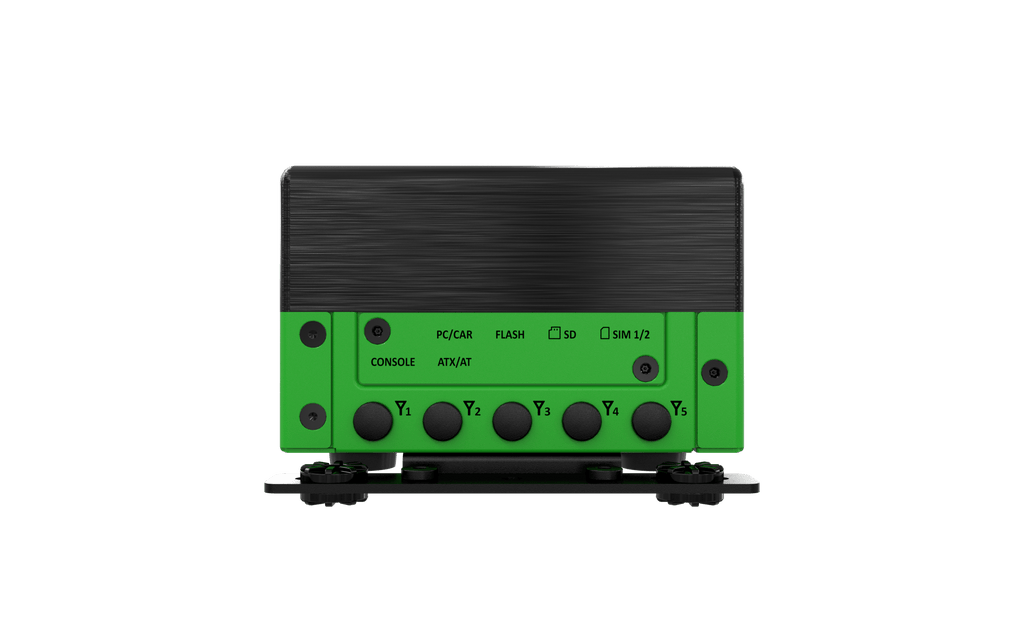

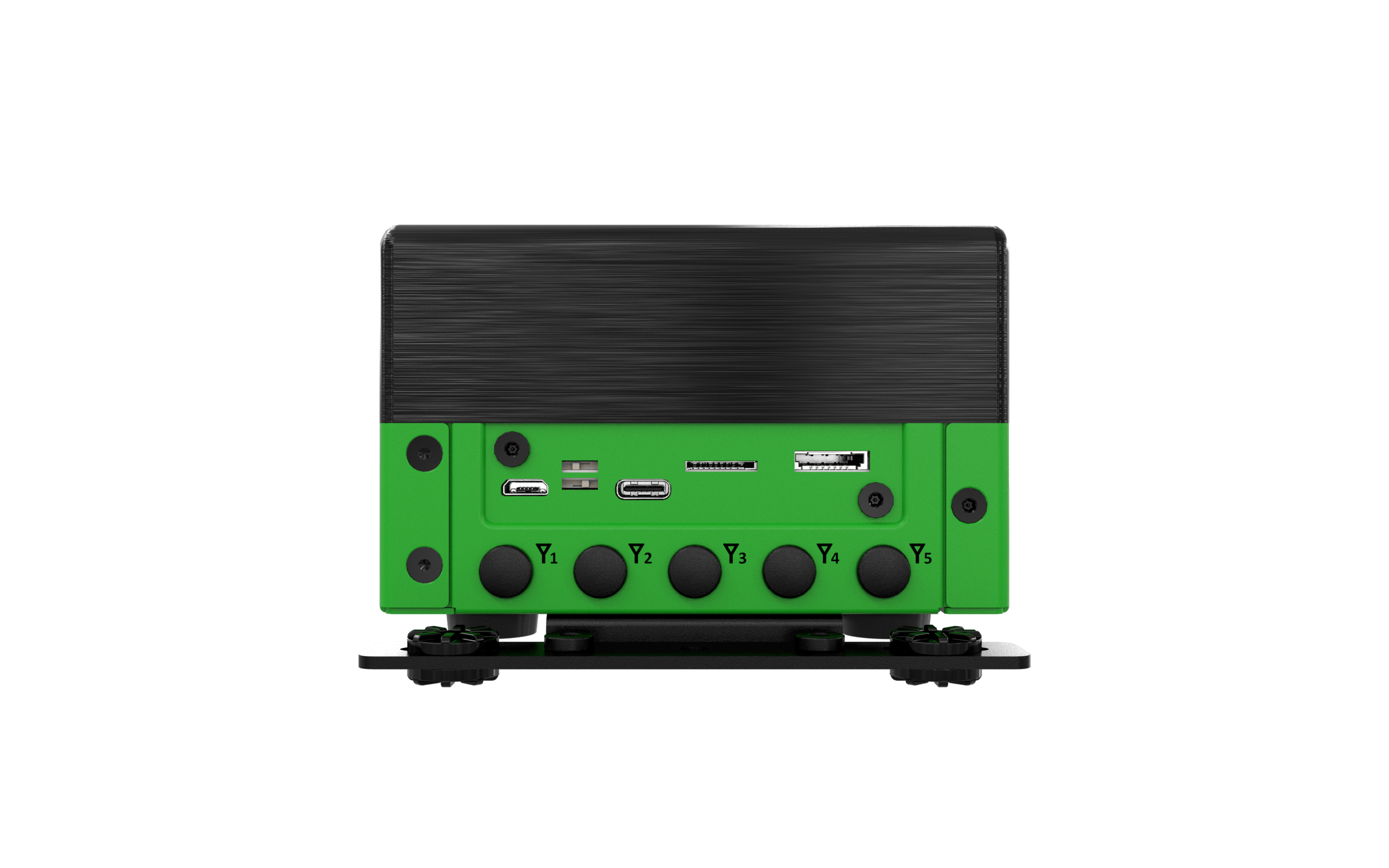

Others Service Panel:
• 1x Micro USB (For Console)
• 1x USB Type-C (For OS Flash)
• 1x PC/CAR Mode Switch
• 1x AT/ATX SW
• 1x Micro SD Slot
• 1x Dual SIM Slot

5x WiFi Antenna Holes
1x Power Switch and 1x Reset Switch,
1x 2P Terminal Block for Remote SW
1x CMOS Battery Cable
1x 4-Pin FAN Connector
1x MIPI CSI-2 22-Pin Connector
1x MIPI CSI-2 15-Pin Connector
Intregated RTC
Audio 1x Mic-in, 1x Line-out
Operating System
Linux Linux Ubuntu 22.04 with JetPack 6.2
Power
Power Adapter Optional AC/DC 24V/5A, 120W
Power Mode AT, ATX
Power Ignition Sensing Adjustable Power Ignition Management
Power Supply Voltage DC IN 9~36V
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection);

OCP (Over Current Protection)

Reverse Protection
Environment
Operating Temperature -20°C to 60°C (15W)
-20°C to 55°C (25W)
-20°C to 40°C (40W)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class B, UL 62368-1, 3rd Ed., RoHS 3.0, REACH
Vibration With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 50G half-sin 11ms
Physical
Dimension 150 (W) x 105 (D) x 65 (H) mm
Weights 1.1kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

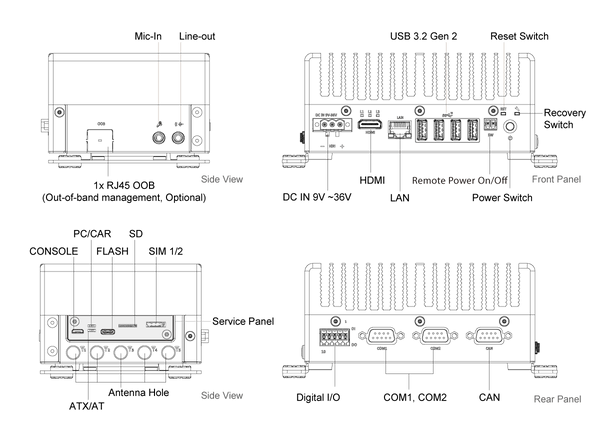

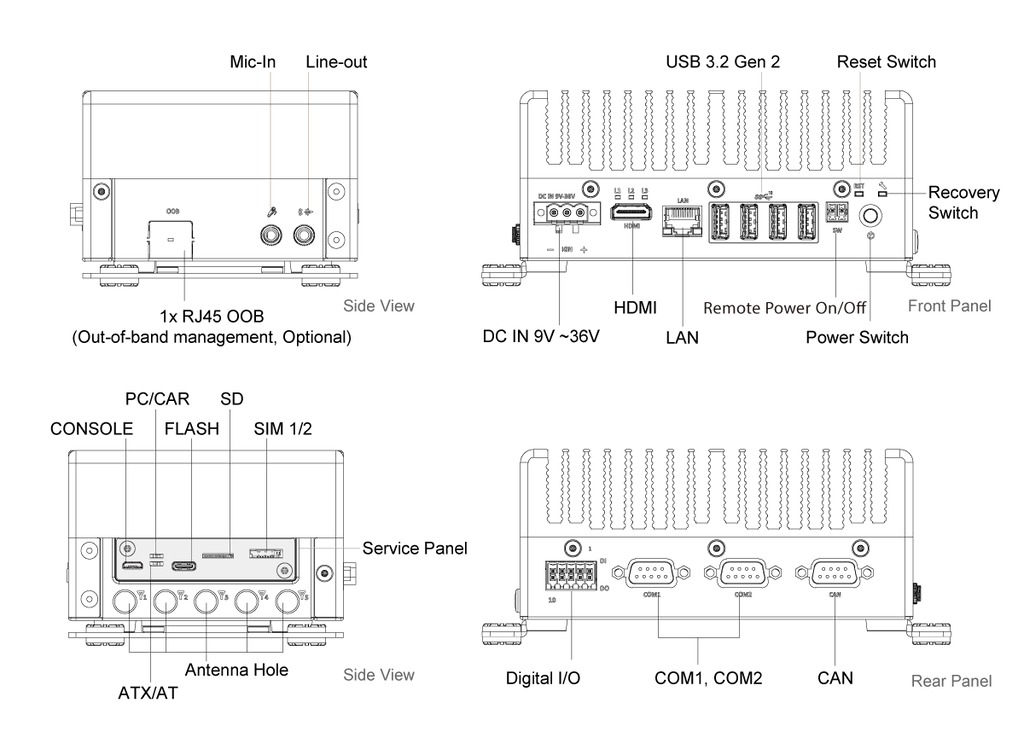

Mechanical Layout

Product Dimension

Unit:mm
