JCO-6000-ORN Series High-Performance AI Edge Computer with Nvidia Jetson AGX Orin Processor
Featuring NVIDIA Jetson AGX Orin 32GB/64GB system-on-module (SOM), the JCO-6000 Series offers exceptional AI performance with up to 275 TOPS. With configurable power modes (40W to 60W), rugged design, NVMe data storage and modular I/O, it meets the demands of edge computing in the harshest conditions.
- Powerful Edge AI Computer with Nvidia Jetson Orin AGX Modules (275 TOPS)
- EDGEBoost I/O Modules for USB3 Locking, PoE and GigE Vision Cameras
- 8x Mini-Fakra connectors for GMSL Cameras
- RJ45 Out-of-Band Port for remote management
- CAN Bus and Power ignition Management
- Built Rugged. Built Ready Fanless Design
- World-Class Certifications: UL-Listed Pending, FCC, CE
Rugged Fanless
Maximized Expandability
Wide Temperature
Shock And Vibration Resistance
World Class Certifications
Products:
Regular price total regular price: $0.00
Regular price total regular price: $0.00
 JCO-6000-ORN-A |
 JCO-6000-ORN-B |
|
|---|---|---|

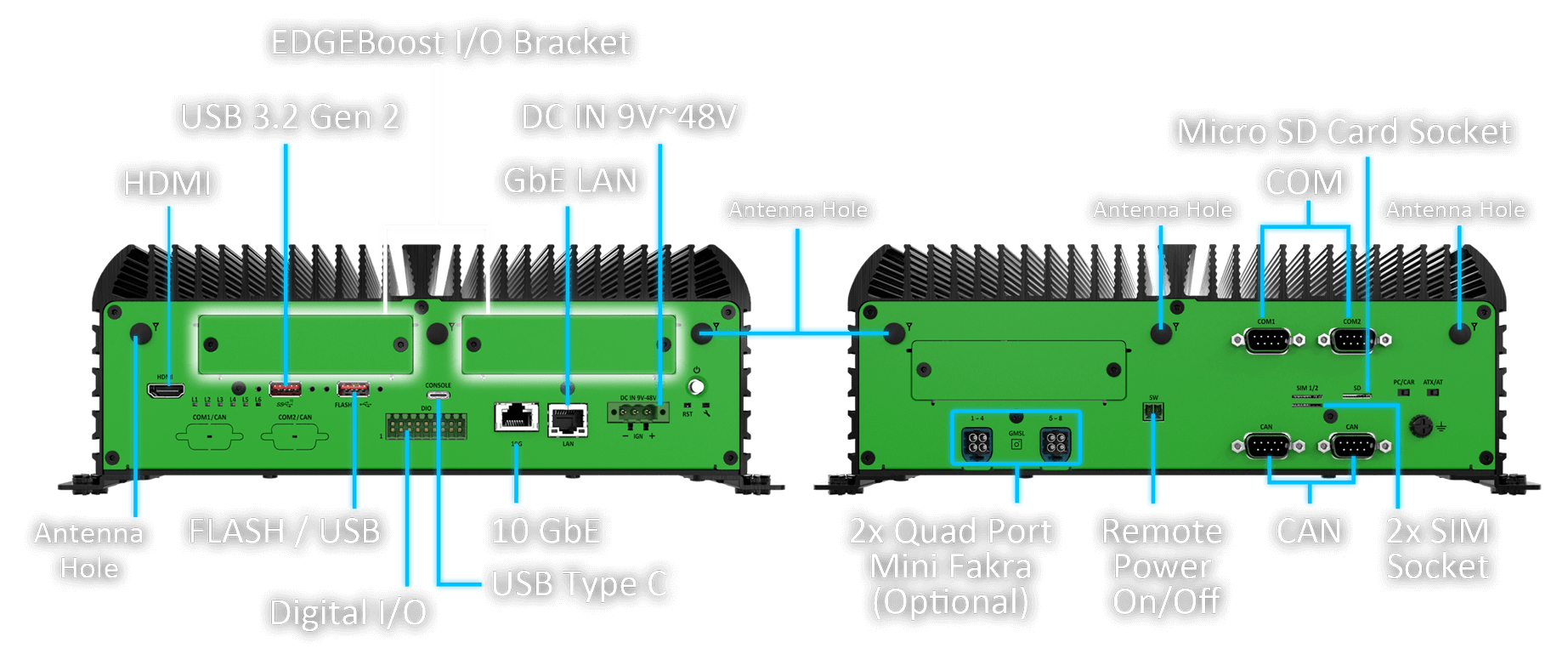

| Processor | NVDIA Jetson AGX Orin™ AI Computer with 8-core/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU | |
| Memory | AGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM | |
| Display | 1x HDMI, 3840 x 2160 @ 60Hz | |
| Storage | 1x eMMC 5.1, 64 GB, 1x M.2 (M Key, 2242/2260/2280, PCIe x4, Support NVMe), 1x Micro SD Socket, 2x Micro SIM Sockets | |
| I/O | 2x CAN, 2x RS-232/422/485, 2x RJ45, 1x USB 3.2 Gen 2, 1x USB 2.0 ( Flash) 1x USB Type C (Console) | 2x CAN (Optional, internal), 2x RS-232/422/485 (Optional, internal), 2x RJ45, 1x USB 3.2 Gen 2, 1x USB 2.0 ( Flash) 1x USB Type C (Console) |
| EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket | 4x EDGEBoost I/O Bracket |
| Internal Expansion Slot | 1x M.2 (B Key, 3042/3052, USB 3.2 Gen 2, Support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) | |
| GMSL Camera | GMSL 2 Camera Support by 2x Quad Port Mini Fakra, supporting 8x 1280x720 @ 30 FPS (Optional) | |
| OOB | 1x RJ45 (OOB Management Module, Optional, Occupied 1x EBIO Bracket) | |
| Power | 9 to 48 VDC, AT/ATX Select, 3-pin Terminal Block | |
| Operating Temperature | -20°C to 55°C with passive cooling (at full CPU & GPU frequency with 0.6 m/s, non-throttling, 60W TDP mode) | |
| Shock & Vibration | With SSD: 50G, half sine, 11ms With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis | |
| Certification | CE, FCC Class A, UL Pending, E-Mark, EMC Conformity with EN50155 & EN50121-3-2 | |
| Dimensions | 270 (W) x 190 (D) x 95 (H) mm | |
NVIDIA Jetson Orin AGX Module
AGX Orin is the flagship model within the Jetson Orin lineup, designed for demanding AI applications such as autonomous vehicles, robotics, industrial automation, and video surveillance. Provides powerful processing capabilities suitable for applications that require real-time AI inference, sensor fusion, and high-performance computing.
| Jetson AGX Orin Series | ||
|---|---|---|
| Jetson AGX Orin 64GB | Jetson AGX Orin 32GB | |
| AI Performance | 275 TOPS | 200 TOPS |
| GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Power | 15W - 60W | 15W - 40W |
Built Rugged, Built Ready for Edge AI
The JCO-6000-ORN is manufactured with an industrial-grade fanless design to ensure reliability in the harshest environments.
- Wide Operating Temp. (-20°C to 60°C)
- Shock & Vibration Resistant (MIL-STD-810G Compliant)
- Wide Power Input (9~48VDC, optional 48~110VDC)
- TPM 2.0
EDGEBoost I/O: Mix & Match Modularity
JCO-6000-ORN Series features EDGEBoost I/O modules to mix & match for the best AI performance. Designed with 2 or 4 EDGEBoost I/O brackets, the JCO-6000-ORN is configuration-ready for additional connection and flexible connectivity options to meet versatile deployment requirements.
EBIO-4U3L
EBIO-4U3
EBIO-4ETH
EBIO-4ETH-POE-M12
EBIO-M2MK
EBIO-D10G
EBIO-4U3L
USB 3 Vision module enables up to 4 dedicated USB 3.2 Gen 1 with locking screws, each having a transfer speed of 5 Gbps.
- Offer exceptional speed
- The highest bandwidth capacity available among competitors in the market
EBIO-4U3
Add 4x USB 3.0 Type A Ports for IoT devices connectivity and more.
- Independent 1.5A over-current protection (OCP) for each port
EBIO-4ETH
Additional peripheral connectivity through 4 LAN ports for IoT devices.
- 4x RJ45 1GbE LAN Ports
- Intel® Ethernet Controller i350
EBIO-4ETH-POE-M12
Streamline ruggedized IoT connections with 4 Power-over-Ethernet LAN ports in M12 locking connectors. Power-over-Ethernet (PoE) provides power and data through a single cable connection for a seamless embedded setup.
- 4x 1GbE LAN M12 Ports with PoE
- Intel® Ethernet Controller i350
- Supports Power-over-Ethernet (up to 25.5 watt per port)
EBIO-M2MK
Enable unparalleled data transfer speeds or real-time-edge AI inferencing with single-slot M.2 M-Key EDGEBoost I/O.
- 1x M.2 M-Key 2242/2260
- M.2 Edge AI Accelerators
- M.2 NVMe Storage
EBIO-D10G
Deliver data-center class performance to the rugged edge with 10GbE data transfer speeds for real-time data aggregation.
- 2x RJ45 10GbE LAN
- Intel Ethernet Controller X710-AT2

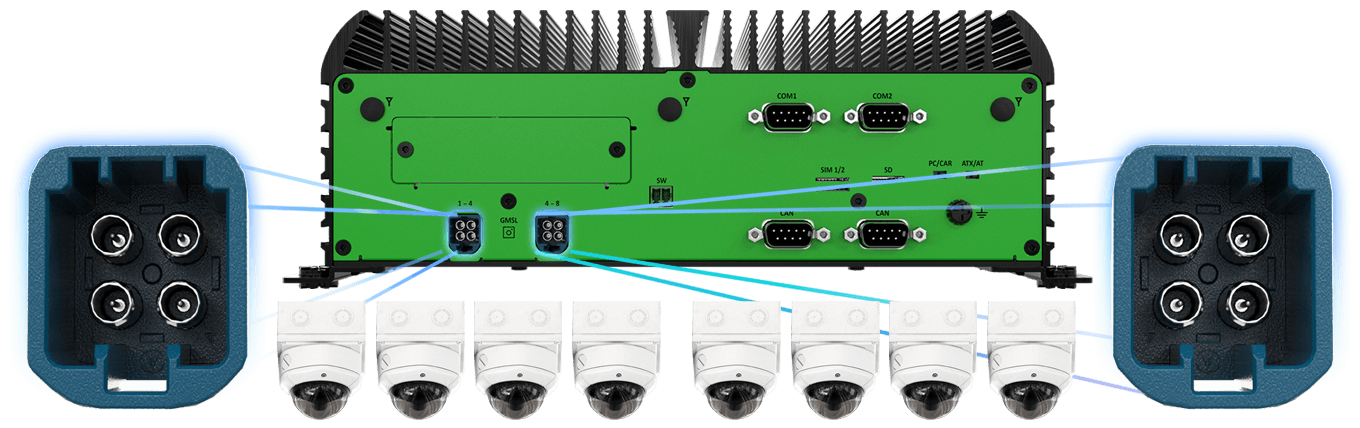

High-speed Vision Camera support
The JCO-6000-ORN can support up to x8 GMSL Cameras through its on-board mini-FAKRA connectors for low-latency, long-distance data feed with 15m length cables, which harnesses the capability to connect multiple cameras simultaneously for advanced surveillance perception and imaging applications.
Additionally, Power over Ethernet (PoE) and USB Vision compatibility supported by EDGEBoost I/O modules allow users to easily integrate various camera types, further expanding the system's versatility and suitability for a wide range of surveillance and imaging tasks. Unable to load the textbox
Cameras Supported
GMSL
|
GigE
|
USB 3.0
|
MIPI CSI-2
|
|
|---|---|---|---|---|
| Data Transfer Speed | Up to 12 Gb/s | 1 Gb/s | 5 Gb/s | 1 to 5 Gb/s |
| Cable Length | 3 to 15m | 60-100m | Extended to 18m | Standard is 30cm |
| Connectivity | Automotive and industrial focused | Used in industrial and IT environment | Universal, supports many devices | Primarily mobile and embedded devices |
| Power Delivery | Power over coaxial (limited) | Requires separate power | Power delivery (up to 100W for USB-C) | Low power usage |

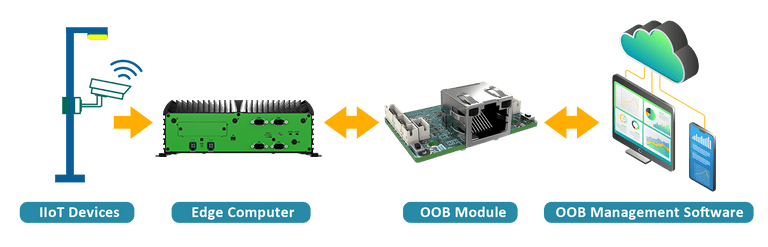

Remote Mangement and Wireless Connectivity
Gain remote management and wireless connectivity on JCO-3000-ORN through Out-of-Band (OOB) module, SIM card, M.2 B Key and E Key.
- On-board Out-Of-Band (OOB) device management module accessed through 1x RJ45
- Allows remote device management of Edge AI deployments with 24/7 monitoring and management features
- Dual Micro SIM slots for 5G & 4G/LTE connectivity
- WiFi and Bluetooth
High-Speed NVMe Storage
- One high-speed PCIe x4 M.2 M Key with NVMe capabilities
- Provide high-speed storage options for enhanced data transfer and system performance.
Industrial Automation Ready
Engineered for intelligent automation, JCO-6000-ORN offers comprehensive functionality with isolated CAN FD, power ignition management, and DIO (8 Digital Input/ 8 Output) ports.
- CAN FD for reliable communication in automotive and industrial environments.
- Power ignition managment
- Isolated DIO for flexible control over external devices and sensors
World-Class Safety Certifications
At Premio, we pride ourselves in providing competent edge computing solutions that deliver reliable performance while deployed in challenging industrial environments. Our flagship line of rugged-edge computers has achieved UL Listed and has been rigorously tested and validated for safety standards compliance.
- UL Listed (Pending)
- FCC
- CE
- E-Mark
- EMC-Conformity including EN 50155
- Test procedure: CB Scheme
