Preliminary

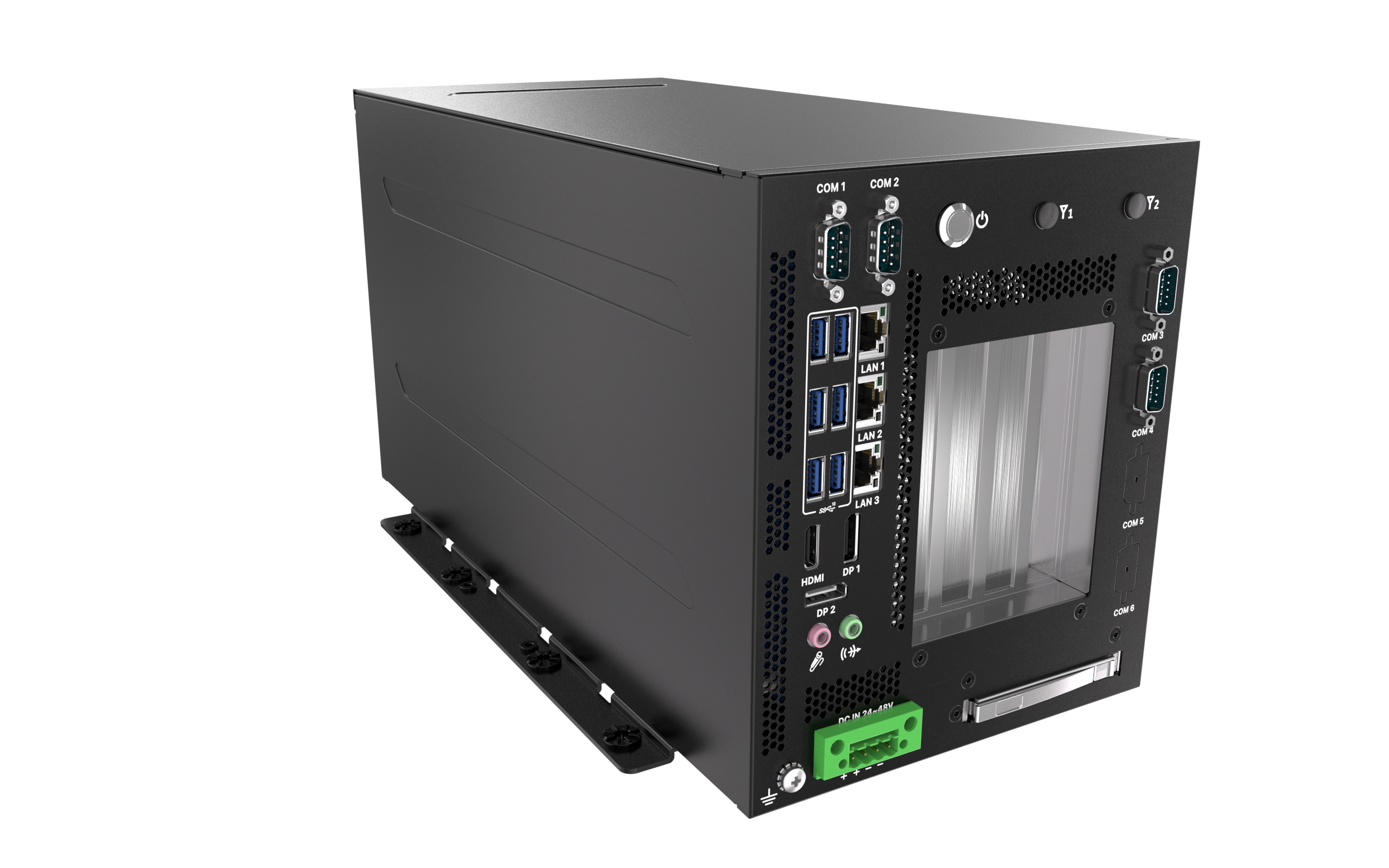

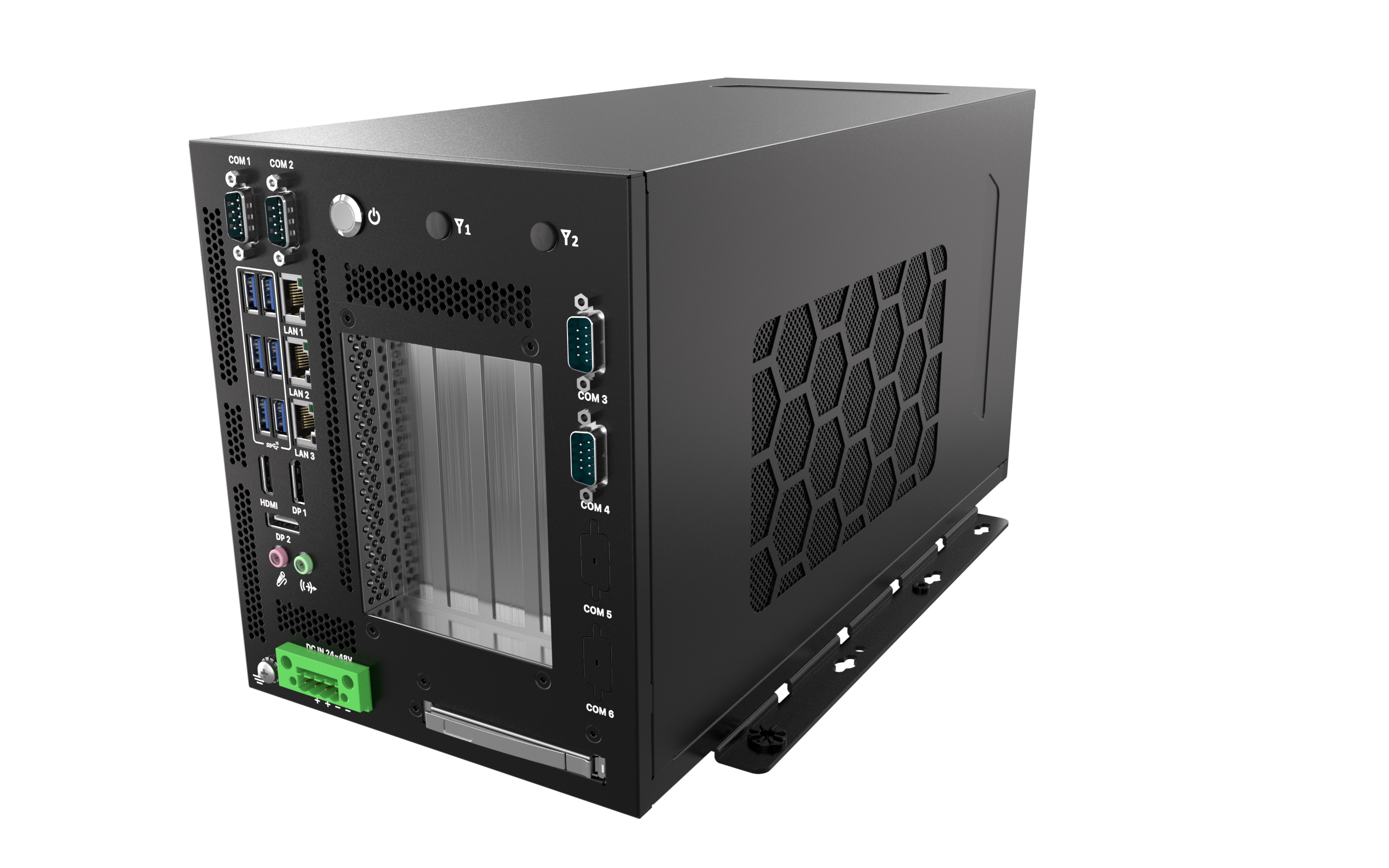

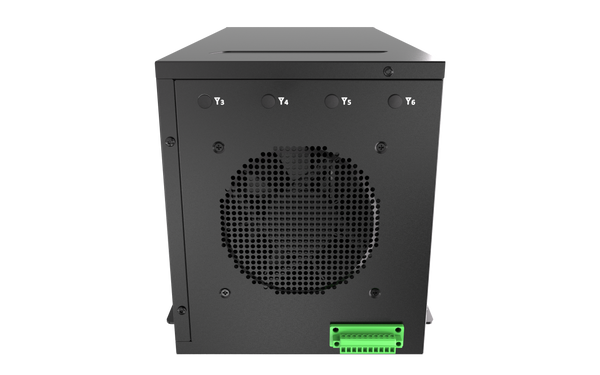

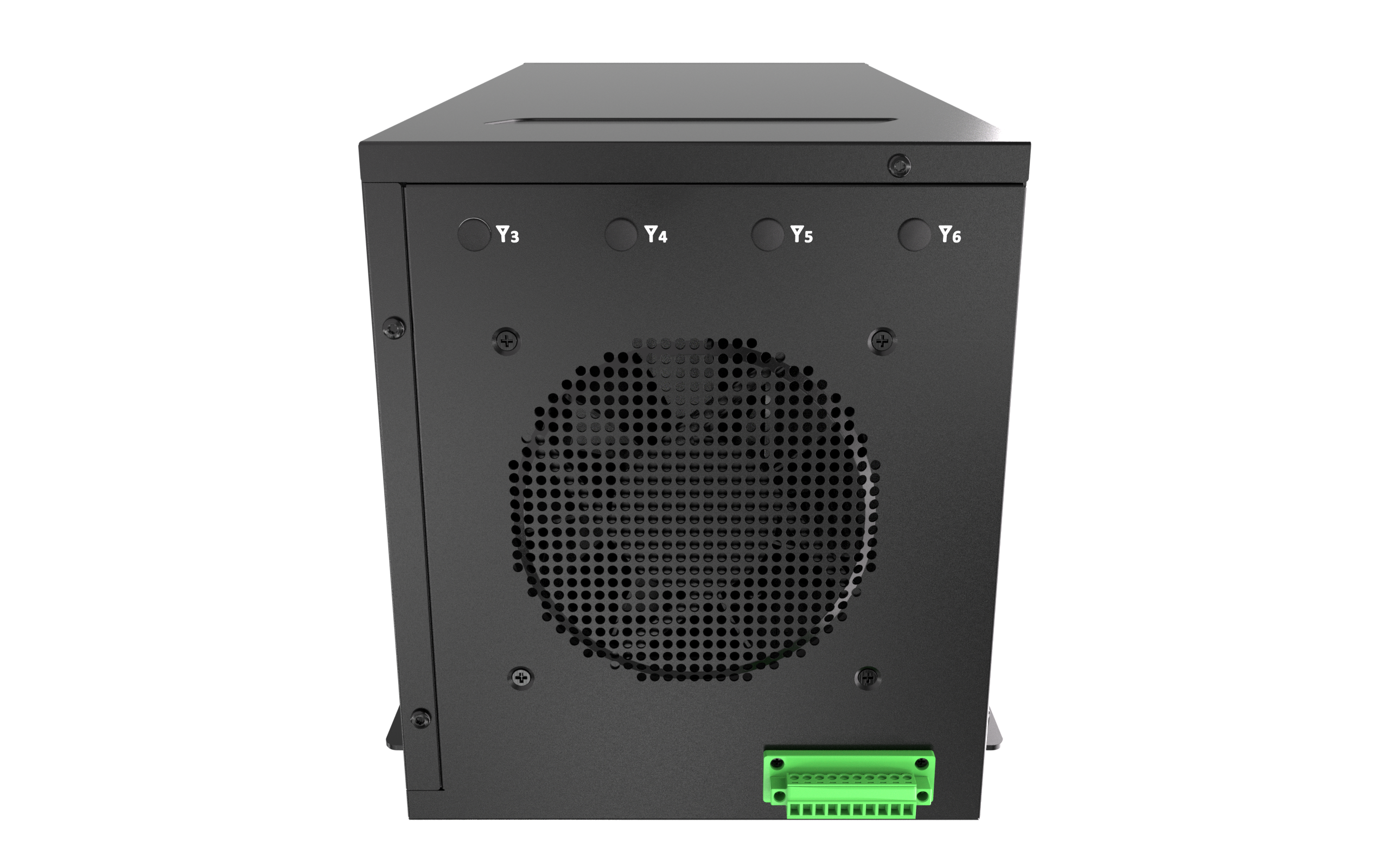

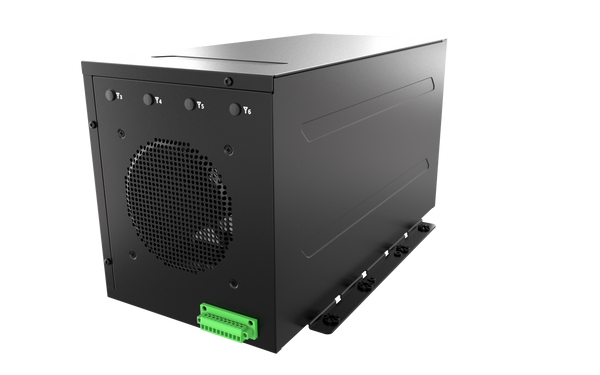

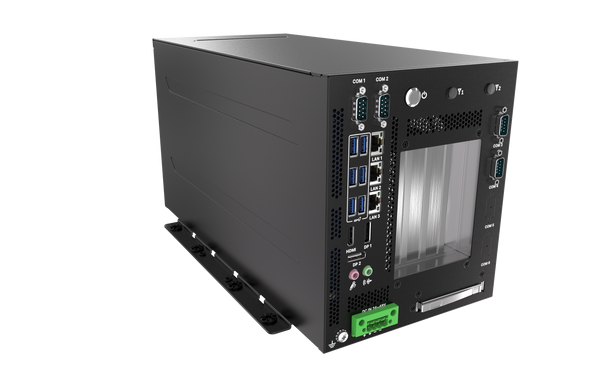

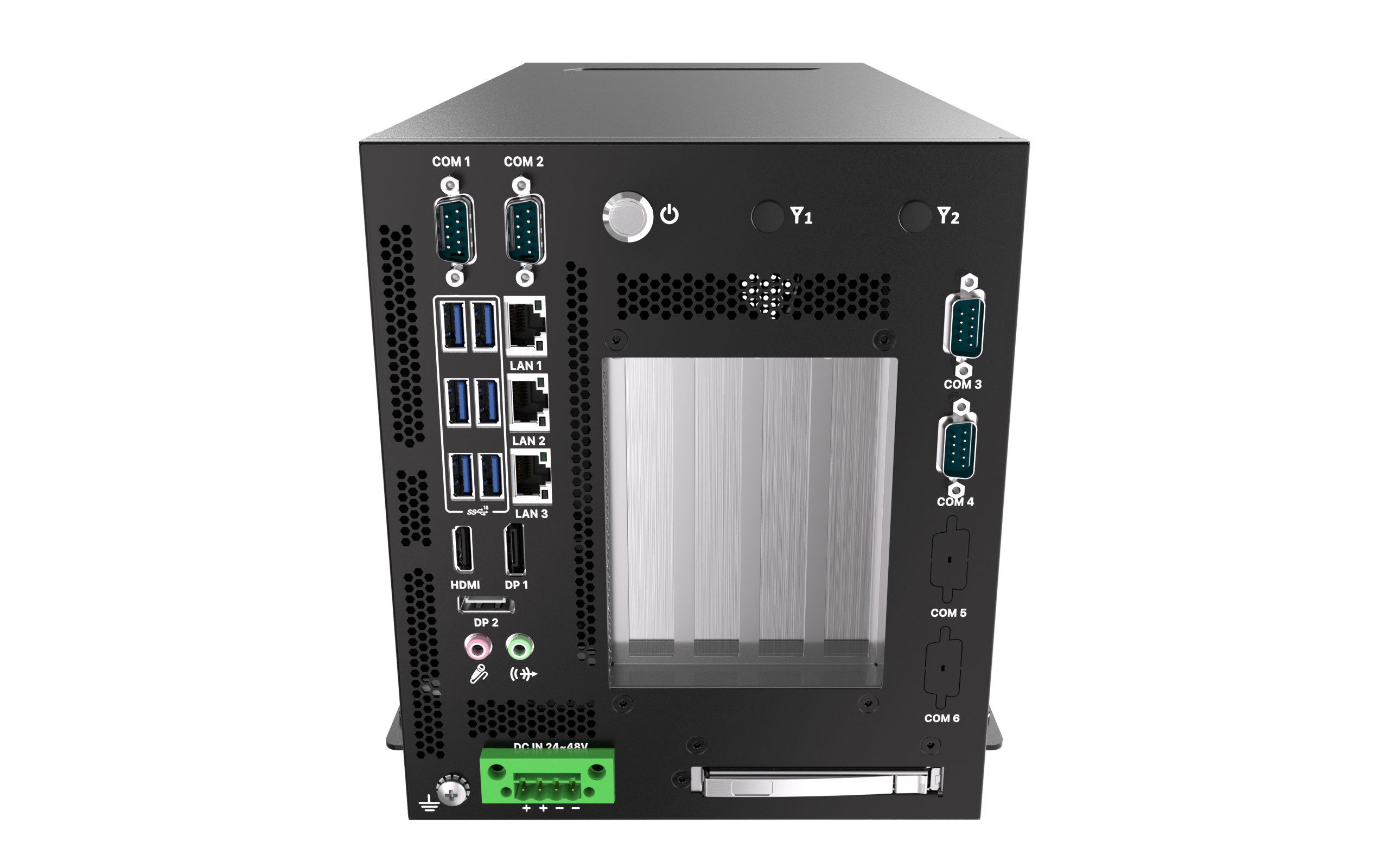

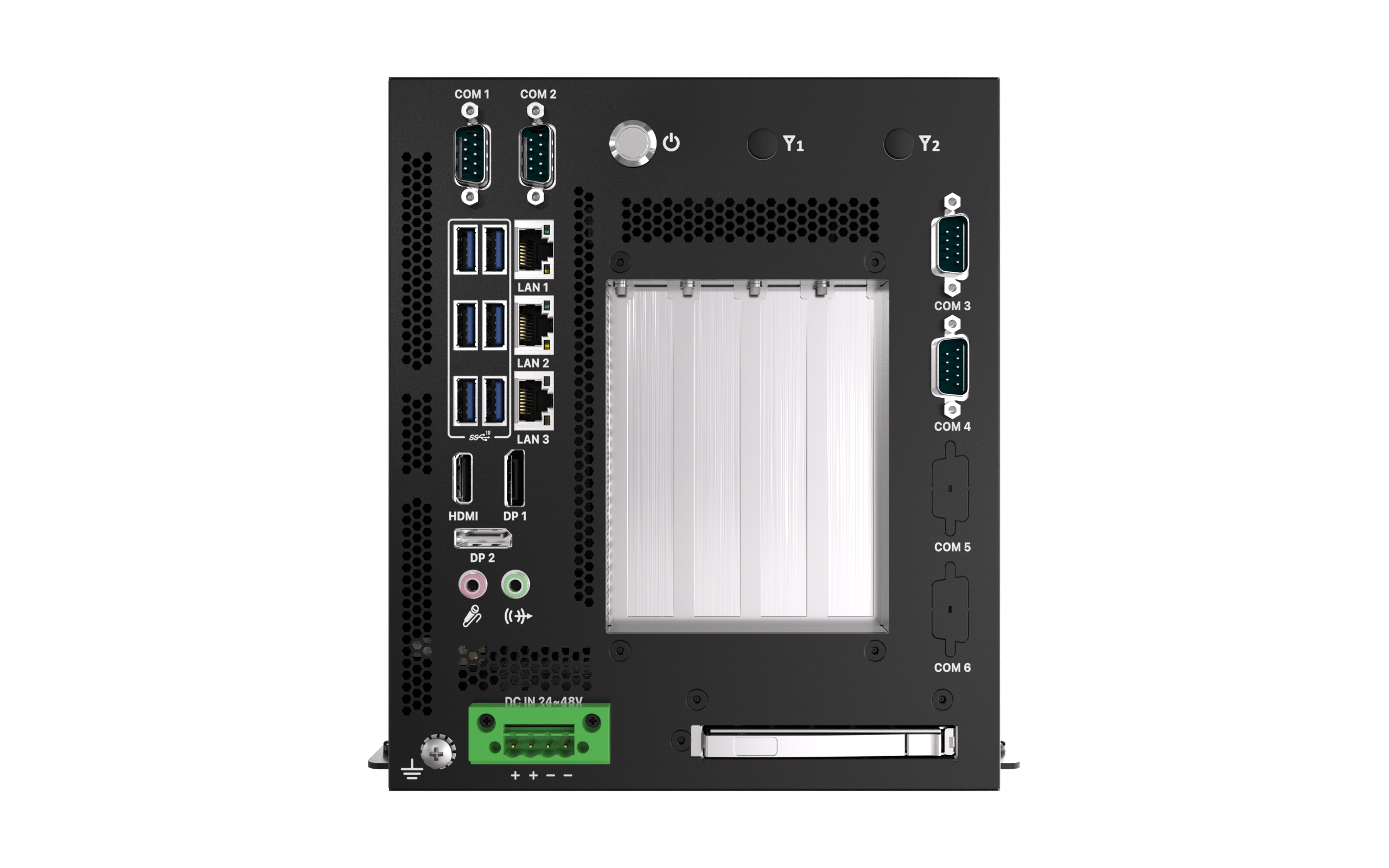

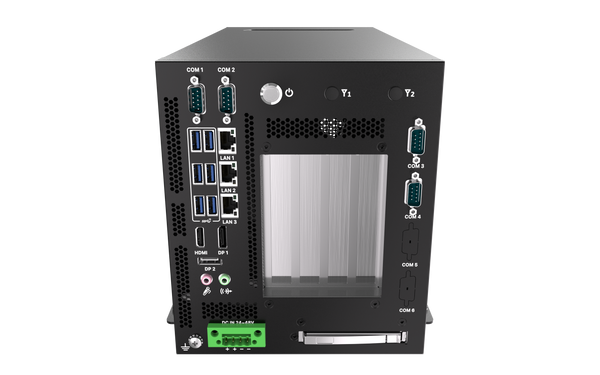

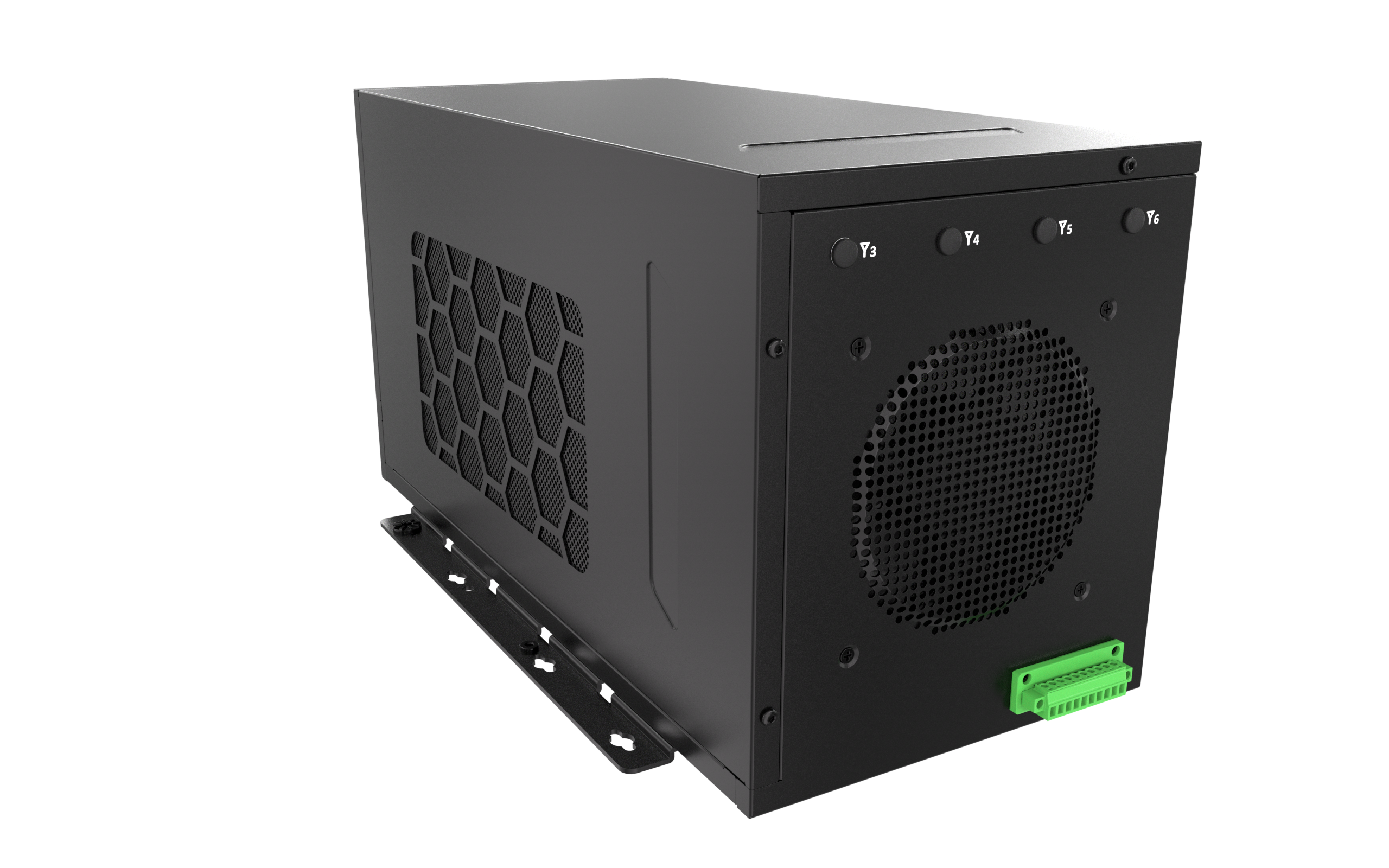

KCO-6000-ARL High-Performance Edge AI Workstation with Intel® Core™ Ultra Series 2 Processors, Arrow Lake-S, W880 PCH
- Intel® Core™ Ultra 9/7/5 Series processor support, max. 65W TDP
- Intel® W880 chipset platform
- 2x DDR5 4800/5600MHz SO-DIMM, up to 96GB, non-ECC/ECC support
- 3x 2.5GbE LAN ports with Intel® I226 controllers; LAN1 supports iAMT
- 2x DP++ and 1x HDMI for triple independent display output
- 6x USB 3.2 Gen 2 Type-A ports and 4x COM ports
- 1x M.2 M Key, 1x M.2 E Key, 1x M.2 B Key with SIM holder, and 1x 2.5” SATA drive bay
- Riser card options for PCIe Gen 5 / Gen 4 expansion
- DC 24–48V input with OVP, OCP, and reverse protection
- Optional 600W AC/DC GPU Power Supply

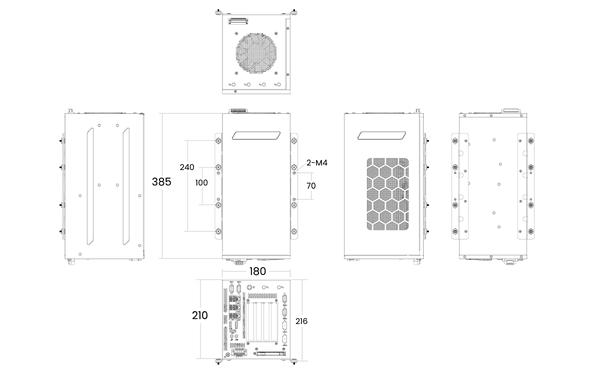

- 170(W) x 216(D) x 385(H) mm
Model:
KCO-6000-ARL
Certifications:
Specifications
| System | |
|---|---|
| Processor | Intel® Arrow Lake-S Core™ Ultra Processors (Series 2, LGA1851) •Intel® Core™ Ultra 5 Processor 225T, 35W •Intel® Core™ Ultra 5 Processor 225, 65W •Intel® Core™ Ultra 7 Processor 265T, 35W •Intel® Core™ Ultra 7 Processor 265, 65W •Intel® Core™ Ultra 9 Processor 285T, 35W •Intel® Core™ Ultra 9 Processor 285, 65W |
| System Chipset | Intel® W880 PCH |
| LAN Chipset | GbE1: Intel® I226-LM; 2.5GbE (Support iAMT, Wake-on-LAN and PXE) GbE2: Intel® I226-V; 2.5GbE (Support Wake-on-LAN and PXE) GbE3: Intel® I226-V; 2.5GbE (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S HD Audio Codec, support 5.1 channel |
| System Memory | 2x DDR5 4800/5600MHz SO-DIMM, up to 96GB, non-ECC/ECC |
| Graphics | Intel® Integrated Iris Xe Graphic (CPU Dependent) |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| iAMT | Intel® AMT 12.0 supported |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DP++ |
| Storage | |
| M.2 | 1x M.2 M Key (PCIe x4 NVMe, SATA 3.0), 2280 |
| SATA | 1x 7mm 2.5" SATA HDD Bay (Hot-swappable) |
| Expansion | |
| M.2 | 1x M.2 E Key (PCIe x1 and USB 2.0), 2230 1x M.2 B Key (PCIe x2 NVMe, USB 3.2 Gen 1), 2242/3042/305 |
| PCIe | PCIe Expansion Options: • 1x PCIe x16 (Gen 5, 16-lane), 1x PCIe x16 (Gen 4, 4-lane) • 2x PCIe x16 (Gen 5, 8-lane), 1x PCIe x16 (Gen 4, 4-lane) |

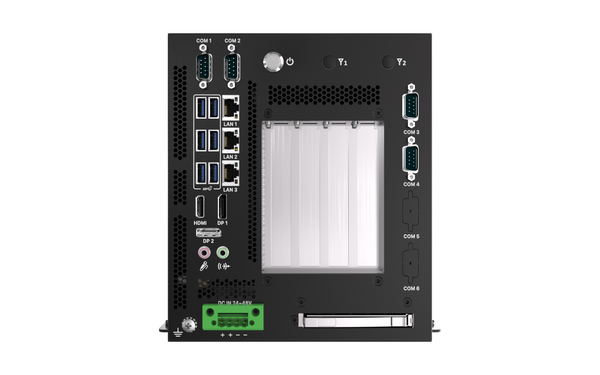

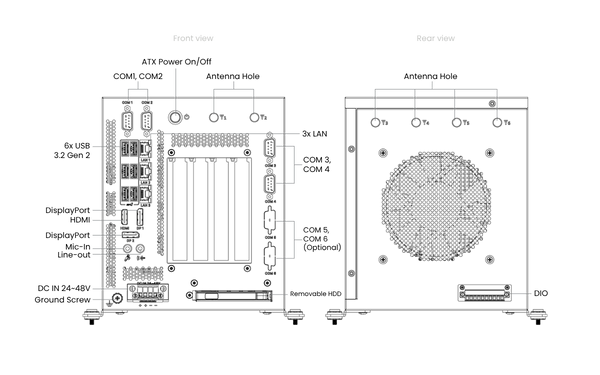

| I/O | |
| Audio | 1x Line-out, 1x Mic-in |
| COM | 2x COM RS-232/422/485 2x RS-232 |
| GPIO | 1x 8-bit GPIO |
| LAN | 3x RJ45 2.5GbE LAN |
| USB | 6x USB 3.2 Gen 2 Type-A |
| Others | 6x antenna holes |
| Internal I/O | |
| Others | 1x SPI header 1x Front panel 1x CPU fan 2x System fan |
| Operating System | |
| Windows | Windows 11 |
| Linux | Linux Kernel / Ubuntu 24.04 LTS |
| Power | |
| Power Adapter | Optional AC/DC 600W |
| Power Management | ACPI 5.0 compliant |
| Power Mode | AT / ATX, default ATX |
| Power Supply Voltage | DC 24–48V input |
| Power Connector | 1x 4-pin terminal block |
| Power Protection | OVP, OCP, reverse protection |
| Environment | |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification | FCC, CE |
| Vibration | 1 Grms, 5 - 500 Hz, 1 hr/axis |
| Shock | With SSD: 20G, half sine, 11ms |
| Physical | |
| Dimensions | 267.60(L) x 104.86(H) x 34.36(W) mm |
| Weights | TBD |
| Construction | Heavy Duty Metal |
| Mounting Options | Wall mounting |
