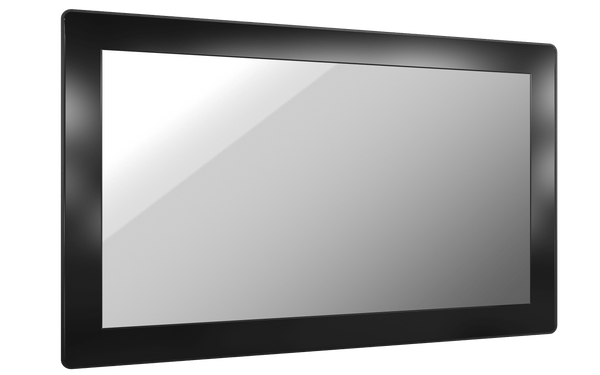

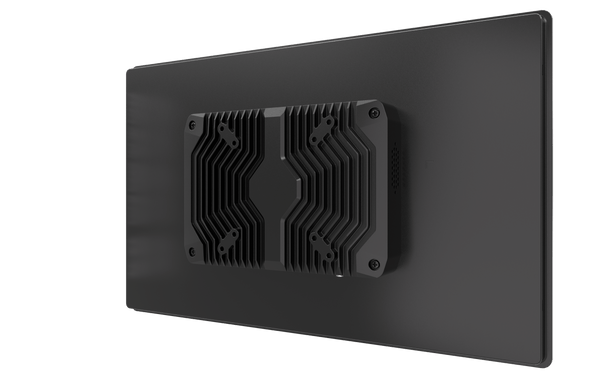

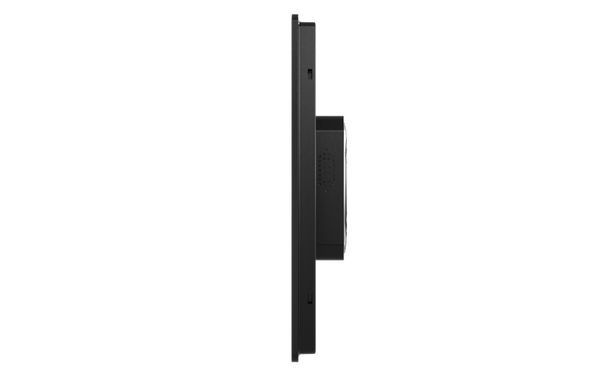

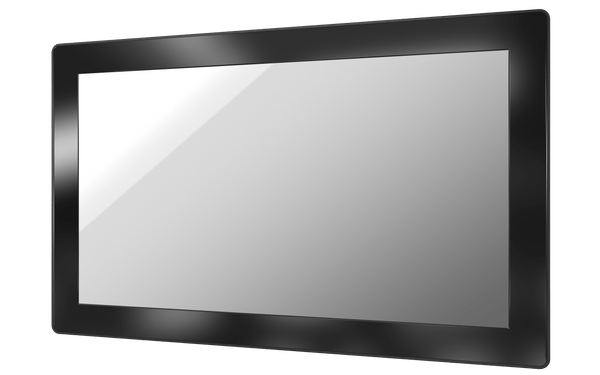

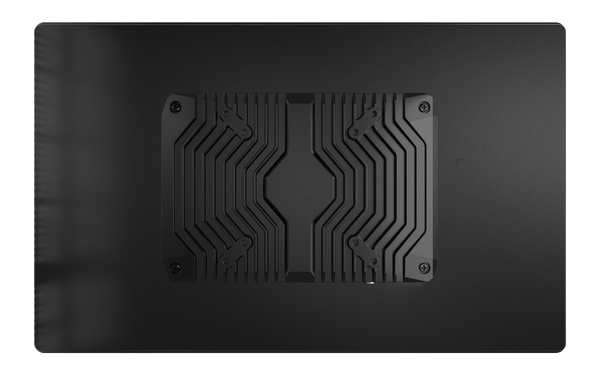

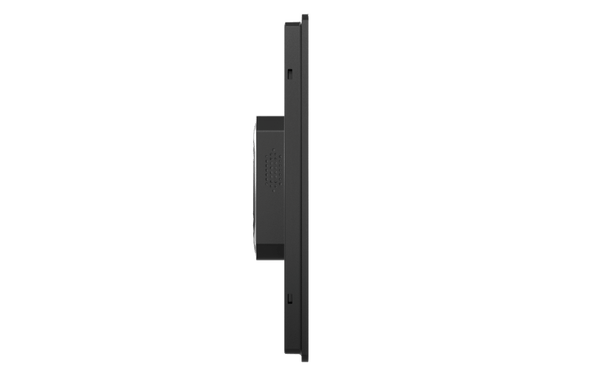

AIO-W215-MX 15.6" Full HD Capacitive All IN One Touchscreen Monitor
- 15.6" (16:9) Full HD Capacitive All-in-One Touchscreen Monitor
- Front IP65 for protection against water and dust
- Scratch Resistant 7H Glass Hardness IK07
- Versatile Display Outputs; HDMI and DP
- Anti-Noise CS 10V rms
- -10°C to 50°C extended operating temperature
- MTBF 50,000 Hours
- World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
Model:
AIO-W215-MX
Certifications:
Specification
| Display | |
|---|---|
| IP Rating | Front IP65 |
| LCD Size | 15.6" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m²) | 450 nits |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.17925(H) x 0.17925(V) |
| Viewing Angle | 89 /89 /89 /89 (Typ.) (CR>=10) |
| Backlight MTBF | 50,000 Hours (LED Backlight) |
| Touch | |
| Touch Type | Projected Capacitive Touch (anti-glare) |
| Surface Hardness | 7H / IK07 |
| Multi-touch | 10 point (Support Glove Mode) |
| Anti-noise | CS 10V rms |
| Interface | USB |

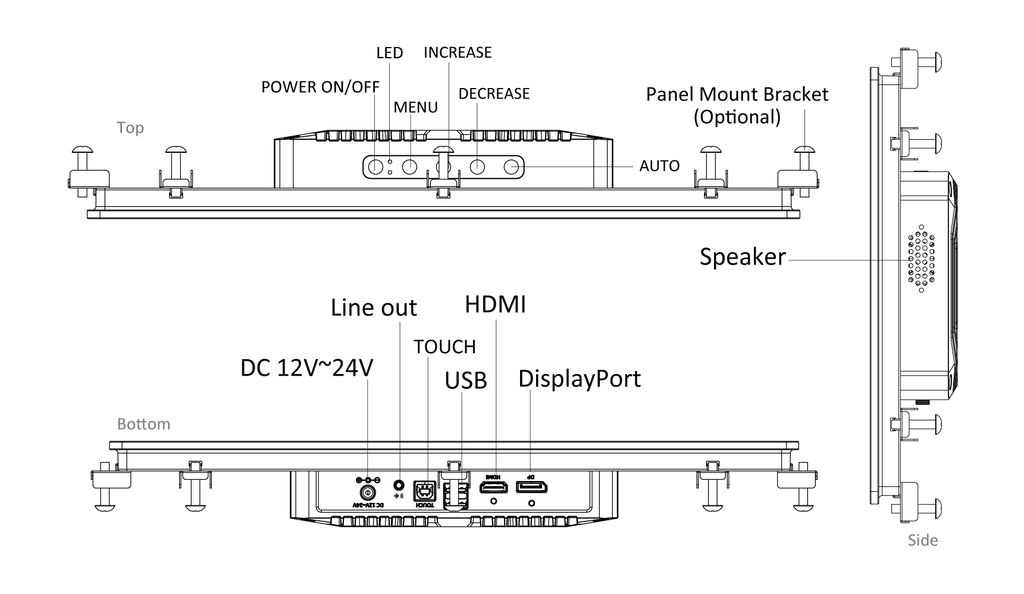

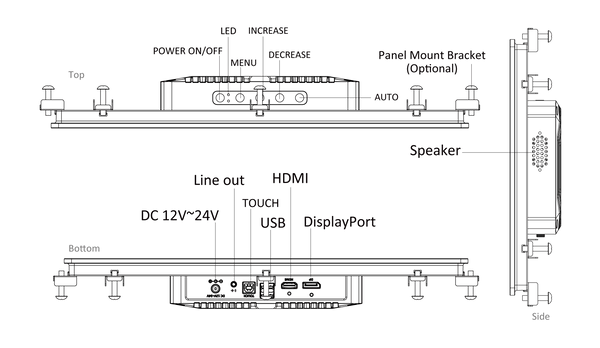

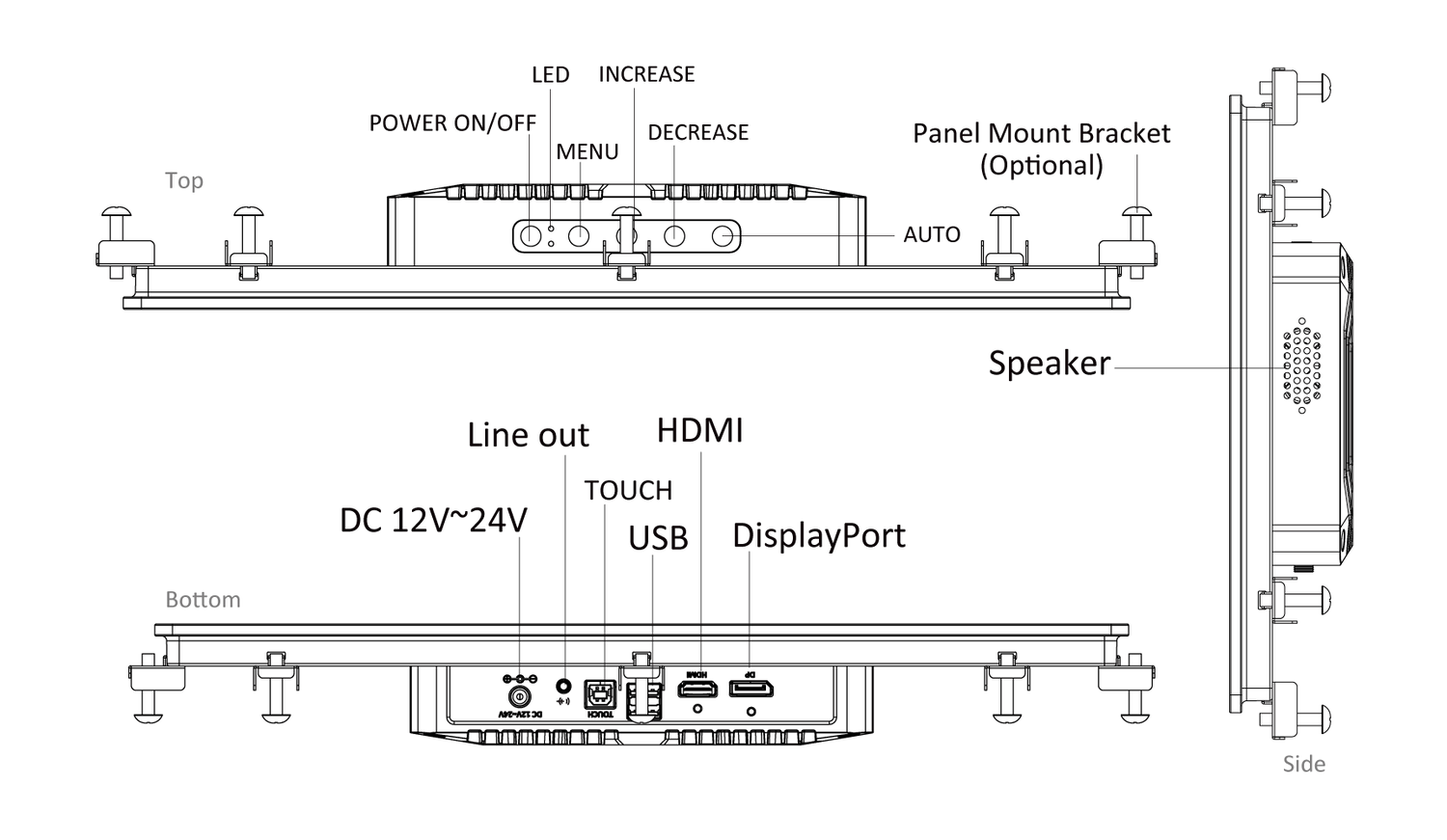

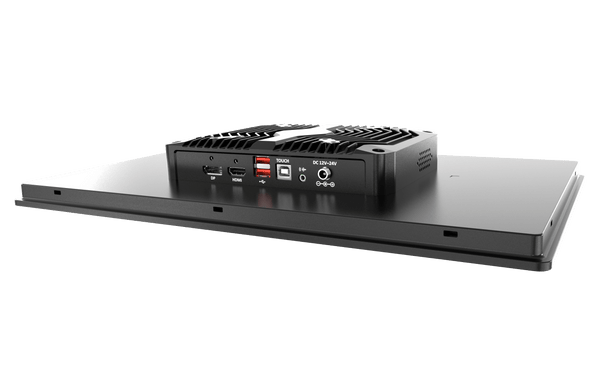

| I/O | |
| DisplayPort | 1x Display Port 1.1 |
| HDMI | 1x HDMI 1.4a |
| USB | 2x USB 2.0 Type A 1x USB Type B for Touch |
| Speaker | Internal Speaker 2W+2W |

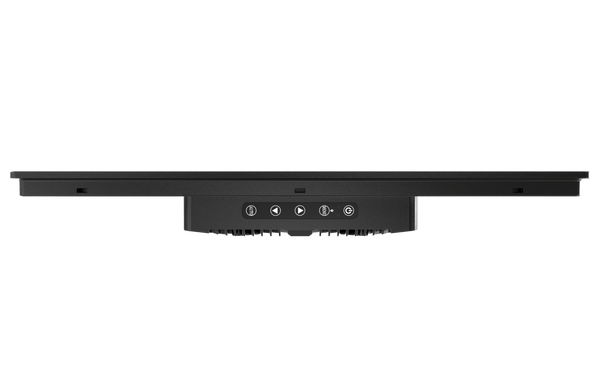

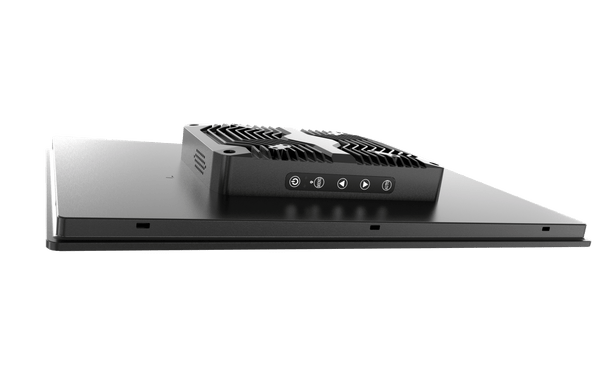

| OSD | On/Off, Menu, Adjust - and +, Exit |
| Audio | 1x line-out |
| Compliance Operating System | |
| Windows | Windows 10 / Windows 11 |
| Linux | Linux Ubuntu 22.04 |
| Power | |
| Power Adapter | 60W with locking (12V 5A, Optional) |
| Power Supply Voltage | DC 12V~24V |
| Power Connector | DC Jack 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 10% to 80% (non-condensing) |
| Certification | CE, FCC Class A, CB, UL Listed, UKCA |
| Vibration | IEC60068-2-64:2008 3 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Shock | IEC60068-2-27:2008 20G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
| Physical | |

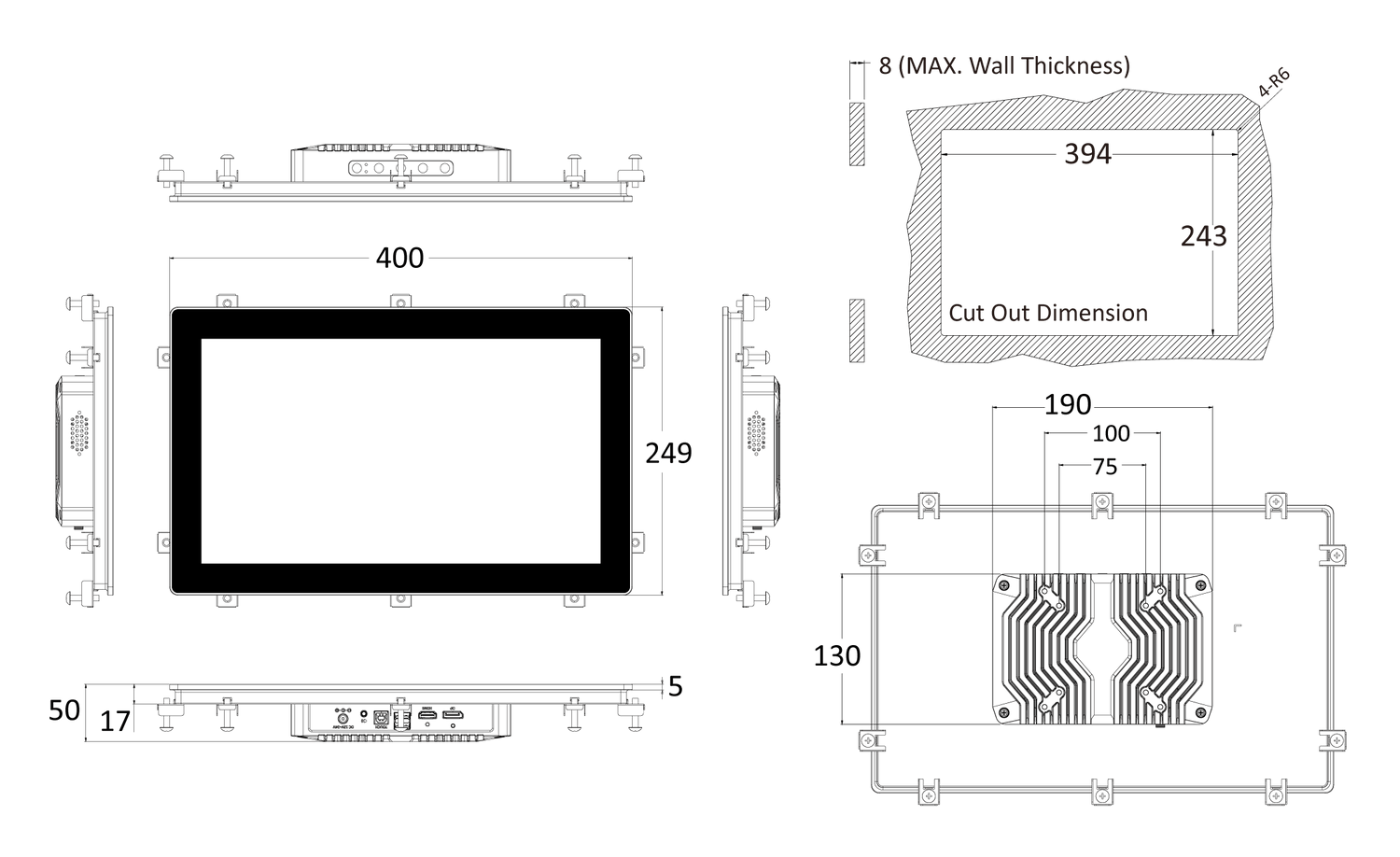

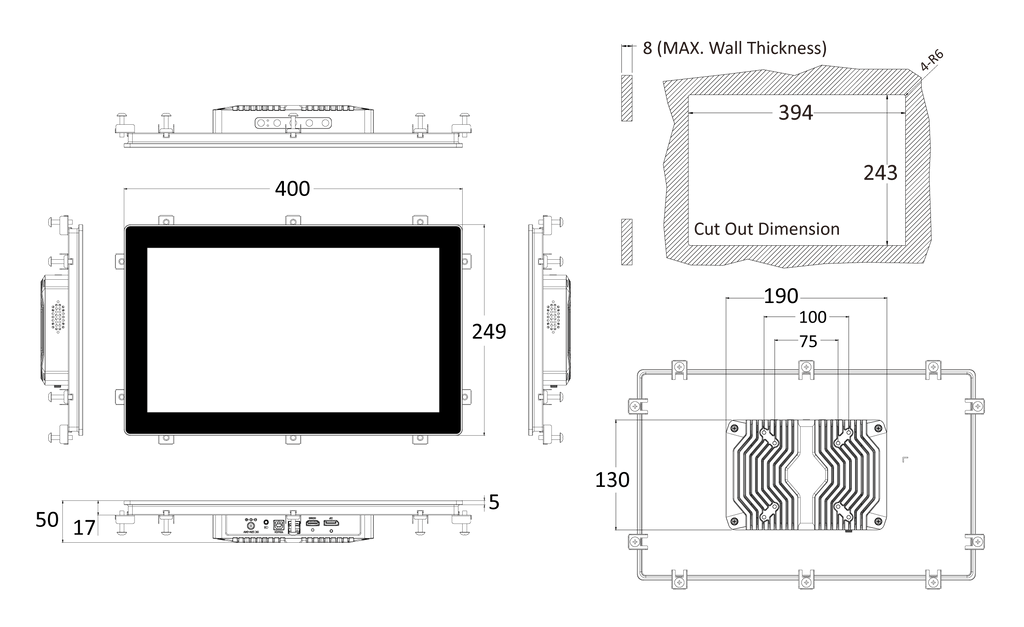

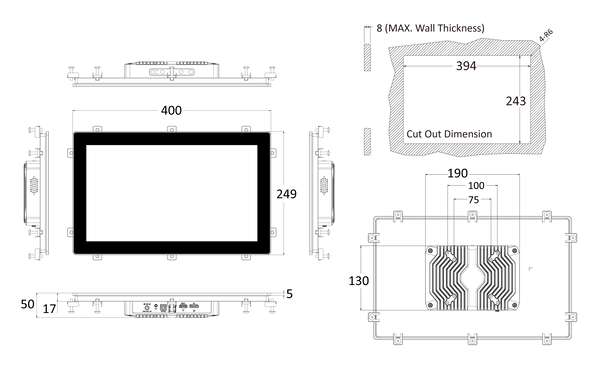

| Dimension | 400 (W) x 249 (H) x 50 (D) mm |
| Weights | 2.3 kg |

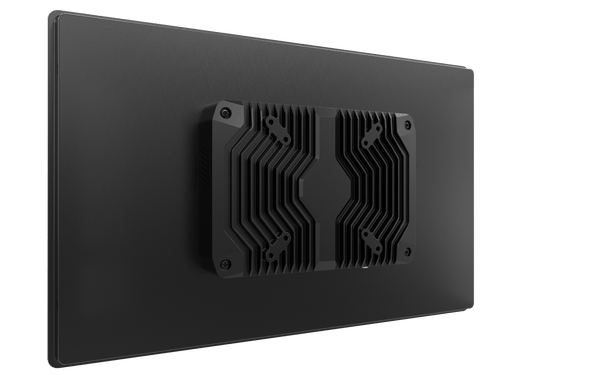

| Mounting | VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount |
Resources
| Data Sheet |
DS_AIO-W215-MX_Premio.pdf
|
