AIO-W210-MX 10.1" WXGA Capacitive Industrial Touchscreen Monitor

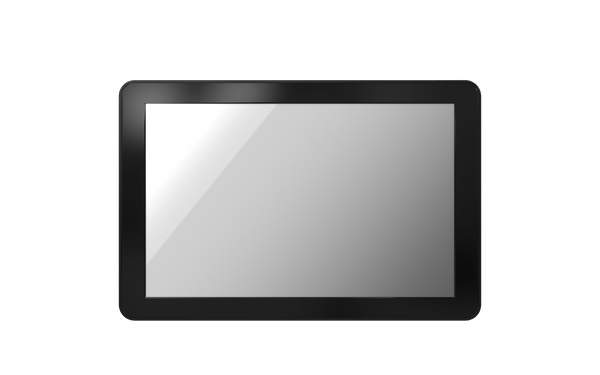

AIO-W210-MX 10.1" WXGA Capacitive Industrial Touchscreen Monitor

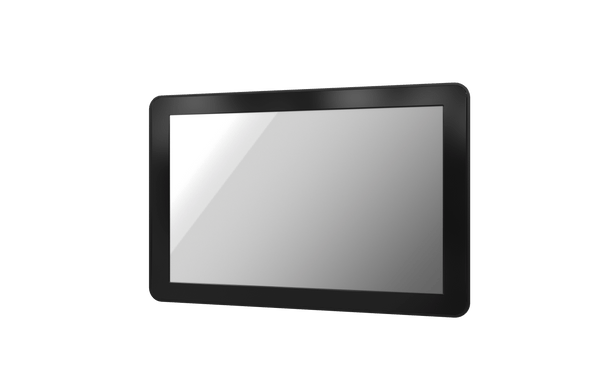

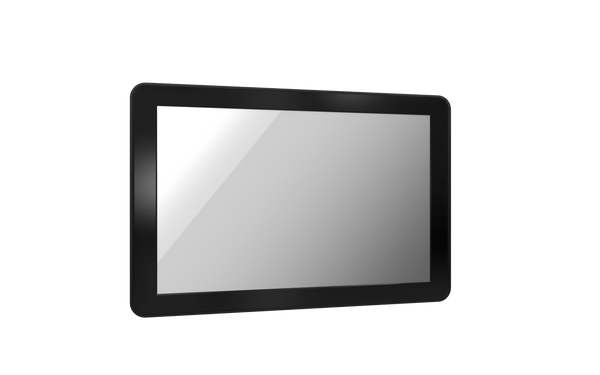

  • 10.1" (16:10) WXGA Capacitive Industrial Touchscreen Monitor
  • Front IP65 for protection against water and dust
  • Scratch Resistant 7H Glass Hardness IK07
  • Versatile Display Outputs; HDMI and DP
  • Anti-Noise CS 10V rms
  • -10°C to 50°C extended operating temperature
  • MTBF 30,000 Hours
  • World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/ICES-003
See Datasheet

Certifications:

Intel Partner


Rugged and Reliable Display

  • IP65-rated front panel for dust and water resistance
  • 7H surface hardness and IK07 impact protection
  • High-brightness, anti-glare screen for industrial visibility

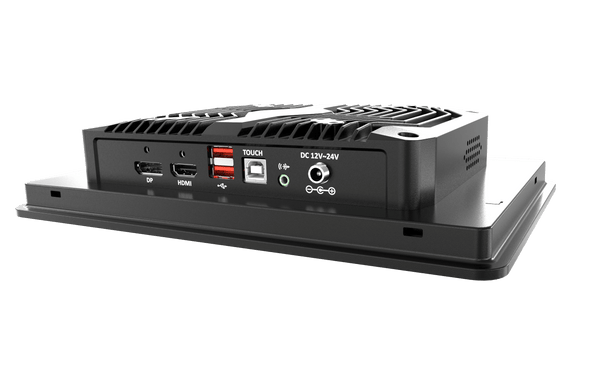

Flexible I/O Integration

  • Display: HDMI and DisplayPort
  • Connectivity: USB Type-A/B and Line-out

Built for Industrial Environments

  • Wide operating temperature: -10°C to 50°C
  • Wide DC power input: 12V ~ 24V

Certified for Global Standards

  • UL Listed, CE, FCC, CB, UKCA, and IC
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $549.00

Specification

Display
IP Rating Front IP65
LCD Size 10.1" (16:10)
Max. Resolution 1280 x 800 (WXGA)
Brightness (cd/m²) 400 nits
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.169(H) x 0.1695(V)
Viewing Angle 89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF 30,000 Hours (LED Backlight)
Touch
Touch Type Projected Capacitive Touch
Surface Hardness 7H / IK07
Multi-touch 10 point (Support Glove Mode)
Anti-noise CS 10V rms
Interface USB Type B

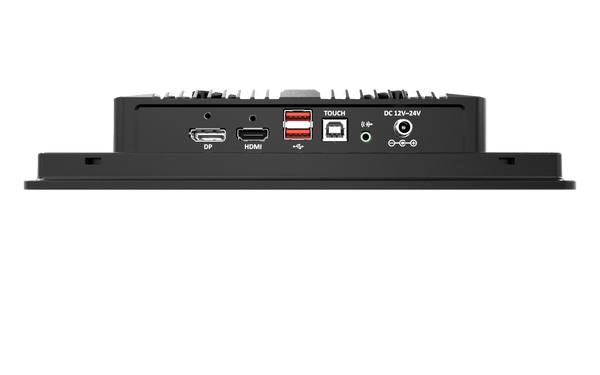

I/O
DisplayPort  1x Display Port 1.1
HDMI 1x HDMI 1.4a
USB 2x USB 2.0 Type A
1x USB Type B for Touch
Speaker Internal Speaker 2W+2W

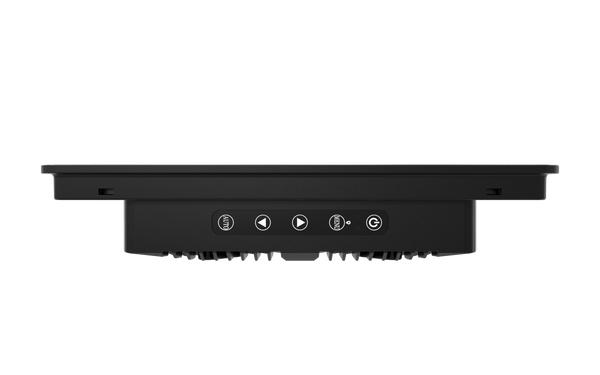

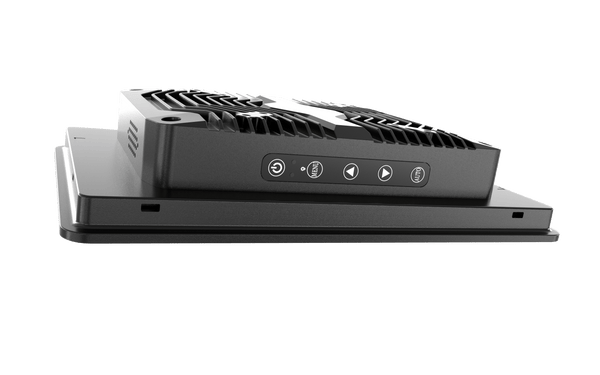

OSD On/Off, Menu, Adjust - and +, Exit
Audio 1x line-out
Compliance Operating System
Windows Windows 10 / Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter 60W with locking (12V 5A)
Power Supply Voltage DC 12V~24V
Power Connector DC Jack 5.5mm/2.5mm (OD/ID)
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10% to 80% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A, CB, ICES-003, UKCA, RCM, VCCI
Vibration 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock 20G half-sin 11ms
Physical
Dimension 256 (W) x 170 (H) x 50 (D) mm
Weights 1.4 kg

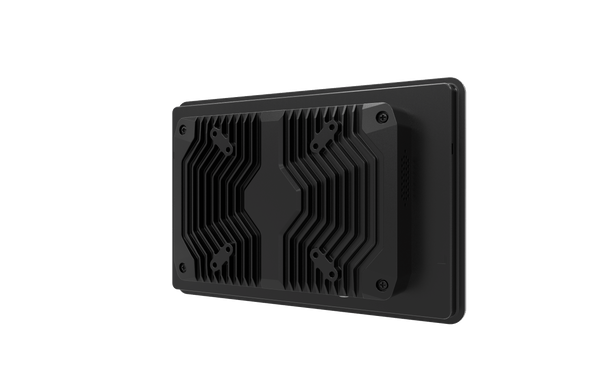

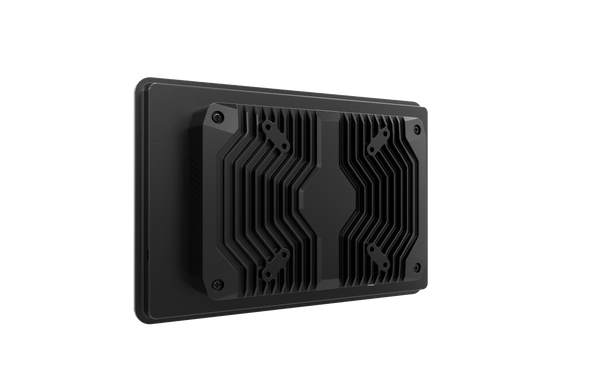

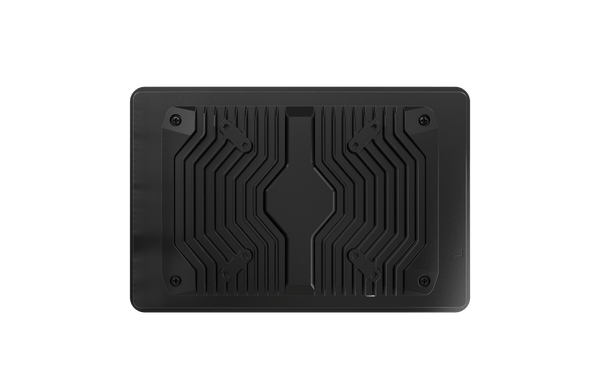

Mounting VESA Mount (75mm x 75mm/100mm x 100mm)
Panel Mount (optional)

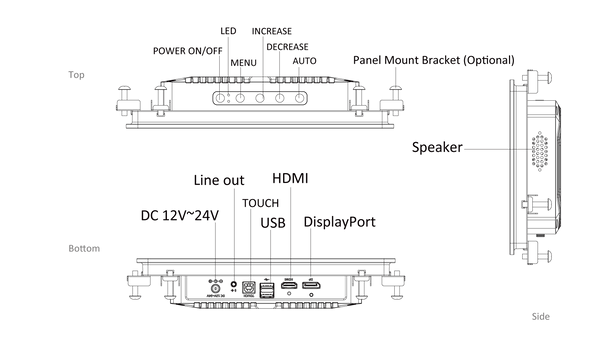

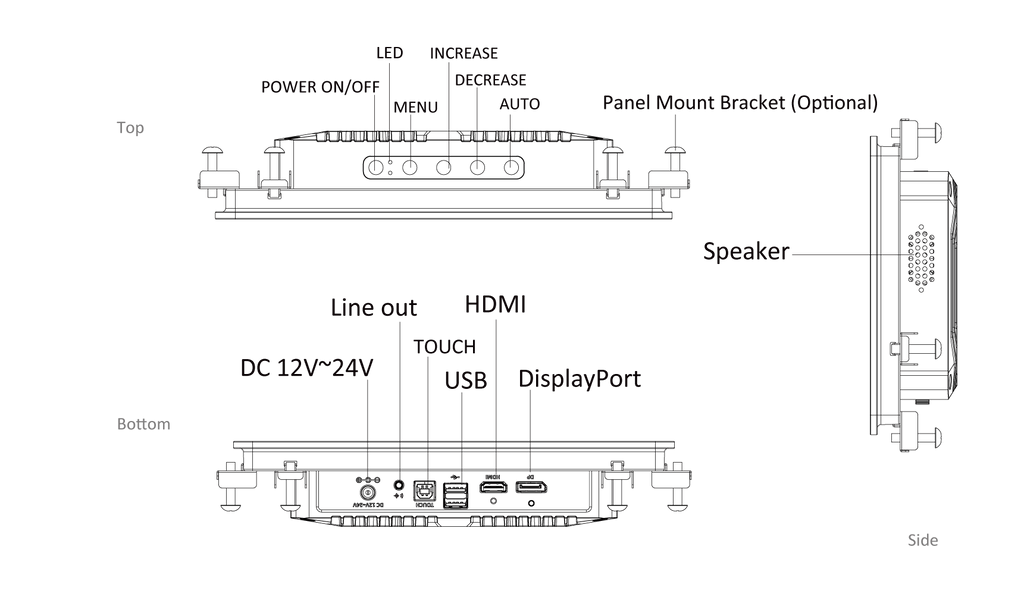

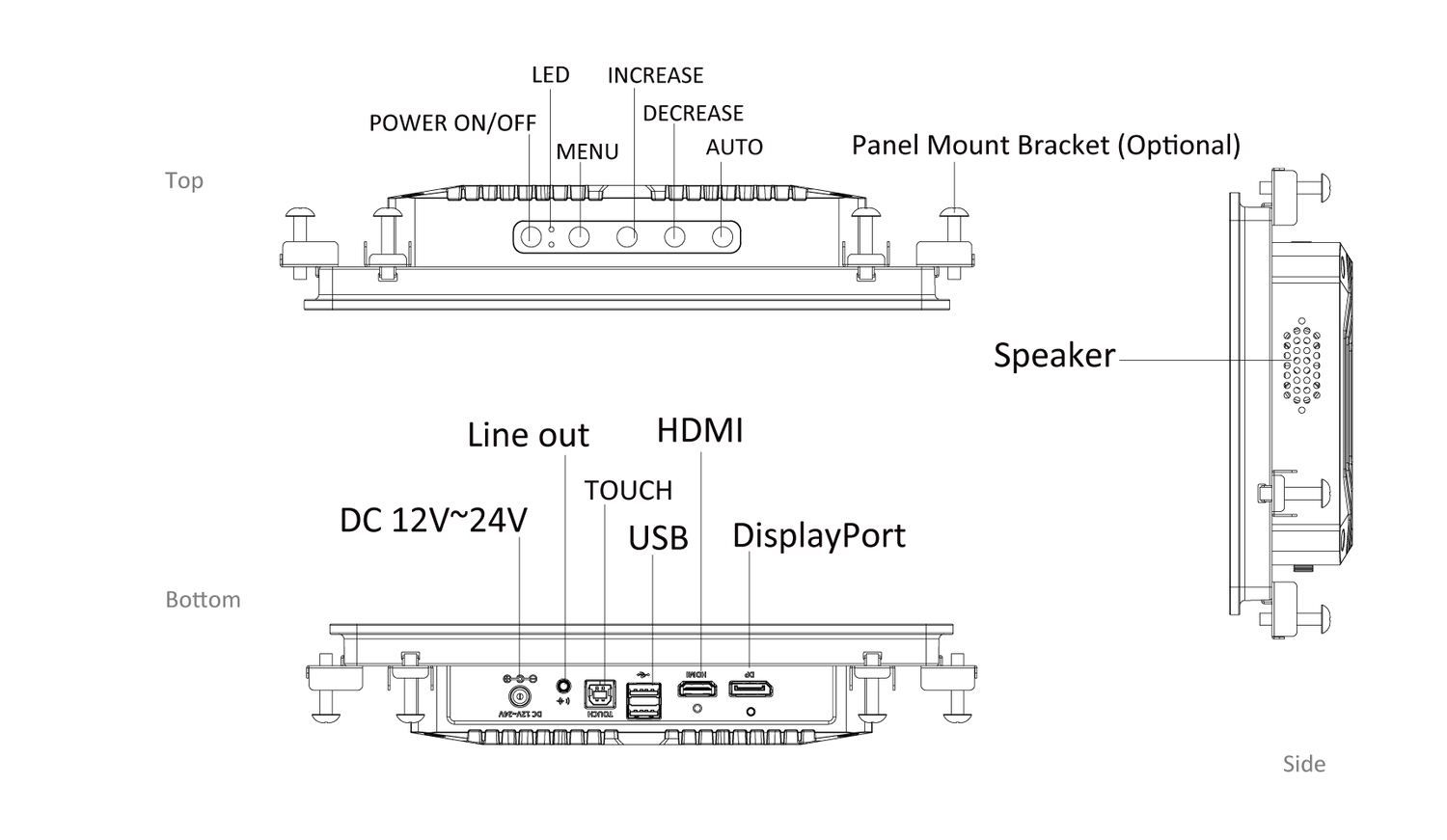

Mechanical Layout

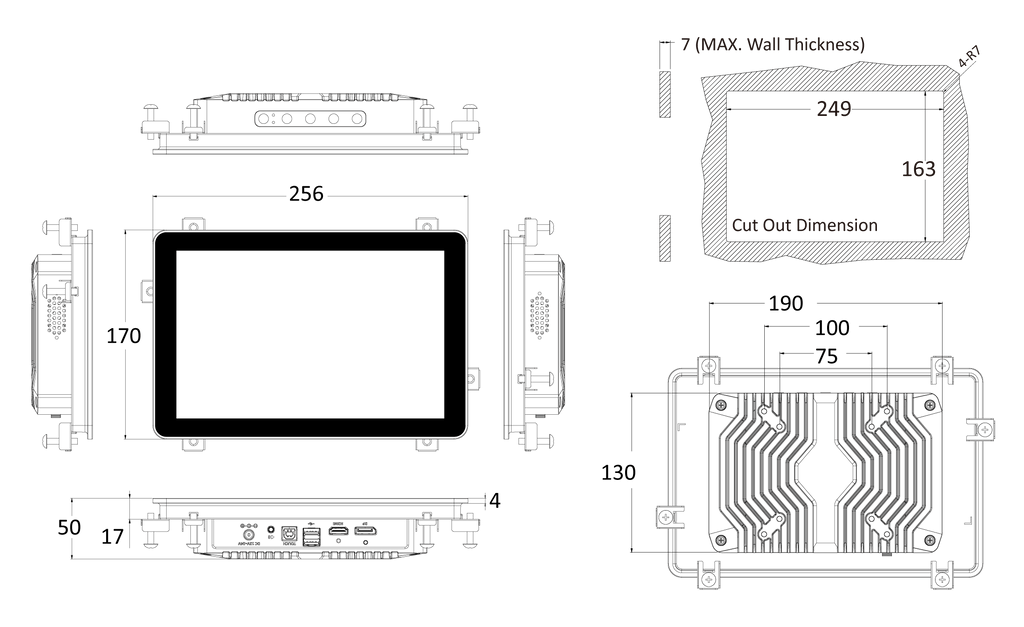

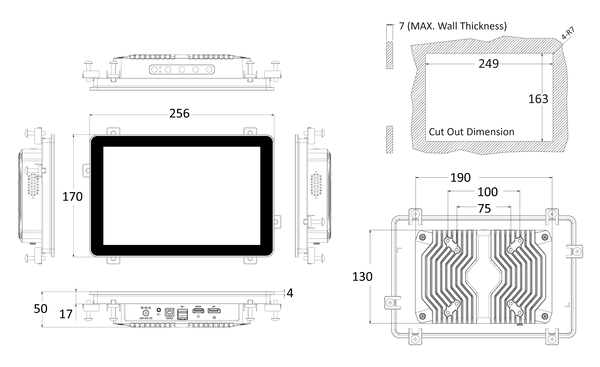

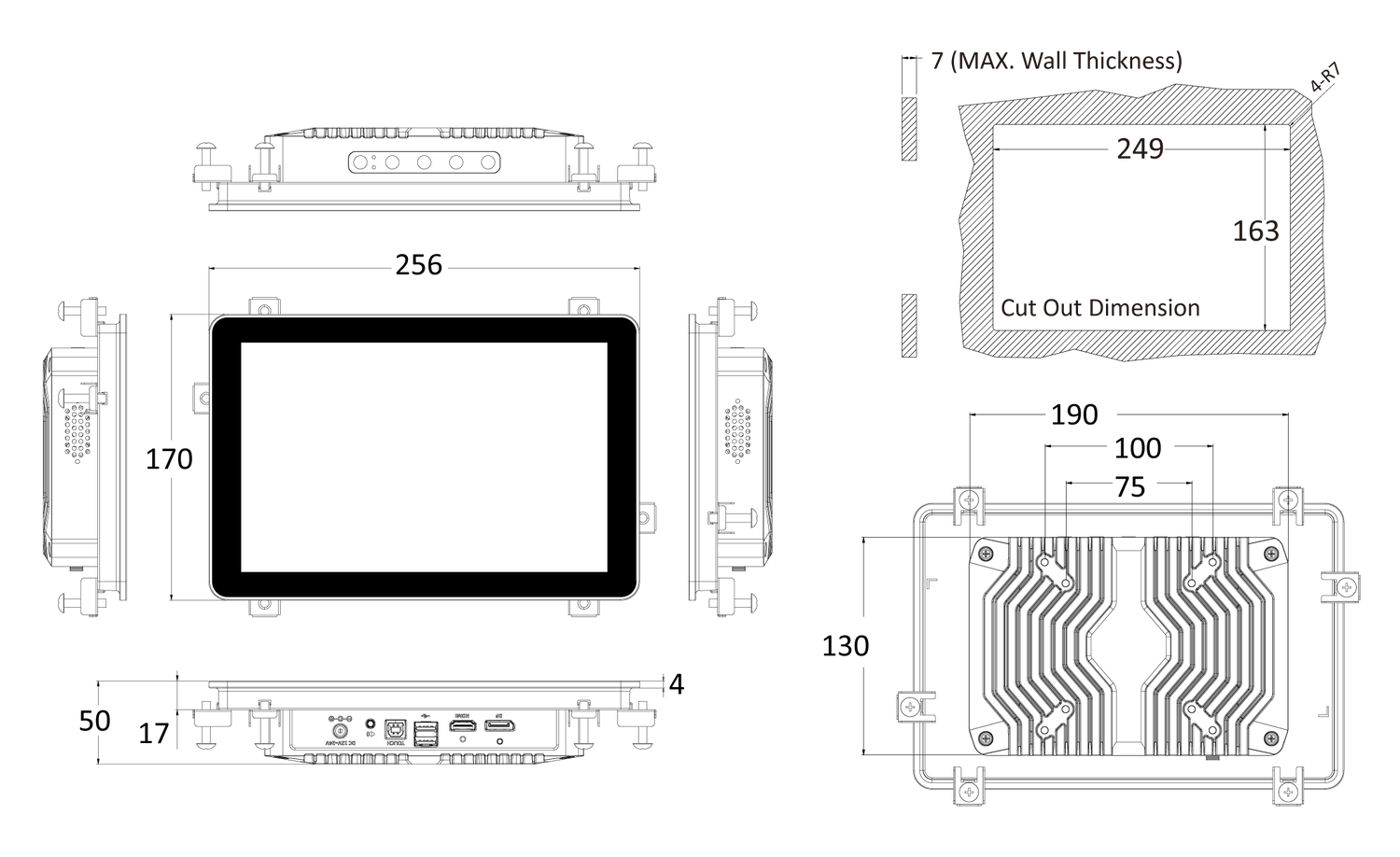

Product Dimension

Unit:mm
