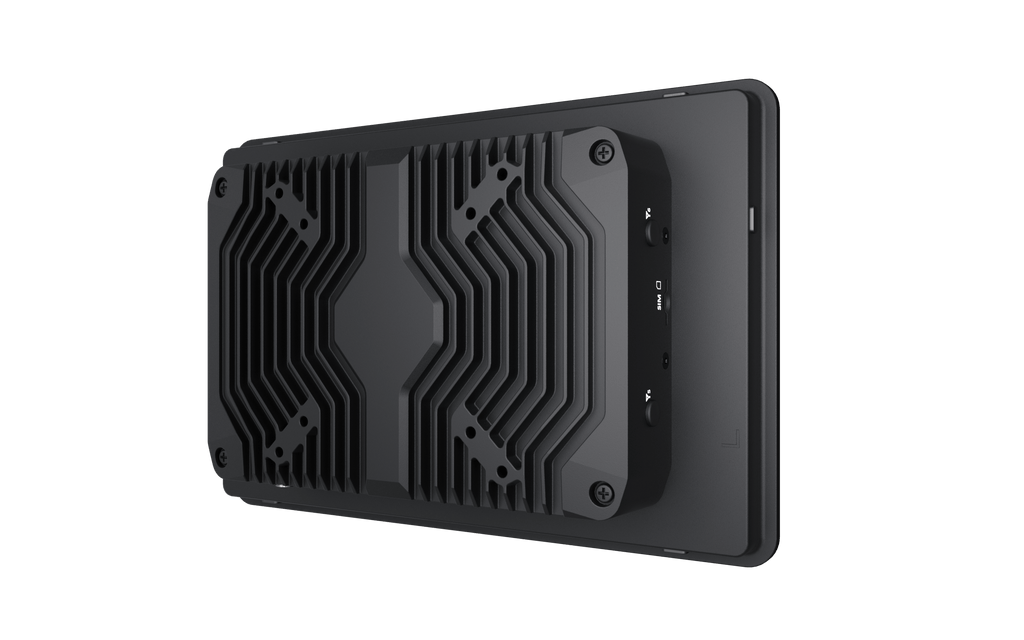

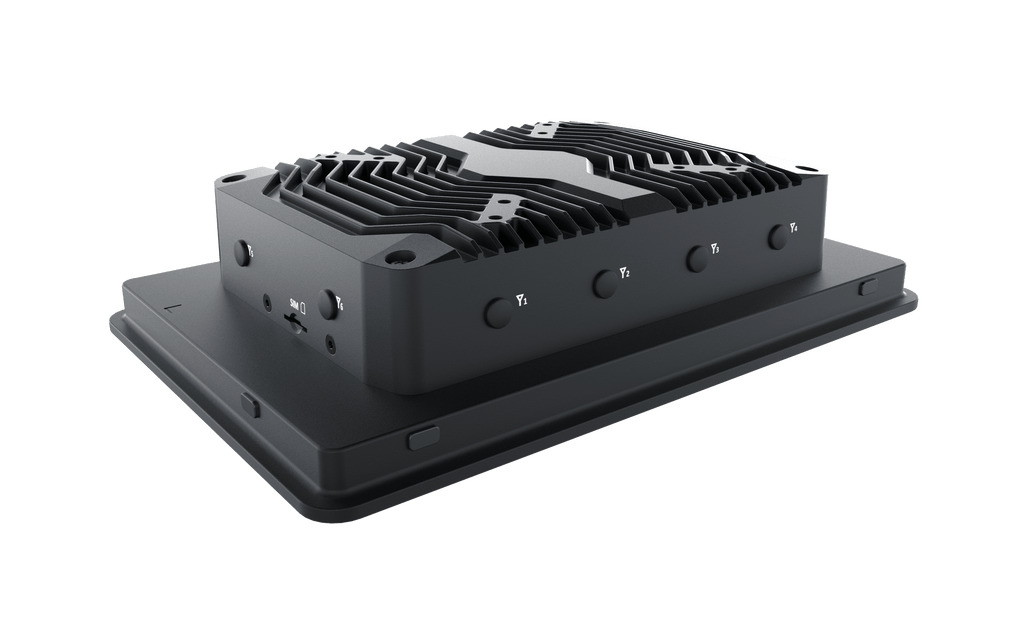

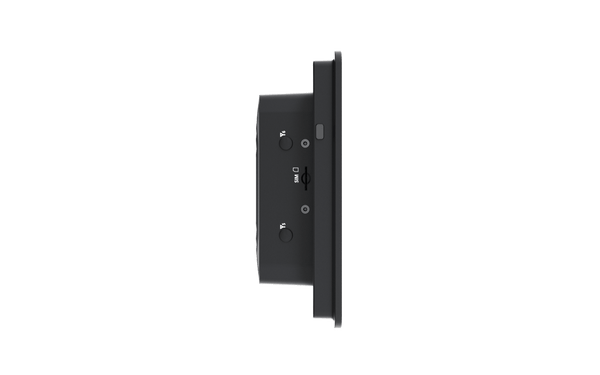

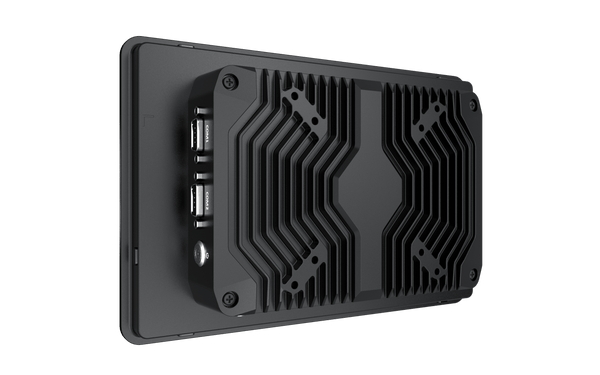

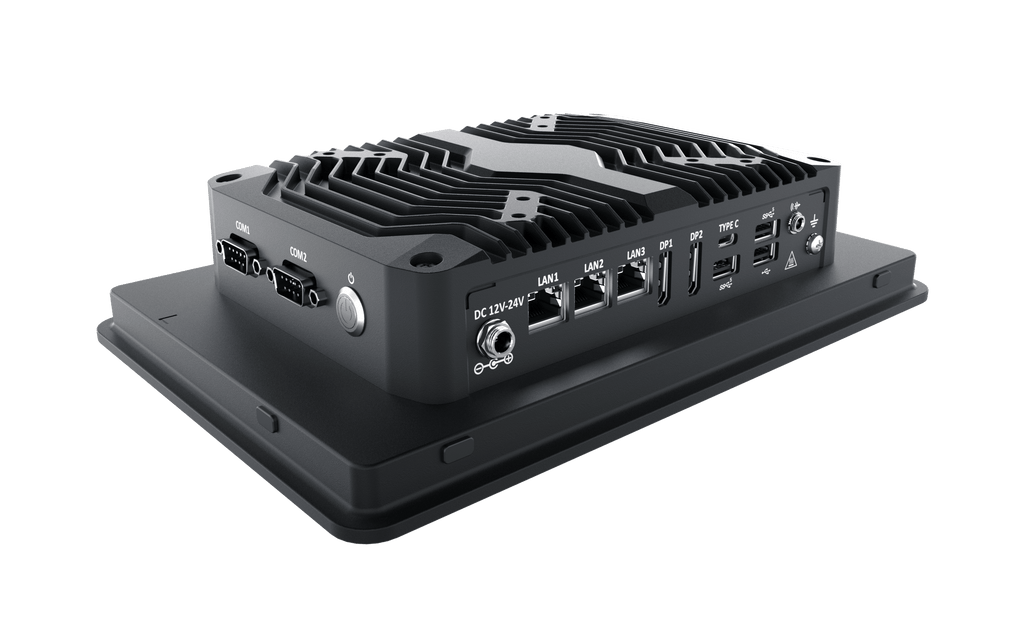

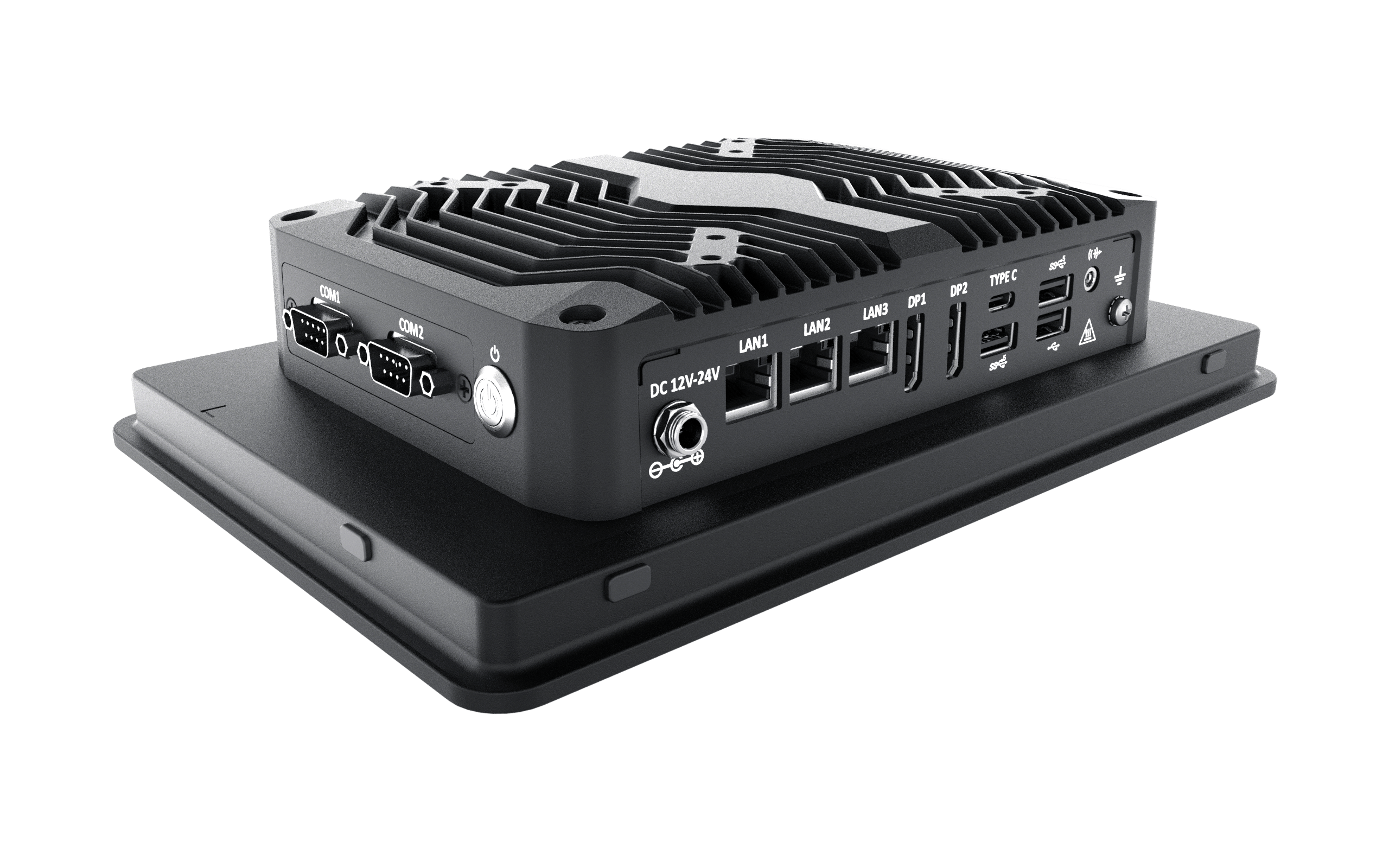

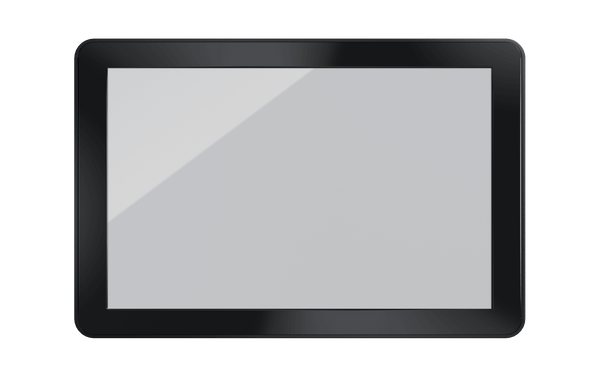

AIO-W210-MTL 10.1" WXGA Capacitive IP65 All In One Touchscreen Computer with Intel® Core™ Ultra Series 1 Processors, 3x LAN, 3x USB, 1x Type C, 2x COM, 2x DP

  • 10.1" (16:10) WXGA All-in-One Touchscreen Computer
  • World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
  • Front IP65 Rating for protection against water and dust
  • Scratch Resistant 7H Glass Hardness
  • Versatile Display Outputs, 2x DP++ and LVDS/eDP
  • MTBF 30,000 Hours
See Datasheet

Certifications:

Intel Partner


All In One Integrated System

10-Points PCAP Touch

Range of Display Size

Flexible I/O Connectivity

Front Panel IP65

High Efficient Computing

3D Performance Hybrid Architecture

Leveraging the Intel® Core™ Ultra Series 1 processors, AIO-200-MTL delivers next-generation performance with 2 P-cores, 8 E-cores, and 2 LPE-cores, reaching up to 4.8 GHz turbo frequency for efficient multitasking and AI-accelerated computing at the edge.

125U

155U

Up To

12 Cores & 14 Threads

Intel Arc GPU & AI Boost NPU

11 TOPS

15W TDP

Power Efficiency

10-Years

Product Support Lifecycle

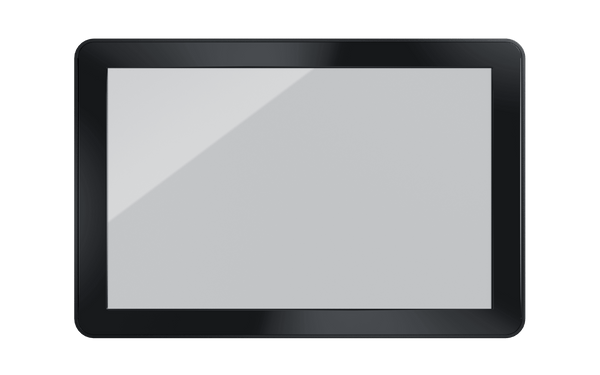

Versatile Screen Options

Available in 10.1”, 15.6”, and 21.5” sizes — built for flexible integration in diverse industrial environments.

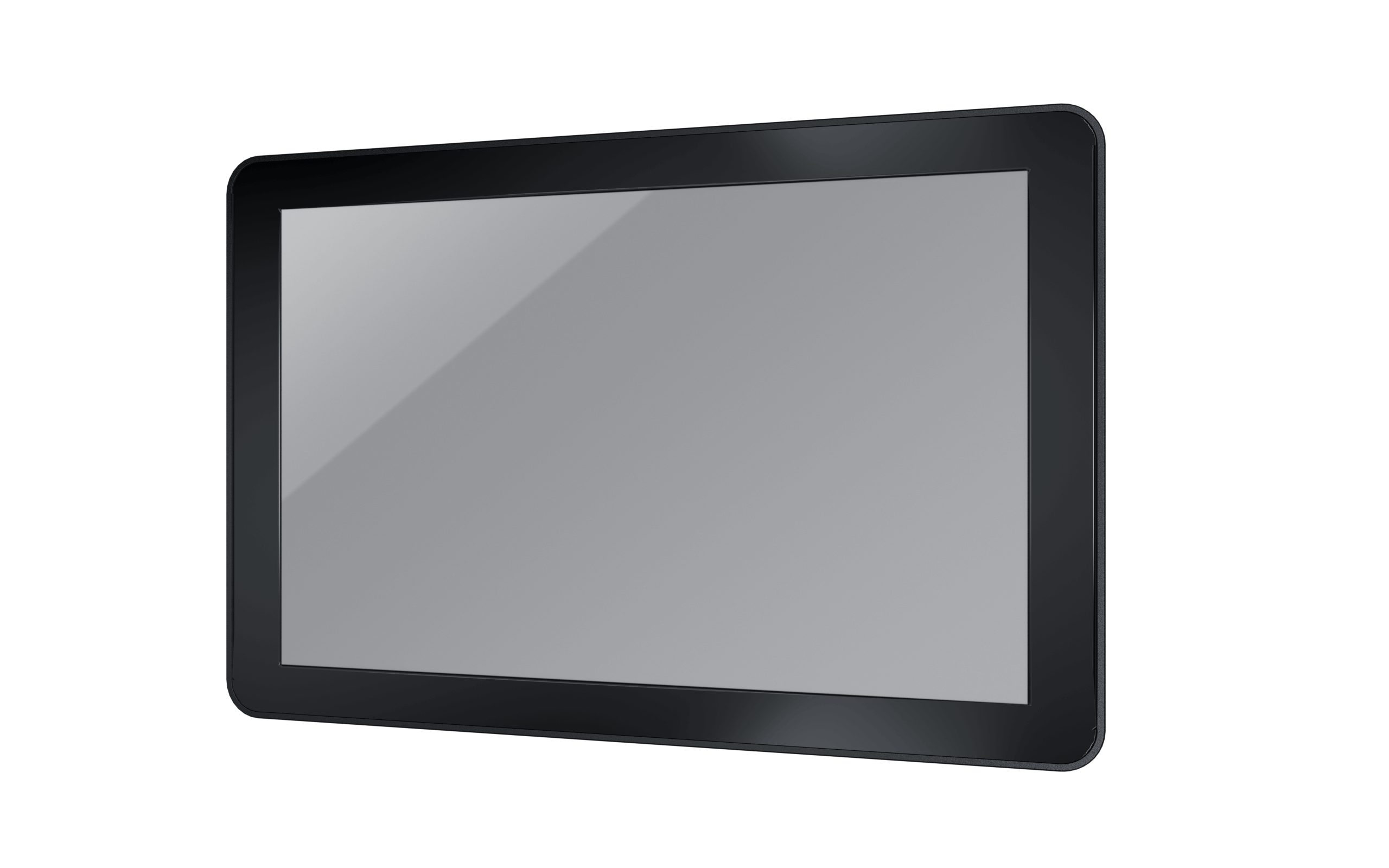

Enhanced Optical Clarity

The AIO Series delivers clear, high-visibility displays for industrial settings. With 500-nit brightness, wide viewing angles, and a high contrast ratio, operators can maintain consistent readability from various positions in demanding environments.

Industrial Grade Durability

  • IP65 Front Panel Protection
  • 7H Glass Hardness & IK07 Impact Resistance
  • MIL-STD-810G Shock and Vibration
  • Wide Operating Temperature: -20°C to 60°C
  • Wide Power Input Range: 12~24V

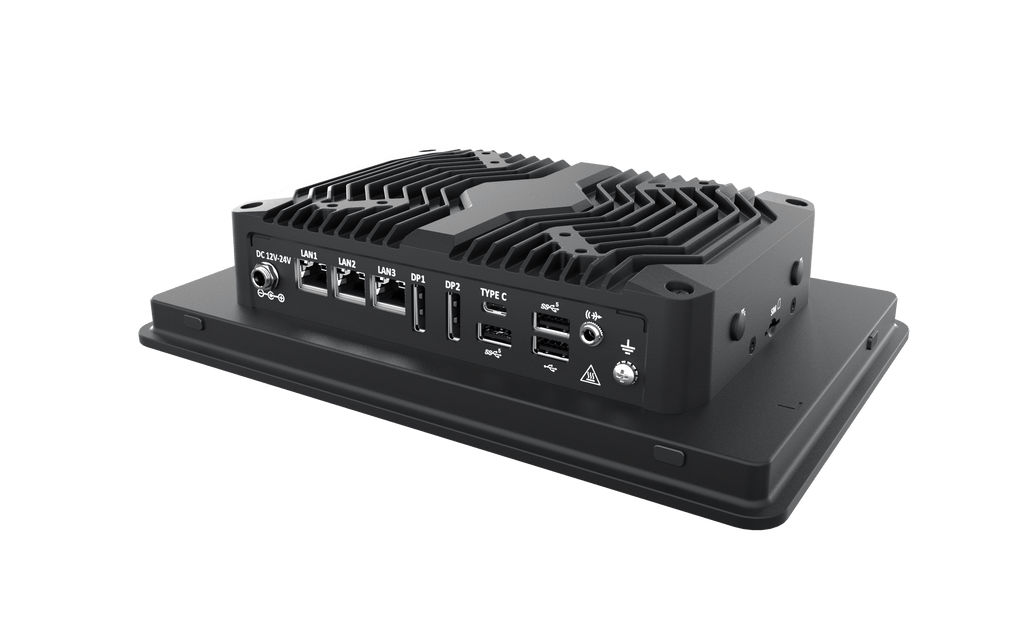

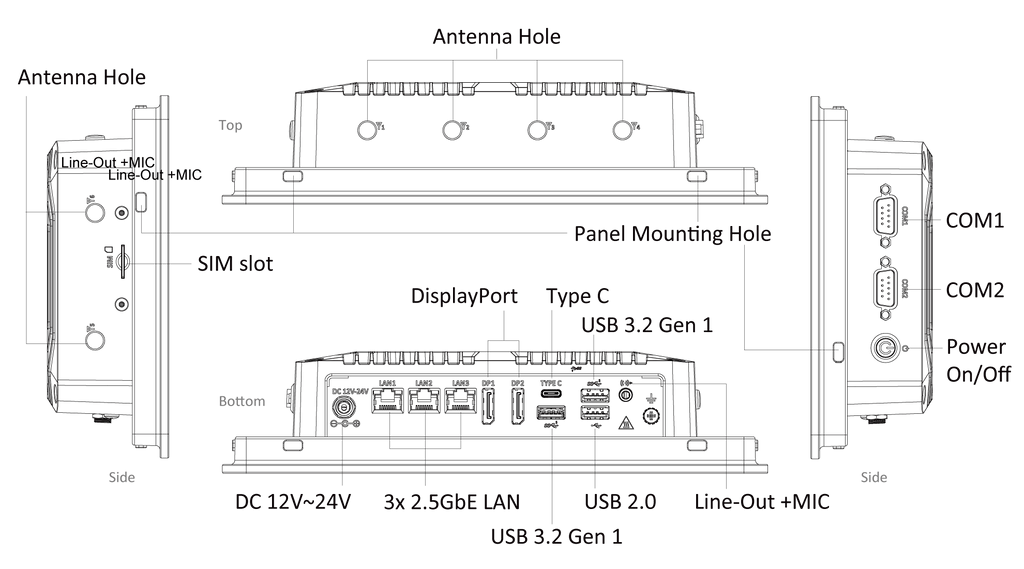

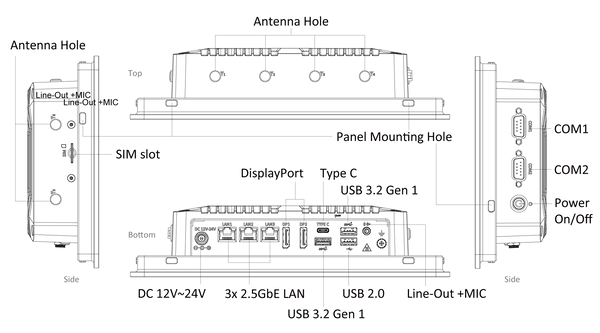

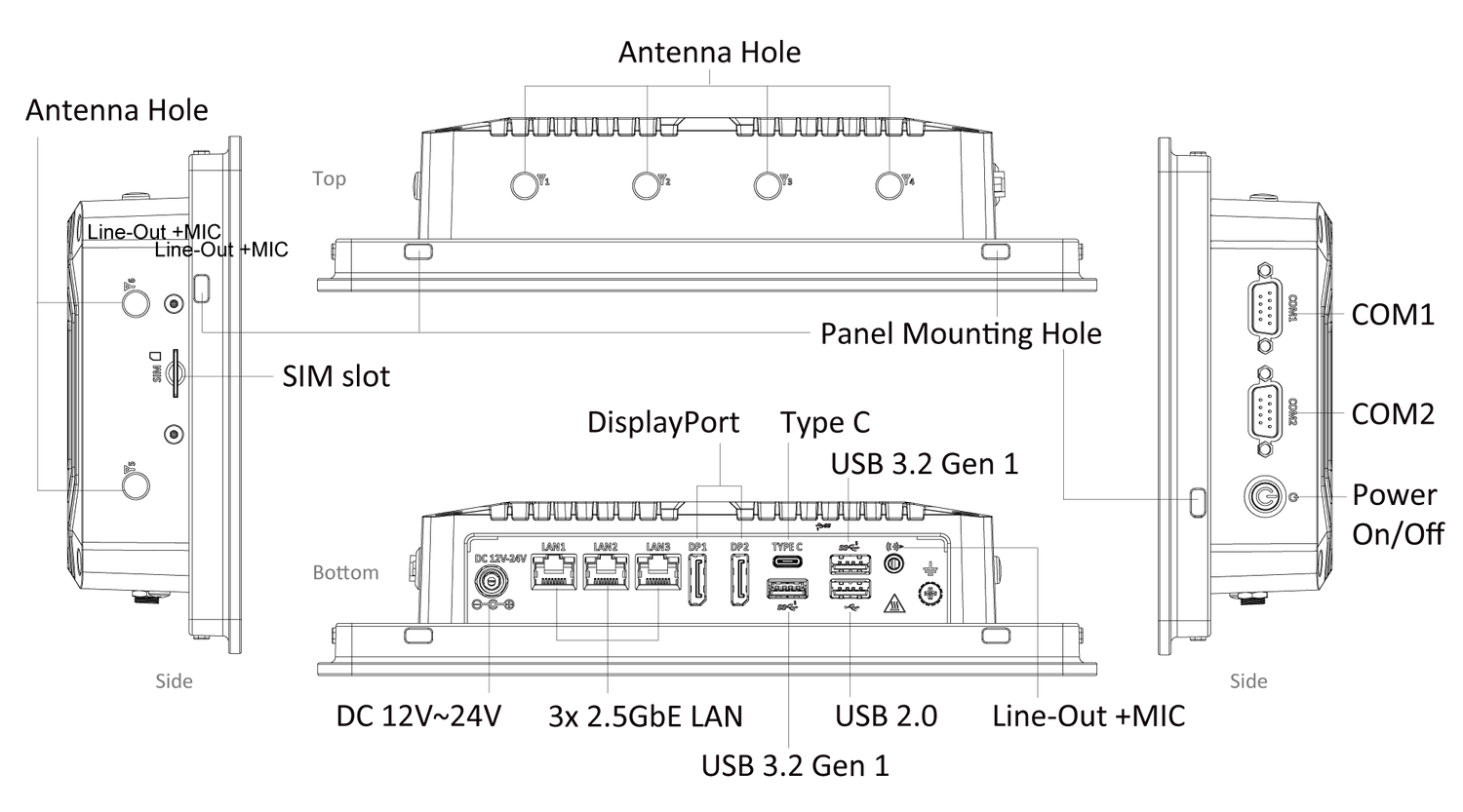

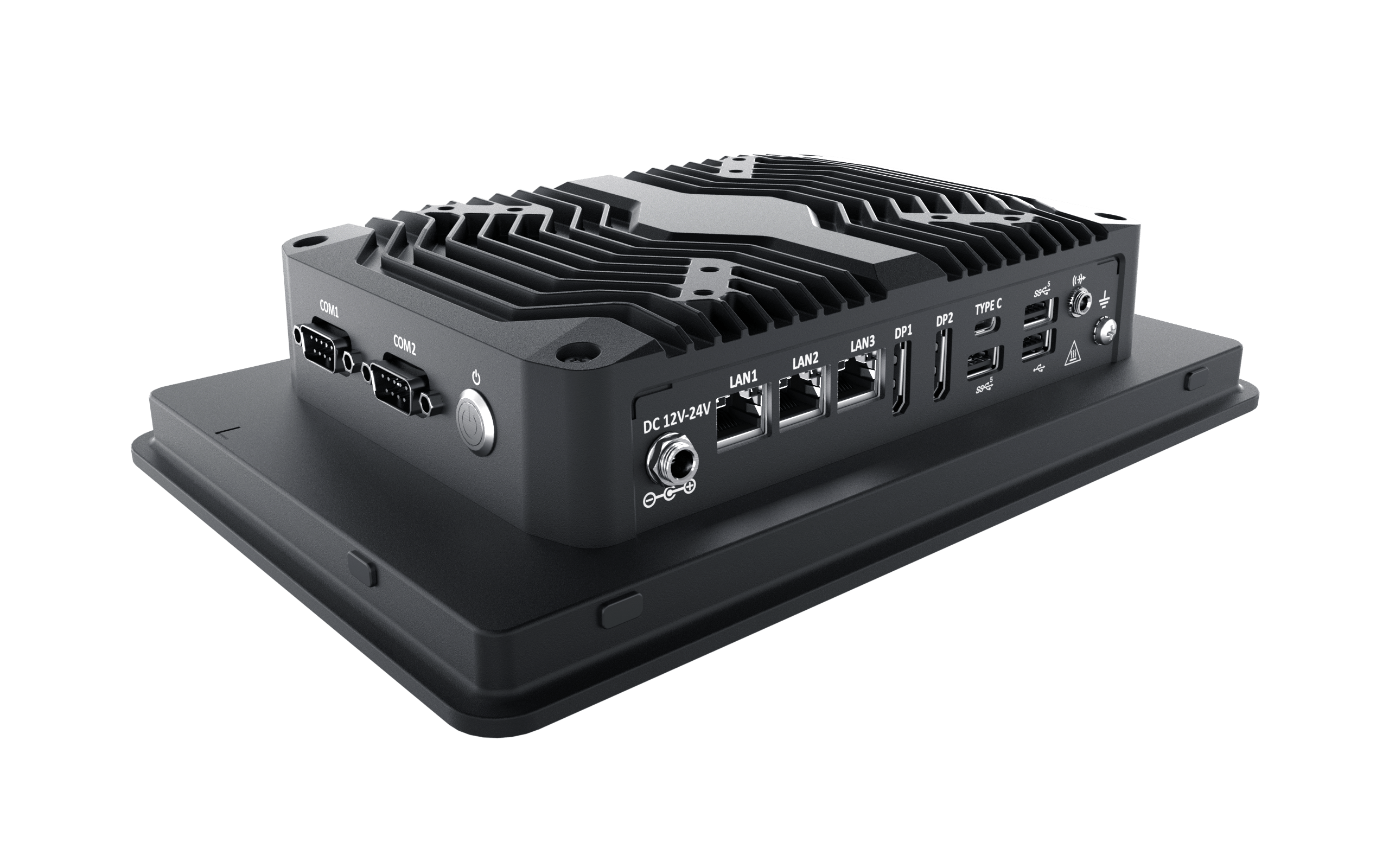

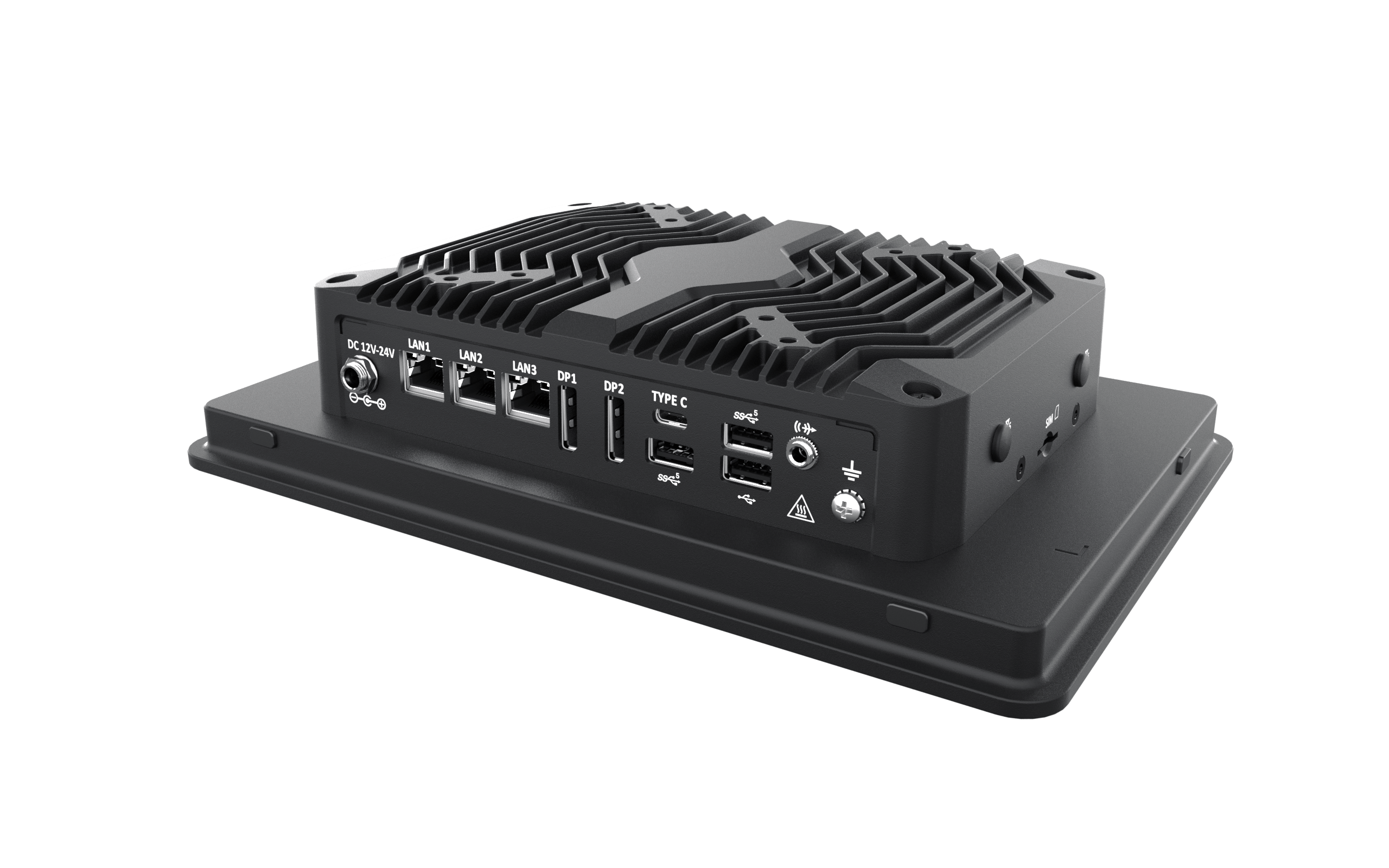

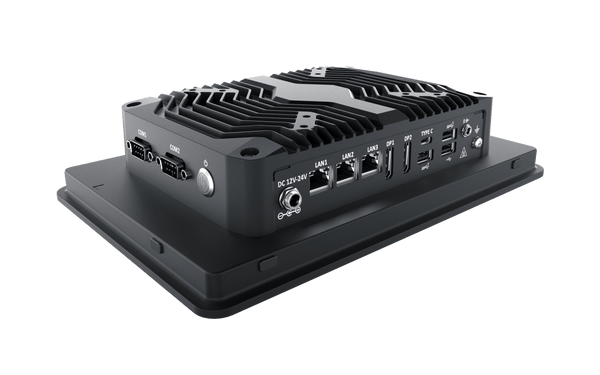

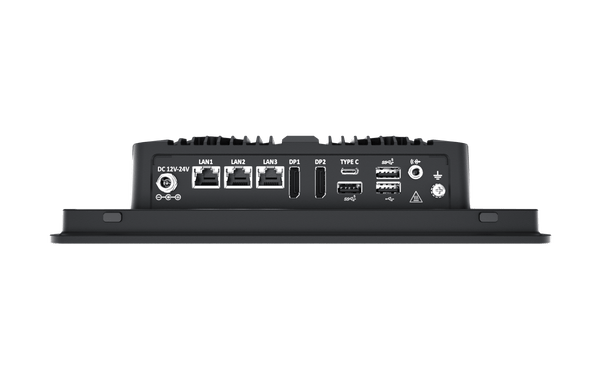

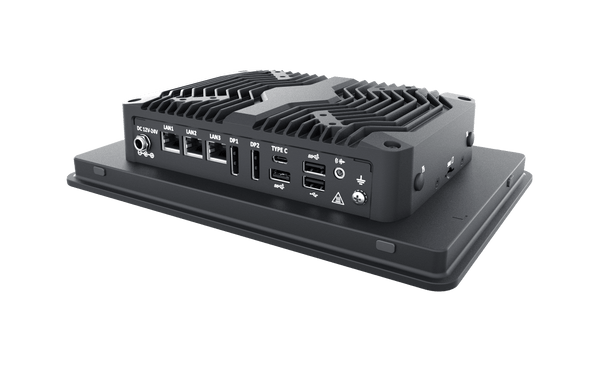

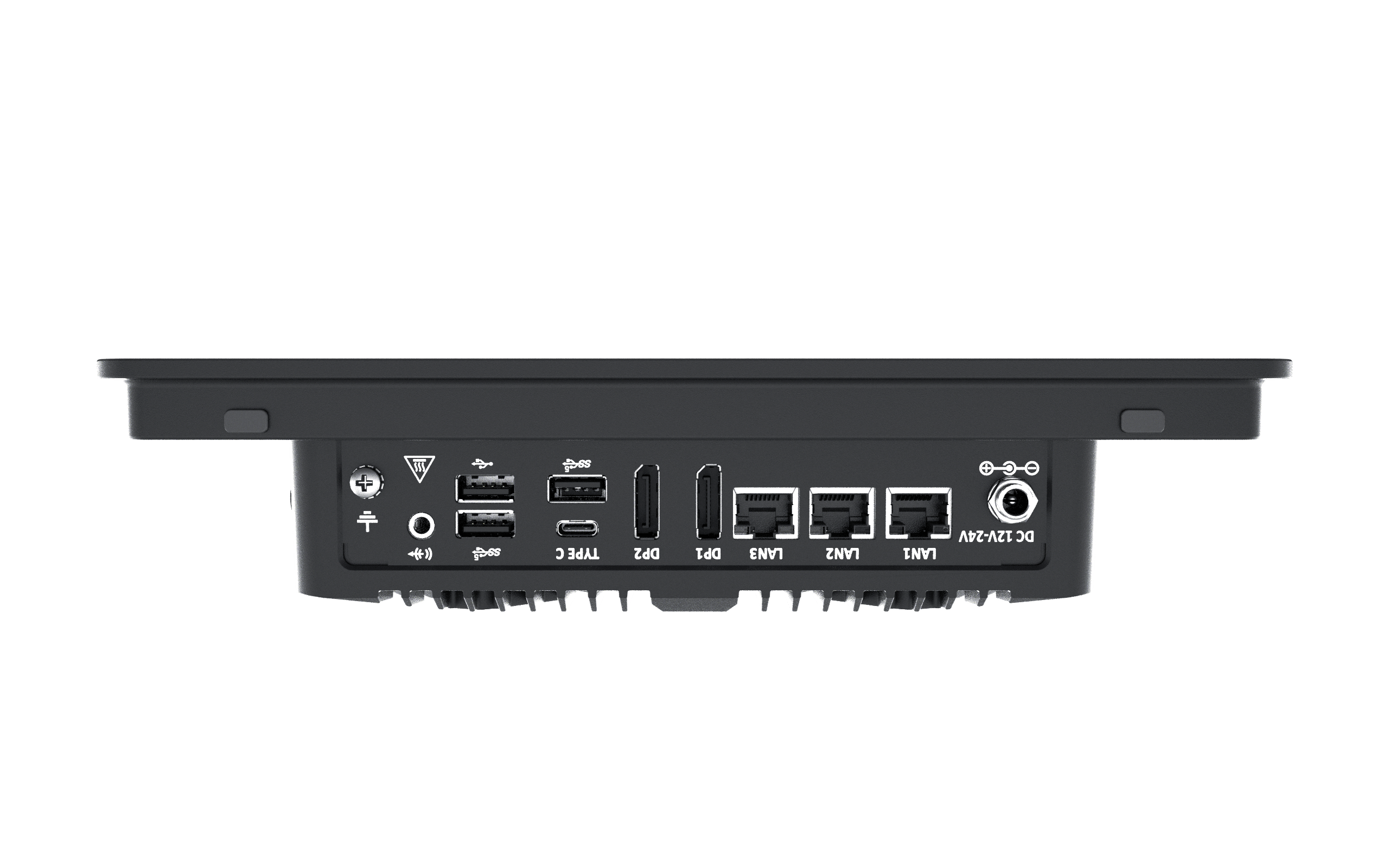

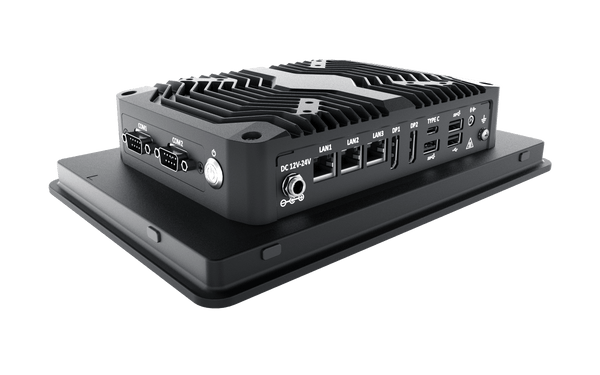

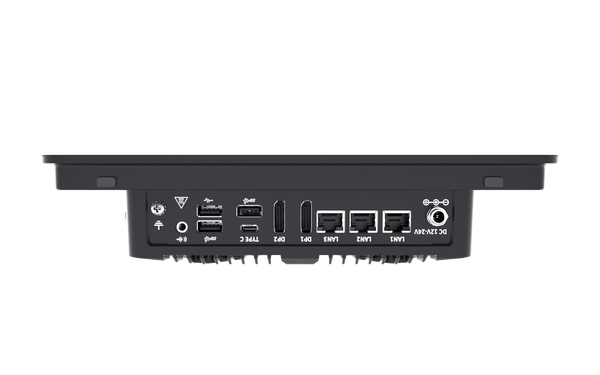

I/O Connectivity

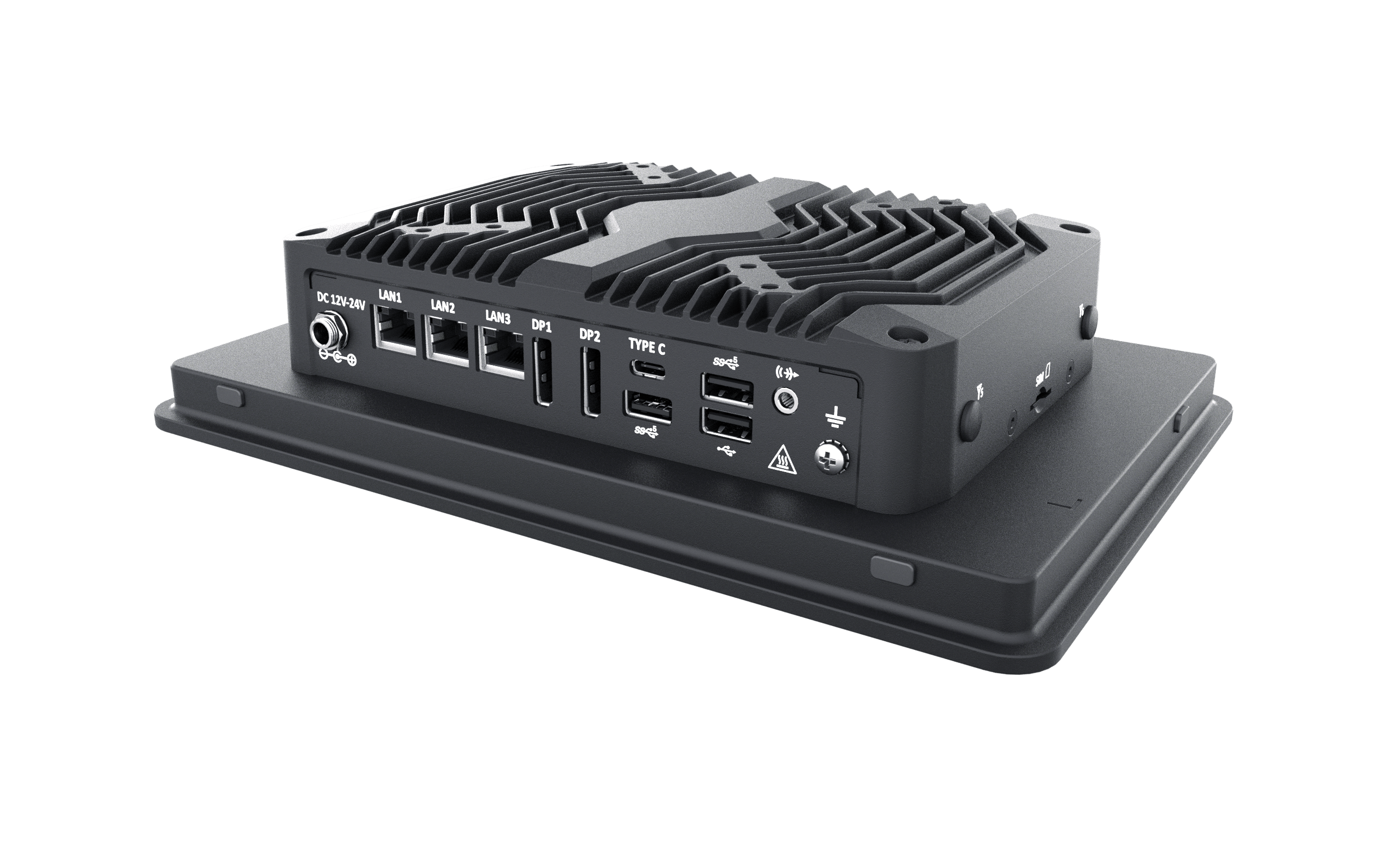

  • 3x 2.5GbE LAN, 2x DisplayPort, 4x USB (Type-C, Gen 1, 2.0), 2x COM Ports
  • 1x Line-Out + Mic, 1x SIM Socket

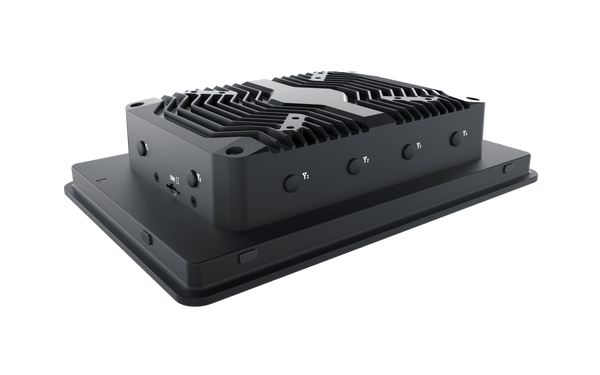

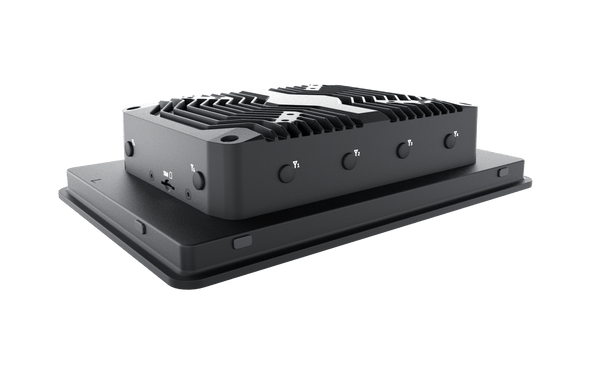

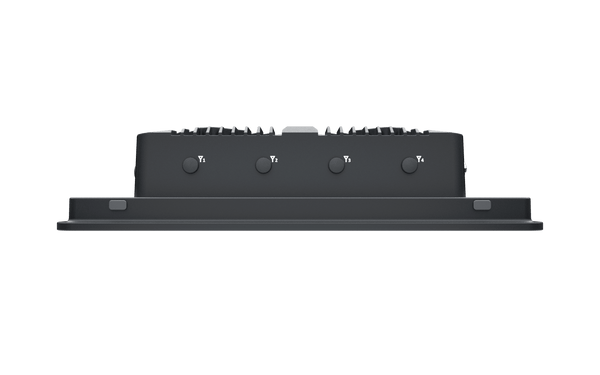

  • Supports up to 6 External Antennas

Flexible M.2 Expansion

  • M.2 M Key (2280): NVMe/SATA SSD, auto-detect support
  • M.2 B Key (3042/3052): 4G/5G connectivity
  • M.2 E Key (2230): Wi-Fi and Bluetooth expansion

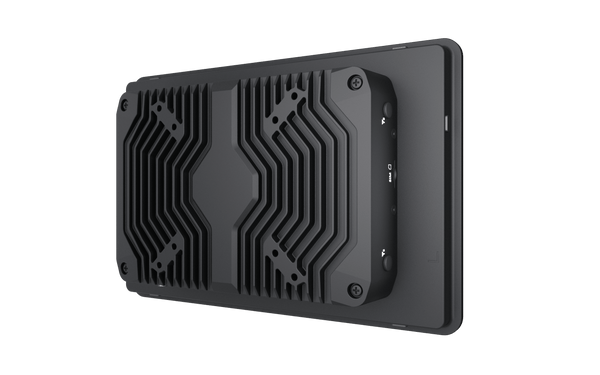

Versatile Mounting Solution

The AIO Series’s All In One design allows it to be easily mounted in various applications for tailored solutions, using either VESA Mounting or Panel Mounting.

* Barebone Pricing Only; Sales team to review component configuration and price

Interested In
AIO-W210-MTL?

Contact Us

Specification

Display
IP Rating Front IP65
LCD Size 10.1" (16:10)
Max. Resolution 1280 x 800 (WXGA)
Brightness (cd/m²) 400 nits
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.169(H) x 0.1695(V)
Viewing Angle 89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF 30,000 Hours (LED Backlight)
Touch
Touch Type Projected Capacitive Touch
Surface Hardness 7H / IK07
Multi-touch 10 point (Support Glove Mode)
Anti-noise CS 10V rms
System
Processor • Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core)
• Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core)
System Chipset SoC integrated
System Memory 1x 262-Pin DDR5 5600MHz SO-DIMM. Max. up to 32GB (Non-ECC)
LAN Chipset GbE1~3: Intel i226-LM 2.5GbE LAN PXE Support
Audio Codec Realtek ALC897 High Definition Audio CODEC
BIOS AMI uEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM dTPM2.0, fTPM2.0
Storage
M.2 1x M.2 M Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/SATA SSD, Auto Detect
Expansion
M.2 1x M.2 B Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G
1x M.2 E Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth

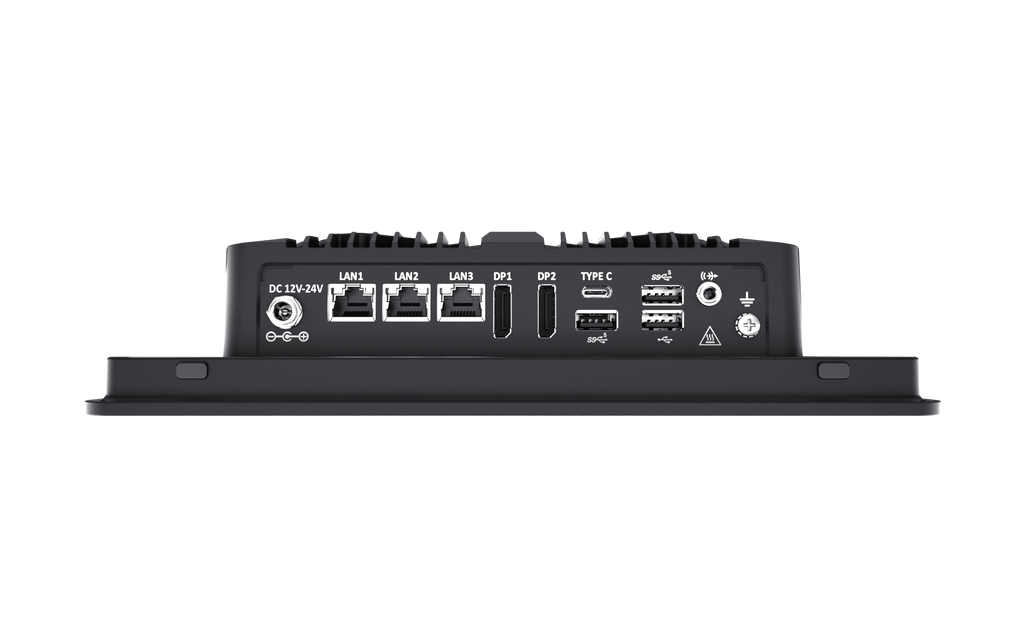

I/O
DisplayPort  2x DisplayPort

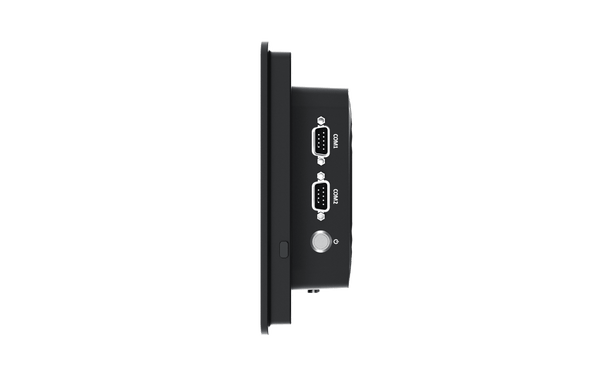

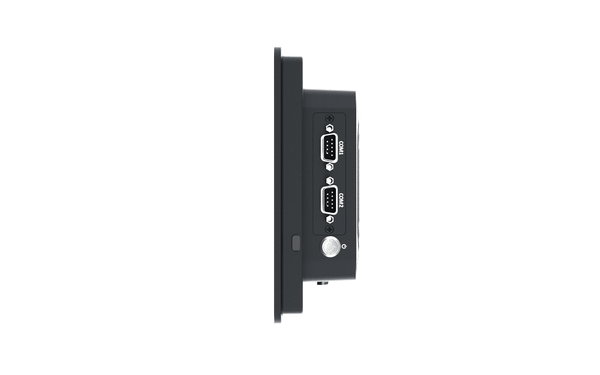

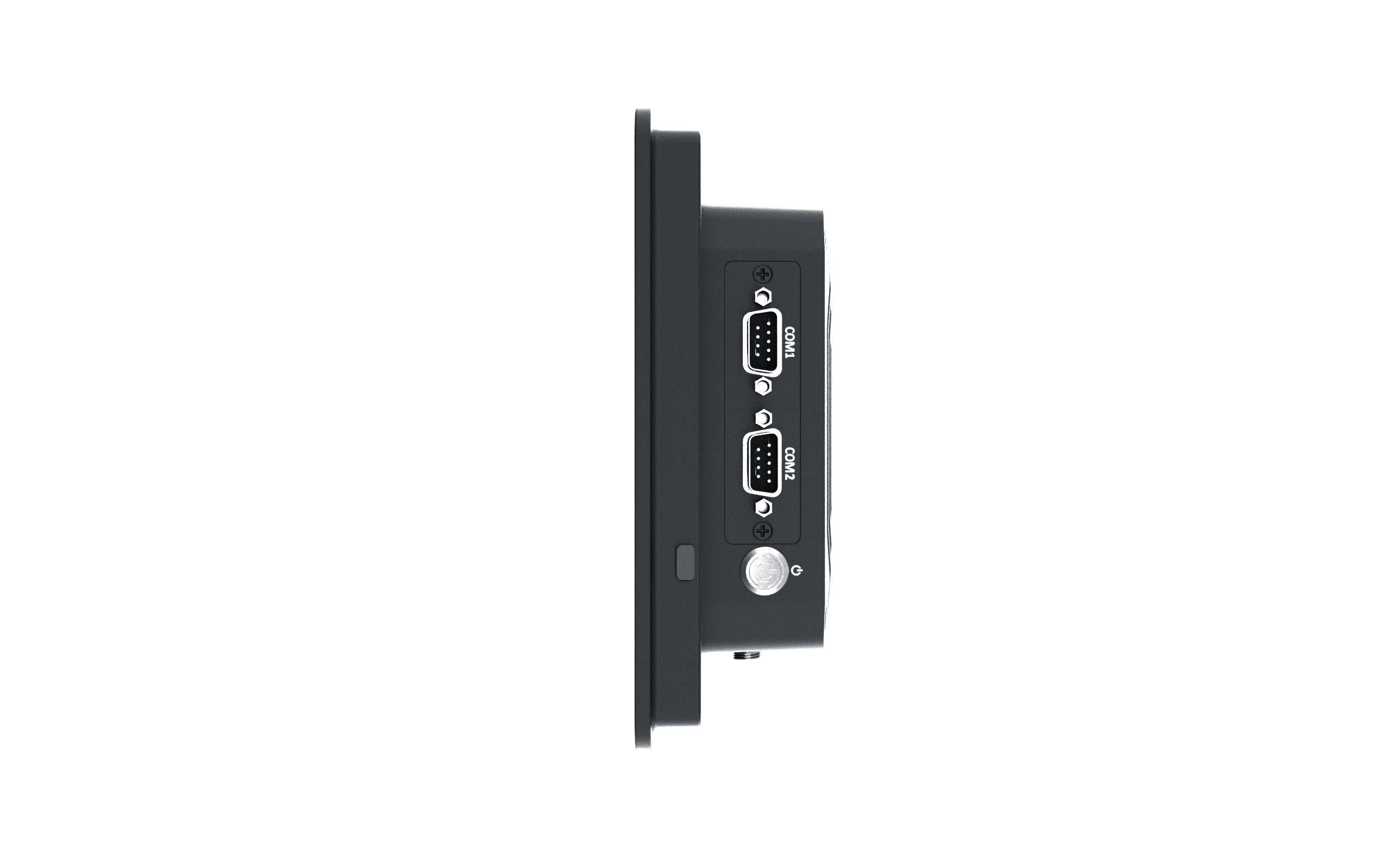

COM COM 1: RS-232/422/485
COM 2: RS-232
USB 1x USB 3.2 Type-C (5 Gbps)
2x USB 3.2 Gen 1 (5 Gbps)
1x USB 2.0
LAN 3x 2.5GbE LAN
Audio 1x Line-Out +MIC
SIM 1x SIM Socket
Others Support up to 6x Antenna (optional)
Operating System
Windows Windows 10 / Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter 150W (20V/7.5A, Default)
Power Supply Voltage DC 12~24V
Power Connector DC Jack 5.5mm/2.5mm
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10% to 80% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A, CB, UKCA, IC
Vibration With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 20G half-sin 11ms
Physical
Dimension 256 (W) x 170 (H) x 57 (D) mm
Weights 1.4 kg
Mounting VESA Mount (75mm x 75mm/100mm x 100mm)
Panel Mount (optional)

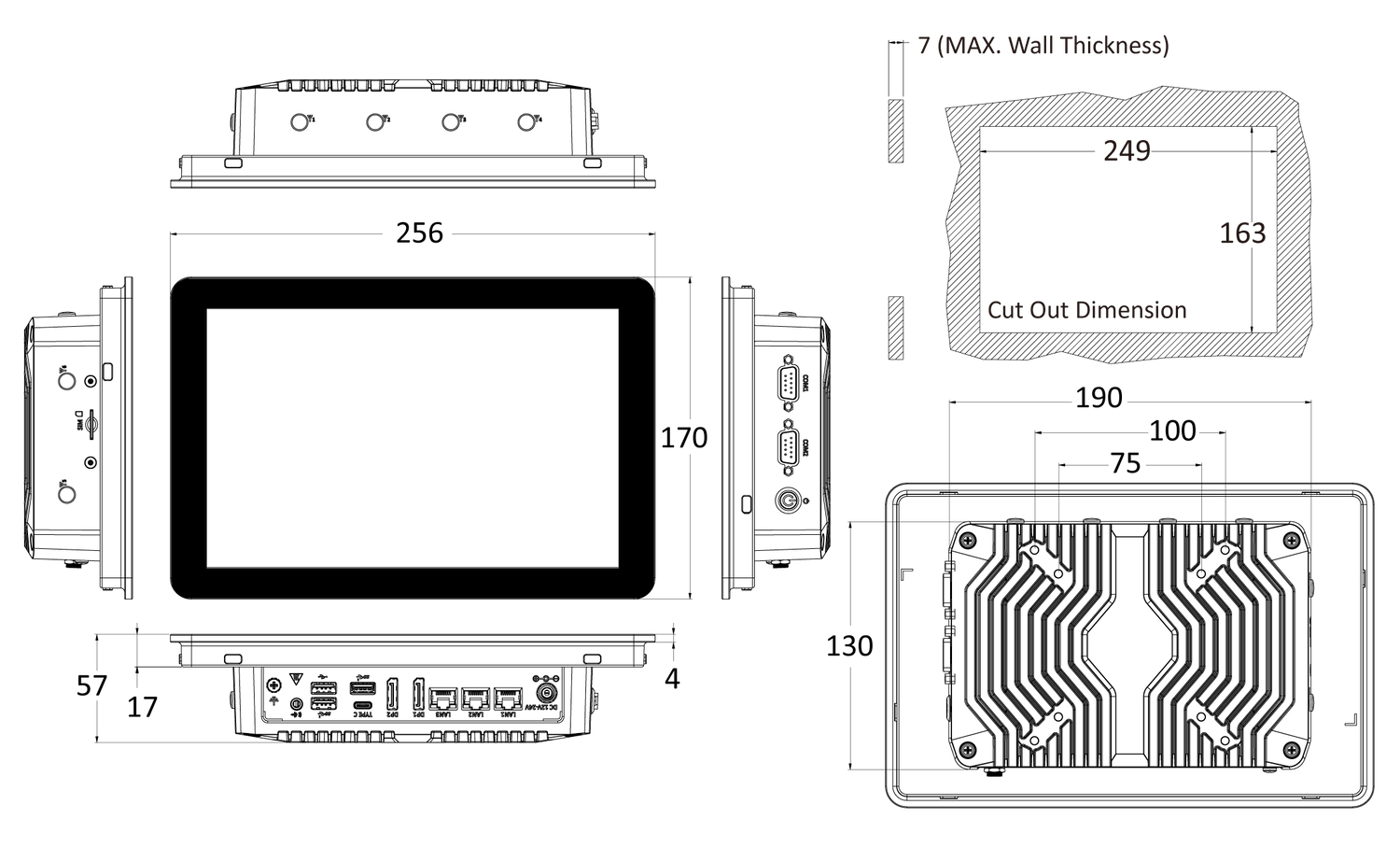

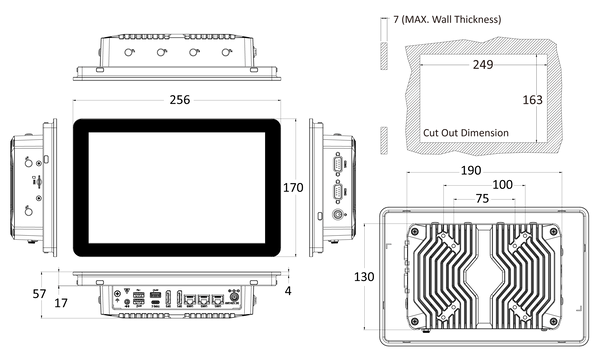

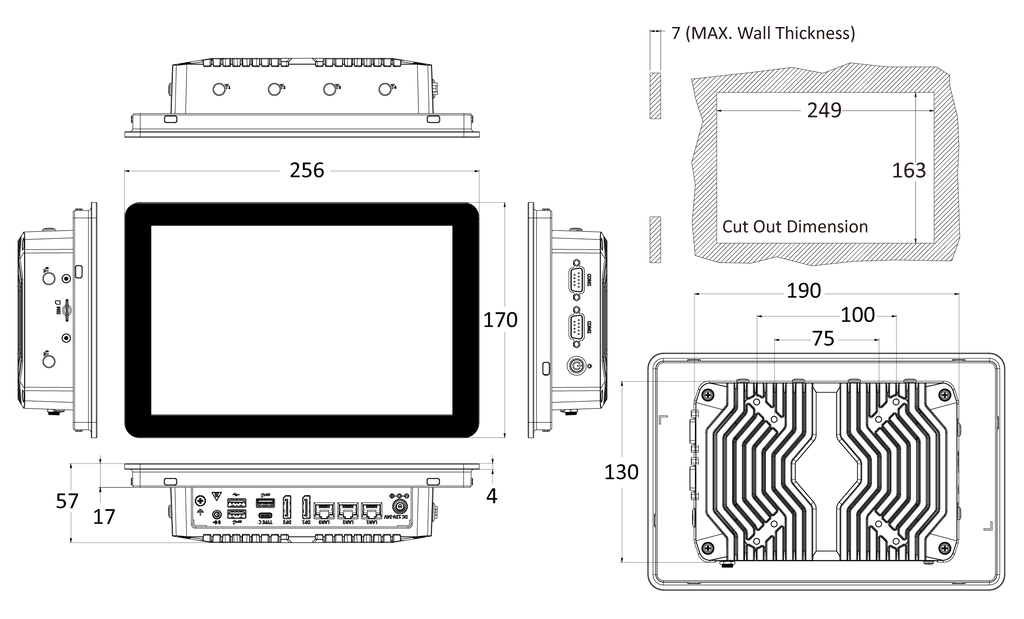

Mechanical Layout

Product Dimension

Unit:mm
