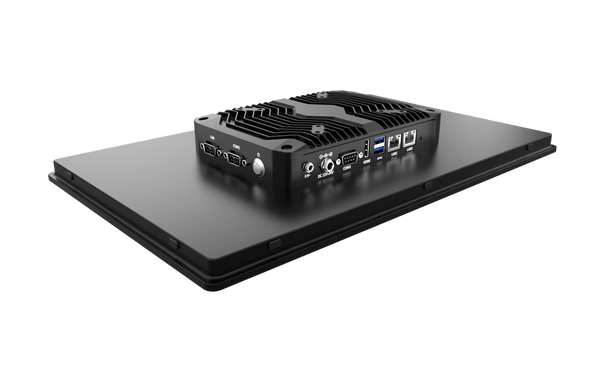

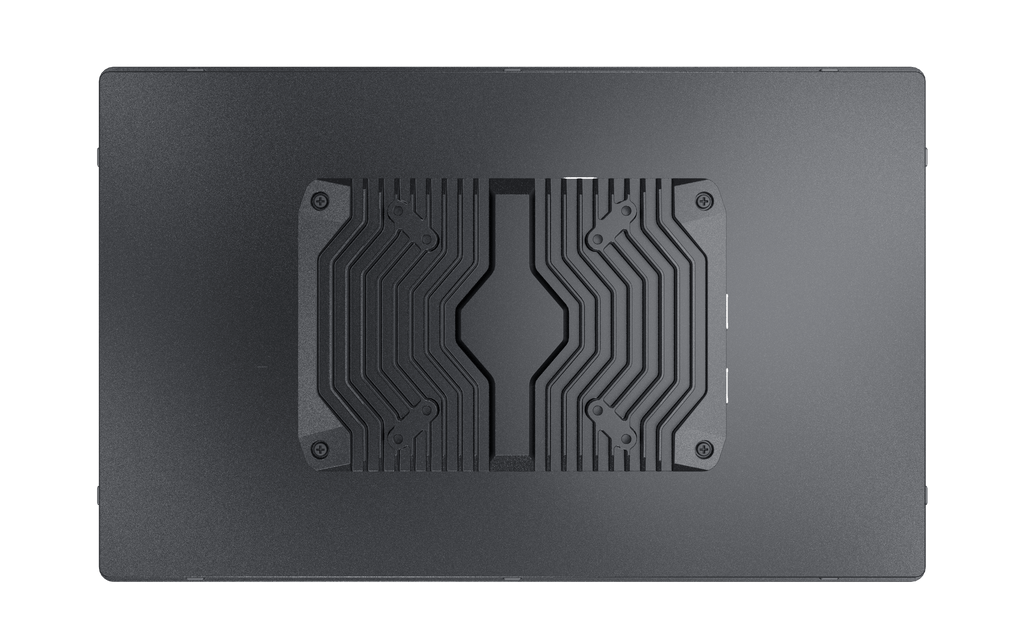

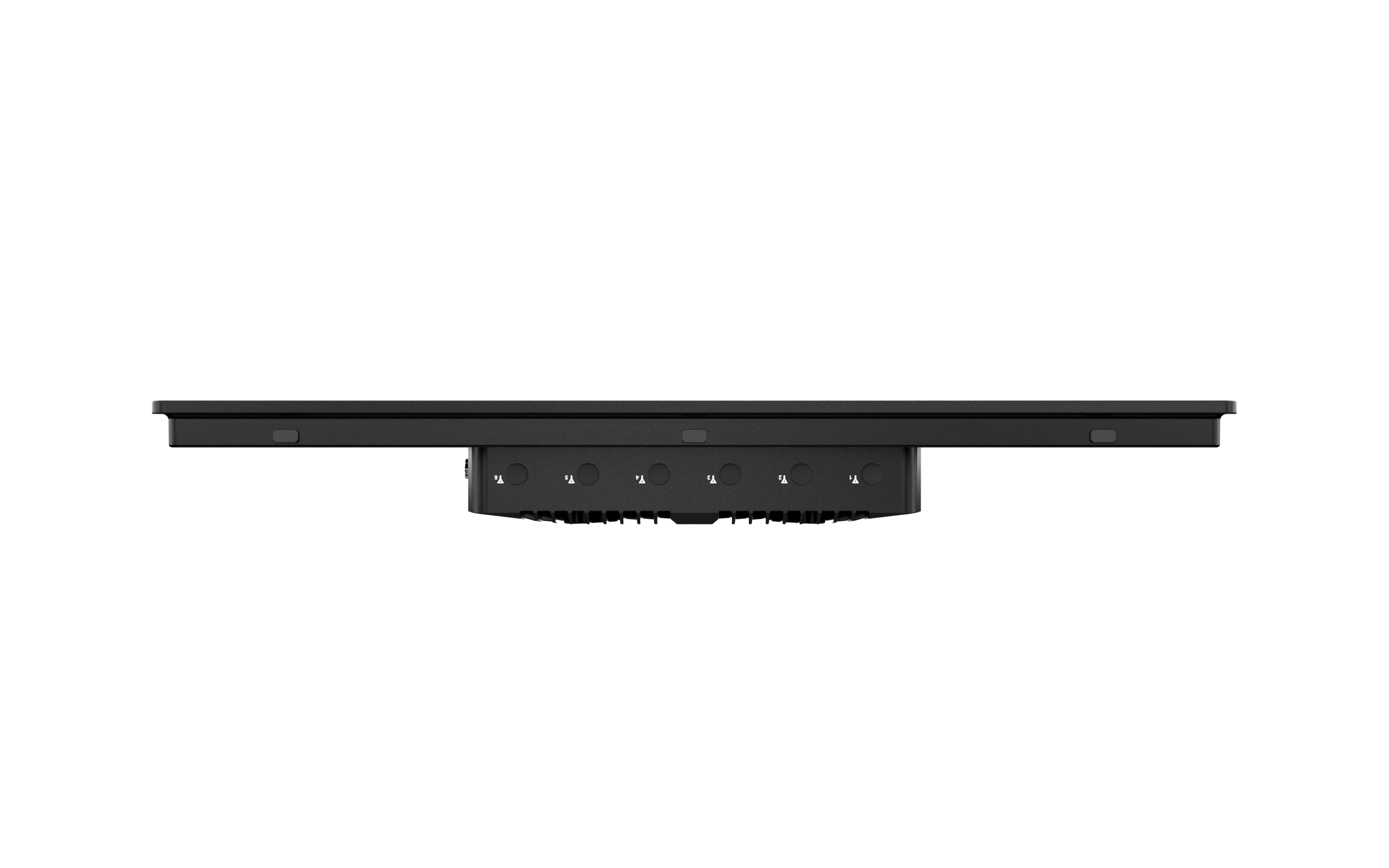

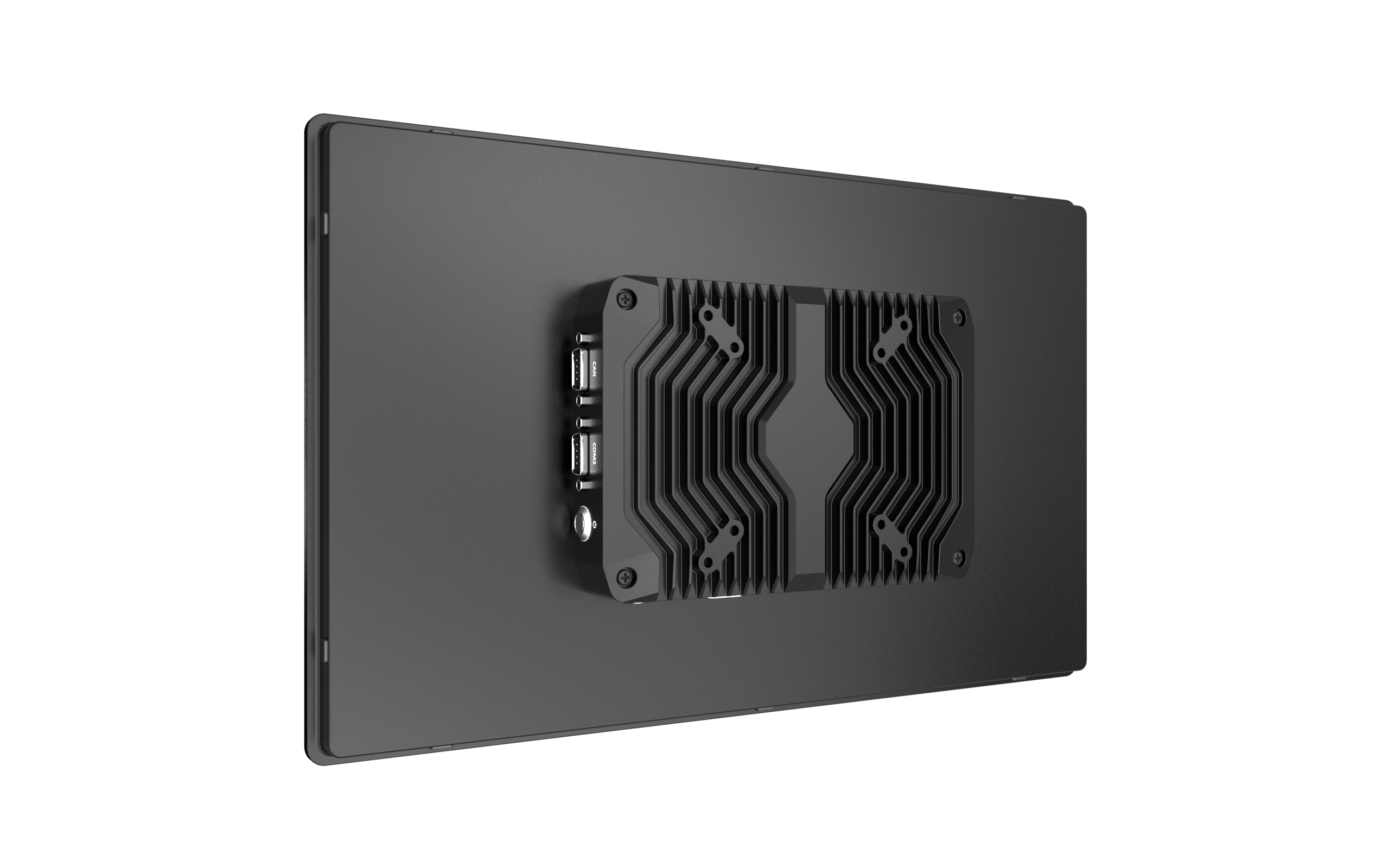

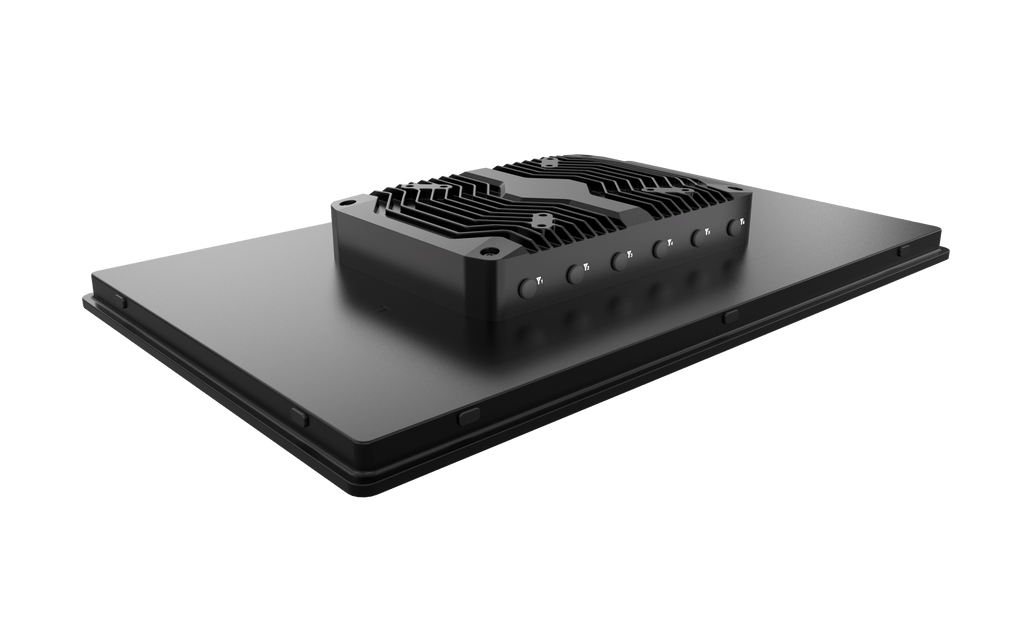

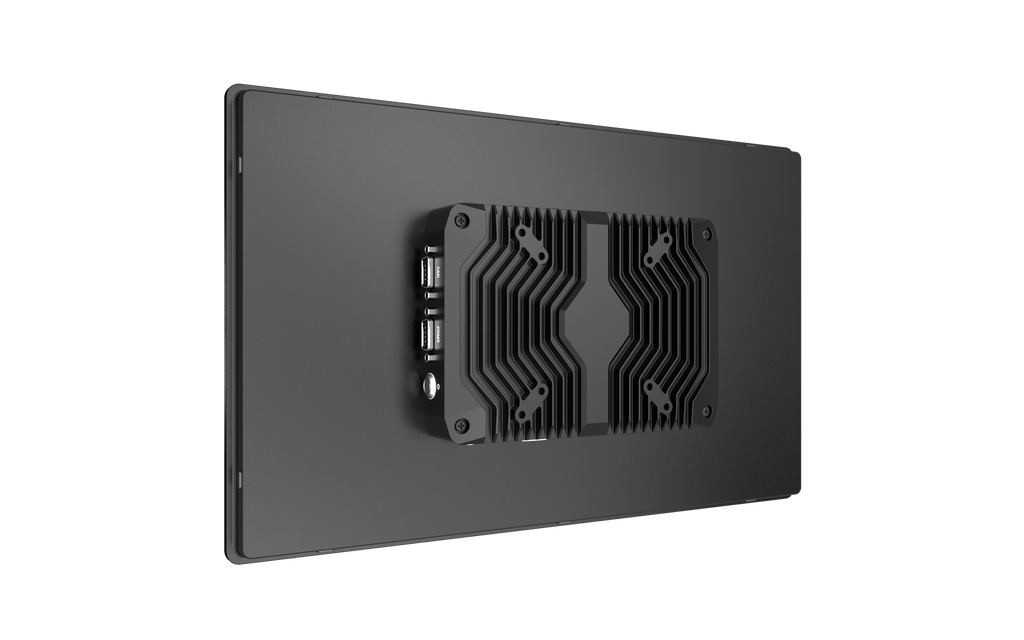

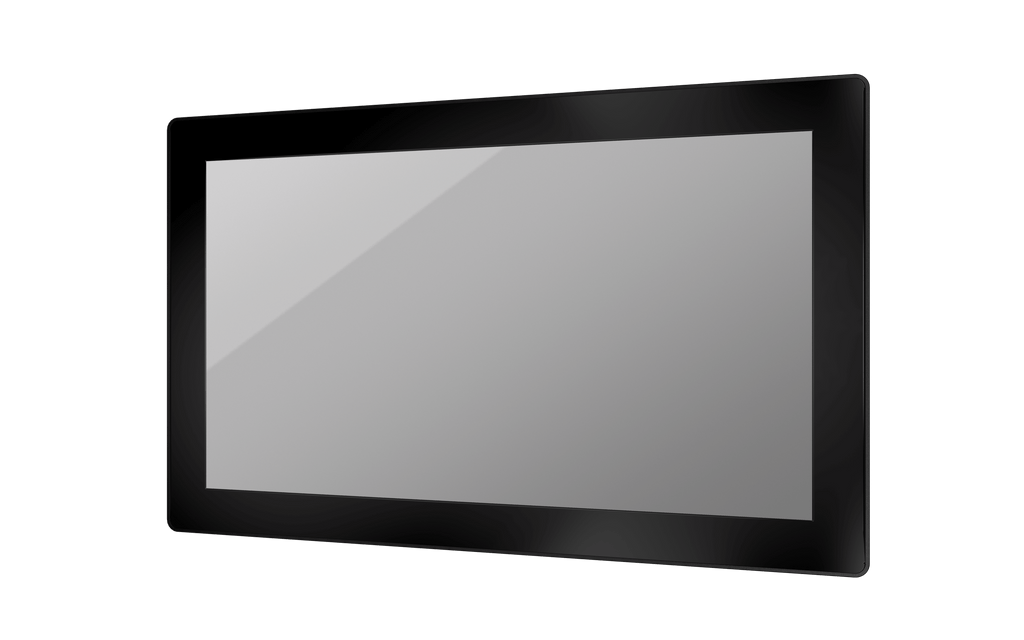

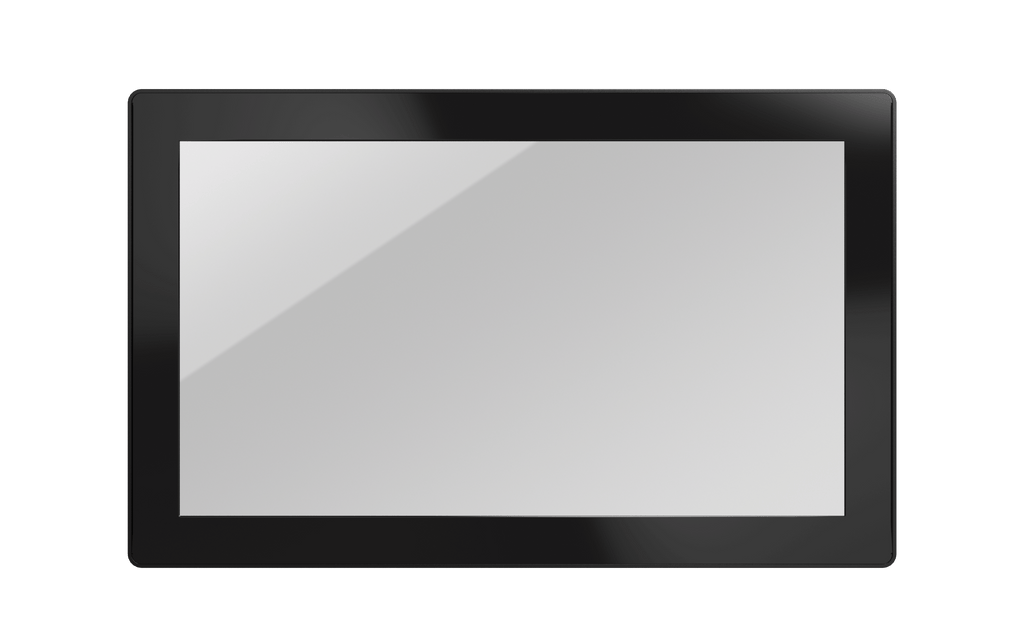

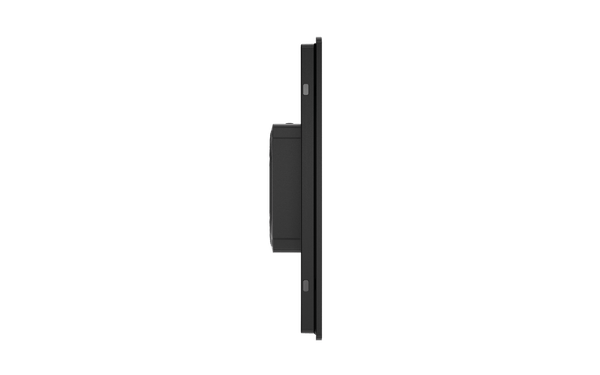

AIO-W215-RK3568J 15.6" Full HD Capacitive All IN One Touchscreen Computer with Rockchip ARM Cortex-A55 RK3568J

Rockchip RK3568J ARM Quad Cortex-A55, up to 2.0 GHz
Front IP65 for protection against water and dust
Scratch Resistant 7H Glass Hardness IK07
1x M.2 B-Key, 1x M.2 E-Key
2x USB 3.0 Type A, 2x COM, 1x HDMI, 2x LAN
Wide Operating Temperature: -10°C to 50°C
Power Input: 12 to 24VDC
Android 13 / Debian 11 / Ubuntu 22.04 LTS
Backlight lifetime 30,000 Hours
UL 62368-1 Ed. 3, CE, FCC Class A, UKCA, IC

See datasheet

Model:

AIO-W215-RK3568J

AIO-W210-RK3568J

Certifications:

All In One Integrated System

10-Points PCAP Touch

Range of Display Size

Flexible I/O Connectivity

Front Panel IP65

High Efficient Computing

High-Efficiency ARM Computing

Rockchip RK3568J ARM Processor
Quad-Core Cortex-A55, up to 2.0GHz, integrated 1 TOPS NPU
4GB LPDDR4 Onboard Memory
Fanless, Low-Power Design

Industrial Grade Durability

IP65 Front Panel
7H Glass Hardness & IK07 Impact Resistance
MIL-STD-810H Shock & Vibration Tested
Wide Operating Temp: -10°C to 50°C

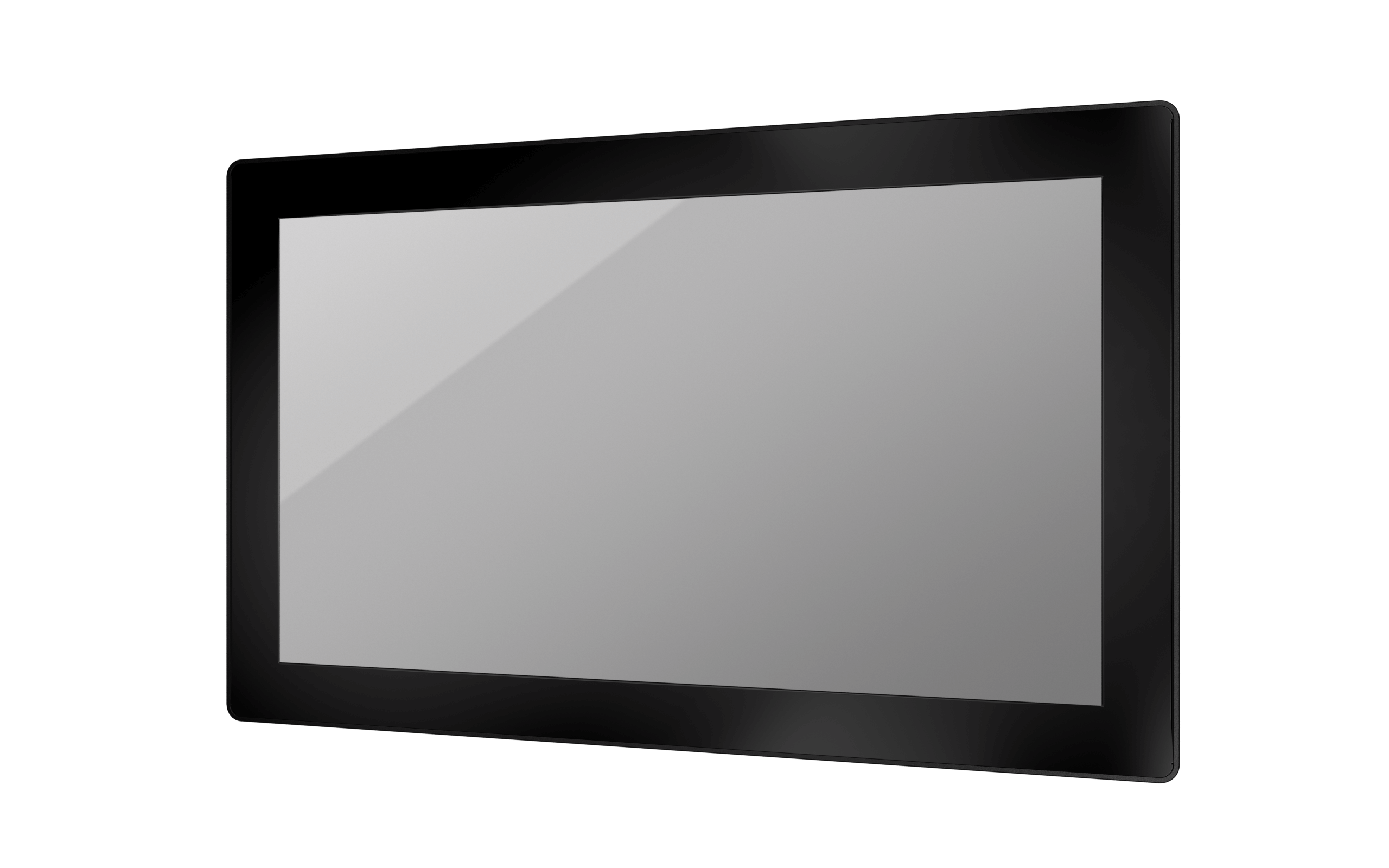

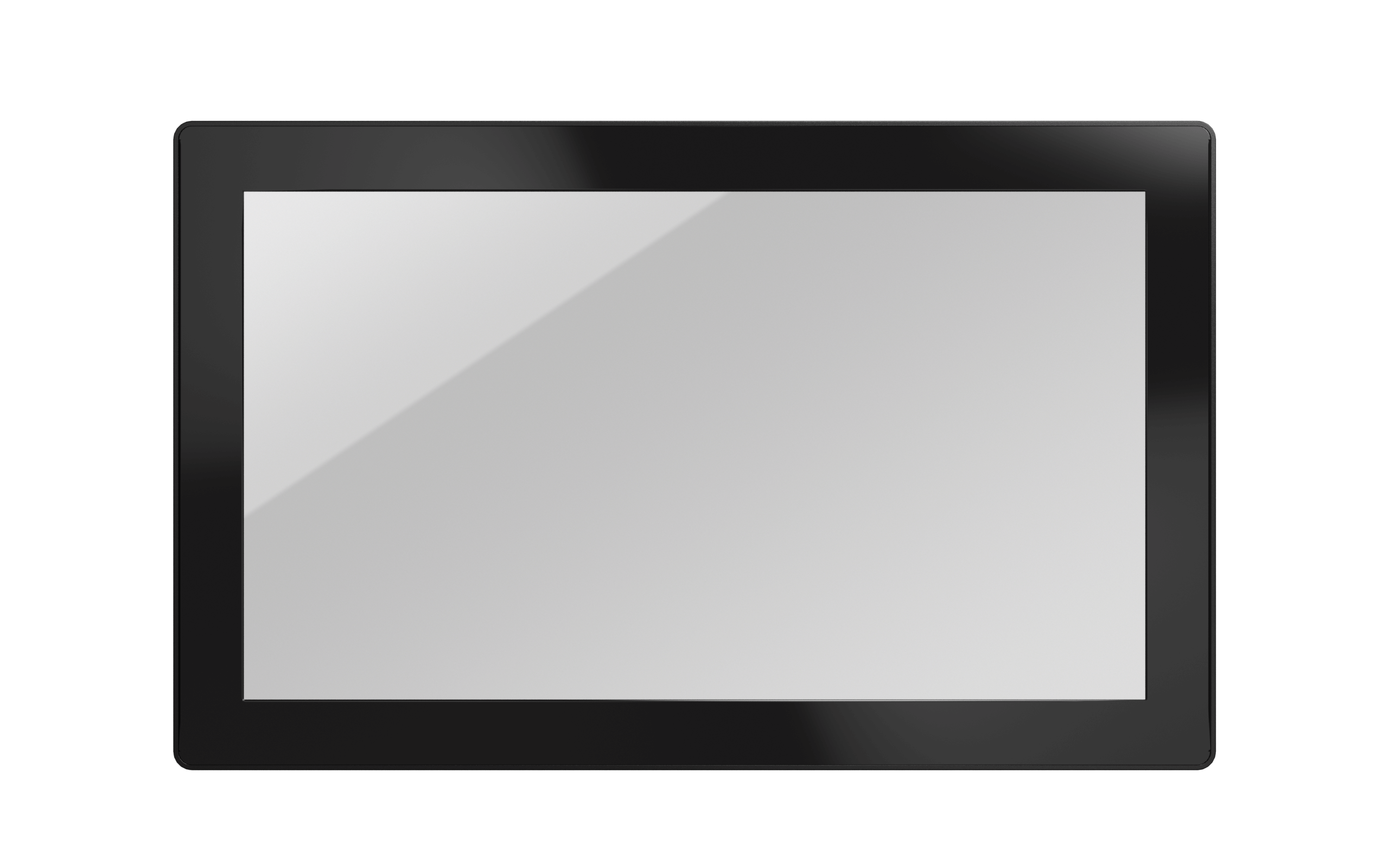

Enhanced Optical Clarity

The AIO Series delivers clear, high-visibility displays for industrial settings. With 400-nit brightness, wide viewing angles, and a high contrast ratio, operators can maintain consistent readability from various positions in demanding environments.

Versatile Mounting Solution

The AIO Series’s All In One design allows it to be easily mounted in various applications for tailored solutions, using either VESA Mounting or Panel Mounting.

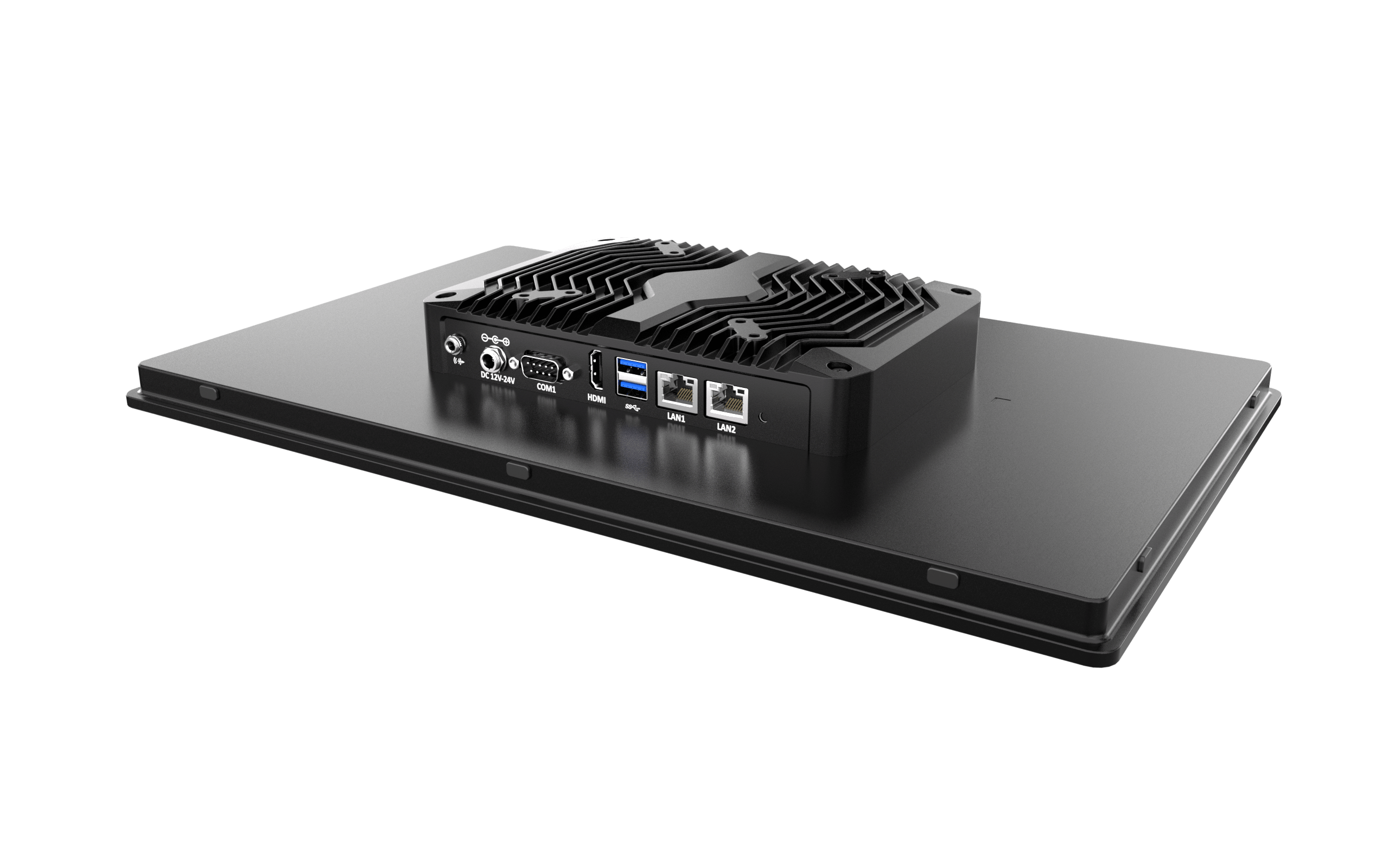

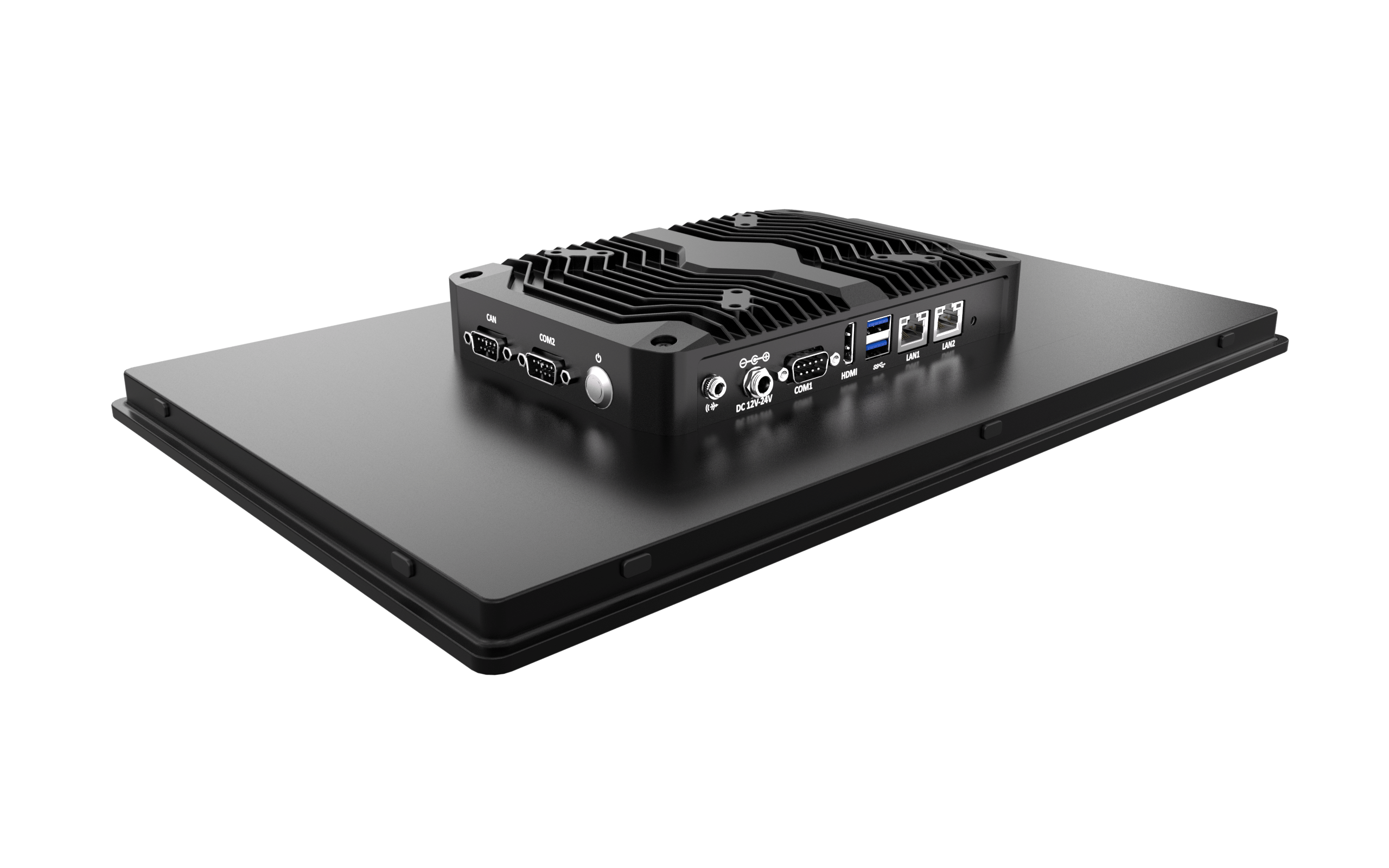

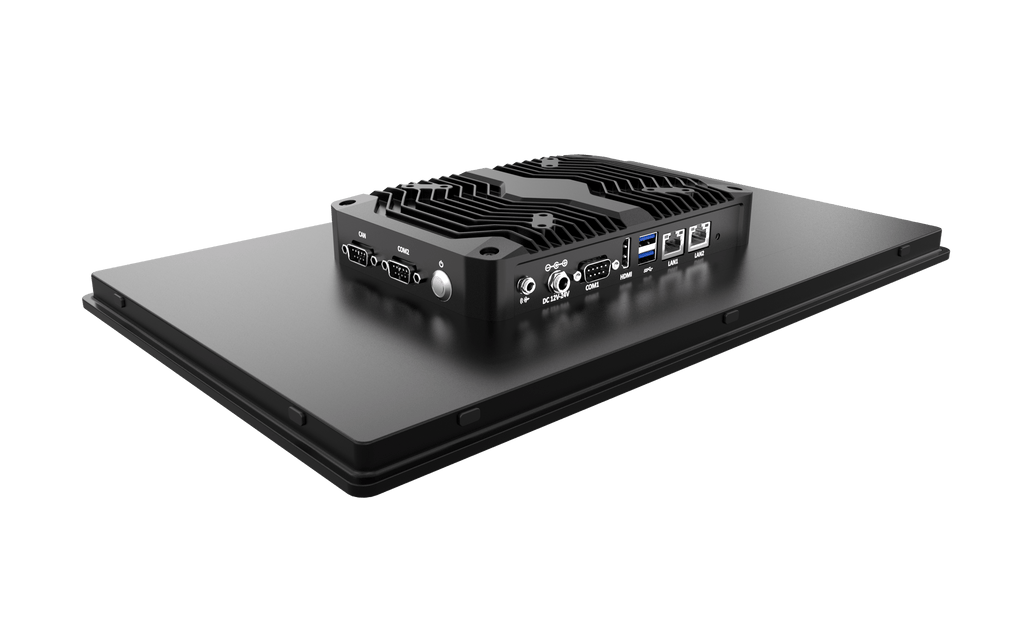

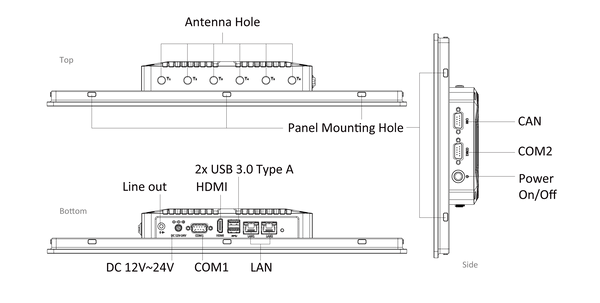

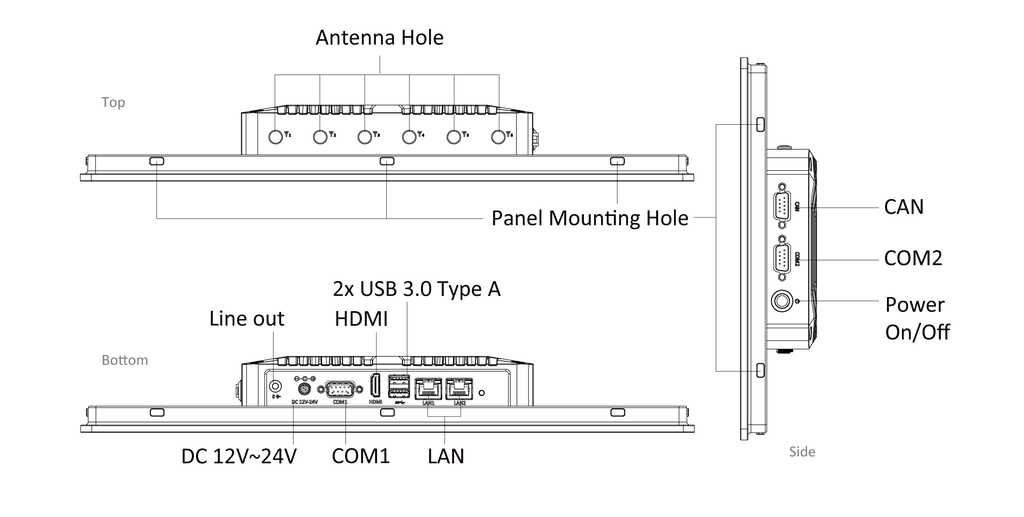

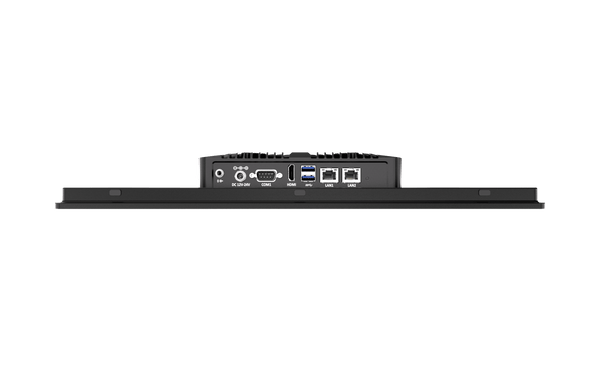

Flexible I/O Connectivity

2x GbE LAN, 2x USB 3.0, 2x COM Ports
1x HDMI (up to 4K), 1x CAN Bus, Audio Line-Out

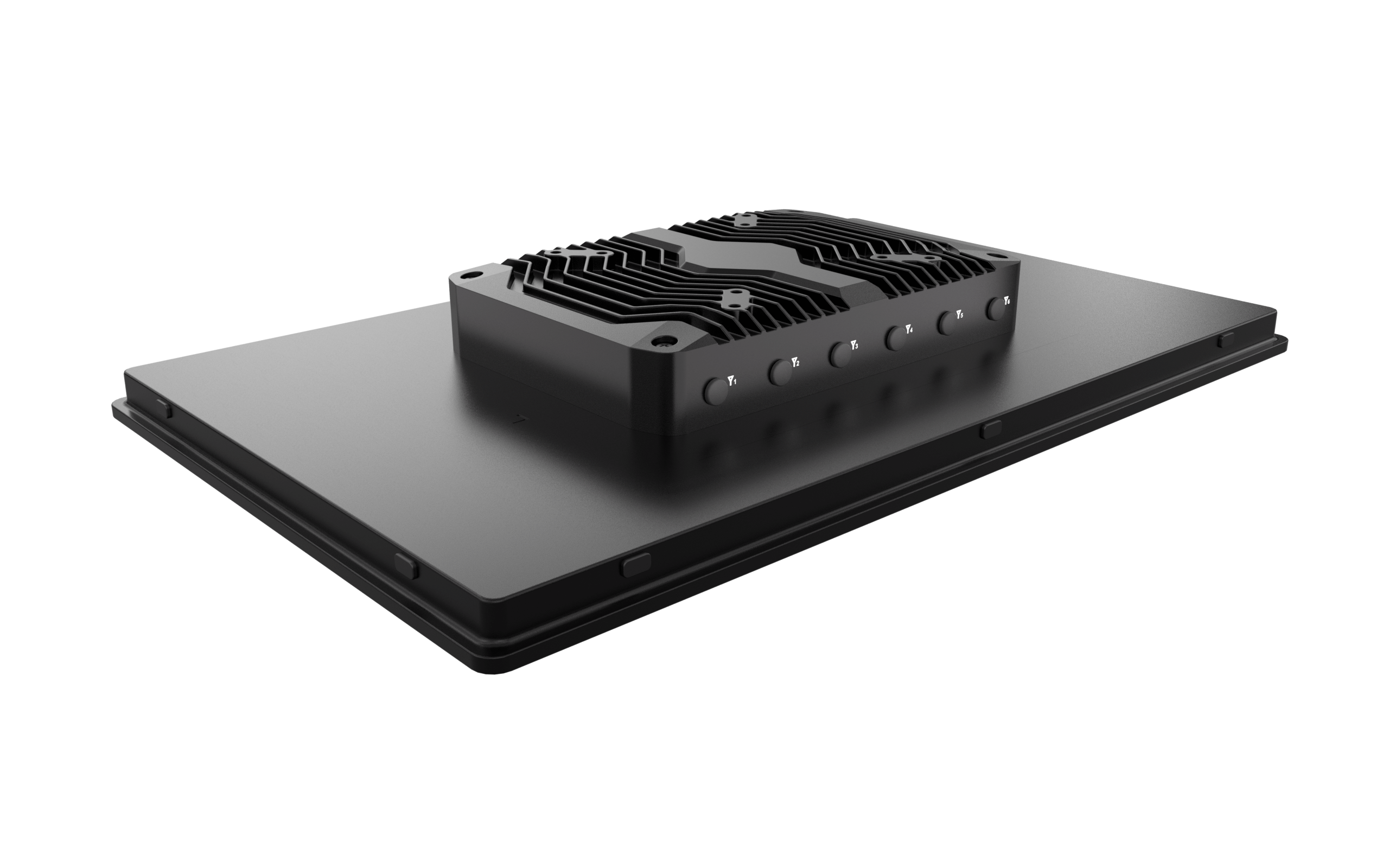

Support for up to 6 External Antennas

Modular Wireless Expansion

1x M.2 E Key: Wi-Fi 6 / Bluetooth 5.2
1x M.2 B Key: 4G LTE with SIM Slot Support

Dual OS Support for Versatile Applications

Android 13: Touch-Optimized Interface for Rapid Deployment
Debian 11: Open-Source Linux Platform for Custom Development

*Barebone Pricing Only; Sales team to review component configuration and price

Interested In
AIO-W215-RK3568J?

Specifications

Display
IP Rating	Front IP65
LCD Size	15.6" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m²)	400 nits
Contrast Ratio	800:1
LCD Color	16.7M
Pixel Pitch (mm)	0.17925(H) x 0.17925(V)
Viewing Angle	89/89/89/89 (Typ.) (CR>=10)
Backlight Lifetime	30,000 Hours (LED Backlight)
Touch
Touch Type	Projected Capacitive Touch
Surface Hardness	7H / IK07
System
Processor	Rockchip RK3568J ARM Quad Cortex-A55, up to 2.0 GHz
System Chipset	SoC integrated
System Memory	LPDDR4 2133MHz 4 GB
LAN Chipset	GbE1: RTL8211FDI 10/100/1000 Mbps GbE2: RTL8211FDI 10/100/1000 Mbps
Storage
eMMC	64GB of eMMC for OS
Expansion
M.2	1x M.2 E Key 2230 (ENL-R8852BE, WIFI6, BT5.2, Optional) 1x M.2 B Key 3042 (LTE Module Support)
I/O
COM	2x RS-232/422/485
USB	2x USB 3.0 Type A
LAN	2x 10/100/1000 Mbps
Audio	1x Line-Out
Others	Support up to 6x Antenna (optional)
Operating System
Linux	Debian 11 Ubuntu 22.04 LTS
Android	Android 13
Power
Power	AT/ATX (Optional)
Power Adapter	60W (12V, Default)
Power Supply Voltage	DC 12~24V
Power Connector	DC Jack 5.5mm/2.5mm
Environment
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10% to 80% (non-condensing)
Certification	UL 62368-1 Ed. 3, CE, FCC Class A,UKCA, IC
Vibration	With SSD: 2.4 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	With SSD: 20G half-sin 11ms
Physical
Dimensions	400 (W) x 249 (H) x 50 (D) mm
Weights	2.3 kg
Mounting	VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional)

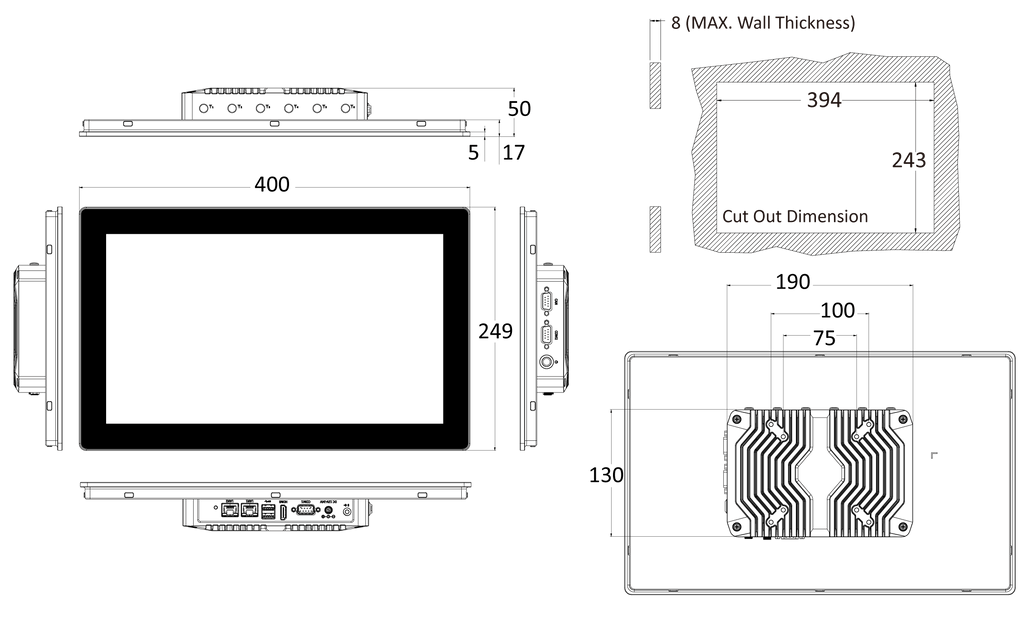

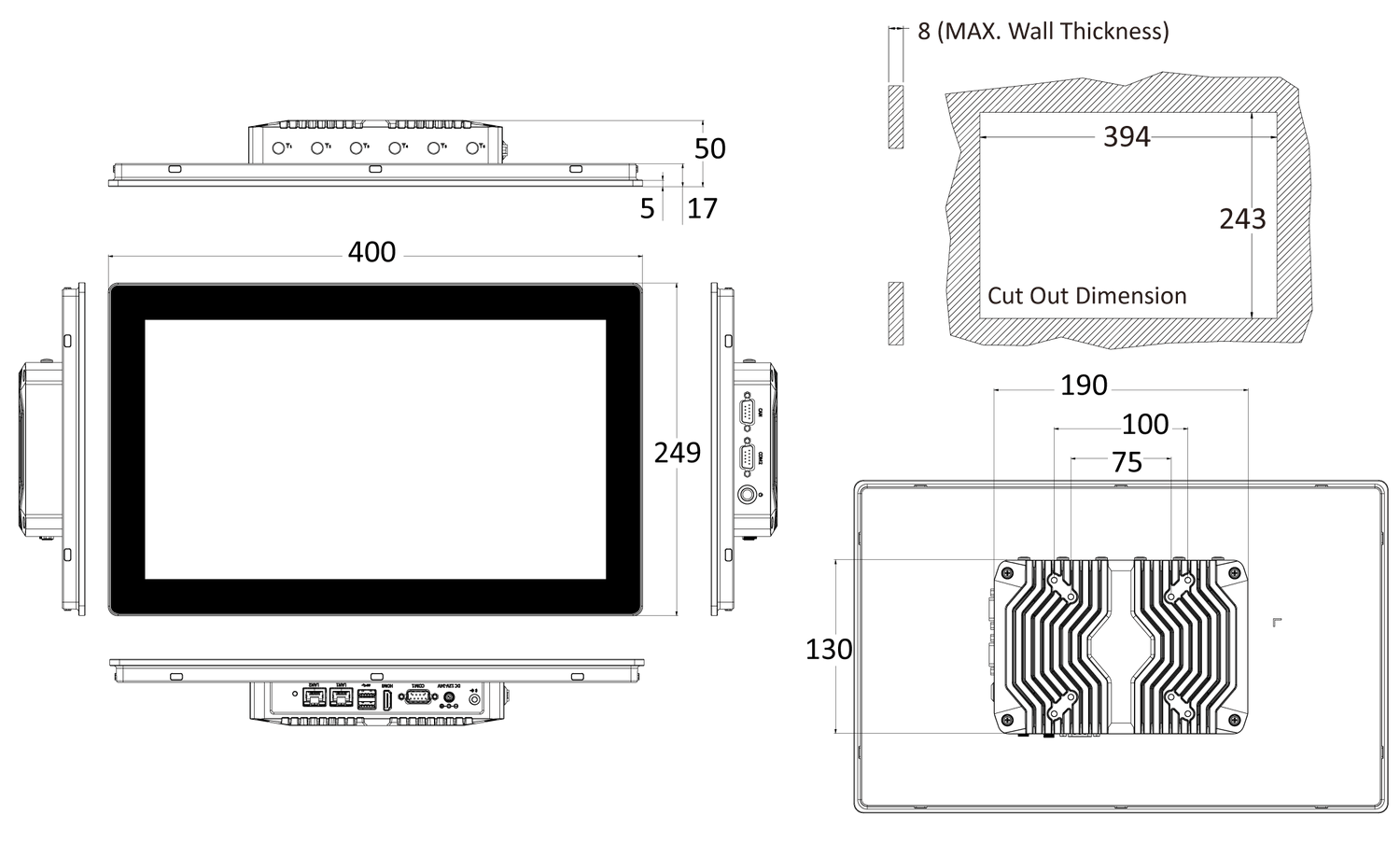

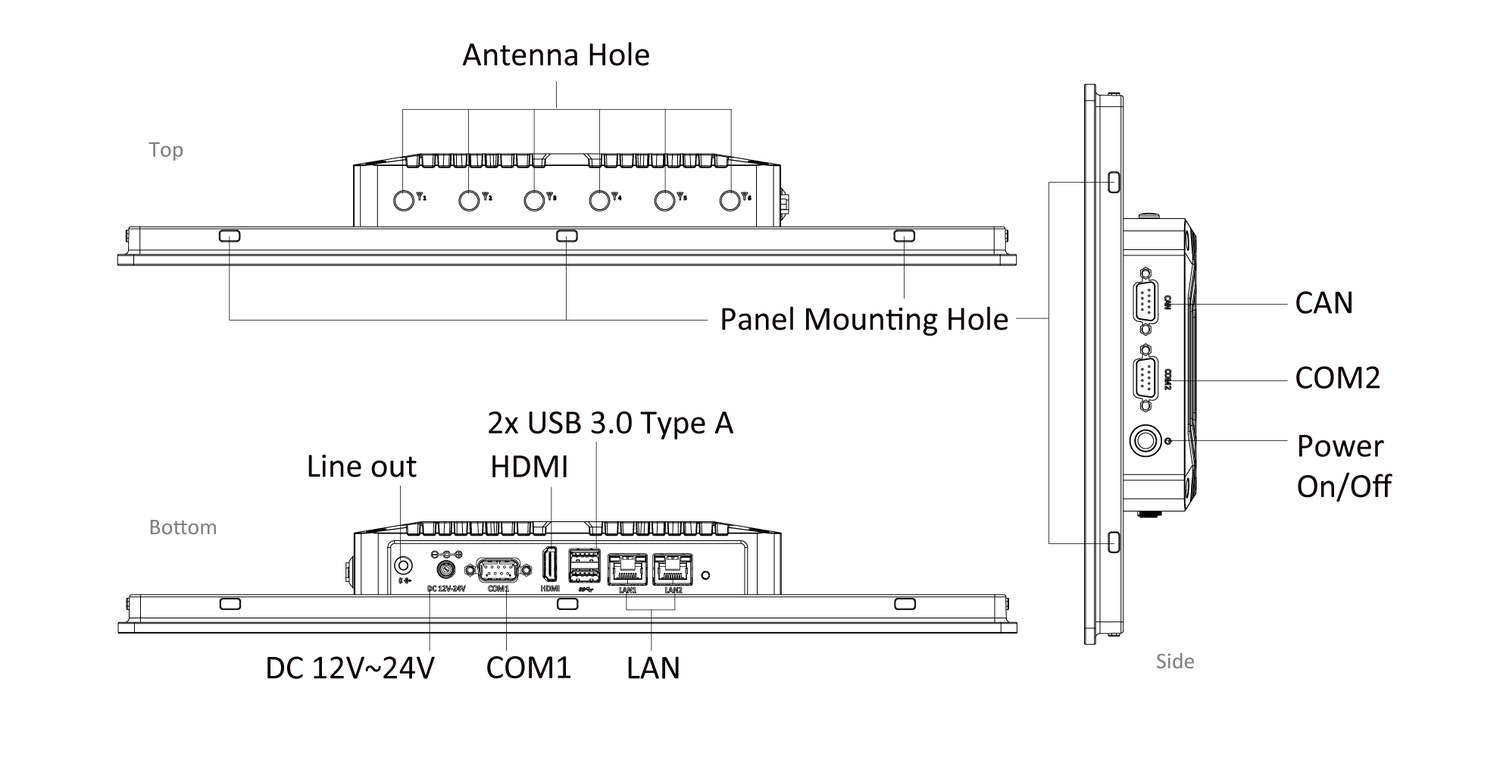

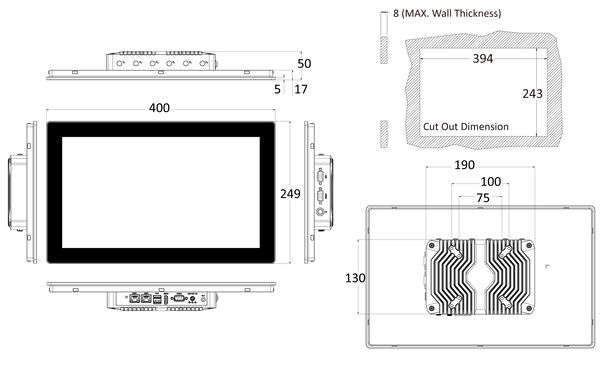

Mechanical Layout

Dimensions

Unit:mm

Resources

AWS IoT Greengrass	AWS-IOT-Getting-Started-Guide-AIO-W215-RK3568J.pdf
Datasheet	DS_AIO-W215-RK3568J_Premio.pdf
Product Brief	PB_AIO-200-ROK.pdf
User's Manual	UM_AIO-200-ROK-Premio.pdf
