AIO-W210-ADL 10.1" WXGA Capacitive IP65 All In One Touchscreen Computer With 12th Gen Intel® N Processor, 2x LAN, 4x USB, 2x COM 1x DP, 1x HDMI

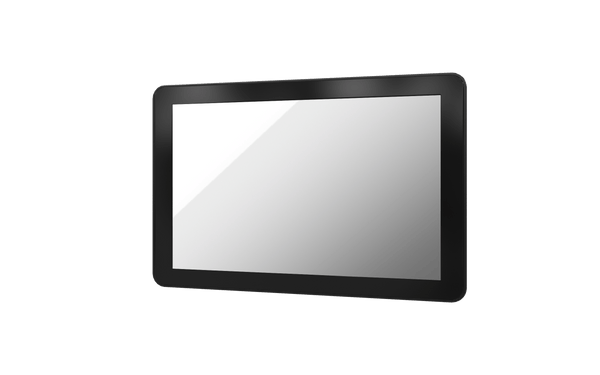

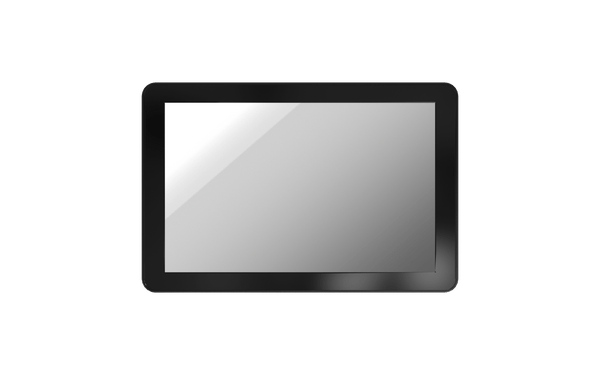

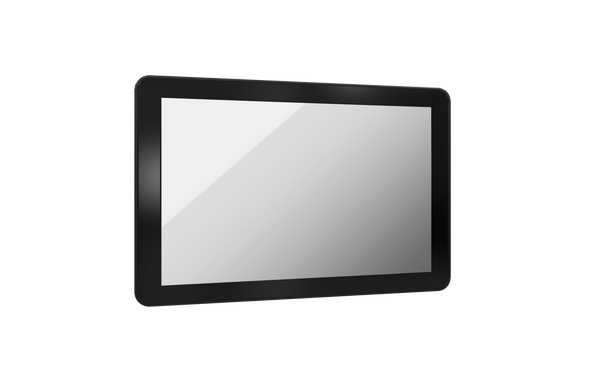

  • 10.1" (16:10) WXGA All-in-One Touchscreen Computer
  • World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
  • Front IP65 Rating for protection against water and dust
  • Scratch Resistant 7H Glass Hardness
  • Versatile Display Outputs; HDMI and DP
  • MTBF Up to 30,000 Hours
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

All In One Integrated System

10-Points PCAP Touch

Range of Display Size

Triple Independent Displays

Front Panel IP65

High Efficient Computing




Harnessing the Power of Intel Efficiency Cores

  • 4 E-Cores (Intel 7 Gracemont Architecture)
  • Supports single channel memory
  • Improve Power Efficiency
  • Lower Power Consumption

Industrial Grade Durability

  • IP65 Front Panel
  • Wide Operating Temperature: -10°C - 50°C
  • MIL-STD-810G Method 516.7 Procedure

Enhanced Optical Clarity

The AIO Series delivers ultimate readability and clarity for industrial applications and settings. Its wide viewing angles and high contrast ratio offers flexibility and consistent high-quality visibility to accommodate operators with varying viewing positions.

Triple Independent Displays Support

  • HDMI: Supports high-definition output up to 3840 x 2160 4K UHD @30Hz.
  • DP: Handles ultra-high resolutions up to 4096 × 2304 Real 4K @60Hz.
  • LVDS: Up to 1920 x 1200 WUXGA @60Hz for clear, sharp imagery.

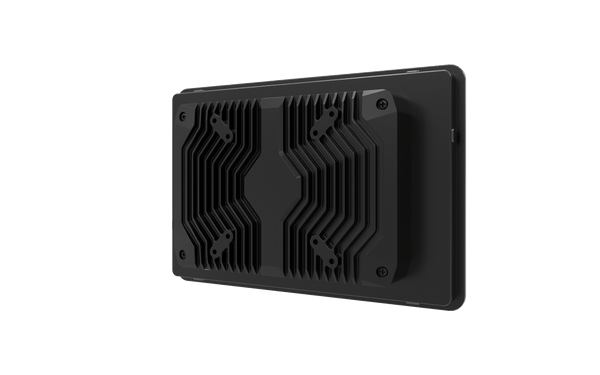

Versatile Mounting Solution

The AIO Series’s All In One design allows it to be easily mounted in various applications for tailored solutions, using either VESA Mounting or Panel Mounting.

Storage and Connectivity M.2 Keys

  • 1x M.2 B Key 128G SSD default Storage
  • 1x M.2 E Key Wifi 6e Support
  • 1x SIM slot for 5G support (AIO-200-ADL-3L model)

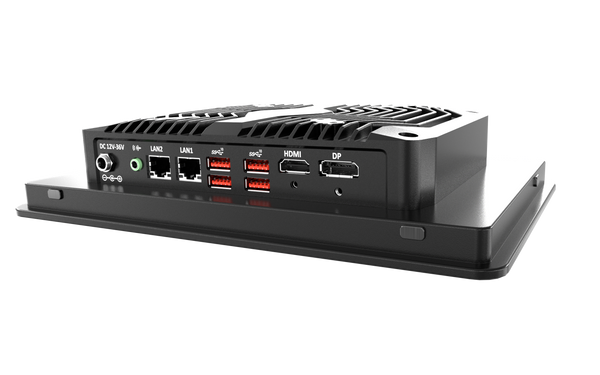

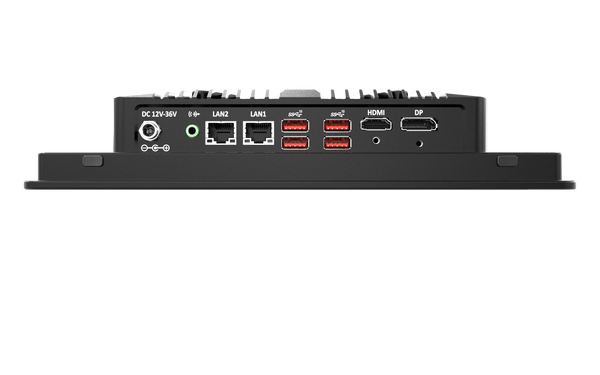

Versatile I/O Connectivity

  • Up to 3x 2.5 GbE LAN
  • Up to 4x USB 3.2 Gen 2
  • 2x COM Ports

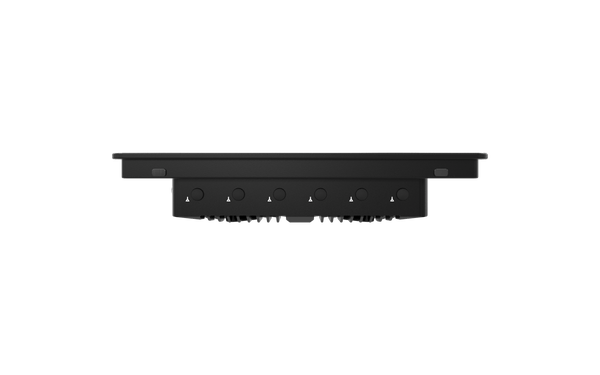

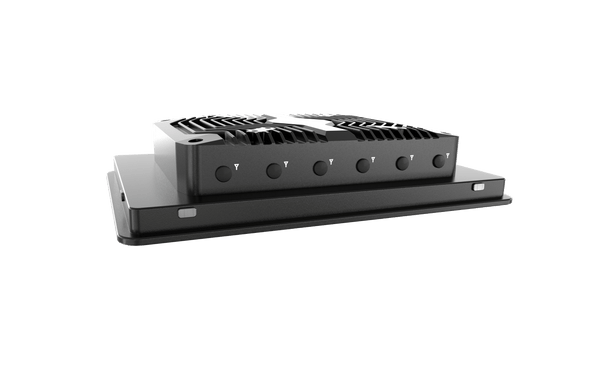

  • 6x Pifa Antenna Ports
  • 6x USB 2.0 Header (Optional)

AIO-200-ADL

AIO-200-ADL-3L

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $667.00

Specification

Display
IP Rating Front IP65
LCD Size 10.1" (16:10)
Max. Resolution 1280 x 800 (WXGA)
Brightness (cd/m²) 400 nits
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.169(H) x 0.1695(V)
Viewing Angle 89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF 30,000 Hours (LED Backlight)
Display Port 1x DP, support 4096 x 2304 Real 4K @60Hz
HDMI 1x HDMI, support 3840 x 2160 UHD@30Hz
LVDS Default touchscreen LCD, support 1920 x 1200 WUXGA @60Hz
Multiple Display Triple Independent Displays
Touch
Touch Type Projected Capacitive Touch
Surface Hardness 7H / IK07
System
Processor Intel® Processor N97 6M Cache, up to 3.60 GHz
System Chipset SoC integrated
System Memory DDR5 4800MT/s SODIMM. Max up to 16GB (Default: 8GB)
LAN Chipset GbE1: Intel I225-V (Support Wake-on-LAN and PXE)
GbE1: Intel I225-V (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC897
BIOS AMI uEFI 8Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
Storage
M.2 B Key 128G M.2 B Key SSD (Default)
Expansion
M.2 E Key 1x M.2 E Key Support WiFi 6e (Optional)
I/O

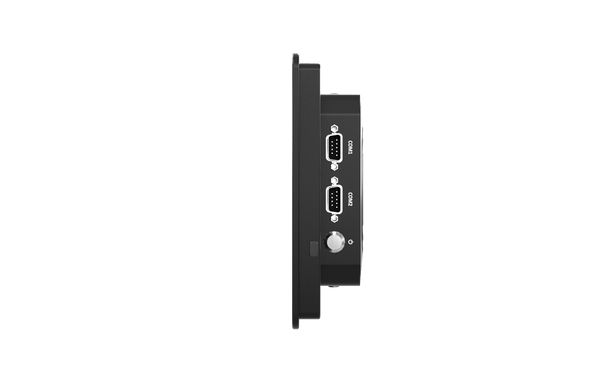

COM 2x RS-232/422/485
USB 4x USB 3.2 Gen 2
LAN 2x 2.5GbE LAN
Audio 1x Audio out
Others Support 6x Dipole Antenna (optional)
Operating System
Windows Windows 10 / Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter 60W (12V 5A, Default)
Power Supply Voltage DC 12~36V
Power Connector DC Jack 5.5mm/2.5mm
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10% to 80% (non-condensing)
Certification CE, FCC Class B, CB, UL Listed, UKCA
Vibration IEC60068-2-64:2008
With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Shock IEC60068-2-27:2008
With SSD: 20G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7 Procedure I
Physical
Dimension 256 (W) x 170 (H) x 50 (D) mm
Weights 1.4 kg

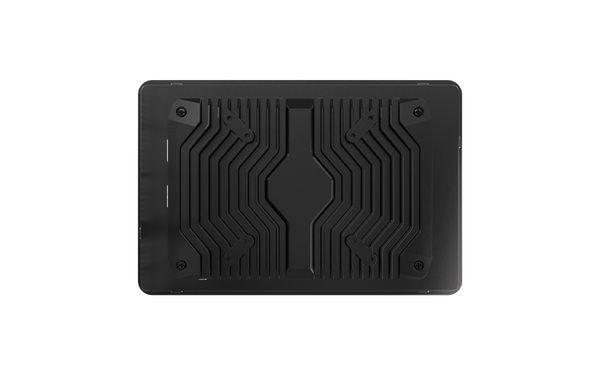

Mounting VESA Mount (75mm x 75mm/100mm x 100mm)

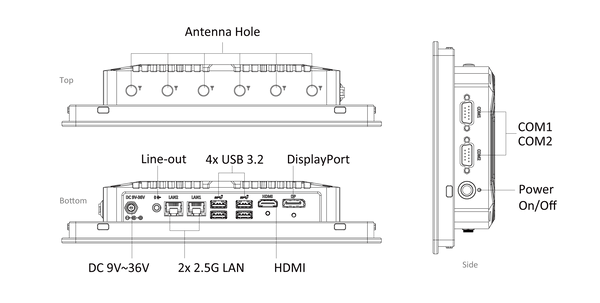

Mechanical Layout

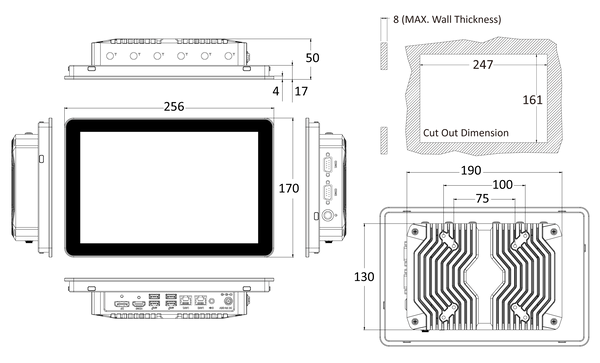

Product Dimension

Unit:mm
