EBND-4NVME-H-G4 EDGEBoost Node with 4x 15mm U.2 NVMe, Hardware RAID

  • EDGEBoost Node Designed for the RCO-6000 Series Industrial Computers

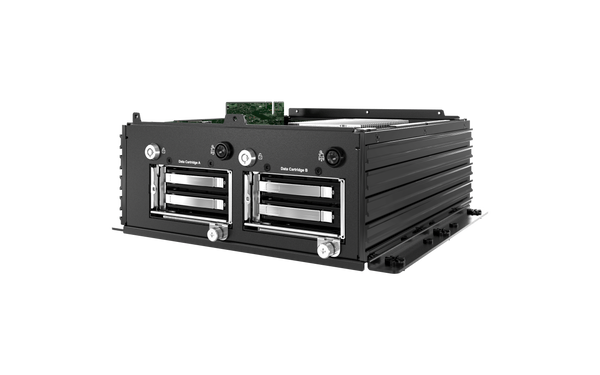

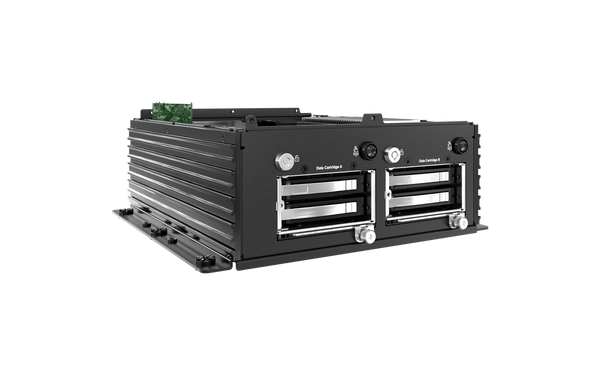

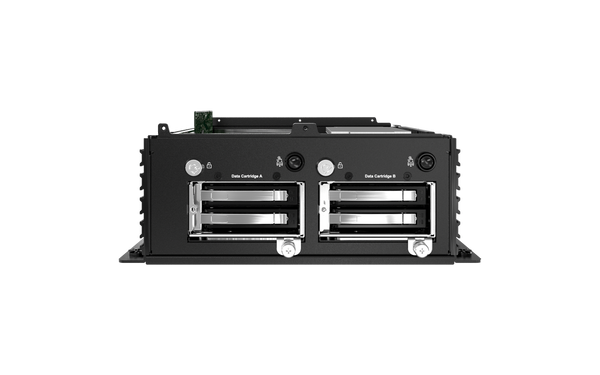

  • Lockable NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (15 mm, U.2)
  • Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
  • Hot-swappable adaptive cooling fan for NVMe SSDs
  • Seemless Interoperability through high-speed PCIe protocols
  • Hardware RAID Controller for Data Redundancy
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion • 1x PCIe x8 (8-Lanes), Occupied by RAID Card
Storage 2x NVMe EDGEBoost Brick include:
• 4x Hot-Swappable 2.5" NVMe SSD (15mm, U.2)
Card Dimension • 235 (L) x 112 (H) mm
• 1 Slot High
Card Expansion Hardware RAID: Broadcom MegaRAID 9560-16i
Power Output DC-IN: 12~48VDC
Power Connector: 4-pin Terminal Block
Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion)
(12V requires 4-pin Terminal Block)
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 88 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 7.2 kg

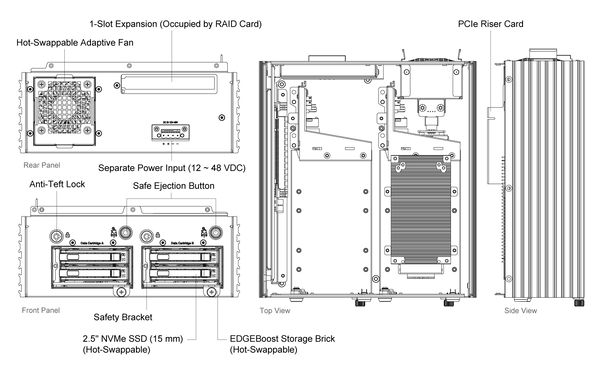

Mechanical Layout

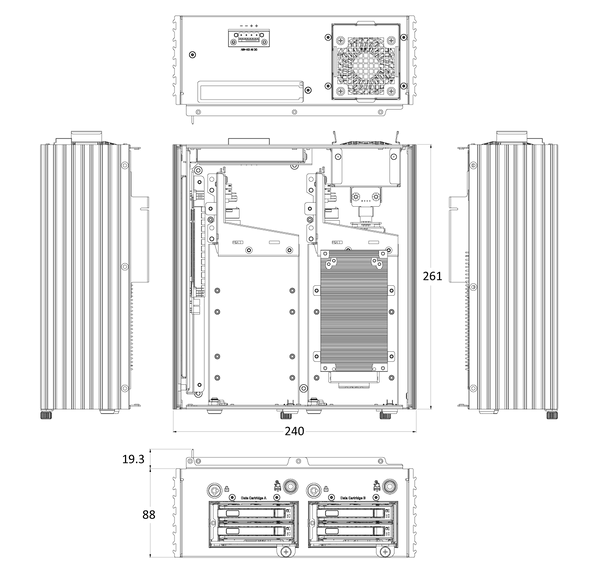

Product Dimension

Unit:mm
