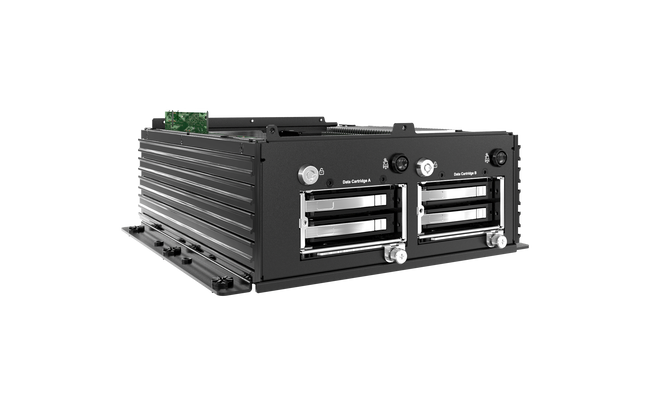

EBND-4NVME-H-G4 EDGEBoost Node with 4x 15mm U.2 NVMe, Hardware RAID

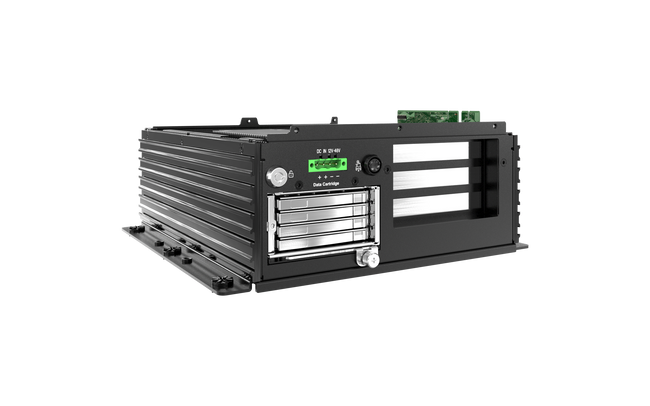

EBND-4NVME-H-1EXP-G4 EDGEBoost Node with 4x 7mm U.2 NVMe, 1x PCIe Expansion, Hardware RAID Option
EBND-2-4SATA-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 4x 2.5" 7mm SATA SSD
EBND-2-2SATA-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 2x 2.5" 15mm SATA SSD

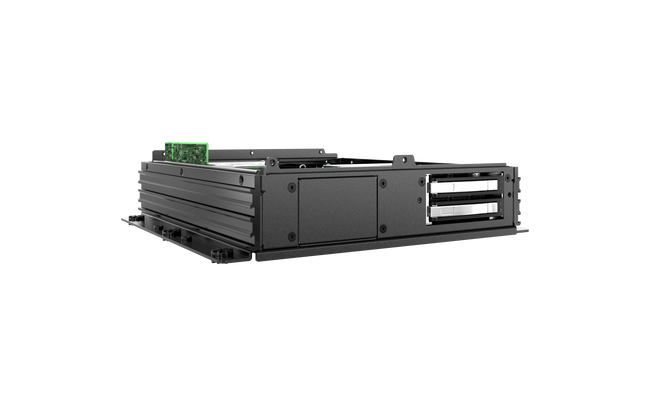

EBND-2-2NVME-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 2x 2.5" U.2 15mm NVMe SSD

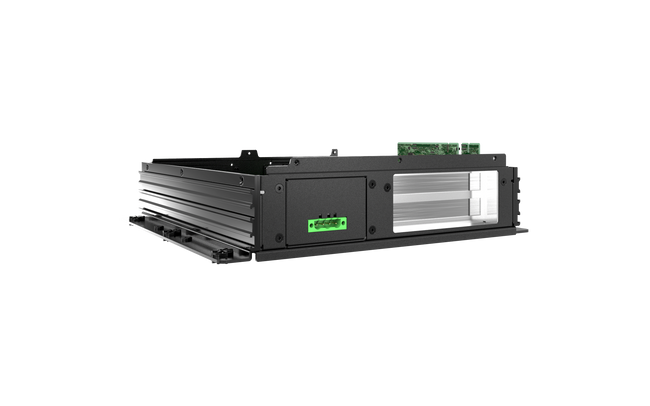

EBND-2-PWR-G4 EDGEBoost Node with PCIe Expansion, 1x Power Input

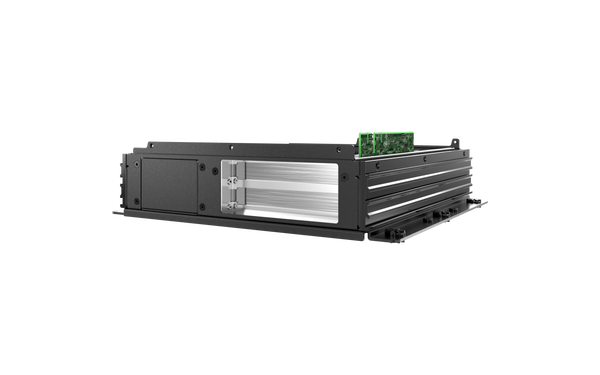

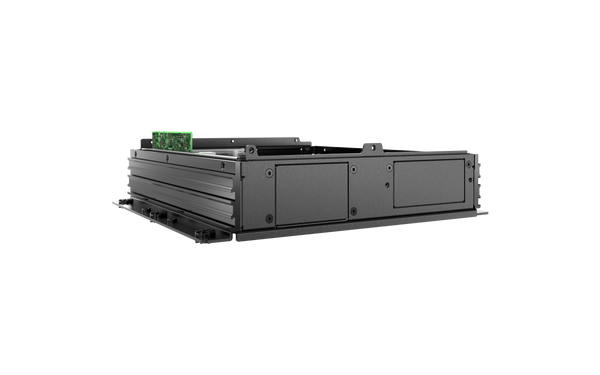

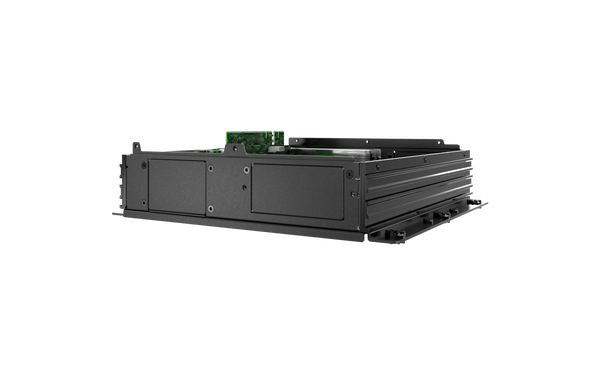

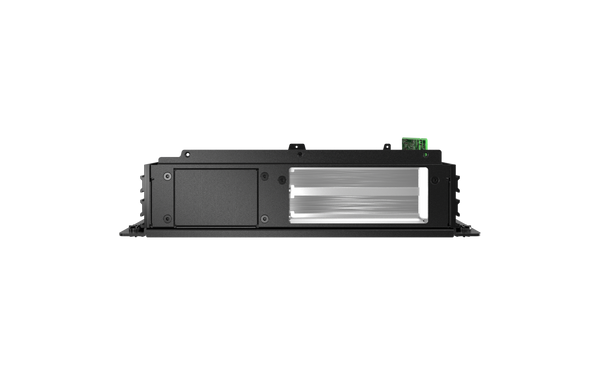

EBND-2-EXP-G4 EDGEBoost Node with PCIe Gen 4 Expansion

EBND-2-EXP-G4 EDGEBoost Node with PCIe Gen 4 Expansion

  • EDGEBoost Nodes are a modular solution for the AI Edge Inference Computers that require PCIe Gen 4 expansion slots for additional performance accelerators.
  • EDGEBoost Node Designed for the RCO-6000-RPL Series Industrial Computers
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe Gen 4 expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration
  • Adaptive Cooling Fan available for expansion cards
  • Seemless interoperability through high-speed PCIe Gen 4 protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

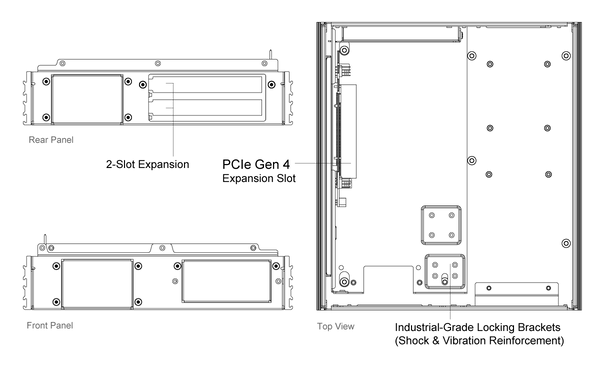

Expansion Optional Configurations:
• 1x PCIe x16 (Gen 4), 1x PCIe x1 Open-Ended (Gen 3)
• 1x PCIe x16 (8-Lanes, Gen 4), 1x PCIe x8 (8-Lanes, Gen 4)
Card Dimension • 235 (L) x 112 (H) mm
• 2 Slots High
Construction Extruded Aluminum with Heavy Duty Metal

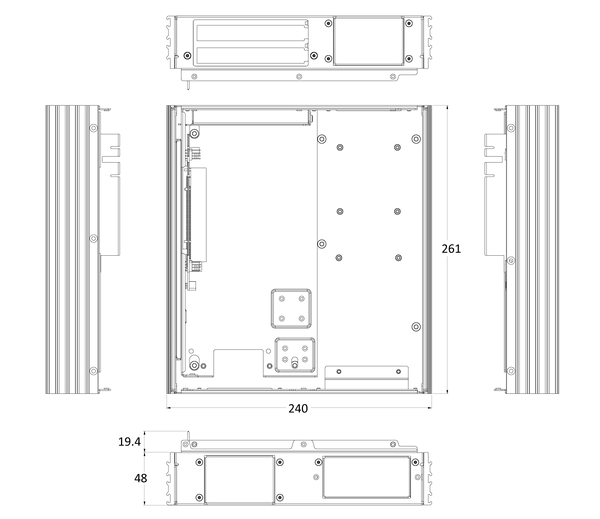

Dimensions 240 (W) x 261 (D) x 48 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 2.5 kg
