  • EDGEBoost Nodes are a modular solution for the AI Edge Inference Computers that require additional 2.5" U.2 NVMe SSDs (15mm) and PCIe Gen 4 expansions for additional performance accelerators.
  • EDGEBoost Node Designed for the RCO-6000-RPL Series Industrial Computers
  • Lockable NVMe Cannister Bricks: 2x Hot-Swappable 2.5" NVMe SSD (15 mm, U.2)
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe Gen 4 expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
  • Hot-swappable adaptive cooling fan for NVMe SSDs
  • Seemless interoperability through high-speed PCIe Gen 4 protocols
  • Software RAID 0, 1 for Data Redundancy
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion Optional Configurations:
• 1x PCIe x16 (Gen 4), 1x PCIe x1 Open-Ended (Gen 3)
• 1x PCIe x16 (8-Lanes, Gen 4), 1x PCIe x8 (8-Lanes, Gen 4)
Storage 2x 2.5" U.2 NVMe SSD (15 mm, Hot-swappable)
Support RAID 0, 1
Card Dimension • 235 (L) x 112 (H) mm
• 2 Slots High
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 48 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 2.6 kg ~ 2.75 kg

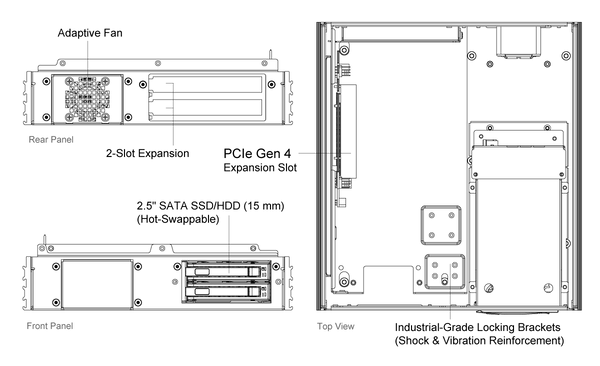

Mechanical Layout

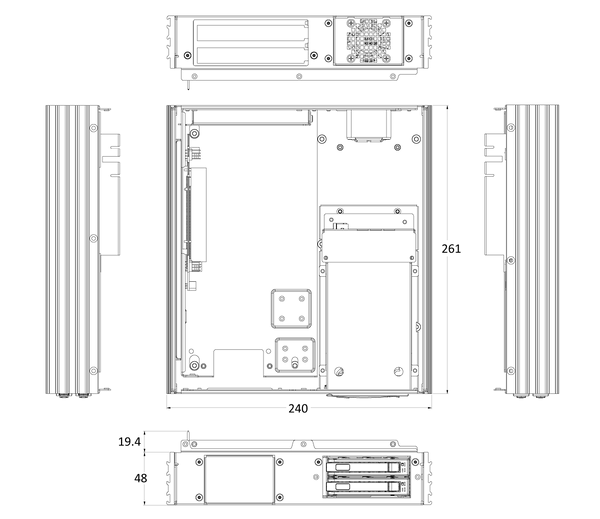

Product Dimension

Unit:mm
