  • EDGEBoost Nodes are a modular solution for the edge computers that require an additional power source and expansion slots for powerful GPUs
  • EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
  • Separate wide power input for GPU (12-48VDC)
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe and PCI Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
  • Adaptive Cooling Fan available for expansion cards
  • Seamless Interoperability through high-speed PCIe protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion Options:
• 1x PCIe x16, 1x PCI
• 2x PCIe x16 (8-Lanes)
Card Dimension • 235 (L) x 112 (H) mm
• 2 Slots High
Power Output DC-IN: 12~48VDC
Power Connector: 4-pin Terminal Block
Power Adapter: 280W (Optional for GPU/Card Expansion)
(12V requires 4-pin Terminal Block)
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 48 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 2.6 kg ~ 2.75 kg

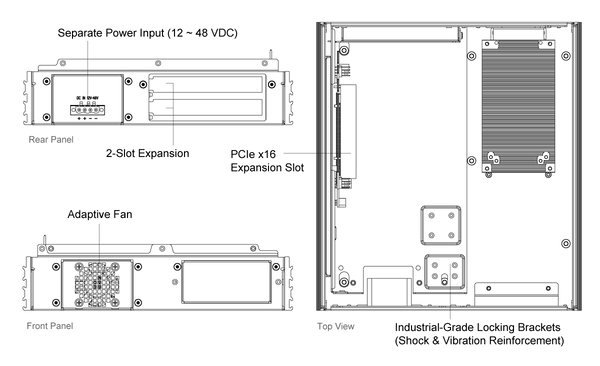

Mechanical Layout

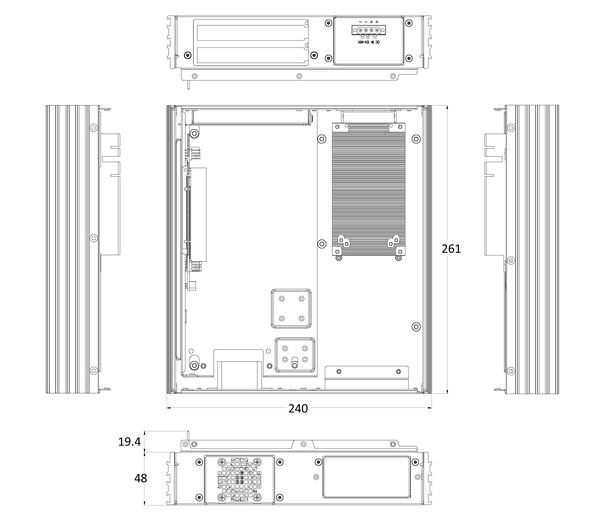

Product Dimension

Unit:mm
