EBND-2-2SATA EDGEBoost Node with PCI/PCIe Expansion, 2x 15mm SATA SSD/HDD
- EDGEBoost Nodes are a modular solution for the edge computers that require additional 2.5" SATA SSD/HDD (15mm) storage and PCIe/PCI expansions for additional performance accelerators.
- EDGEBoost Node Designed for RCO-6000 Series Industrial Computers

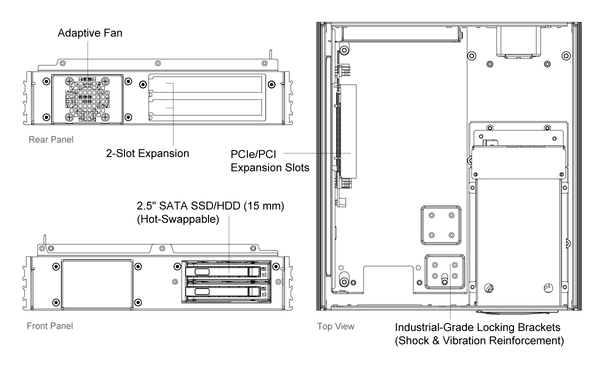

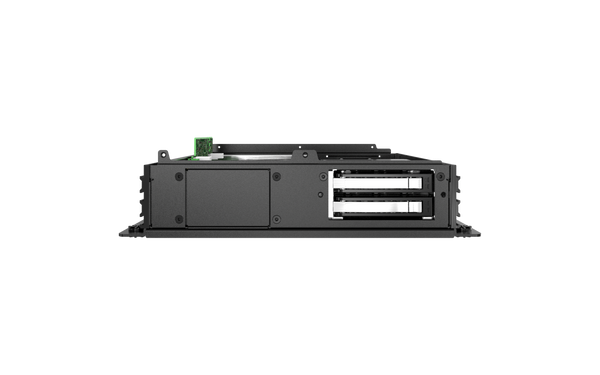

- Expansive SATA Storage: 2x Hot-Swappable 2.5" SATA SSD/HDD (15 mm)
- Modular design for maximum workload flexibility
- Configurable PCIe and PCI Expansion slot options available
- Rugged and Durable for wide temperatures, shock and vibration
- Adaptive Cooling Fan available for expansion cards
- Seemless Interoperability through high-speed PCIe protocols
Model:
EBND-2-2SATA
Certifications:
Specification
| Expansion | Options: • 1x PCIe x16, 1x PCI • 2x PCIe x16 (8-Lanes) • 2x PCI |
| Storage | 1x SATA EDGEBoost Brick includes: • 2x Hot-Swappable 2.5" SATA SSD/HDD (15mm) |
| Card Dimension | • 235 (L) x 112 (H) mm • 2 Slots High |
| Construction | Extruded Aluminum with Heavy Duty Metal |

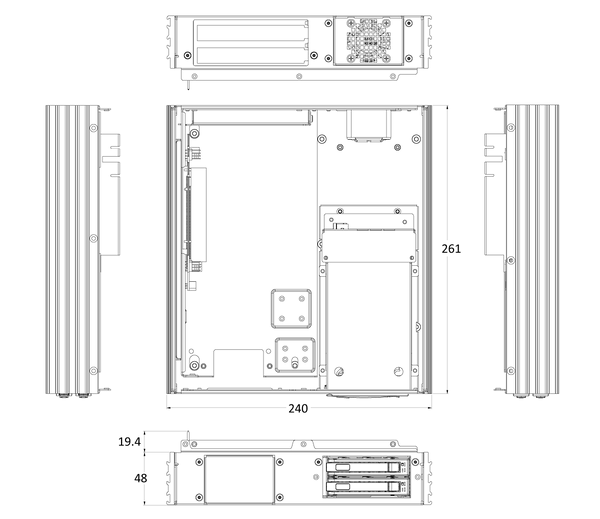

| Dimensions | 240 (W) x 261 (D) x 48 (H) mm |
| Standards and Certifications | CE, FCC Class A, UL |
| Weights | 2.6 kg ~ 2.75 kg |
