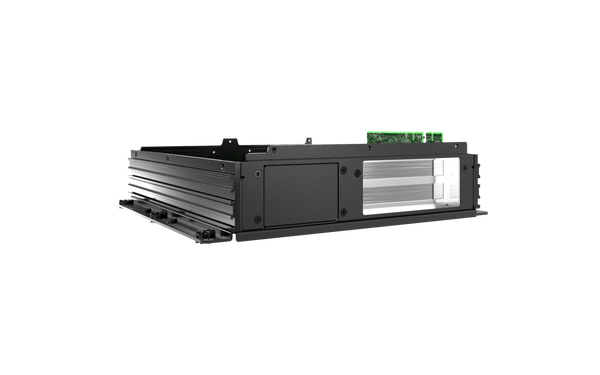

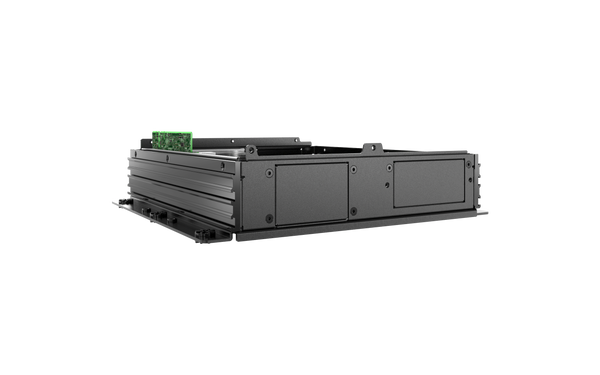

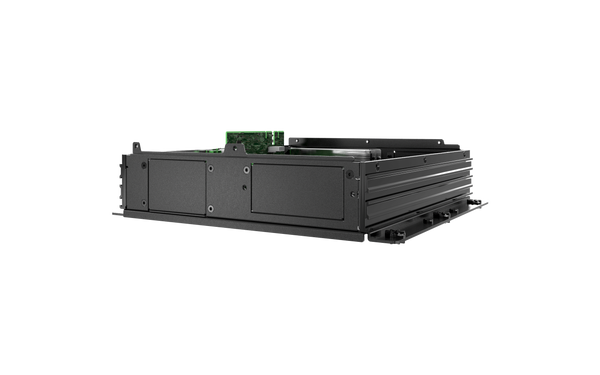

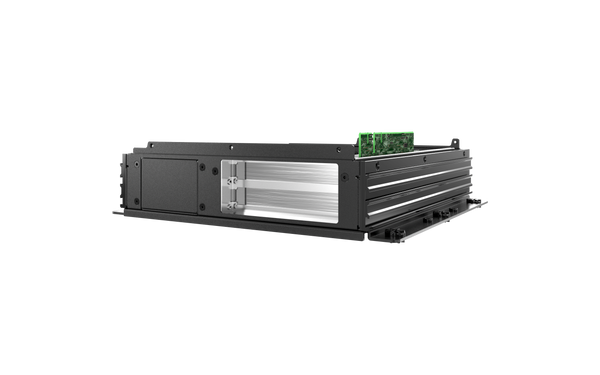

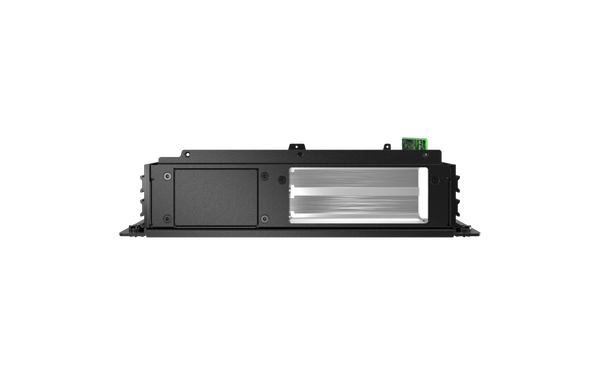

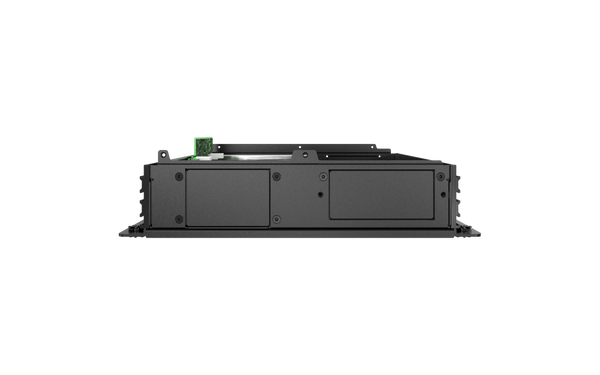

EBND-2-EXP EDGEBoost Node with PCIe/PCI Expansion

  • EDGEBoost Nodes are a modular solution for the edge computers that require PCIe/PCI expansion slots for additional performance accelerators.
  • EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe and PCI Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration
  • Adaptive Cooling Fan available for expansion cards
  • Seemless Interoperability through high-speed PCIe protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion Options:
• 1x PCIe x16, 1x PCI
• 2x PCIe x16 (8-Lanes)
• 2x PCI
Card Dimension • 235 (L) x 112 (H) mm
• 2 Slots High
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 48 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 2.5 kg

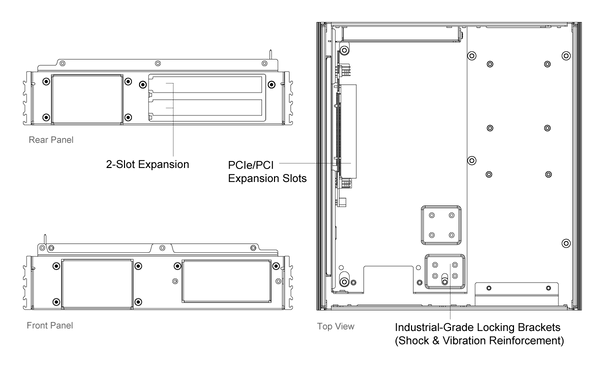

Mechanical Layout

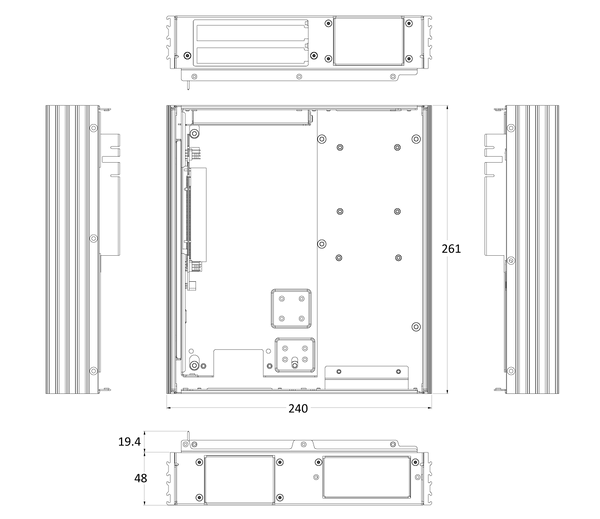

Product Dimension

Unit:mm

Resources

Data Sheet DS_EBND-2-EXP_Premio.pdf
Product Brief PB_EDGEBoost-Nodes.pdf
