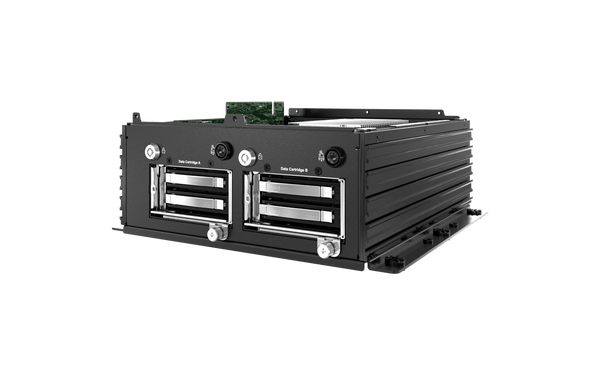

EBND-4NVME-H EDGEBoost Node with 4x 15mm U.2 NVMe, Hardware RAID
- EDGEBoost Nodes are a modular solution for the edge computers that require additional 2.5" U.2 NVMe SSDs (15mm), PCIe expansions for additional performance accelerators, and Hardware RAID options
- EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
- Lockable NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (15 mm, U.2)
- Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
- Modular design for maximum workload flexibility and performance
- Configurable PCIe Expansion slot options available
- Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
- Hot-swappable adaptive cooling fan for NVMe SSDs
- Seemless Interoperability through high-speed PCIe protocols
- Hardware RAID Controller for Data Redundancy
Model:
EBND-4NVME-HCertifications:
Specification
Expansion | • 1x PCIe x8 (8-Lanes), Occupied by RAID Card |
Storage | 2x NVMe EDGEBoost Brick include: • 4x Hot-Swappable 2.5" NVMe SSD (15mm, U.2) |
Card Dimension | • 235 (L) x 112 (H) mm • 1 Slot High |
Card Expansion | Broadcom MegaRAID 9560-16i |
Power Output | DC-IN: 12~48VDC Power Connector: 4-pin Terminal Block Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion) (12V requires 4-pin Terminal Block) |
Construction | Extruded Aluminum with Heavy Duty Metal |

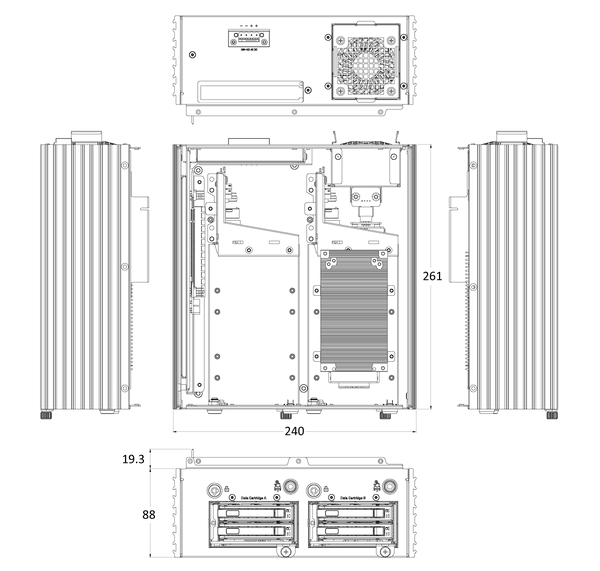

Dimensions | 240 (W) x 261 (D) x 88 (H) mm |
Standards and Certifications | CE, FCC Class A, UL |
Weights | 7.2 kg |
Resources
Data Sheet |
DS_EBND-4NVME-H_Premio.pdf
|
Product Brief |
PB_EDGEBoost-Nodes.pdf
|
