  • EDGEBoost Nodes are a modular solution for the edge computers that require additional 2.5" U.2 NVMe SSDs (7mm) and PCIe for GPU acceleration
  • EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
  • NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (7 mm, U.2)
  • Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
  • Separate wide power input for GPU (12-48VDC)
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs
  • Hot-swappable adaptive cooling fan for NVMe SSDs and GPU
  • Seamless Interoperability through high-speed PCIe protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion • 1x PCIe x16 (8-Lanes) Occupied by GPU
• 1x PCIe x4 (1-Lane)
Storage 1x NVMe EDGEBoost Brick includes:
• 4x Hot-Swappable 2.5" NVMe SSD (7mm, U.2)
Card Dimension • 235 (L) x 112 (H) mm
• 3 Slots High
Card Expansion See available models for GPU compatibility
Power Output DC-IN: 12~48VDC
Power Connector: 4-pin Terminal Block
Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion)
(12V requires 4-pin Terminal Block)
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 88 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 8 kg

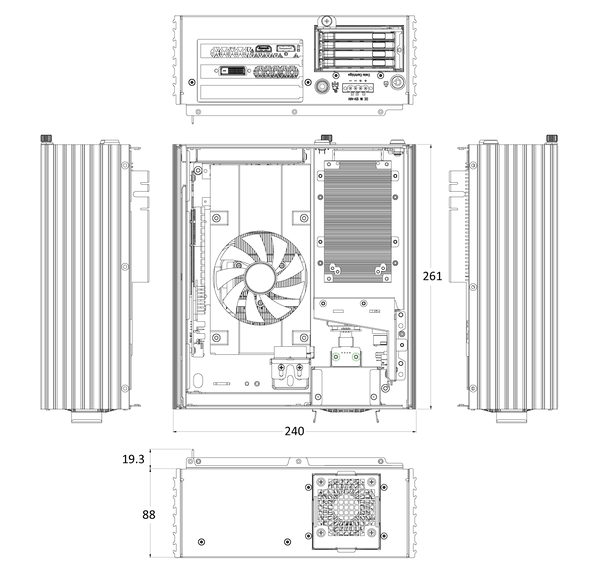

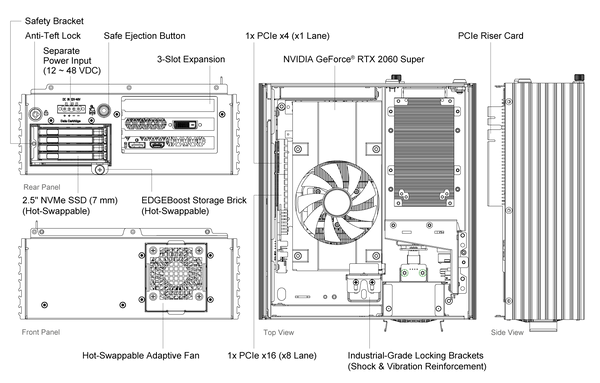

Mechanical Layout

Product Dimension

Unit:mm
