EBND-4NVME-H-G4 EDGEBoost Node with 4x 15mm U.2 NVMe, Hardware RAID
EBND-4NVME-H-1EXP-G4 EDGEBoost Node with 4x 7mm U.2 NVMe, 1x PCIe Expansion, Hardware RAID Option

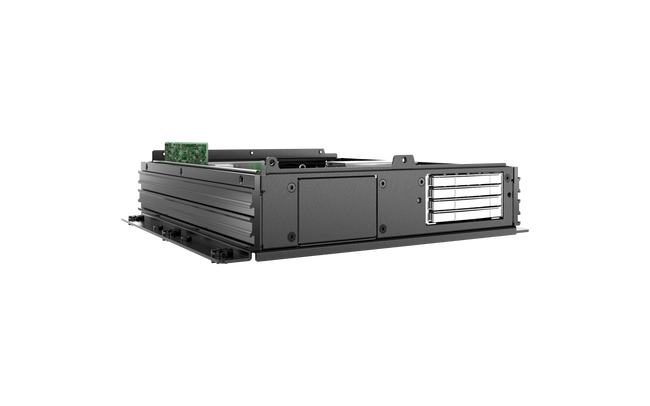

EBND-2-4SATA-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 4x 2.5" 7mm SATA SSD

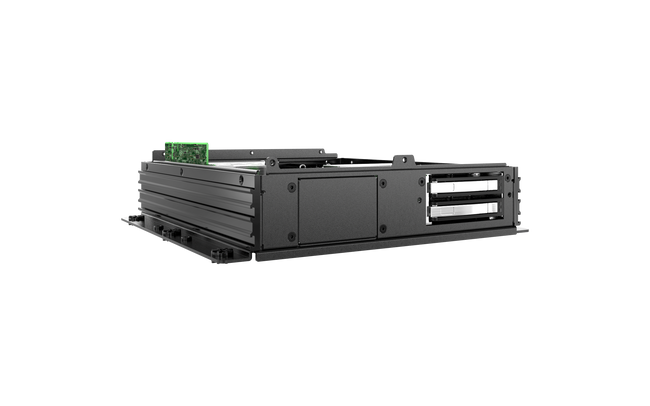

EBND-2-2SATA-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 2x 2.5" 15mm SATA SSD
EBND-2-2NVME-G4 EDGEBoost Node with PCIe Gen 4 Expansion, 2x 2.5" U.2 15mm NVMe SSD

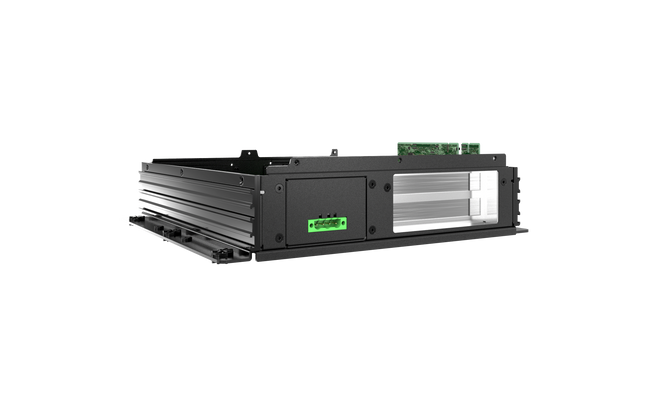

EBND-2-PWR-G4 EDGEBoost Node with PCIe Expansion, 1x Power Input
EBND-2-EXP-G4 EDGEBoost Node with PCIe Gen 4 Expansion
EBND-4NVME-S EDGEBoost Node with 4x 15mm U.2 NVMe, Software RAID
EBND-4NVME-H-1EXP EDGEBoost Node with 4x 7mm U.2 NVMe, Hardware RAID, and PCIe Expansion

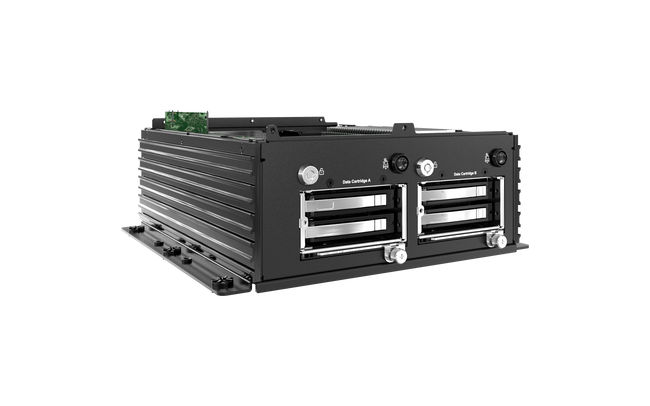

EBND-4NVME-H EDGEBoost Node with 4x 15mm U.2 NVMe, Hardware RAID

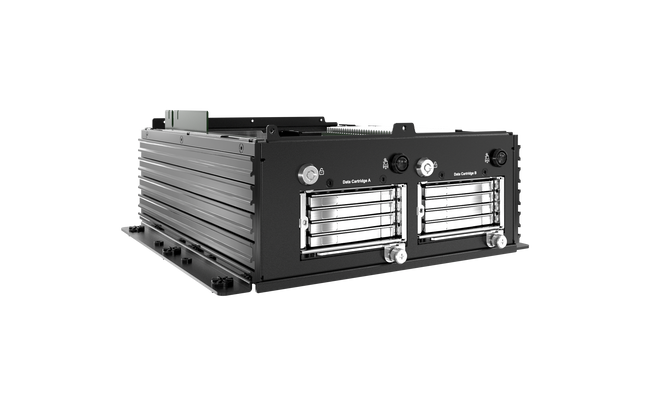

EBND-8NVME-S EDGEBoost Node with 8x 7mm U.2 NVMe
EBND-4NVME-GPU EDGEBoost Node with 4x 7mm U.2 NVMe, GPU Integrated

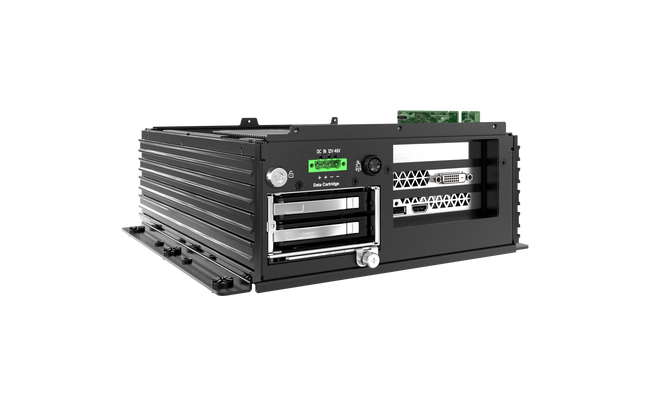

EBND-2NVME-GPU EDGEBoost Node with 2x 15mm U.2 NVMe, GPU Integrated
EBND-2-4SATA EDGEBoost Node with PCI/PCIe Expansion, 4x 7mm SATA SSD/HDD
EBND-2-PWR EDGEBoost Node with PCI/PCIe Expansion, 1x Power Input
EBND-2-2SATA EDGEBoost Node with PCI/PCIe Expansion, 2x 15mm SATA SSD/HDD
EBND-2-EXP EDGEBoost Node with PCIe/PCI Expansion

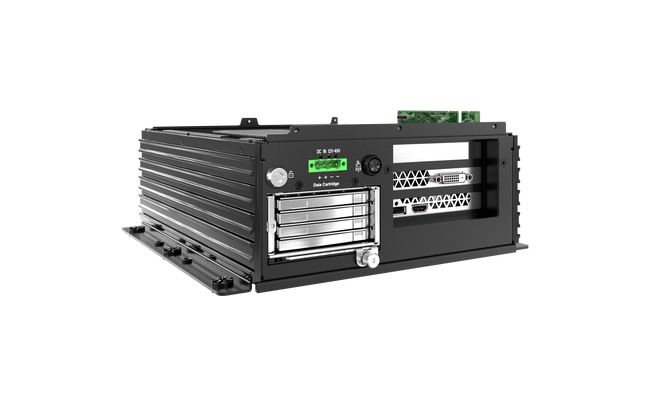

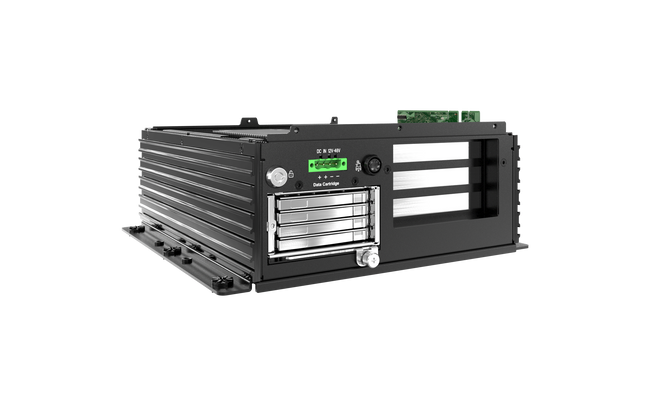

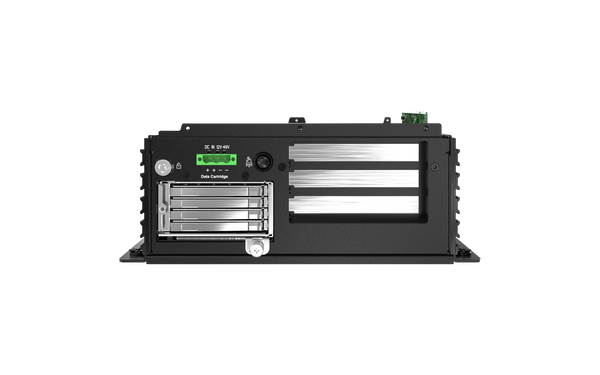

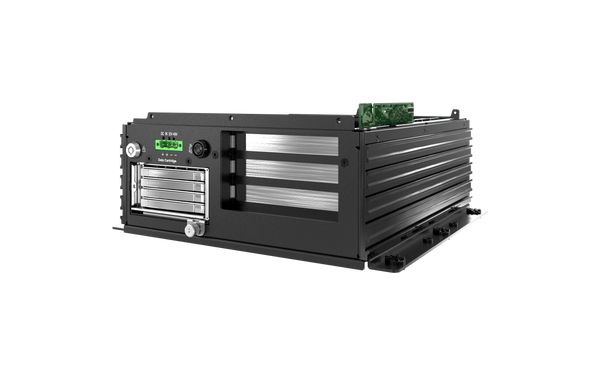

EBND-4NVME-H-1EXP EDGEBoost Node with 4x 7mm U.2 NVMe, Hardware RAID, and PCIe Expansion

  • EDGEBoost Nodes are a modular solution for the edge computers that require additional 2.5" U.2 NVMe SSDs (7mm) and Hardware RAID options
  • EDGEBoost Node Designed for RCO-6000 Series Industrial Computers
  • NVMe Cannister Bricks: 4x Hot-Swappable 2.5" NVMe SSD (7 mm, U.2)
  • Mechanical push button for safe I/O suspension and anti-corruption of NVMe storage media
  • Separate wide power input for GPU (12-48VDC)
  • Modular design for maximum workload flexibility and performance
  • Configurable PCIe Expansion slot options available
  • Rugged and Durable for wide temperatures, shock and vibration, and wide-power inputs

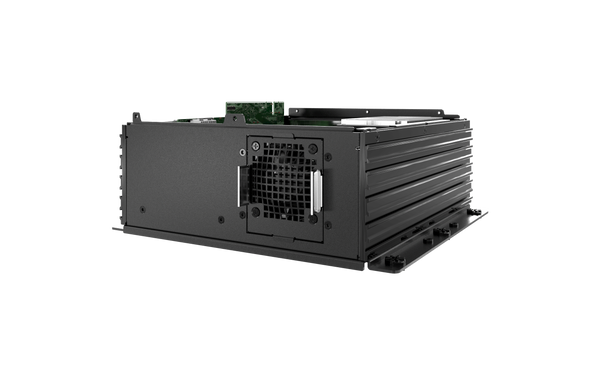

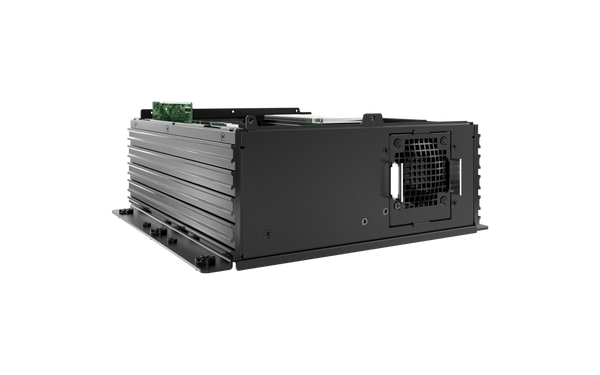

  • Hot-swappable adaptive cooling fan for NVMe SSDs and Card Expansion
  • Seamless Interoperability through high-speed PCIe protocols
See Datasheet

Certifications:

Intel Partner
* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Expansion • 1x PCIe x16 (8-Lanes) Occupied by RAID Card
• 1x PCIe x16 (8-Lanes)
Storage 1x NVMe EDGEBoost Brick includes:
• 4x Hot-Swappable 2.5" NVMe SSD (7mm, U.2)
Card Dimension • 235 (L) x 112 (H) mm
• 3 Slots High
Card Expansion MegaRAID 9560-8i
Power Output DC-IN: 12~48VDC
Power Connector: 4-pin Terminal Block
Power Adapter: 280W (Optional for GPU/Card/NVMe Expansion)
(12V requires 4-pin Terminal Block)
Construction Extruded Aluminum with Heavy Duty Metal
Dimensions 240 (W) x 261 (D) x 88 (H) mm
Standards and Certifications CE, FCC Class A, UL
Weights 7.2 kg

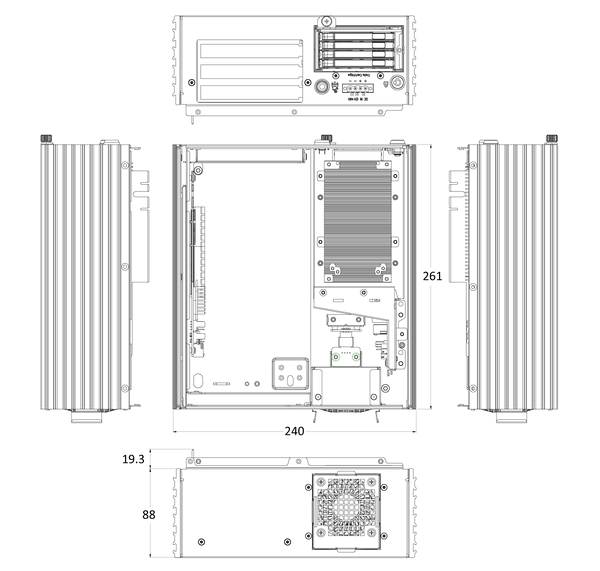

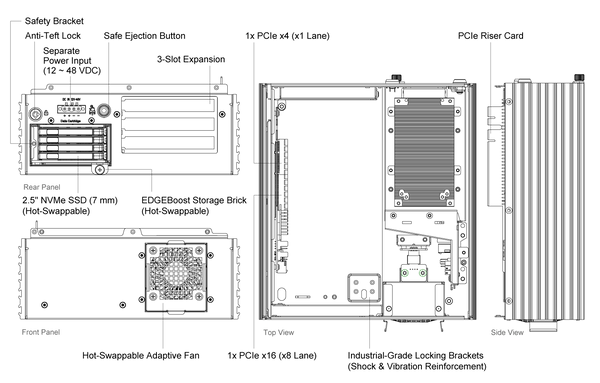

Mechanical Layout

Product Dimension

Unit:mm
