Key Features
| System | |
|---|---|
| Processor | Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
| System Chipset | Intel® C621 chipset |
| System Memory | Supports 16x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666MT/s max. 2TB capacity |
| Storage | 24x 2.5" U.2 NVMe SSD PCIe3 x4 |

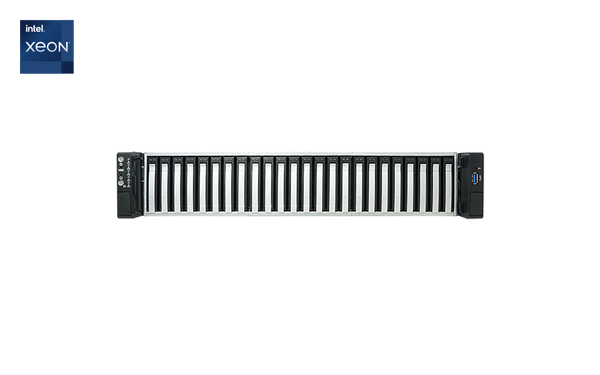

| Driver Bays | 24x 2.5" front U.2 drive bays 2x 2.5" internal drive bays and 2x 2.5" 7mm rear hot-swap drive bays |
| Cooling | 4x 80mm high speed fans |
| Expansion | Support up to total 4 Full Height PCIe3 x16 PCIe slots (Optional 6x PCIe3 x16 slots) |
| Environment | |
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimensions | System: 26.5"x19"x3.5" (LxWxH) Packaging: 37"x 24"x10"(LxWxH) |
| Weights | Gross: 28KG/61LBS; Net: 25KG/53LBS |
| AVL |
FlacheSAN2N24U-D5-AVL.pdf
|
| BIOS |
Tyan S7106GM2NRS7106GM2NR_v101.zipS7106GM2NR-BMC_v100.zip Tyan S7106GM2NR-L2S7106GM2NR-L2_v201.zipS7106GM2NR-L2-BMC_v100.zip |
| Datasheet |
Premio-FlacheStreams-FlacheSAN2N24U-D5.pdf
|
| Install Guide |
FlacheSAN2N24U-D5-Quick-Guide-v1.00.pdf
|
| Product Brief |
PB_FlacheStreams_Intel.pdf
|
