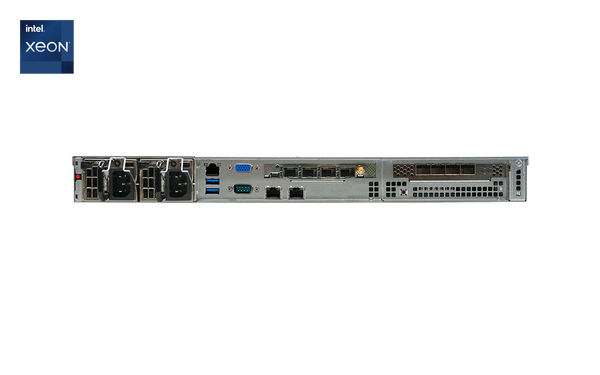

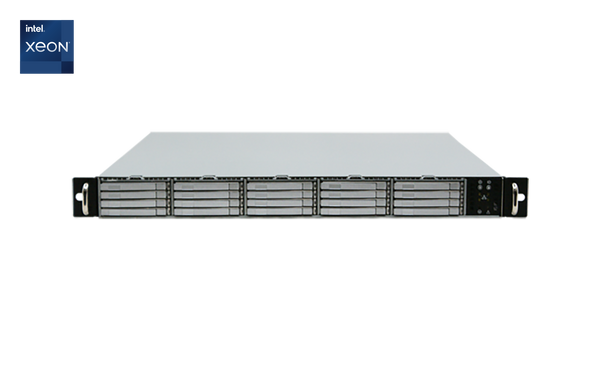

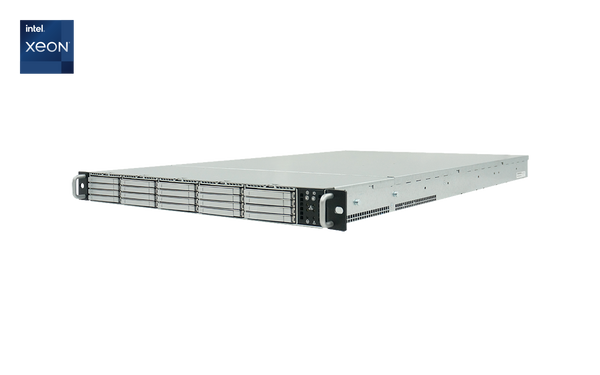

FlacheSAN1L-U5 1U 20 BAYS 7MM 12G SAS/SATA SSD SINGLE XEON SP

Key Features

  • Storage server supports Single Socket Intel® Xeon® SP Skylake up to 768GB DDR4
  • 2U with 20x hot-swappable 2.5”- 7mm SATA SSD or HDD bays
  • Support 3x PCIe slots (2x Full Height)
  • Low acoustic noise and induced vibrations for greater reliability
  • Capable of sustaining up to 112Gbps of throughput and 1M+ IOPS
    See Datasheet

    Certifications:

    Intel Partner

    Specification

    System
    Processor Supports Single Socket Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
    System Chipset Intel® C622 chipset
    System Memory Supports up to 6x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
    Storage 36 ports 12G SAS Expander with 3 SFF8643 Connecters (Optional), LSI3008 onboard (Optional)
    Driver Bays 20x 2.5" 7mm hot-swap 6Gbps SATA drive bays; 2x internal 2.5" bays for OS drives
    Cooling 3x 97mm Blowers with Smart Fan Control
    Expansion 1 PCI-E 3.0 x8 (in x16)
    2x PCI-E 3.0 x16
    Environment
    Operating Temperature 0°C ~ 35°C
    Storage Temperature -20°C ~ 70°C
    Relative Humidity 5% ~ 95% relative humidity, non-condensing
    HTS Code 8473 30 5100
    ECCN 4A994
    Compliance CE, FCC Class A, RoHS 6/6 compliant
    Physical
    Dimension System: 23"x19"x1.75" (LxWxH) Packaging: 31"x 24.5"x9"(LxWxH)
    Weights Gross: 47lbs without drives; Net: 35lbs without drives
