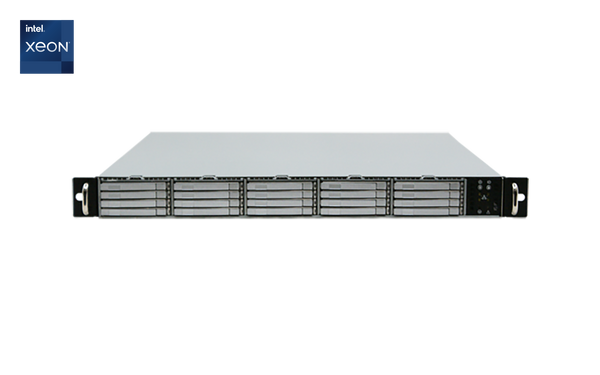

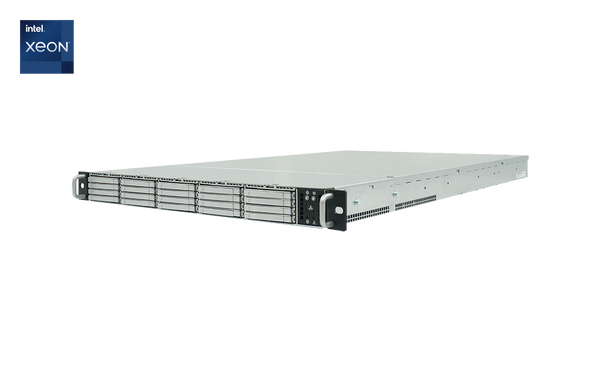

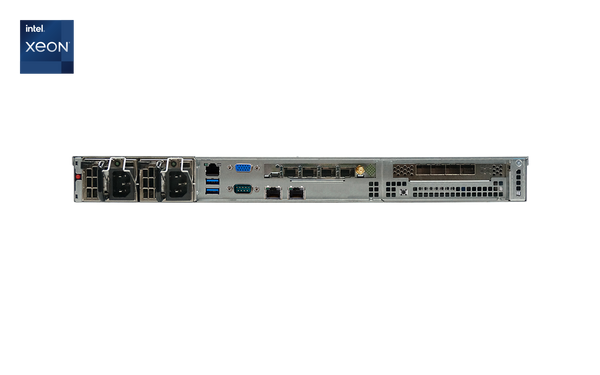

FlacheSAN1L-D5 1U 20 BAYS 7MM 12G SAS/SATA SSD DUAL XEON SP

Key Features

  • 1U with 20x hot swappable 2.5″ – 7mm SATA SSD or HDD bays
  • Dual Intel XeonSP Skylake with 2x PCIe3 x16 slots + 2x OCP x16
  • Low acoustic noise and induced vibrations for greater reliability
  • Capable of sustaining up to 112Gbps of throughput and 1M+ IOPS
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
System Chipset Intel® C621 chipset
System Memory Supports up to 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Storage 36 ports 12G SAS Expander with 3 SFF8643 Connectors (Optional)
Driver Bays 20x 2.5" 7mm hot-swap 6Gbps SATA drive bays; 2x Internal 2.5" bays for OS drives
Cooling 3x 97mm Blowers with Smart Fan Control
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 27"x19"x1.75" (LxWxH)
Packaging: 39"x 24.25"x9"(LxWxH)
Weights Gross: 47lbs without drives; Net: 35lbs without drives
