Key Features
| System | |
|---|---|
| Processor | Supports UP Intel® Xeon® SP Skylake up to 165W TDP socket LGA3647 |
| System Chipset | Intel® C621 chipset |
| System Memory | Supports 8x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 MT/s |
| Storage | 4x 6G/12G SAS HBA/RAID controllers by using available PCIe slots |

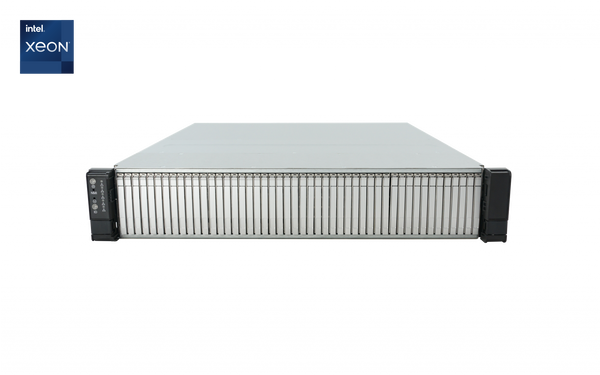

| Driver Bays | 48x front hot-swap 2.5" 7mm 6G SATA drive bays; 2x internal .5" 7 or 15mm 6G SATA bays |
| Cooling | 4x 80mm high speed fans |
| Expansion | Supports up to total of 7 PCIe slots 4 PCIe3 x8 1 PCIe3x16 1 PCIe3 x4 (in x8 slot) |
| Environment | |
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimensions | System: 26"x19"x3.5" (LxWxH) Packaging: 36"x 24.5"x10.5"(LxWxH) |
| Weights | Gross: 25KG/55LBS; Net: 21.36KG/46LBS |
| AVL |
FlacheSAN2V-U5-AVL.pdf
|
| BIOS |
Tyan S7100GM2NRS7100GM2NR_v100.zipS7100GM2NR-BMC_v100.zip |
| Datasheet |
FlacheStreams-FlacheSAN2V-U5.pdf
|
| Install Guide |
QG_FlacheSAN2V-U5.pdf
|
| Product Brief |
PB_FlacheStreams_Intel.pdf
|
