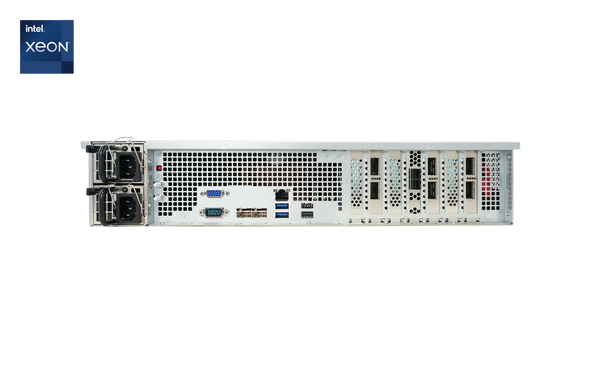

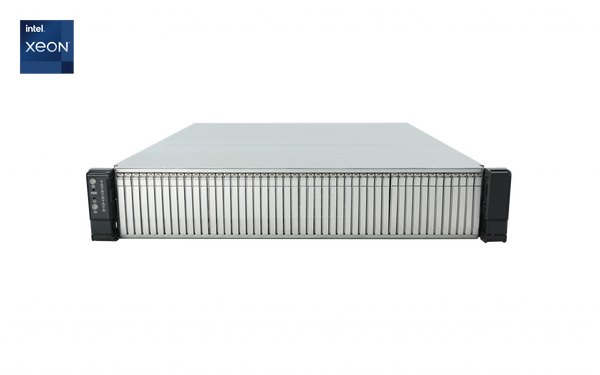

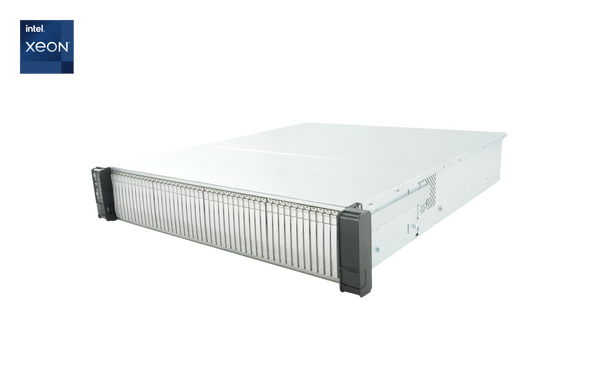

FlacheSAN2V-D5 2U 48 BAYS 7MM 12G SAS/SATA SSD DUAL XEON SP LOW PROFILE

Key Features

  • Storage server supports Dual Intel® Xeon® SP Skylake up to 1.5TB DDR4
  • Front hot-swap 48x 2.5” 7mm and 2 internal 2.5” 15mm for OS drives
  • Up to 18GB/s (128Gbps) seq. read and up to 1.4M IOPS 4KB random read
  • Supports up to 7x Low Profile MD2 PCIe Expansion slots
  • High efficiency redundant power supplies
        See Datasheet

        Certifications:

        Intel Partner

        Specification

        System
        Processor Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
        System Chipset Intel® C621 chipset
        System Memory Supports 16x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666MT/s
        Storage 4x 6G/12G SAS HBA/RAID controllers or
        2x 12G SAS HBA/RAID controllers with optional
        Driver Bays 48x front hot-swap 2.5" 7mm 6G SATA drive bays
        2x internal .5" 7 or
        15mm 6G SATA bays
        Cooling 4x 80mm high speed fans
        Expansion Supports up to total of 7 PCIe slots
        3 PCIe3 x8
        4 PCIe3 x16 (Optional on-board Lsi 3108 SAS controller)
        Environment
        Operating Temperature 0°C ~ 35°C
        Storage Temperature -20°C ~ 70°C
        Relative Humidity 5% ~ 95% relative humidity, non-condensing
        HTS Code 8473 30 5100
        ECCN 4A994
        Compliance CE, FCC Class A, RoHS 6/6 compliant
        Physical
        Dimension System: 26"x19"x3.5" (LxWxH) Packaging: 36"x 24.5"x10.5"(LxWxH)
        Weights Gross: 25KG/55LBS; Net: 21.36KG/46LBS
