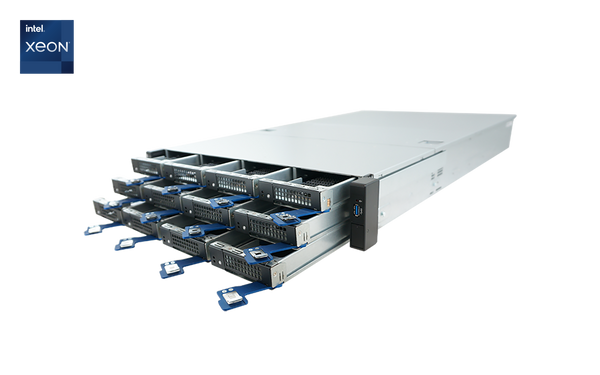

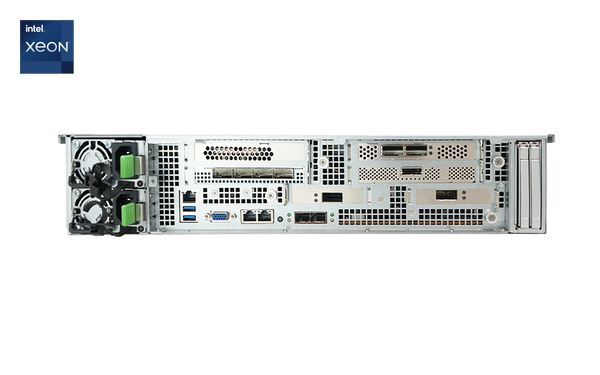

FlacheSAN2N12C-D5 2U 12 NVMe Add-In-Card PCIE x8 Dual Xeon SP

  • 2U Server with 12 Unique Hot-Swappable Carrier Trays
  • Supports up to 18 DPUs or 14 DPUs + 2 Full-Height Double Width 350W GPGPUs
  • Dual Intel Xeon Scalable Processors up to 240W each
  • Up to 36x 25Gb/s Network Accelerator Ports
  • 2x 96lane PCIe Switch Board for Peer-to-Peer Communication
  • Supports up to 300 TB of NVMe SSD Storage
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
System Chipset Intel® C621 chipset
System Memory Supports 16x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666MT/s max. 2TB capacity
Storage 12x Low Profile Front Hot-Swappable PCIe3 x8 NVMe Add-in-Card
Driver Bays 12x PCIe x8 slots, 2x 2.5" internal drive bays and 2x 2.5" 7mm rear hot-swap drive bays
Cooling 4x 80mm high speed fans
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 30"x19"x3.5" (LxWxH) Packaging: 37"x 24"x10"(LxWxH)
Weights Gross: 29KG/64LBS; Net: 25KG/55LBS
