LLM-3U-AM5 3U Edge AI Rackmount Server With AMD Ryzen™ 9000/7000 Processors & EPYC 4005/4004, B650 Chipset

  • Support AMD Ryzen™ 9000/7000 Series Desktop Processors & EPYC 4005/4004 (Max 170W)
  • AMD B650 Chipset
  • 4x DDR5 UDIMM, up to 5600 MT/s, Max. 192GB (Non-ECC)
  • 2x Broadcom 10GbE LAN (SFP+), 2x GbE LAN
  • Dual 4K Display: 1x DP, 1x HDMI
  • 2x PCIe x16 Gen 5, 1x PCIe x4 (Open End), 1x PCIe x1
  • 2x M.2 M-Key, 1x M.2 E-Key
  • 1x 2.5" and 1x 3.5" SATA SSD Drive Bays (Support RAID 0,1)
  • 6x USB 3.2 Gen 2 (Rear), 2x USB 2.0 (Front)
  • Optional Out-of-Band Management
  • 850W Single Power Supply
  • Support TPM 2.0
  • UL 62368 Ed. 3, CE, FCC Class B (pending)
Datasheet

Certifications:

Ryzen Embedded

Scalable Multi-Core Computing

GPU Acceleration

High-Speed Networking

PCIe Gen 5 Expansion

Industrial Active Cooling Design

3U Short-Depth Rackmount

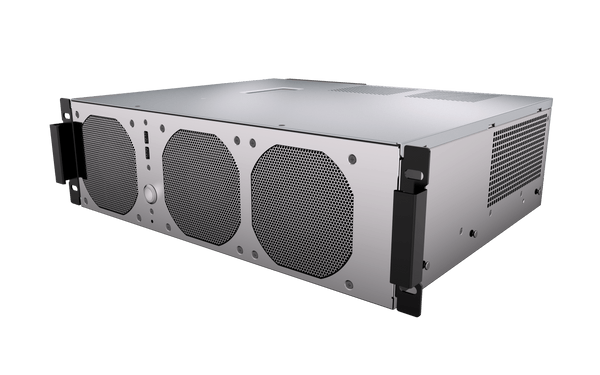

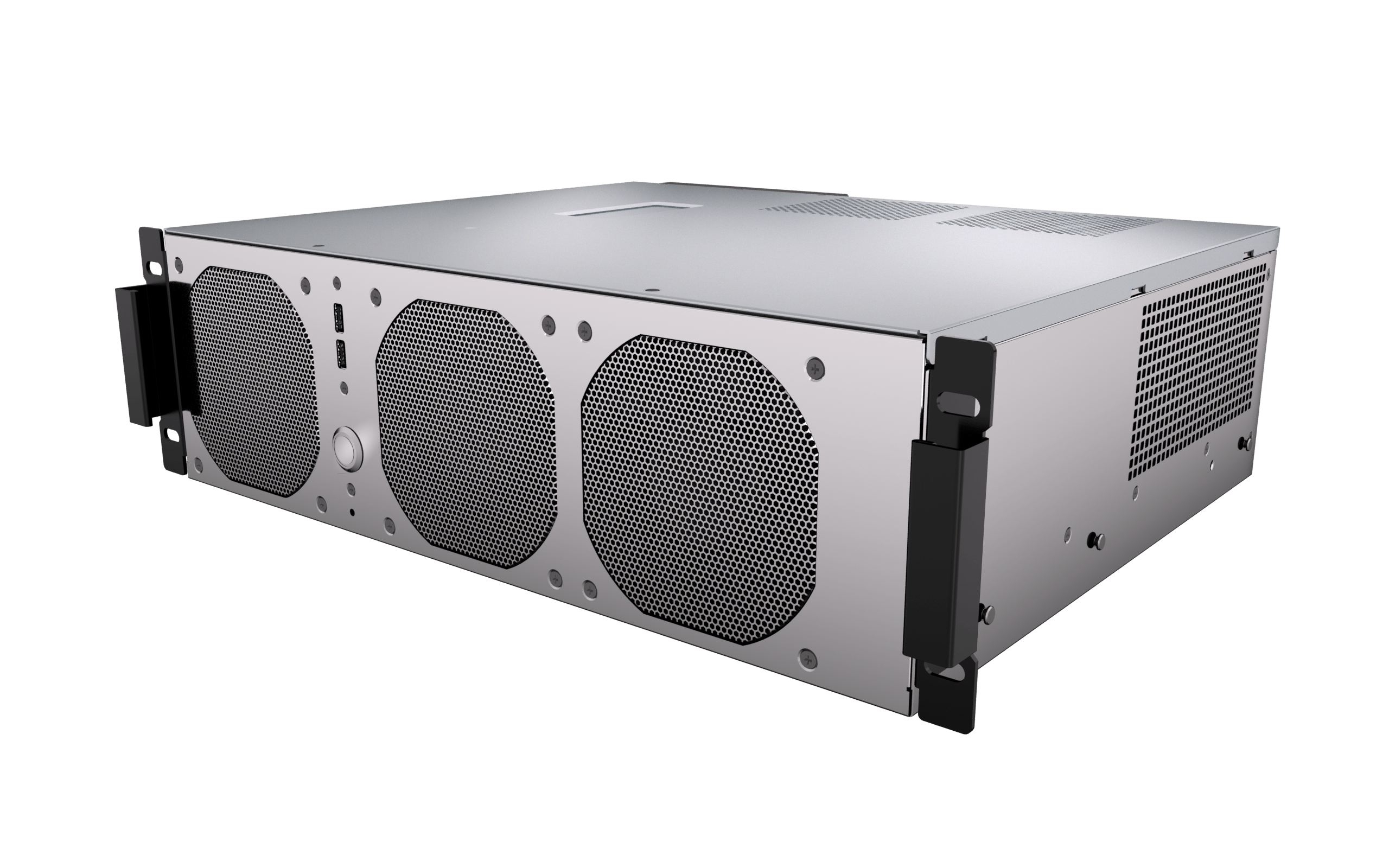

3U Short-Depth 19-inch Rackmount Design

  • Designed to fit standard 19-inch server racks for flexible deployment in space-constrained environments.
  • 378mm (14.9") short-depth chassis for compact edge server installations.

Multi-Core X86 Performance

Supports AMD EPYC™ 4005/4004 and Ryzen™ 9000 Series processors

  • Up to 16 cores / 32 threads
  • Built for multi-workload processing
  • Supports PCIe Gen 5 and DDR5
  • Up to 170W TDP

GPU Acceleration for Gen AI Workloads

Supports NVIDIA RTX™ PRO Blackwell GPUs in FHFL form factors for higher parallel compute performance, accelerated AI processing, and low-latency private Gen AI infrastructure.

High-Speed Network Infrastructure

Dual 10GbE SFP+ ports deliver high-speed, low-latency connectivity for data-intensive edge server workloads.

Remote Management for 24/7 Server Operations

Premio remote management solutions help organizations monitor, update, troubleshoot, and recover edge servers. With both in-band and out-of-band management, the LLM-2U/3U Series provides scalable system visibility, remote maintenance, and hardware-level control.

Scalable NVMe and SATA Storage

  • Supports 2x M.2 NVMe, 1x 2.5" and 1x 3.5" SATA drives with RAID 0/1 for greater storage flexibility and redundancy.

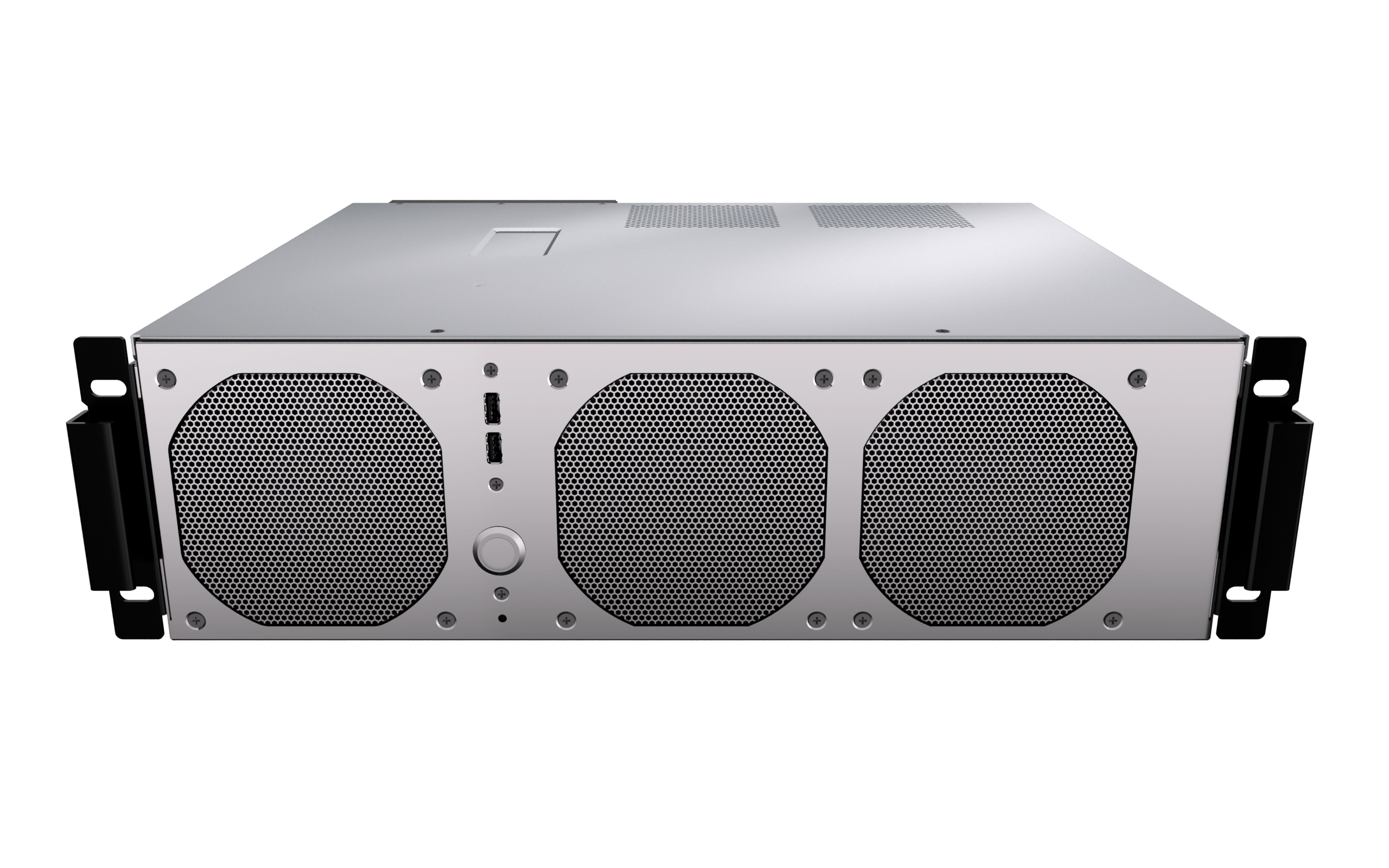

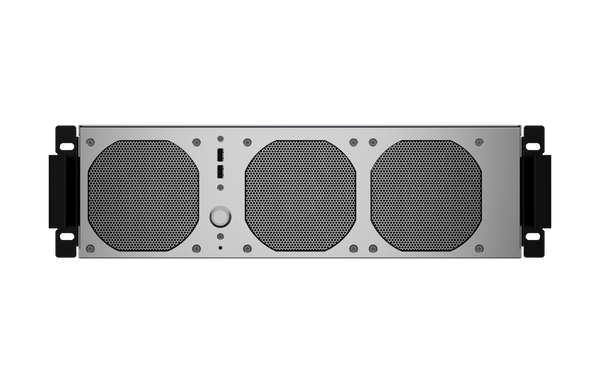

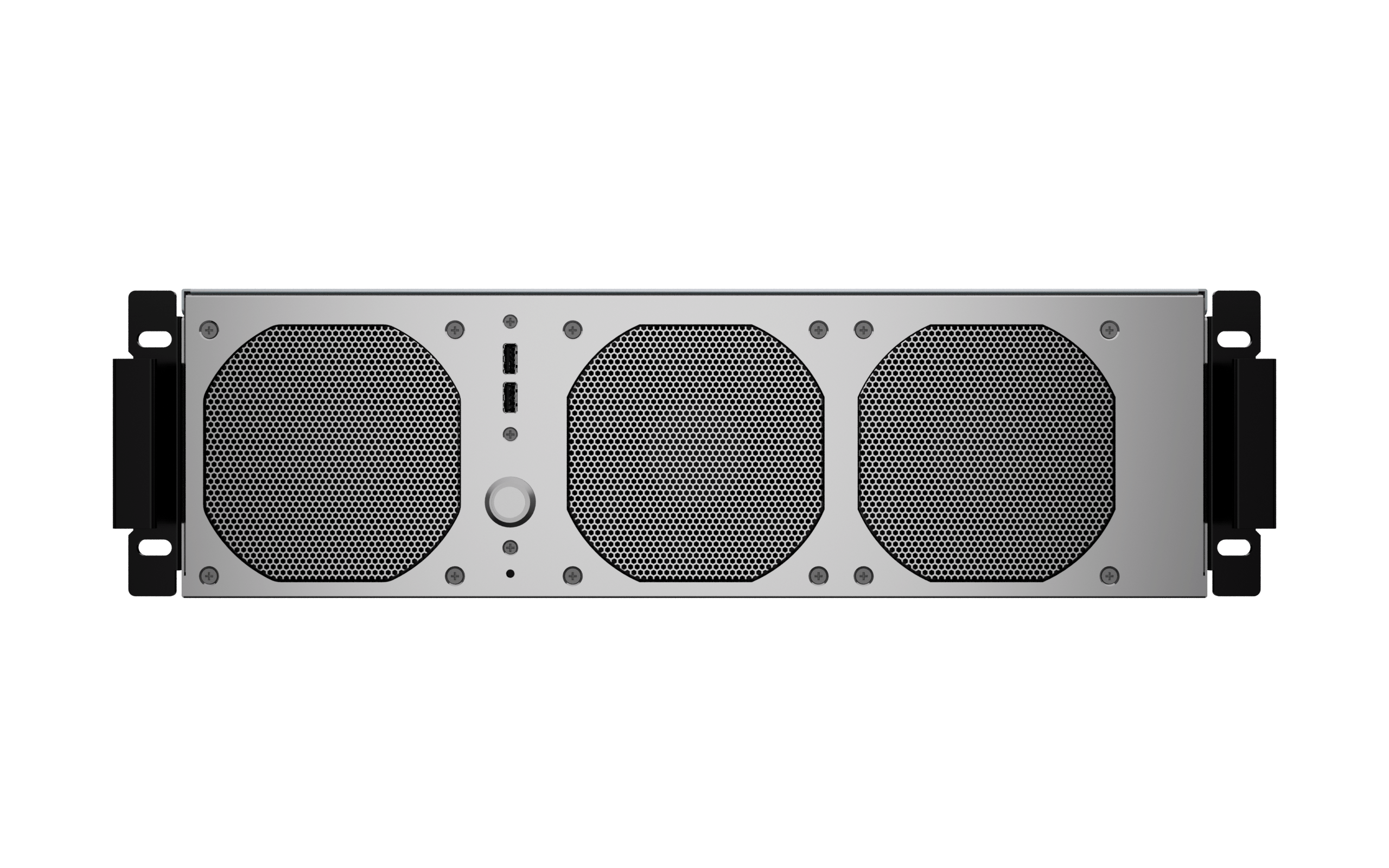

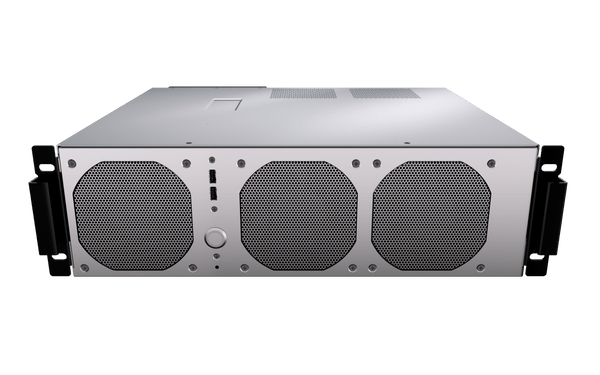

Industrial Active Cooling for Continuous Operation

  • Integrated system fans and dedicated CPU cooling help maintain consistent airflow and thermal stability during continuous workloads.

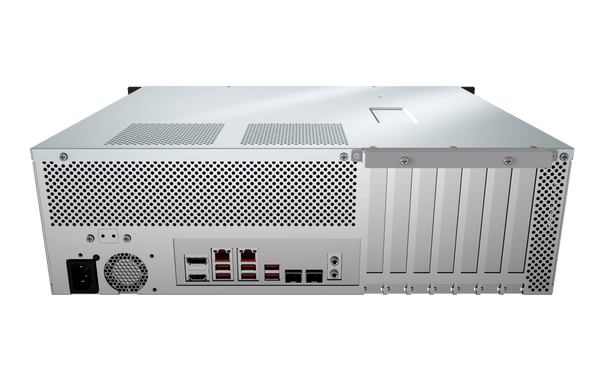

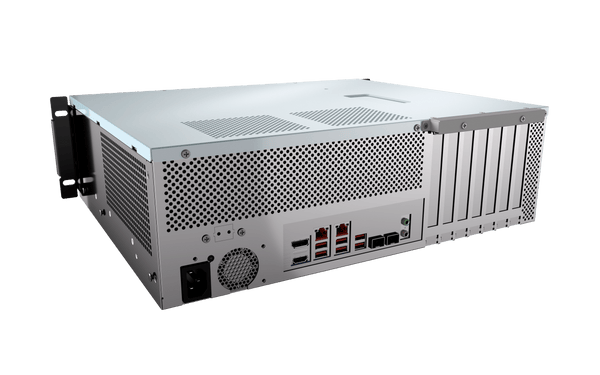

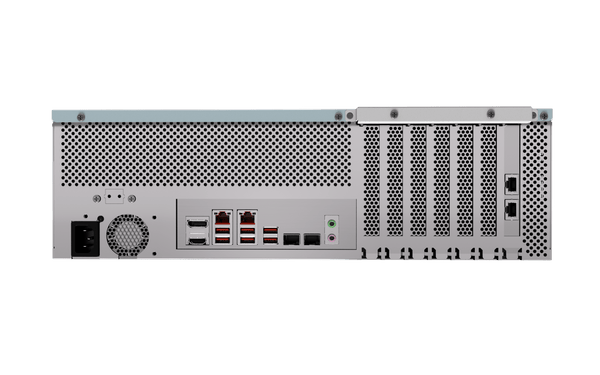

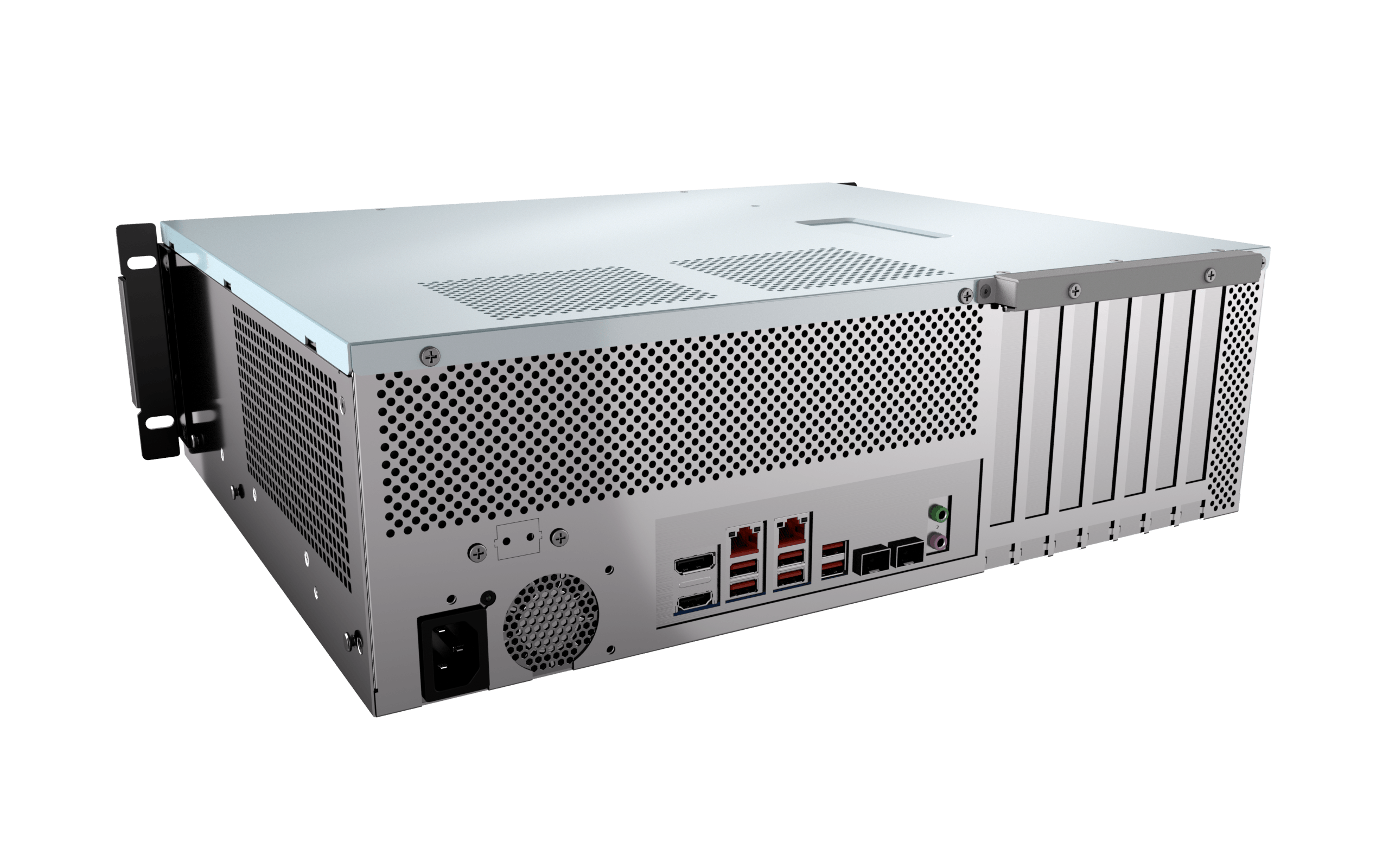

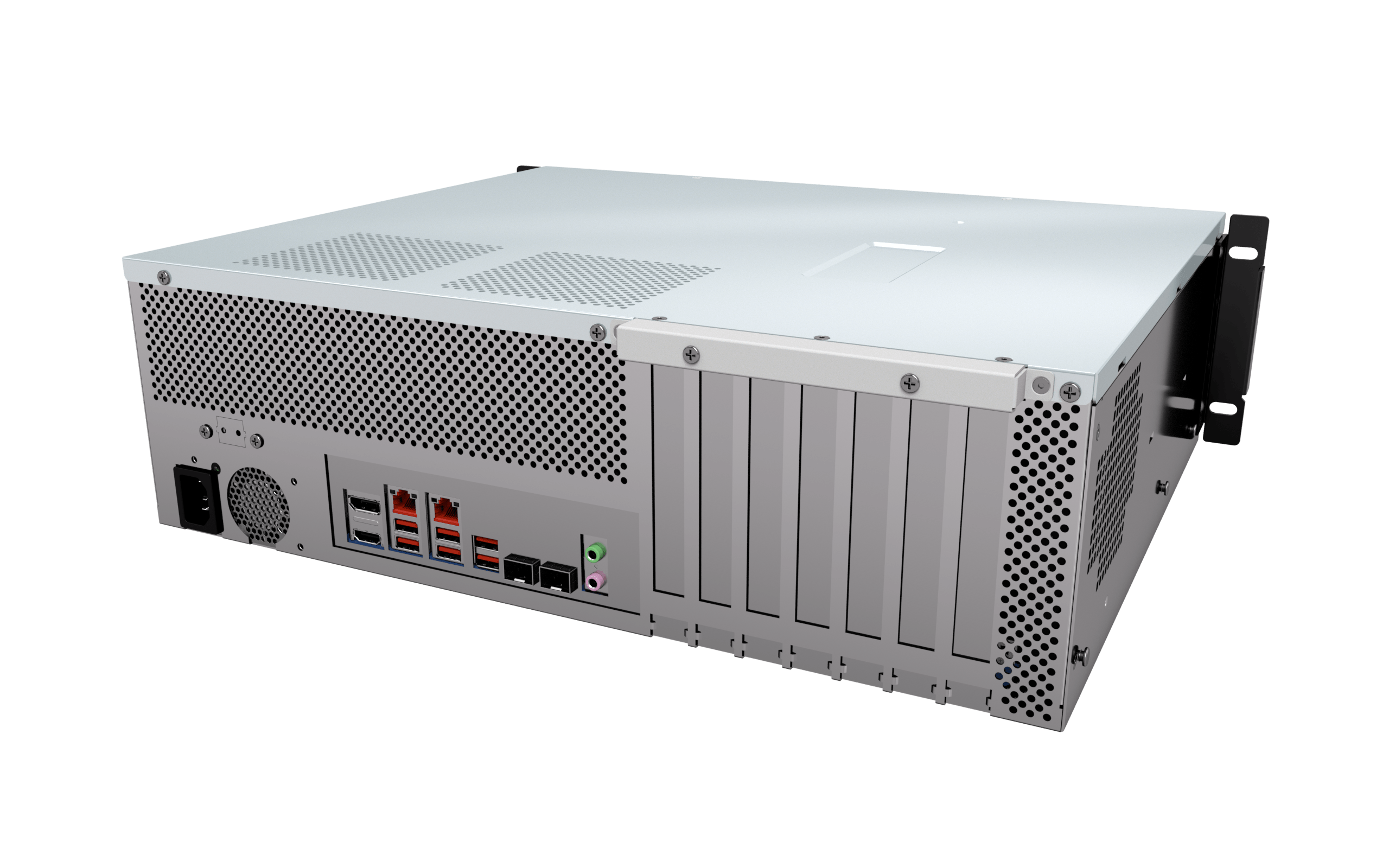

Rich I/O Connectivity

Industrial Longevity & Safety Compliance

  • Long-Life Embedded Support
  • UL 62368 Ed. 3, CE, FCC Class B
  • TPM 2.0 Security
*Barebone Pricing Only; Sales team to review component configuration and price

Interested In
LLM-3U-AM5?

Contact us

Specifications

System
Processor Support AMD Ryzen™ 9000/ 7000 Series Desktop Processors & EPYC 4005/ 4004 (Max 170W TDP):
• AMD Ryzen™ 9 9950X
• AMD Ryzen™ 9 7950X
• AMD EPYC™ 4565P
• AMD EPYC™ 4564P
System Chipset AMD B650
LAN Chipset GbE 1 & GbE 2: Intel I210AT LAN (Support Wake-on-LAN and PXE)
10GbE 3 & 10GbE 4: Broadcom BCM57412 LAN (Support PXE)
Audio Codec Realtek ALC897-VA2-CG
System Memory 4x 288-pin Dual-Channel DDR5 UDIMM, Max. up to 192GB (Non-ECC)
• EPYC 4005 / Ryzen 9000: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
• EPYC 4004 / Ryzen 7000: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Graphics AMD Radeon Graphics
BIOS AMI UEFI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 1x DisplayPort 1.4a
Max Resolution: 4096×2304 @60Hz
HDMI 1x HDMI 2.0
Max Resolution 4096 x 2304 @60Hz
Multiple Display 2x Independent Displays
Storage
M.2 M-Key 2x M.2 M-Key (2280, PCIe x4) Support NVMe Storage
(1x M.2 M-Key shared with PCIe #4 Slot)
SSD/HDD 1x 2.5" Internal SATA SSD Drive Bay (15mm)
1x 3.5" Internal SATA SSD Drive Bay
Support RAID 0,1
Expansion
M.2 E-Key 1x M.2 E-Key Type: 2230
(Support PCIe x1 + USB 2.0; Support CNVi)
Devices Supported:
Intel® AX210 Wi-Fi 6E & BT-5.1
PCIe PCIe Slot from Left to right:
#1 Slot: PCIe x16 Physical Slot (x16 Lane or x8 Lane)
#2 Slot: PCIe x4 Physical Slot (x1 Lane, Open End)
#3 Slot: PCIe x16 Physical Slot (No Signal or x8 Lane)
#4 Slot: PCIe x4 Physical Slot (x4 Lane, Open End, shared with M.2 M-Key Slot)
Card Dimension 312 (L) x 111 (H) mm, 3x dual slot, 1x single slot

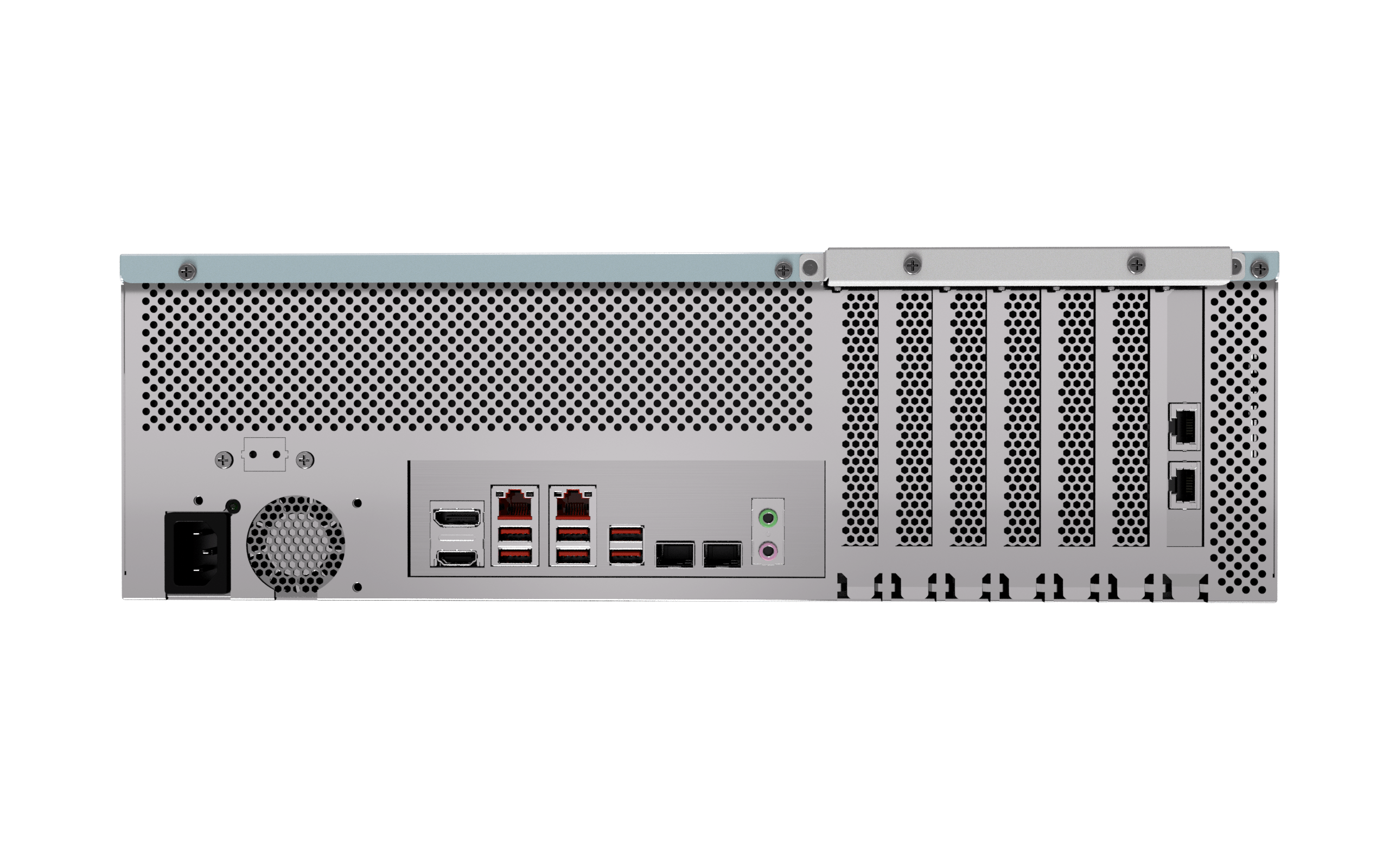

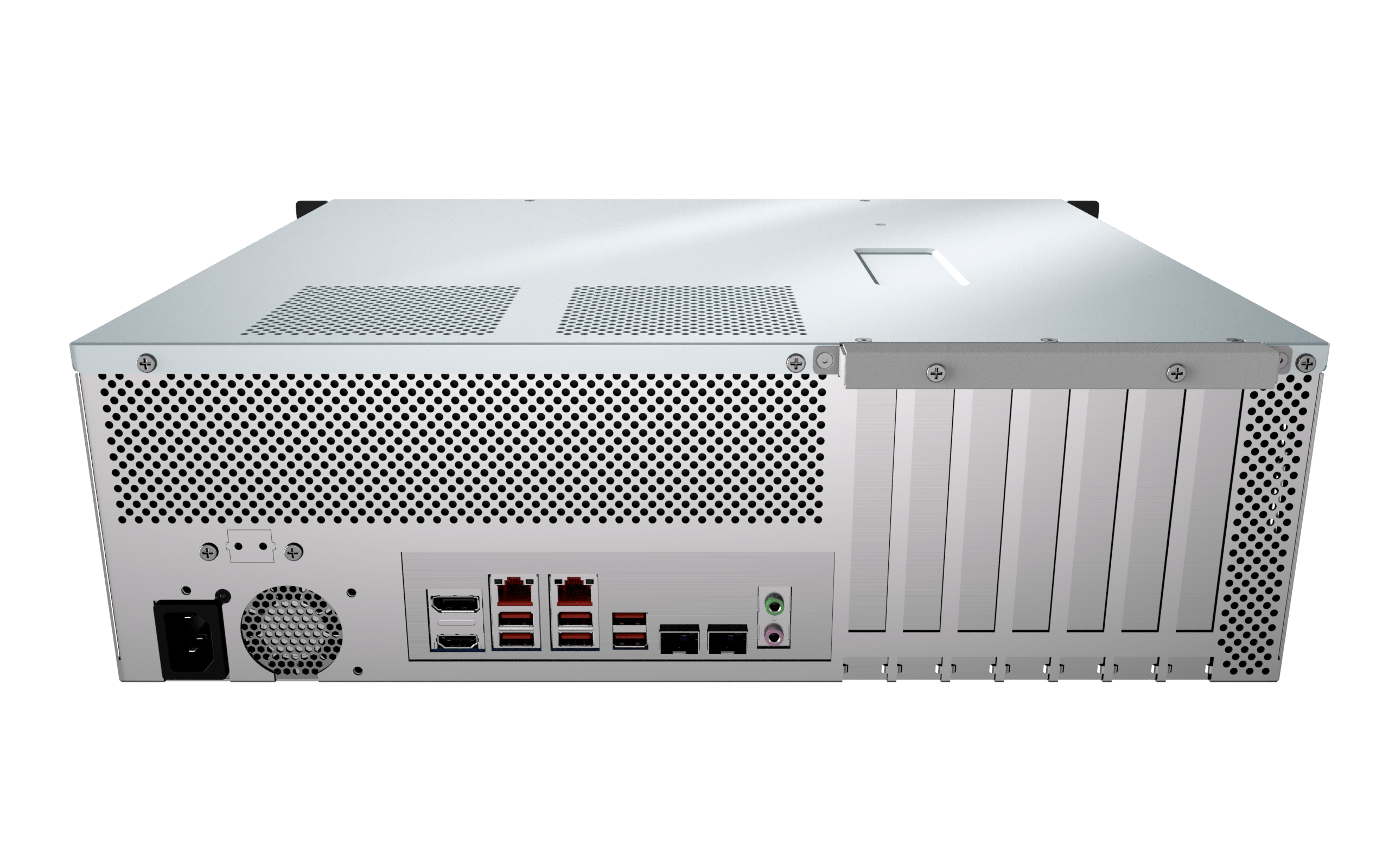

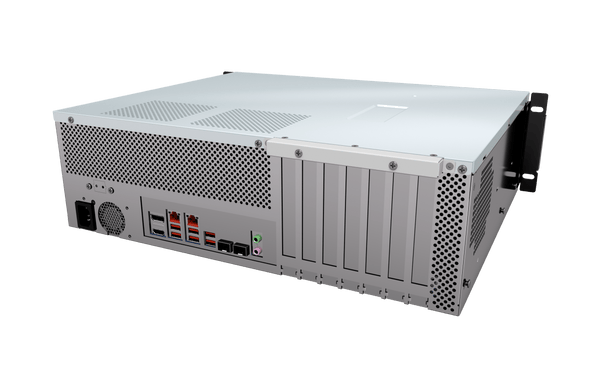

I/O
Audio Line-out/Mic-in
LAN 2x GbE RJ45
2x Broadcom 10GbE SFP+
OOB 1x RJ45 (Optional)
USB 6x USB 3.2 Gen2 (Rear)
2x USB 2.0 (Front)
Others 1x Power Switch with Blue LED
1x Recovery Button
1x Reset Button
1x CMOS Battery
1x Buzzer
Internal I/O
USB 2x USB 2.0
2x USB 3.2 Gen 1
Operating System
Windows Windows 11 22H2 GAC (64-Bit)
Linux Linux Kernel 5.x
Ubuntu 22.04.4 LTS
Power
Power Mode AT, ATX
(Default ATX)
Power Supply 1x 850W Single Power Supply
AC: 115 to 230 V
Power Connector IEC 60320 C14
System Cooling
Fan 3x System Fan
1x CPU Fan
1x PSU Fan
Environment
Operating Temperature 0°C to 35°C with 0.6 m/s airflow
Storage Temperature -20°C to 80°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class B (pending)
Vibration With SSD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: NA-G half-sin 11ms
Physical
Form Factor 3U
Dimensions (WxDxH) TBD
Weights TBD
Construction Heavy Duty Metal
Mounting Options Rackmount

Mechanical Layout

Dimensions

Unit:mm

Resources

Datasheet DS_LLM-3U-AM5_Premio.pdf
