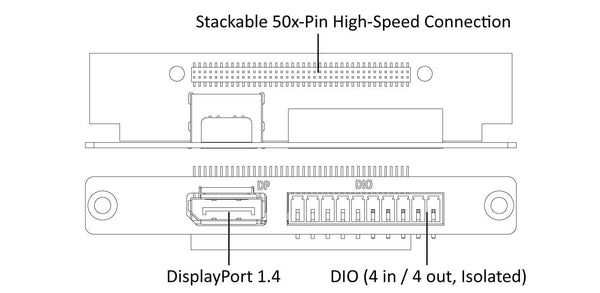

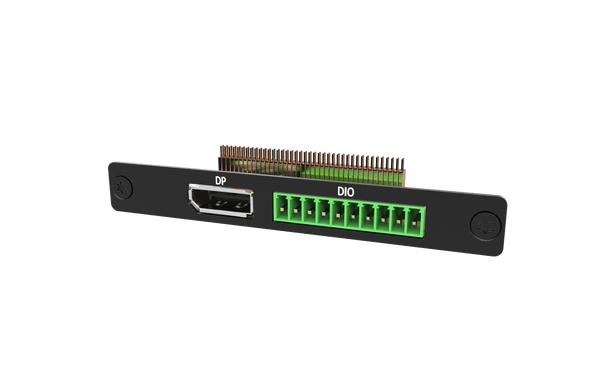

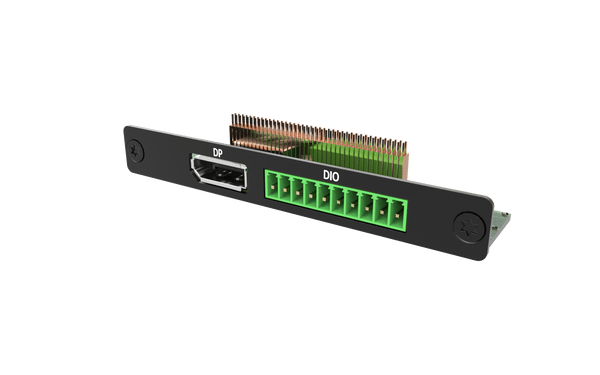

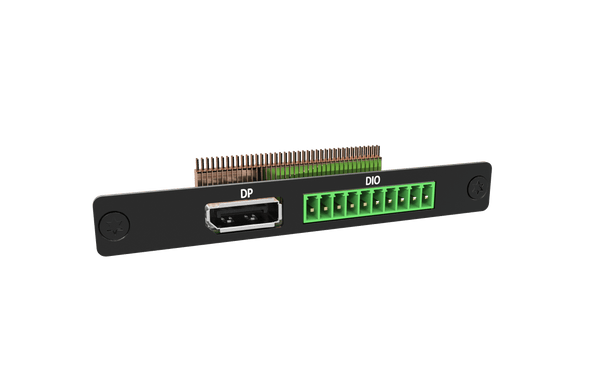

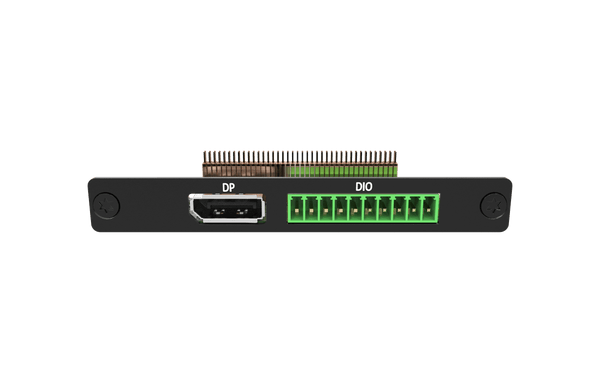

EBIO-DP-DIO EDGEBoost I/O Module with 1x DP, 1x DIO
• Designed for RCO-1000 & BCO-1000 models only
• 1x DP 1.4 (4K UHD)
• Resolution: 3840 x 2160px, 30hz
• 1x DIO (4 in / 4 out, Isolated)
• 50x-pin PCIe x4 Lane Connection
• Occupies x1 EDGEBoost Bracket
• Stackable and Scalable Design (specific configuration only)
• 1x DP 1.4 (4K UHD)
• Resolution: 3840 x 2160px, 30hz
• 1x DIO (4 in / 4 out, Isolated)
• 50x-pin PCIe x4 Lane Connection
• Occupies x1 EDGEBoost Bracket
• Stackable and Scalable Design (specific configuration only)
Model:
EBIO-DP-DIOCertifications:




Specification
Interface | 50x-pin PCIe x4 Lane Connection |
Additional I/O | 1x DIO (4 in / 4 out, Isolated) |
Display | One 4K UHD Independent Display Resolution: 3840 x 2160px, 30hz |
Display Port | 1x DP 1.4, DP++ |
I/O Bracket | Occupies x1 EDGEBoost Bracket |
Special Features | Stackable and Scalable Design (specific configuration only for RCO-1000 and BCO-1000 Models) |
Standards and Certification | UL, EMC Conformity: CE, FCC |
Resources
Data Sheet |
DS_EBIO-DP-DIO_Premio.pdf
|
Product Brief |
PB_EDGEBoost IO.pdf
|
