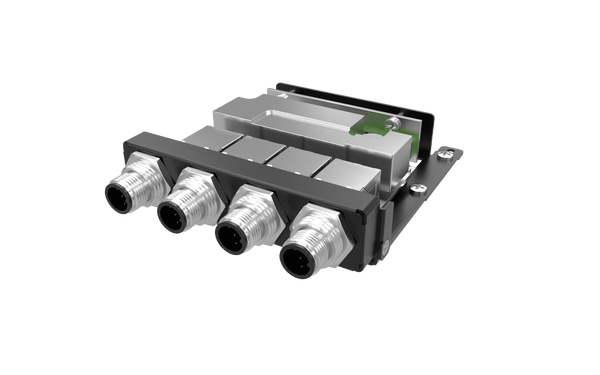

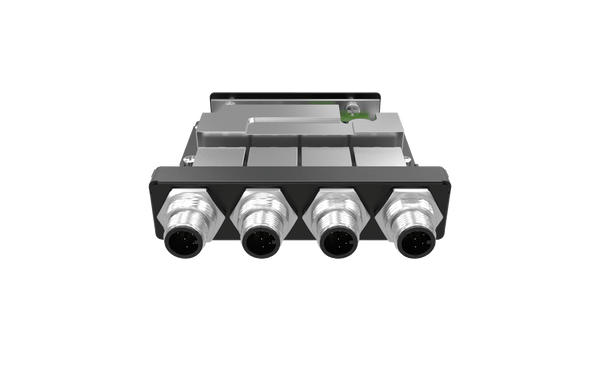

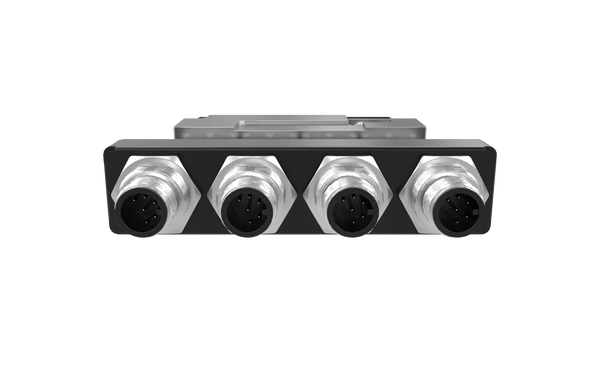

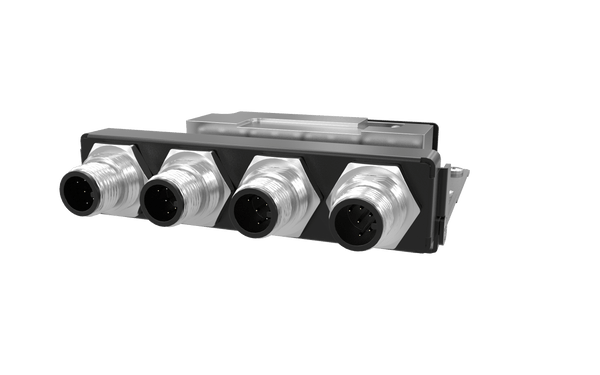

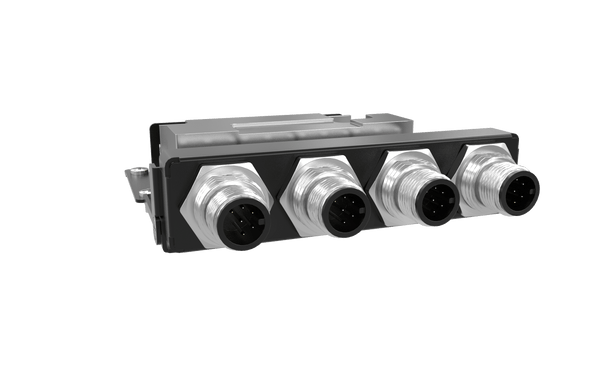

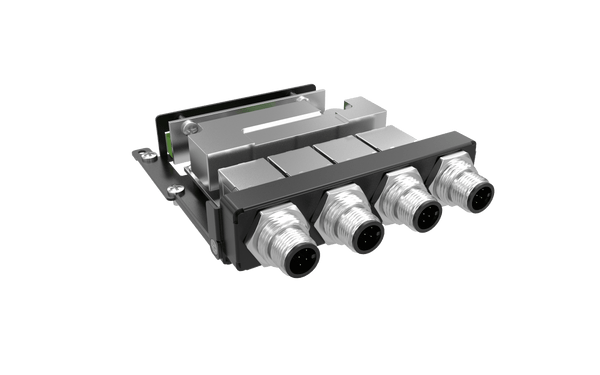

EBIO-4ETH-M12 EDGEBoost I/O Module with 4x LAN M12 Ports

  • EDGEBoost I/O module supporting 4x locking GbE M12 LAN ports for industrial environments that require ingress protection from dust, debris, shock and vibration. Optional Power over Ethernet support is also available through an additional add-on module
  • 4x 1GbE LAN M12 Ports
  • Intel® Ethernet Controller I350
  • PCIe x1 Gold Fingers Interface (PCIe 3.0 x4 Performance)
  • Occupies 1x EDGEBoost Bracket
See Datasheet

Certifications:

Intel Partner

Key Design Features of Premio's EDGEBoost I/O

* Barebone Pricing Only; Sales team to review component configuration and price

Specification

LAN Chipset Intel® Ethernet Controller I350
Interface PCIe x1 gold finger (PCIe 3.0 x4 performance)
Additional I/O 4x M12 X-code 8-Pin, Female Ports
I/O Bracket Occupies 1x EDGEBoost Bracket
Standards and Certifications UL, CE, FCC Class A

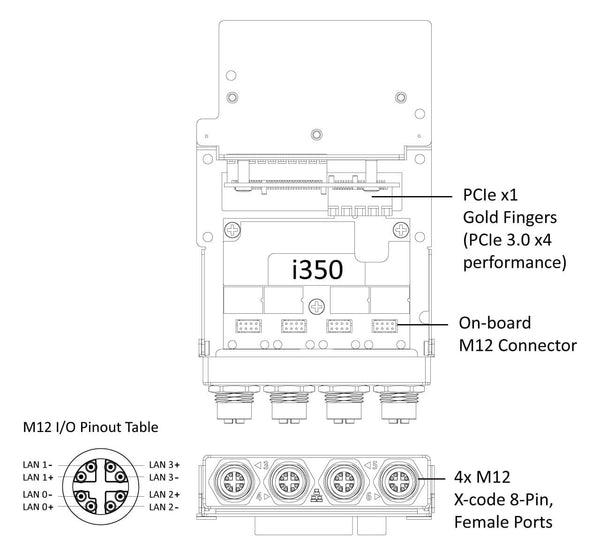

Mechanical Layout

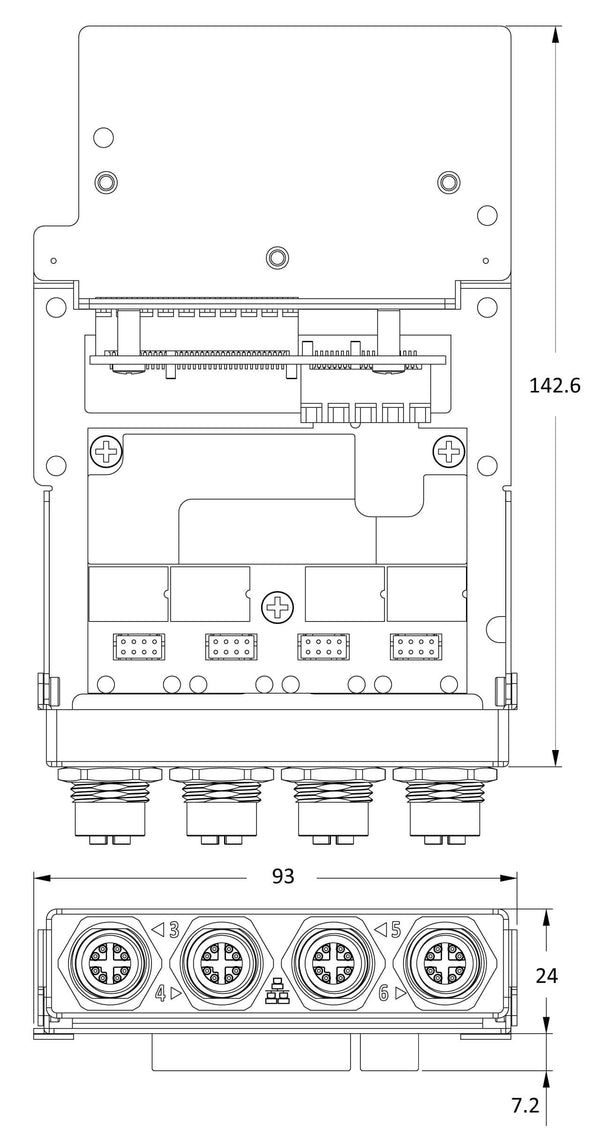

Product Dimension

Unit:mm
