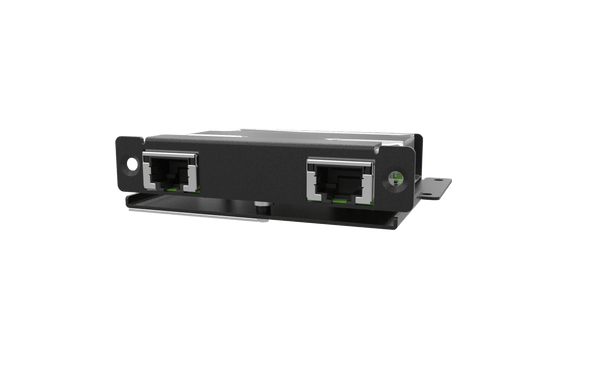

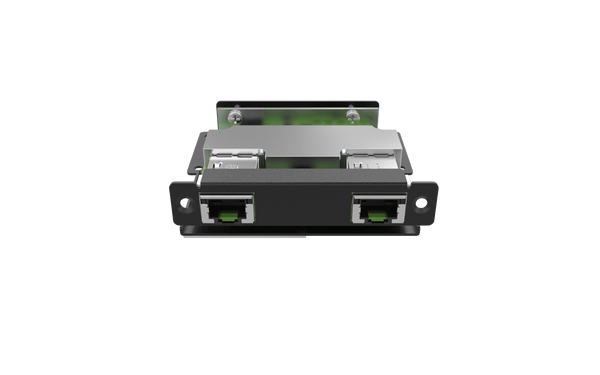

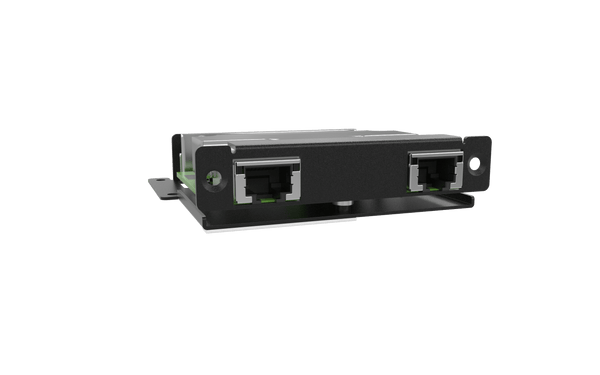

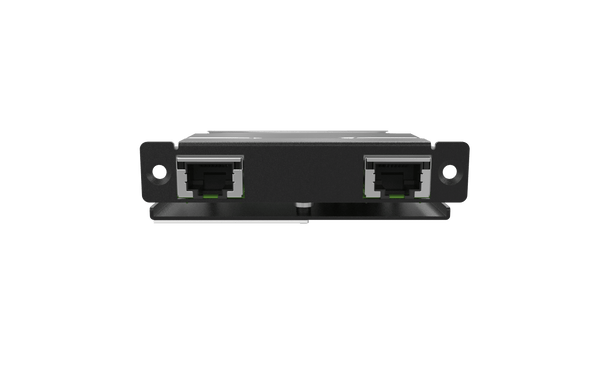

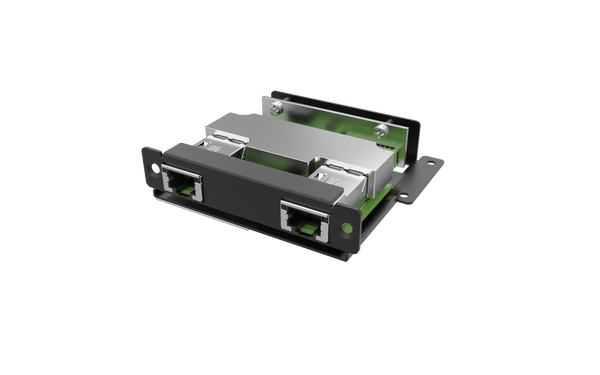

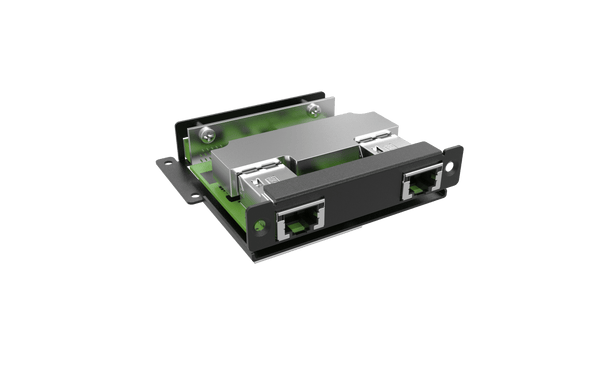

EBIO-D10G EDGEBoost I/O Module with 2x 10GbE LAN Ports

  • EDGEBoost I/O module support supporting dual 10GbE LAN ports for high-speed connectivity.
  • 2x 10GbE LAN Ports
  • Intel® Ethernet Controller X710-AT2
  • PCIe 3.0 x4 interface
  • 1x Dedicated Heatblock
  • Occupies x1 EDGEBoost Bracket

Certifications:

Intel Partner

Key Design Features of Premio's EDGEBoost I/O

* Barebone Pricing Only; Sales team to review component configuration and price

Specification

LAN Chipset Intel® Ethernet Controller X710-AT2
Interface PCIe x1 gold finger (PCIe 3.0 x4 performance)
Additional I/O 2x RJ45 10GbE LAN Ports
I/O Bracket Occupies x1 EDGEBoost Bracket
Standards and Certifications UL, CE, FCC Class B

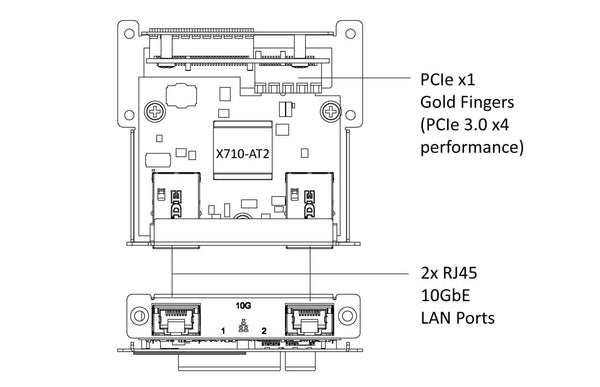

Mechanical Layout

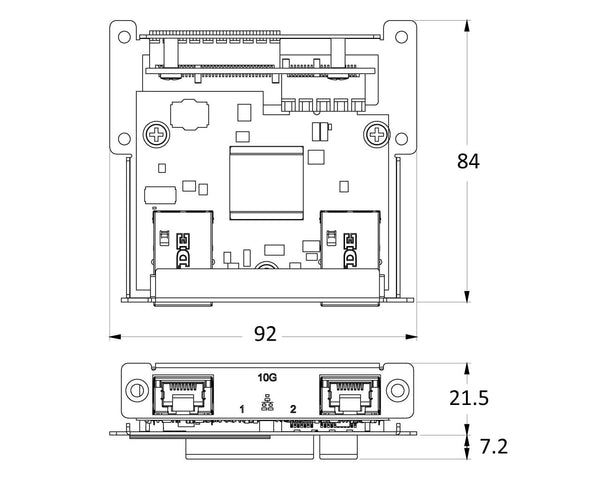

Product Dimension

Unit:mm

Resources

Data Sheet DS_EBIO-D10G_Premio.pdf
Product Brief PB_EDGEBoost IO.pdf
