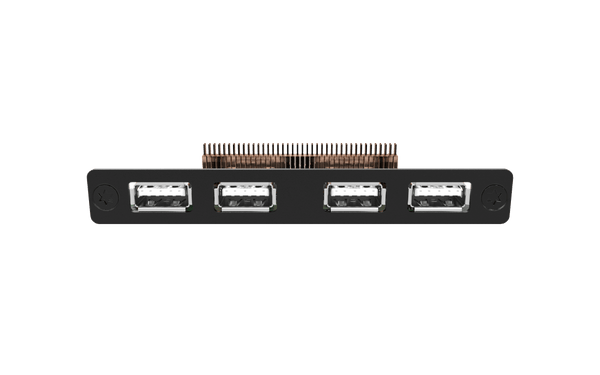

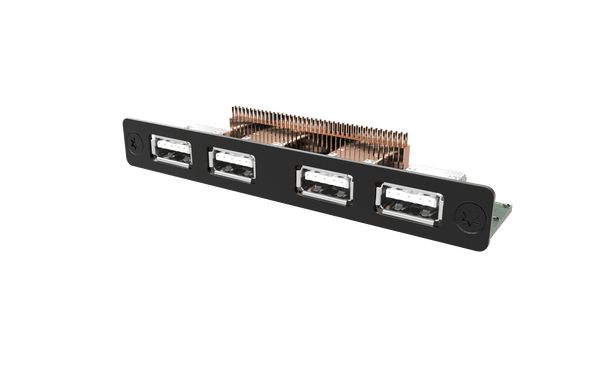

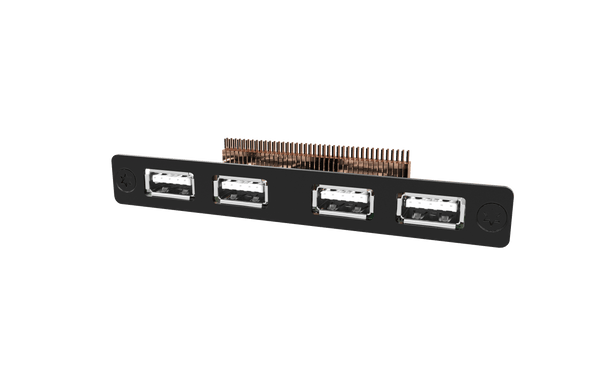

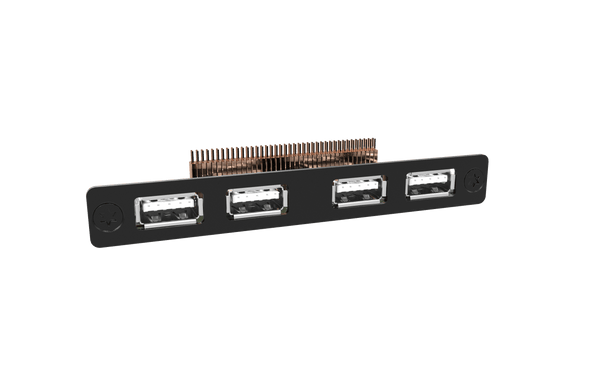

EBIO-4USB EDGEBoost I/O Module with 4x USB 2.0
- Designed for RCO-1000 & BCO-1000 models only
- 4x USB 2.0, Type A Ports (with USB hub)

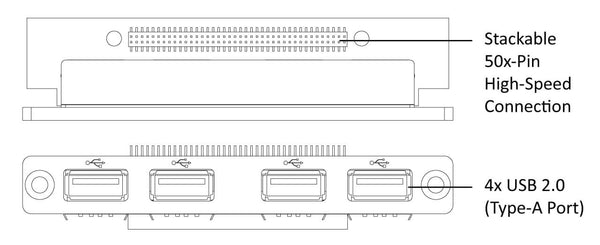

- 50x-pin High-Speed I/O Connection
- Occupies 1x EDGEBoost Bracket
- Stackable and Scalable Design (specific configuration only)
Model:
EBIO-4USBCertifications:
Specification
Interface | 50x-pin High-Speed I/O Connection |
Additional I/O | 4x USB 2.0, Type A Ports (with USB hub) |
I/O Bracket | Occupies 1x EDGEBoost Bracket |
Special Features | Stackable and Scalable Design (specific configuration only for RCO-1000 and BCO-1000 Models) |
Standards and Certifications | UL, CE, FCC Class A |
Resources
Data Sheet |
DS_EBIO-4USB_Premio.pdf
|
Product Brief |
PB_EDGEBoost IO.pdf
|
