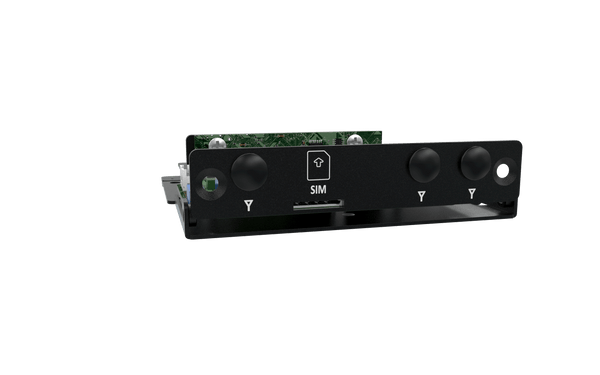

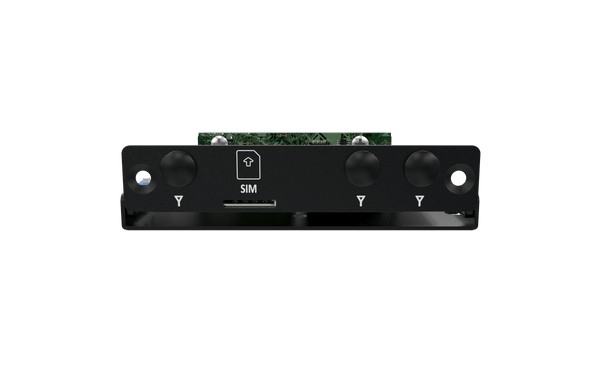

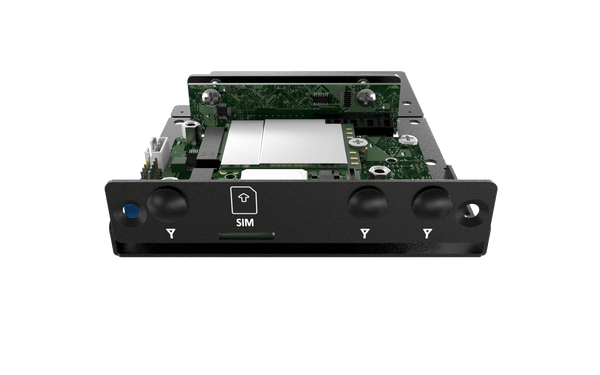

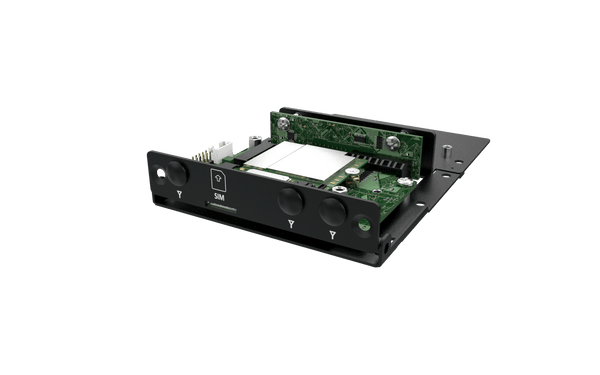

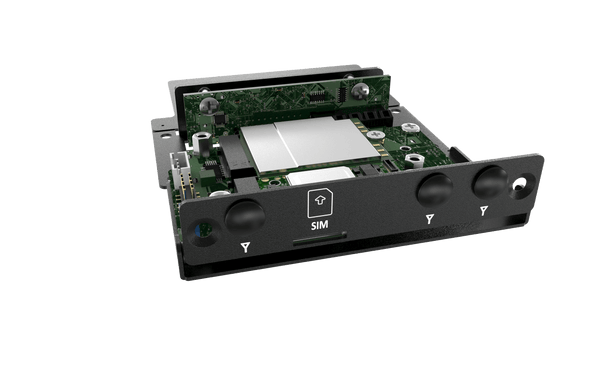

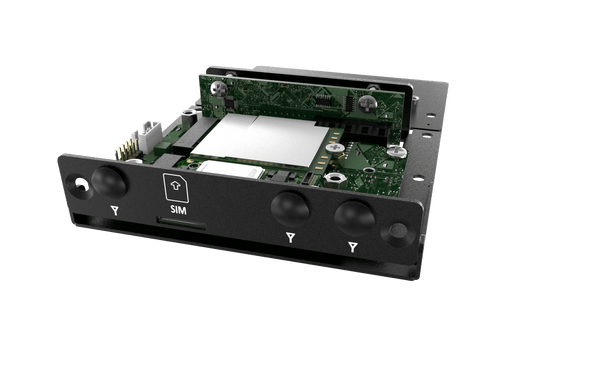

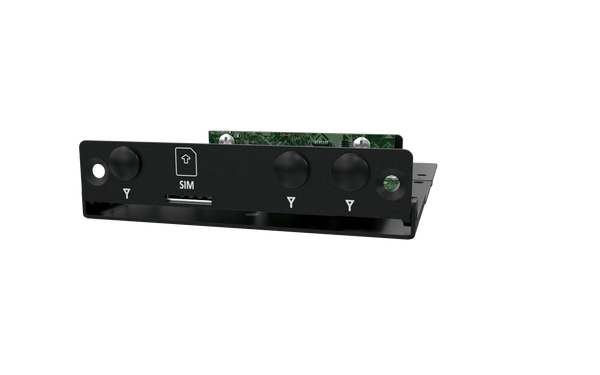

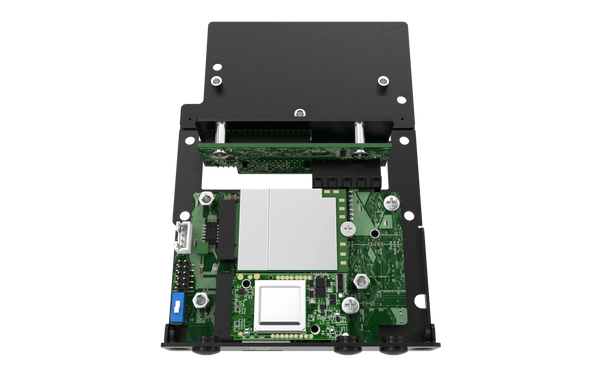

EBIO-2M2BK EDGEBoost I/O Module with 2x M.2 B-Key
EDGEBoost I/O module supporting Dual M.2 B-Key modules for Edge AI, NVMe storage, and even 5G wireless connectivity

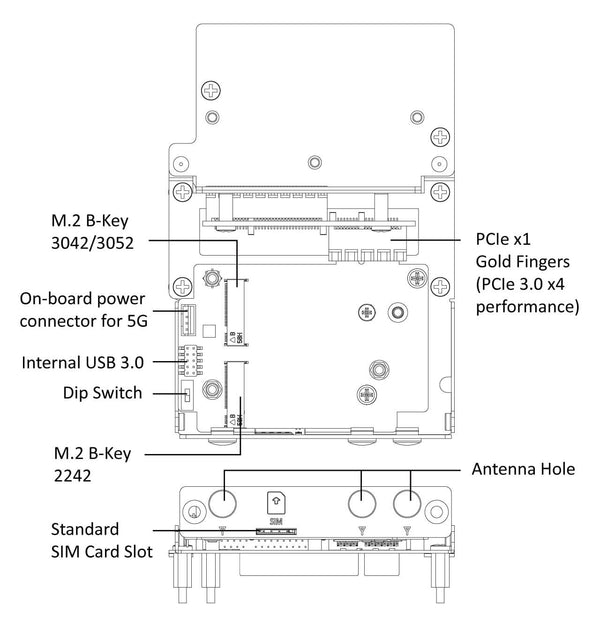

• Support 5G/AI/NVMe Module
• 2x M.2 B-Key 2242/3042/3052
• PCIe x1 Gold Fingers Interface (PCIe 3.0 x4 Performance)
• 1x Mini SIM Slot (on-board)
• Occupies 1x EDGEBoost Bracket
• 1x Dedicated Heatblock
• 3x Antenna Holes
• Support 5G/AI/NVMe Module
• 2x M.2 B-Key 2242/3042/3052
• PCIe x1 Gold Fingers Interface (PCIe 3.0 x4 Performance)
• 1x Mini SIM Slot (on-board)
• Occupies 1x EDGEBoost Bracket
• 1x Dedicated Heatblock
• 3x Antenna Holes
Model:
EBIO-2M2BKCertifications:




Specification
Interface | PCIe 3.0 x4 |
SIM Sockets | 1x Mini SIM Slot (25mm x 15mm) |
M.2 Expansion | 2x M.2 B-Key, 2242/3042/3052 for AI Module and NVMe storage |
I/O Bracket | Occupies x1 EDGEBoost Bracket |
Special Features | 1x Dip Switch for Switching into 2 configurations: • 1. 2x PCIex2, Support AI Module/NVMe Storage • 2. 1x PCIex2, Support AI Module/NVMe Storage & 1x PCIex1 & USB 3.2 Gen1, Support 4G/5G |
Standards and Certification | CE, FCC |
Resources
Data Sheet |
DS_EBIO-2M2BK_Premio.pdf
|
Product Brief |
PB_EDGEBoost IO.pdf
|
