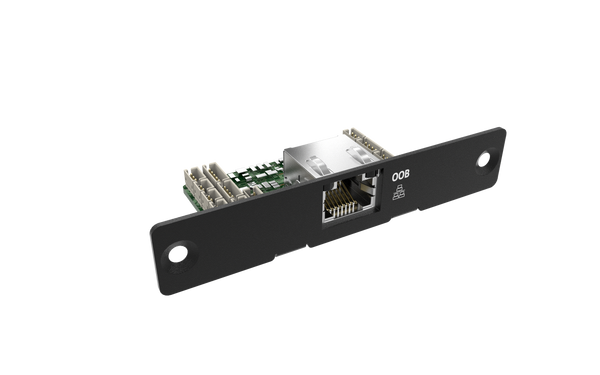

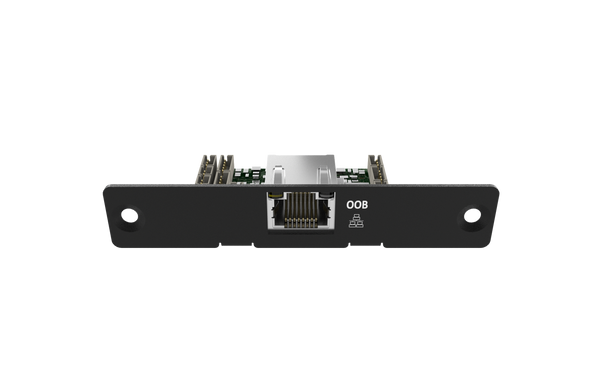

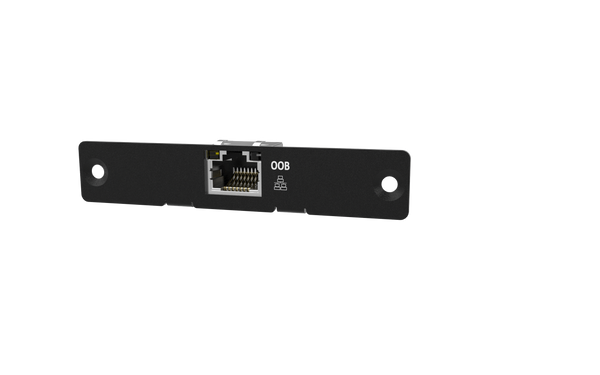

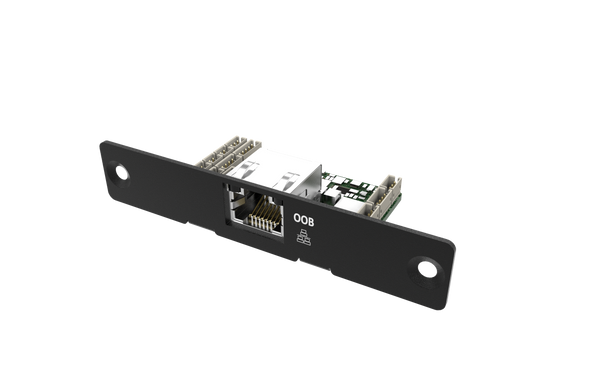

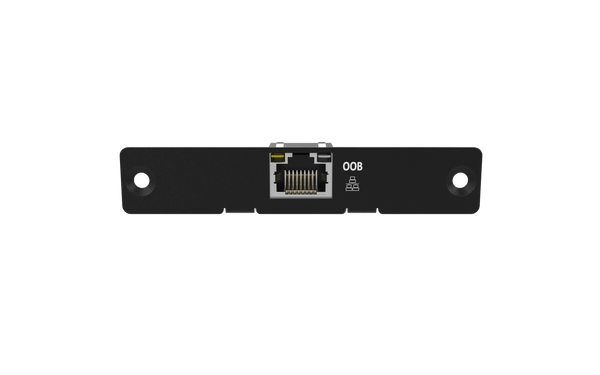

EBIO-OOB EDGEBoost I/O Module with 1x RJ45 OOB

  • Dedicated RJ45 Port (10/100 Mbps)
  • OOB NC-SI, OOB Cloud Serial Console
  • Power Control and Management
  • Optional: Backup & Recovery, Tamper Detection, Thermo-Guard
See Datasheet

Certifications:

Intel Partner

Key Design Features of Premio's EDGEBoost I/O

* Barebone Pricing Only; Sales team to review component configuration and price

Specification

LAN Chipset Nuvoton NUC980DR63YC, Built-in 64MB DDR2 SDRAM Memory, 16 KB data cache
Additional I/O 1x RJ45 (10/100 Mbps)
Internal I/O • 1x Tact Switch for OOB Config Restore
• 1x Tact Switch for OOB Reset
I/O Bracket Occupies 1x EDGEBoost Bracket
Special Features On Board 3x LED
Power LED (Color: Blue)
MCU Activated LED (Color: Green)
Allxon Service Activated LED (Color: Yellow)

4x2 DIP Switch for General Setting
(USB or SPI Flash Switching)
(Wi-Fi or Debug Switching)
(Enable PWR OK Detection)
Standards and Certifications UL, CE, FCC Class B

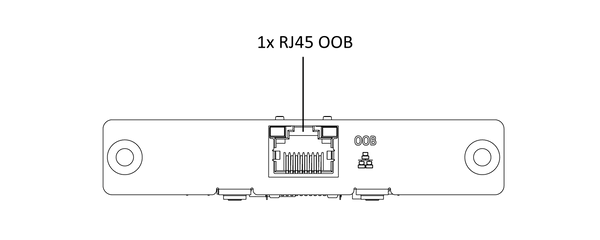

Mechanical Layout

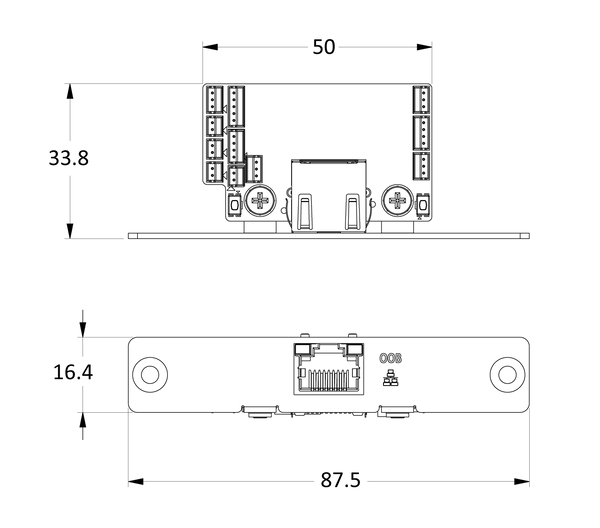

Product Dimension

Unit:mm
