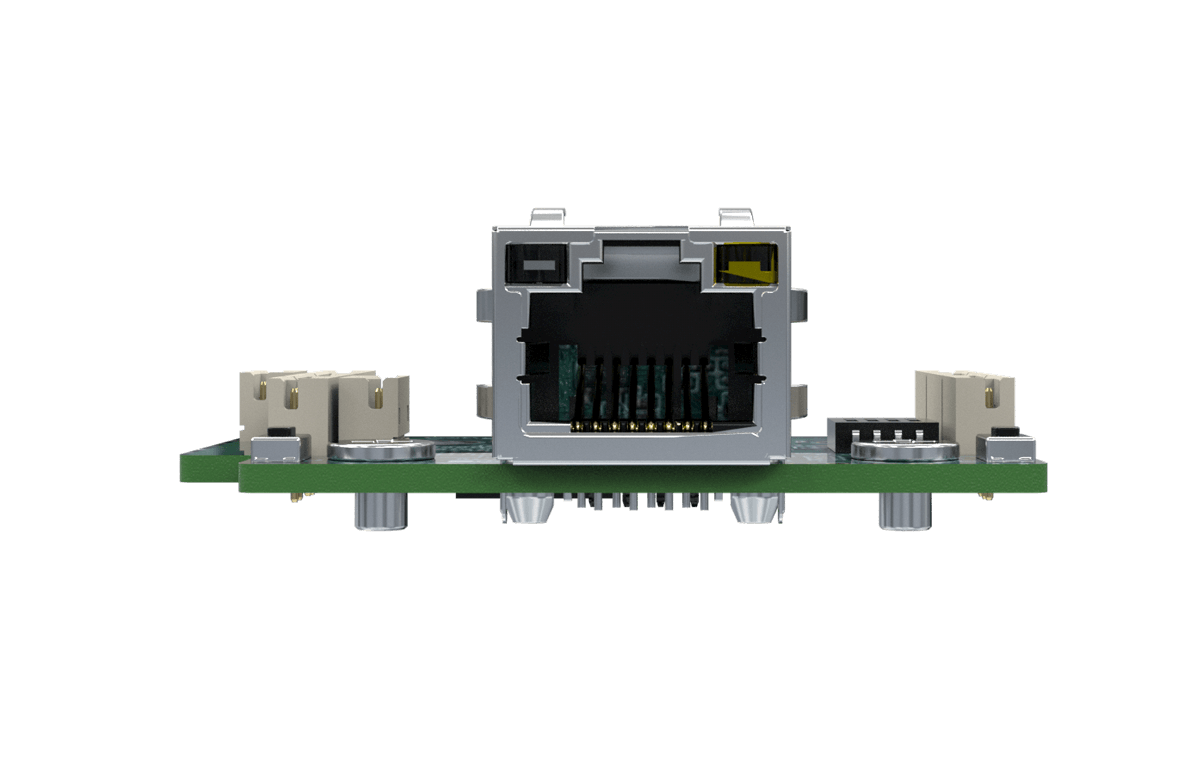

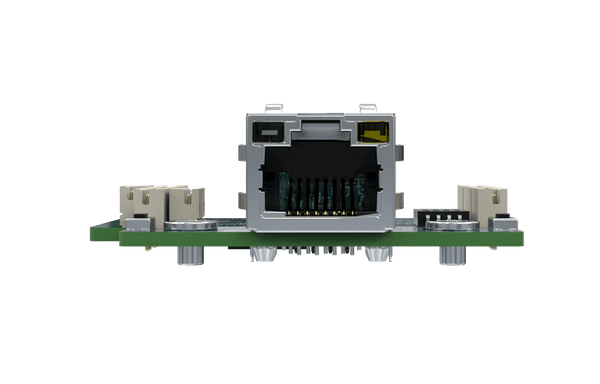

EBIO-OOB-I Remote Management Module with 1x RJ45 Port

EBIO-OOB-I Remote Management Module with 1x RJ45 Port

  • Dedicated RJ45 Port (10/100 Mbps)
  • OOB Cloud Serial Console (BIOS Remote Control)
  • Power Control and Management
  • Over-The-Air (OTA) Updates
See datasheet

Certifications:

Intel Partner

Key Design Features of Premio's EDGEBoost I/O

*Barebone Pricing Only; Sales team to review component configuration and price

Specifications

LAN Chipset Nuvoton NUC980DR63YC,
Built-in 64MB DDR2 SDRAM Memory,
16 KB data cache
Additional I/O 1x RJ45 (10/100 Mbps)
Special Features On Board 3x LED
Power LED (Color: Blue)
MCU Activated LED (Color: Green)
Allxon Service Activated LED (Color: Yellow)

4x2 DIP Switch for General Setting
(USB or SPI Flash Switching)
(Wi-Fi or Debug Switching)
(Enable PWR OK Detection)
Standards and Certifications UL, CE, FCC

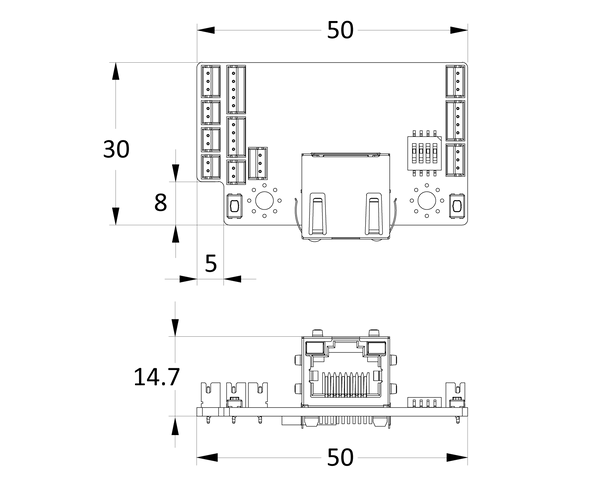

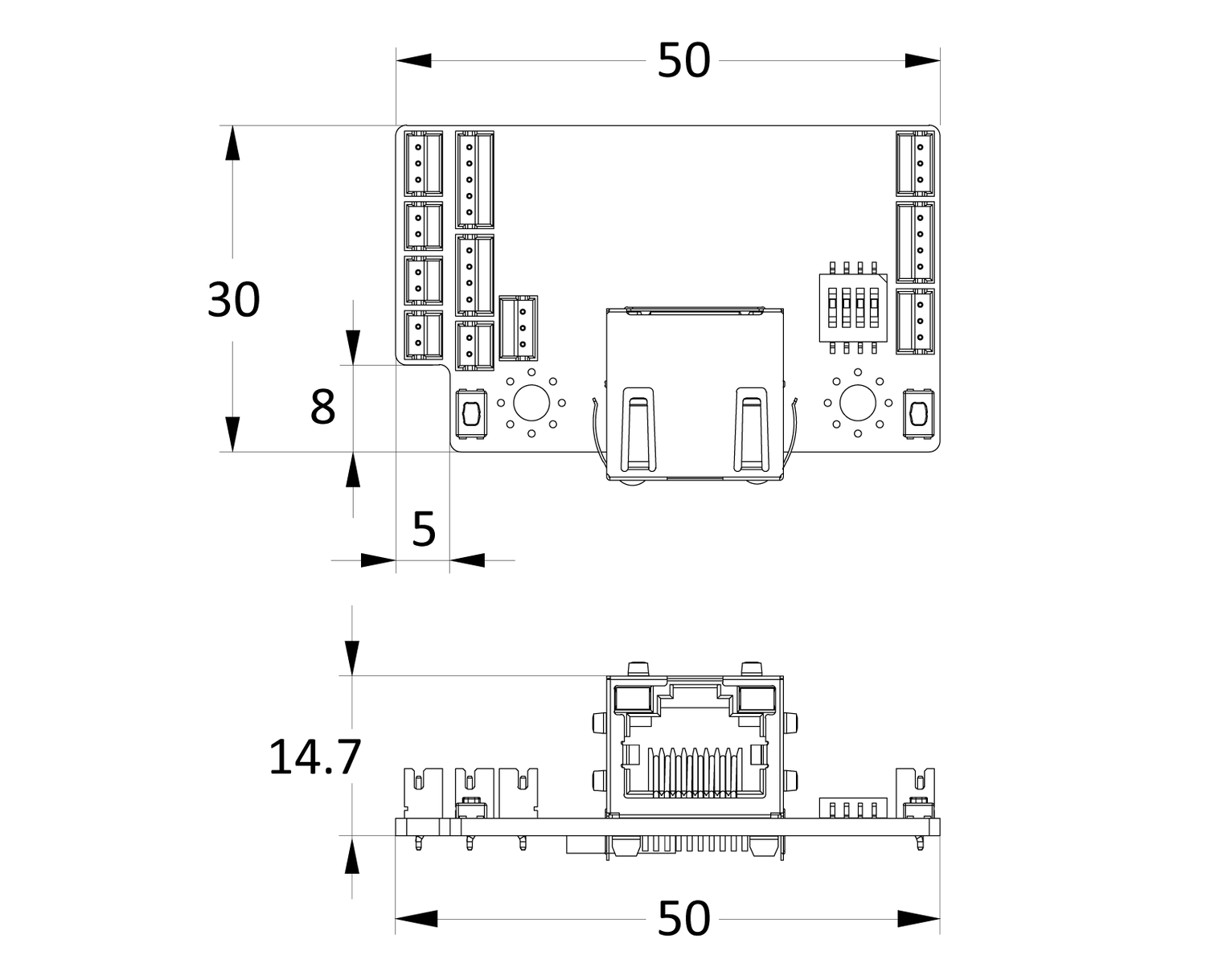

Dimensions

Unit:mm
