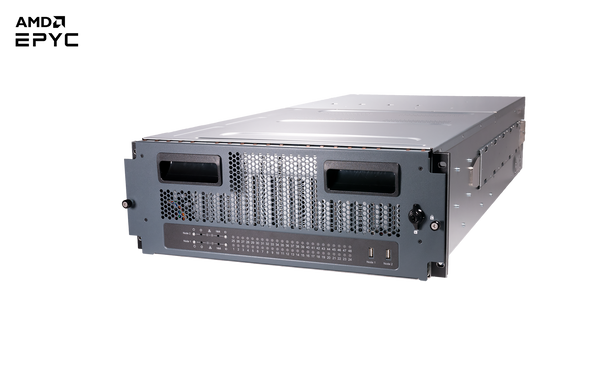

DSS448S-UM 4U48 SAS AMD EPYC MILAN HA Redundant Server
DSS448S-UR 4U 48 Bays SAS AMD EPYC

DSS448S-UR 4U 48 Bays SAS AMD EPYC

Key Features:

  • HA Redundant Storage server support two hot-swap MB modules, each with single AMD ROME™ up to 64 cores Single/Multi NUMA domain
  • 4U with 48x 3.5” 12Gb/s dual-ported SAS hot-swap HDD bays
  • Supports PCIe GEN 4; up to 2TB DDR4 RAM
  • Support two hot-swap motherboard nodes; each with AMD ROME UP server boards in one system as unified redundant controllers
  • HA Redundant Cluster-in-a-Box solution with PCIe NTB and GbE heartbeat
See Datasheet

Certifications:

Specification

System
Processor Each Node: Supports Single Socket AMD ROME™ up to 205W TDP socket SP3
System Chipset N/A
System Memory Each Node: Supports up to 8x DIMMs DDR4 2666/3200 MHz
Network Each node 2x GbE ports, 1x GbE dedicated for IPMI
Storage Two 36 ports Broadcom 12G SAS Expander
Driver Bays 48x hot-swap 3.5" 12G SAS HDD drive bays
2x internal 2.5" 7mm for OS drive bays
4x dual-port NVMe U.2 SSD days shared by 2 nodes
Supported OS Windows 2012 R2, RHEL 7.4, SLES 12 SP2; Windows 2016, VMWare ESXi 6.5, FreeBSD 11; Centos 7.3; For other OS please contact us
Cooling 4x 60mmx38mm fans (per node)
Other Features Dedicated GbE for IPMI 2.0

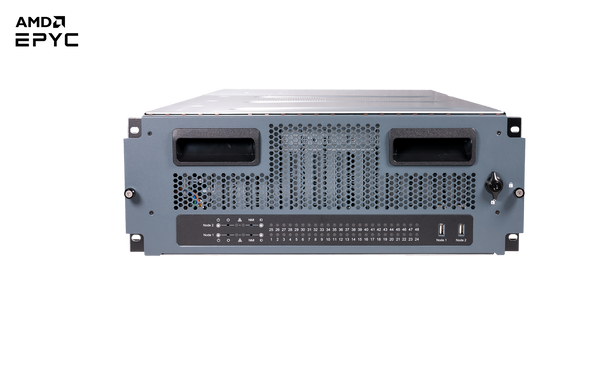

Front I/O Power On/Off with LED, Reset Switch, NMI Switch, Locate Switch with LED, 4xLAN LED, Warning LED 1x USB 3.0

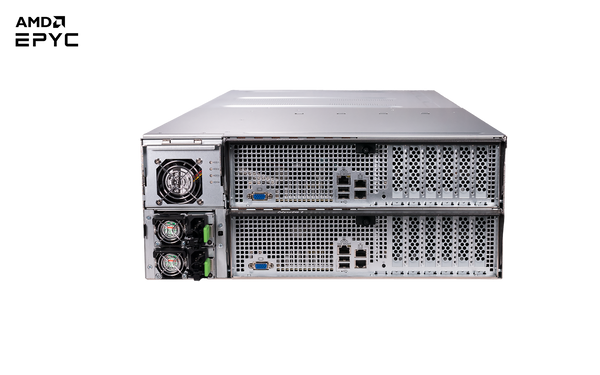

Back I/O VGA, 2x GbE RJ45, 1x GbE IPMI, 2x USB 2.0, 1x USB 3.0, 1x COM Serial (per node)
Expansion Each Node: 5x PCIe 3.0/4.0 x16
Power 1+1 1600W AC/DC 80 Plus Platinum Redundant PSU
Optional -48V DC input availble upon request
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 39" x 19" x 7-1/4" (LxWxH)
Packaging: 46"x 25.5"x18"(LxWxH)
Weights Net Weight: 40lbs with SSDs; Gross Weight: 55lbs

Resources

Data Sheet Premio-DSS448S-UR.pdf
