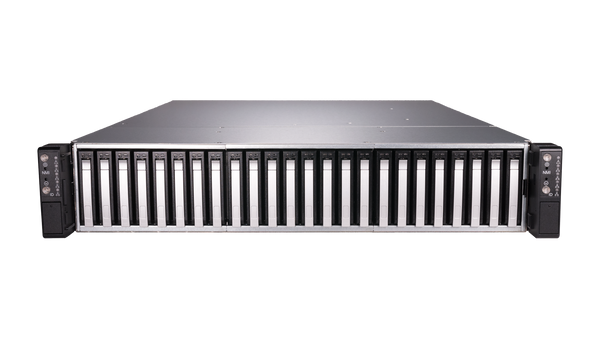

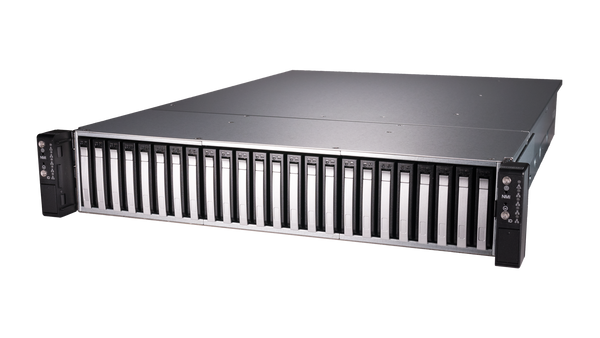

DSS224N-UN 2U 24 BAYS NVMe REDUNDANT NODE SINGLE EPYC 1200W HRP

Key Features

  • Storage server supports single AMD EPYC™ up to 1TB DDR4
  • 2U Redundant High Availability dual systems (nodes)
  • Support high density 24 hot-swappable 2.5”-15mm NVMe U.2 SSD bays
  • Support redundancy heartbeat through optional GbE and PCIe x 16 NTB

Certifications:

Regular price

Specification

System
ProcessorEach Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3
System MemoryEach Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400
NetworkEach Node: 2x GbE ports, 1x GbE dedicated for IPMI
Driver Bays24x 2.5” 15mm hot-swap U.2 NVMe drive bays
each node has 2x internal 7mm SATA drives for OS
Supported OSWindows 2012 R2
Windows 2016 Server
RHEL 7.4
SLES 12 SP2
Ubuntu 17.04
For other OS, please contact us
CoolingEach node: 5x 40mm fans
Other FeaturesDedicated GbE for IPMI 2.0
Front I/OPower On/Off switch & LED
Locate switch & LED
Reset switch
System warning LED
4x LAN LED
Power1+1 1200W AC/DC or -48VDC/DC high efficiency 80plus Platinum redundant power supplies
Environment
Operating Temperature0°C ~ 35°C
Storage Temperature-20°C ~ 70°C
Relative Humidity5% ~ 95% relative humidity, non-condensing
HTS Code8473 30 5100
ECCN4A994
ComplianceCE, FCC Class A, RoHS 6/6 compliant
Physical
Dimensions (W x H x D)System: 30”x19”x3.5” (LxWxH)
Packaging: 37”x 25”x12”(LxWxH)
WeightsNet Weight: 55lbs w/o Hard Drives
Gross Weight: 77lbs

Resources

Data Sheet DS-DSS224N-UN.pdf
