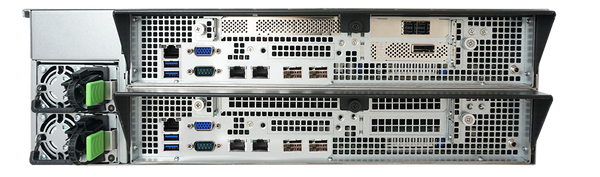

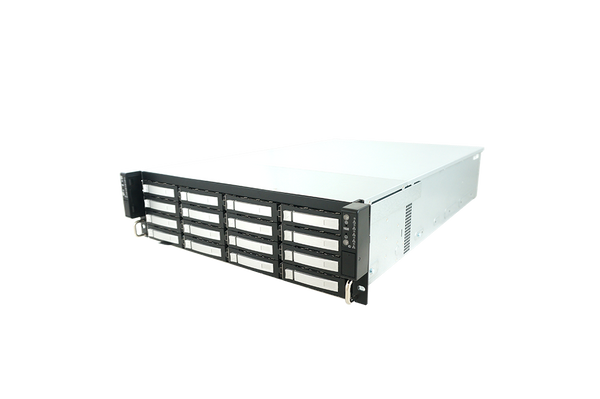

DSS316S-UN 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features

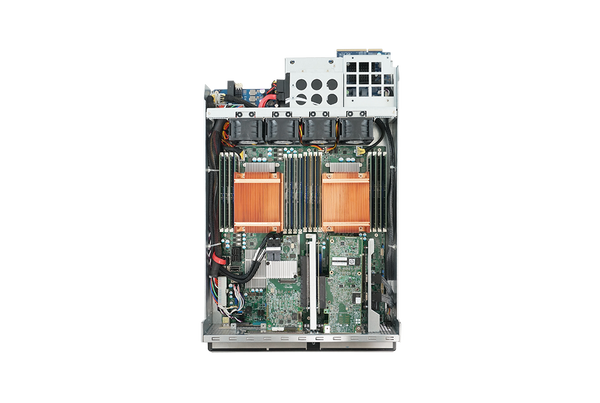

- Storage server supports single AMD EPYC™ motherboard up to 1TB DDR4
- Four Hot-swappable 60mm fan modules per motherboard module
- Support two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
- HA Redundant cluster-in-a-box solution with PCIe NTB and GbE heartbeat
Model:
DSS316S-UNCertifications:
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/thomas-shield-tier-v-lg_120x.png?v=1638320912)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/fcc-logo_black-85w_120x.png?v=1586367868)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/ce-logo-85w_120x.png?v=1586367868)
Specification
System | |
---|---|
Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
System Memory | Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400 |
Storage | Each Node:36 ports 12G SAS Expander with 3 SFF8643 Connectors |

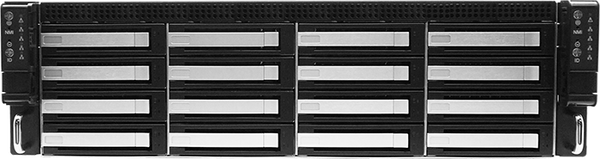

Driver Bays | 16 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each Node: 2x internal 2.5" 7mm for OS drive bay |
Cooling | 4x 60mm fans |
Expansion | Each Node: 2x PCI-E3.0 x8; 1x PCI-E3.0 x16; 1x PCI-E3.0 x16 OCP 2.0 |
Environment | |
Operating Temperature | 0°C ~ 35°C |
Storage Temperature | -20°C ~ 70°C |
Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
HTS Code | 8473 30 5100 |
ECCN | 4A994 |
Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical | |
Dimensions (W x H x D) | System: 27"x19"x5.25" (LxWxH) Packaging: 38“x25.5"x15"(LxWxH) |
Weights | Gross Weight: 37.95kg/85.3lbs Net Weight: 33.6kg/74lbs |
Resources
AVL |
DSS212S-UN-DSS316S-UN-AVL.pdf
|
BIOS |
Tyan S8026GM2NRES8026_BMC.zipS8026_v100.zip |
Data Sheet |
DuraStreams-DSS316S-UN.pdf
|
Install Guide |
QG_DSS316S-UN.pdf
|
Product Brief |
PB_DuraStreams_AMD.pdf
|
