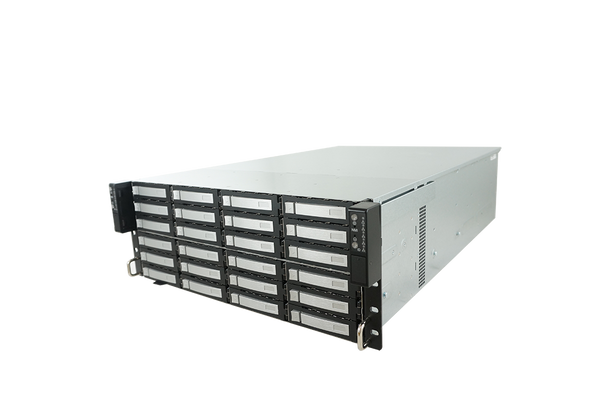

DSS424S-UN 4U 24 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP

Key Features

  • Storage server supports Single Socket AMD EPYC™ up to 1TB DDR4 RAM
  • Four how-swappable 60mm fan modules per motherboard module

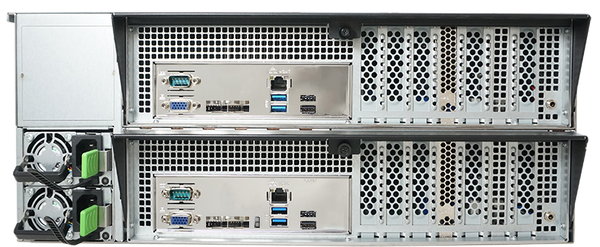

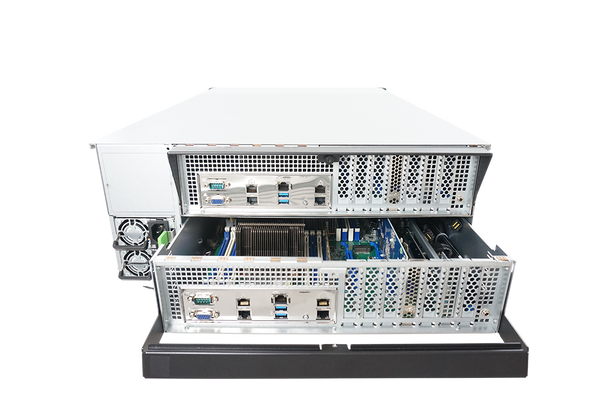

  • Support two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
  • HA Redundnat cluster-in-a-box solution with PCIe NTB and GigE heartbeat

Certifications:

Specification

System
ProcessorEach Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3
System MemoryEach Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400
StorageEach node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors

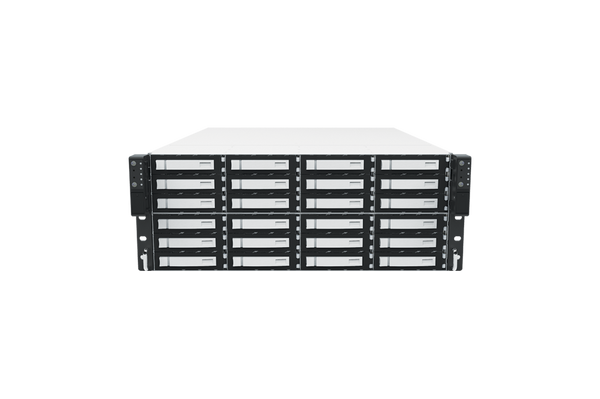

Driver Bays24 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays
CoolingEach node: 4x 60mm fans
ExpansionEach Node: 4x PCI-E3.0 x16; 3x PCI-E3.0 x8
Environment
Operating Temperature0°C ~ 35°C
Storage Temperature-20°C ~ 70°C
Relative Humidity5% ~ 95% relative humidity, non-condensing
HTS Code8473 30 5100
ECCN4A994
ComplianceCE, FCC Class A, RoHS 6/6 compliant
Physical
Dimensions (W x H x D)System: 27"x19"x7" (DxWxH) Packaging: 38"x 25.2"x18"(LxWxH)
WeightsGross: 51.78KG/114LBS Net: 33.9KG/75LBS
