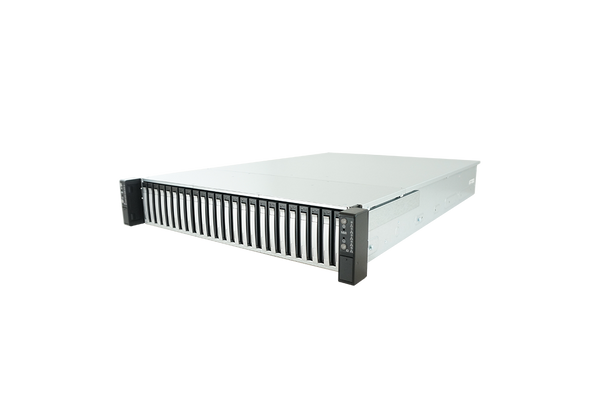

DSS224S-UN 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP

Key Features

  • Storage server supports single AMD EPYC™ up to 1TB DDR4

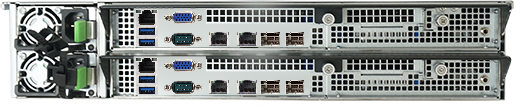

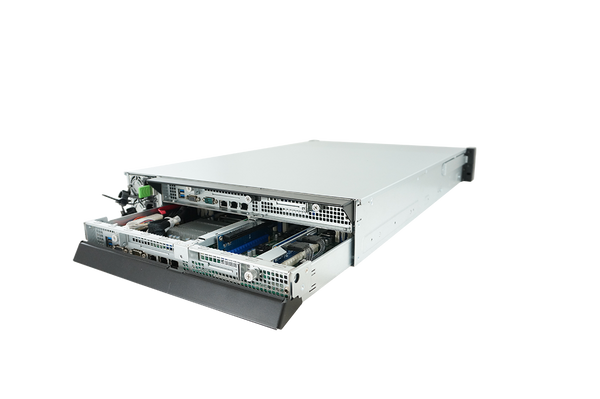

  • 2U Redundant High Availability dual systems (nodes)
  • Support high density 24 bays dual ported 12Gb/s SAS for HDD or SSD
  • Support redundancy heartbeat through optional GbR and PCIe x 8 NTB
  • COTS components for easy migration to future generation

Certifications:

Specification

System
ProcessorEach Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3
System MemoryEach Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400
StorageEach Node: 36 ports 12G SAS Expander with 3 SFF8643 connecters

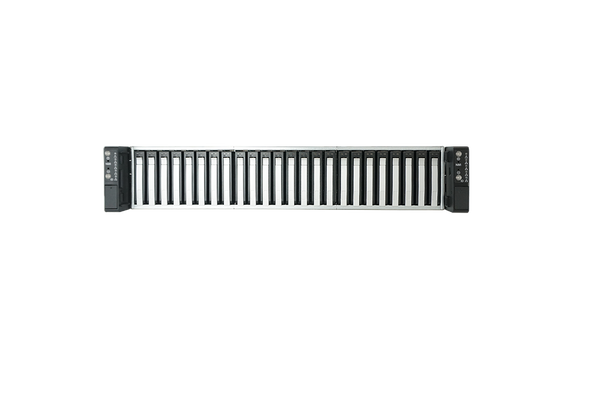

Driver Bays24x 2.5" 12Gbps/6Gbps SAS dual ported HDD bays Each Node has 2x internal 2.5" OS drive bay
CoolingEach node: 5x 40mm fans
ExpansionEach Node: 2x PCI-E3.0 x16; 1x PCI-E3.0 x16 OCP 2.0
Environment
Operating Temperature0°C ~ 35°C
Storage Temperature-20°C ~ 70°C
Relative Humidity5% ~ 95% relative humidity, non-condensing
HTS Code8473 30 5100
ECCN4A994
ComplianceCE, FCC Class A, RoHS 6/6 compliant
Physical
Dimensions (W x H x D)System: 27"x19"x7" (LxWxH) Packaging: 38“x25.2"x18"(LxWxH)
WeightsGross Weight: 51.78kg/114lbs Net Weight: 33.9kg/75lbs

Resources

AVL DSS224S-UN-AVL.pdf
BIOS
Tyan S8026GM2NRE
S8026_BMC.zip
S8026_v100.zip
Data Sheet DS-DSS224S-UN.pdf
Install Guide DSS224S-UN-Quick-Guide-v1.00.pdf
Product Brief PB_DuraStreams_AMD.pdf
