DSS316S-D5 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP

Key Features

  • Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4
  • Four hot-swappable 60mm fan modules per motherboard module

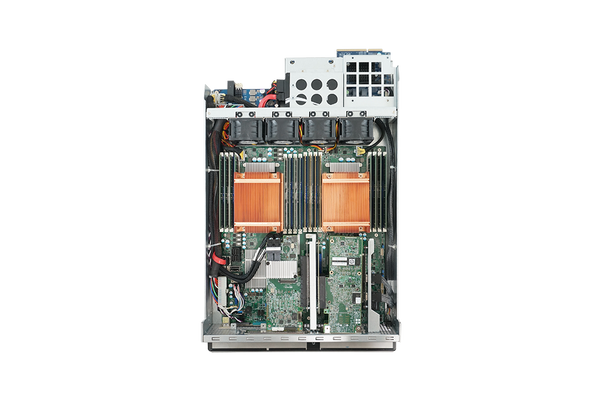

  • Supports two hot-swap MB Modules each with Xeon DP server boards in one system as unified redundant controllers
  • HA Redundant Cluster-in-a-Box solution with PCIe NTB and GigE heartbeat
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647
System Chipset Intel C621 chipset
System Memory Each node: Supports 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Storage Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors
Driver Bays 16 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays
Cooling Each node: 4x 60mm fans
Expansion Each node: 2x PCIe Gen3 x 8 slots; 1x PCIe Gen3 x 16 slots; 1x PCIe Gen3 x 16 Storage Mezz; 1x PCIe Gen3 x 16 OCP NIC
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 27"x19"x5.25" (LxWxH) Packaging: 38"x 25.5"x15"(LxWxH)
Weights Gross: 37.95KG/83.5LBS; Net: 33.6KG/74LBS
