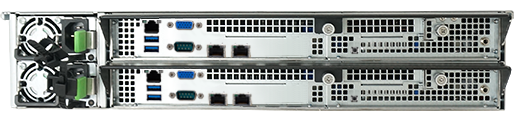

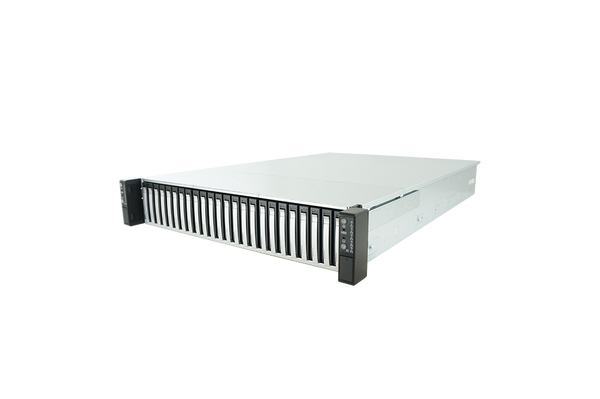

DSS224S-D5 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP
Key Features
- Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4
- 2U Redundant High Availability dual systems (nodes)
- Supports high density 24 bays dual ported 12G SAS for HDD or SSD
- Supports redundancy heartbeat through optional GbE and PCIe x8 NTB
- COTS component for easy migration to future generation
Model:
DSS224S-D5-2U-24-BAYSCertifications:
![Intel Partner](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/IPA-Badge-Titanium-primary-rgb-DIGITAL-3000x3000_120x.png?v=1663868251)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/thomas-shield-tier-v-lg_120x.png?v=1638320912)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/fcc-logo_black-85w_120x.png?v=1586367868)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/ce-logo-85w_120x.png?v=1586367868)
Specification
System | |
---|---|
Processor | Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647 |
System Chipset | Intel C621 chipset |
System Memory | Each node: Supports 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |
Driver Bays | 24x 2.5" 12Gbps/6Gbps SAS dual ported HDD bays Each node has 2x internal 2.5" OS drive bay |
Cooling | Each node: 5x 40mm fans |
Expansion | Each node: 2x PCIe Gen3 x 16 slots; 1x PCIe Gen3 x16 OCP Storage Mezz,; 1x PCIe Gen3 x16 OCP NIC |
Environment | |
Operating Temperature | 0°C ~ 35°C |
Storage Temperature | -20°C ~ 70°C |
Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
HTS Code | 8473 30 5100 |
ECCN | 4A994 |
Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical | |
Dimensions (W x H x D) | System: 27"x19"x7" (DxWxH) Packaging: 38"x 25.2"x18"(LxWxH) |
Weights | Gross: 51.78KG/114LBS; Net: 33.9KG/75LBS |
Resources
AVL |
DSS224S-D5-AVL.pdf
|
BIOS |
Tyan S7106GM2NRS7106GM2NR_v101.zipS7106GM2NR-BMC_v100.zip Tyan S7106GM2NR-L2S7106GM2NR-L2_v201.zipS7106GM2NR-L2-BMC_v100.zip |
Data Sheet |
DuraStreams-DSS224S-D5.pdf
|
Install Guide |
DSS224S-D5-Quick-Guide-v1.00.pdf
|
Product Brief |
PB_DuraStreams_Intel.pdf
|
