DSS212S-D5 2U 12 BAYS 3.5" HDD 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP

Key Features

  • Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4

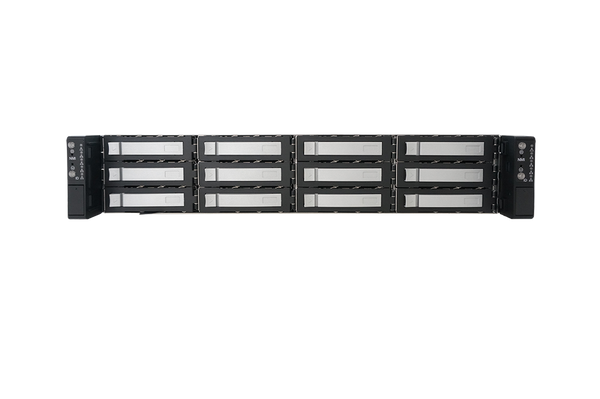

  • 2U with 12x 3.5” 12Gbps SAS hot-swap HDD bays
  • Five 40mm fan modules per motherboard module

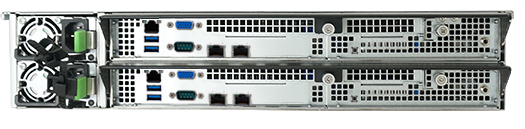

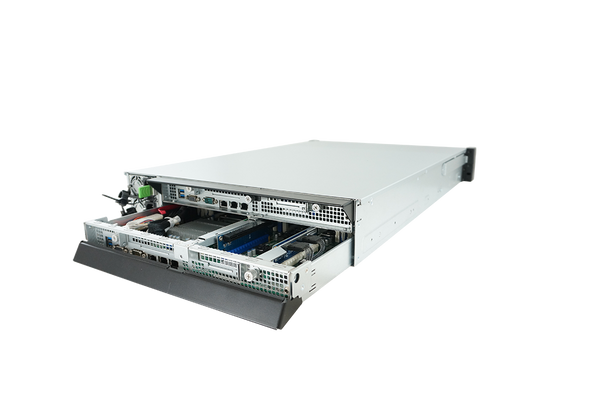

  • Support two hot-swap MB Modules each with Xeon DP server boards in one system as unified redundant controllers
  • HA Redundant Cluster-in-a-Box solution with PCIe NTB and GbE heartbeat
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647
System Chipset Intel C621 chipset
System Memory Each Node: Supports up to 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Storage Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors
Driver Bays 12 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays
Cooling Each node: 5x 40mm fans
Expansion Each Node: 2x PCIe Gen3 x 16 slots; 1x PCIe Gen3 x16 OCP Storage Mezz.; 1x PCIe Gen3 x16 OCP NIC
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 26.5"x19"x3.5" (LxWxH) Packaging: 37"x 25.2"x13.8"(LxWxH)
Weights Net Weight: 50lbs w/o Hard Drives; Gross Weight: 68lbs
