Key Features
| System | |
|---|---|
| Processor | Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647 |
| System Chipset | Intel C621 chipset |
| System Memory | Each node: Supports up to 12x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
| Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |

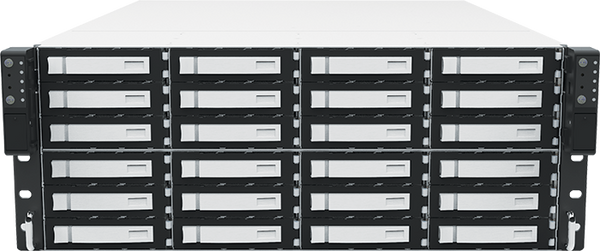

| Driver Bays | 24 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays |
| Cooling | Each node: 4x 60mm fans |
| Expansion | Each node: 2x PCIe Gen3 x16 slots; 5x PCIe Gen3 x8 slots |
| Environment | |
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimensions | System: 27"x19"x7" (LxWxH) Packaging: 38“x25.2"x18"(LxWxH) |
| Weights | Gross Weight: 51.78kg/114lbs, Net Weight: 33.9kg/75lbs |
| AVL |
DSS424S-D5-AVL.pdf
|
| BIOS |
Tyan S7100GM2NRS7100GM2NR_v100.zipS7100GM2NR-BMC_v100.zip |
| Datasheet |
DSS424S-D5.pdf
|
| Install Guide |
DSS424SF-D5-Quick-Guide-v1.00.pdf
|
| Product Brief |
PB_DuraStreams_Intel.pdf
|
