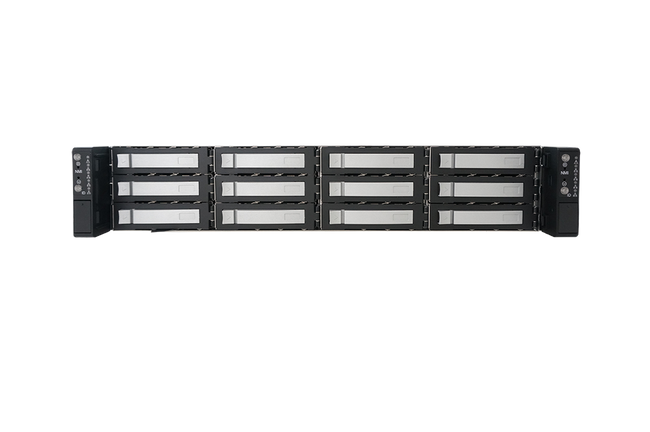

DSS212S-U5 2U 12 Bay 3.5" HDD 12G SAS Redundant Node Single Xeon SP
![](http://premioinc.com/cdn/shop/products/DuraStreams-DSS224S-D4Angle_650x.png?v=1528913309)

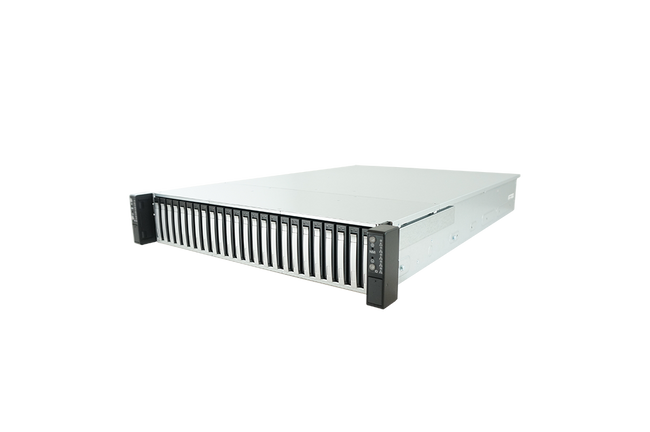

DSS224S-D5 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP
![](http://premioinc.com/cdn/shop/products/DSS316FrontAngle_650x.png?v=1551752353)

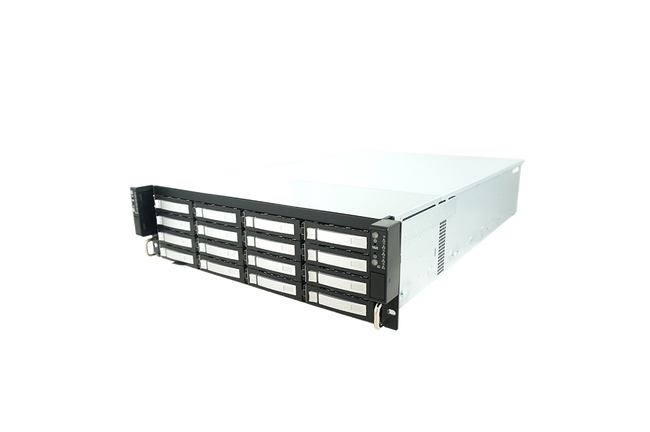

DSS316S-D5 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP
![](http://premioinc.com/cdn/shop/products/DSS424S3-frontAngle_650x.png?v=1528914973)

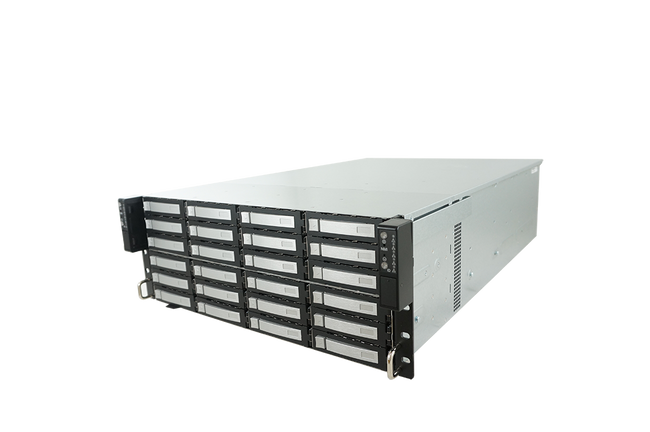

DSS424S-D5 4U 24 BAYS 3.5" HDD 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP
![](http://premioinc.com/cdn/shop/products/DSS448S-1-intel_650x.png?v=1620844925)

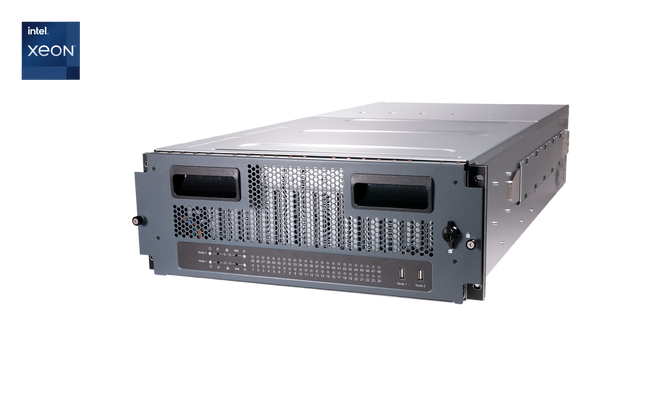

DSS448S-D5 4U 48 Bays SAS Dual Intel Xeon
DSS212S-U5 2U 12 Bay 3.5" HDD 12G SAS Redundant Node Single Xeon SP
Key Features
- 2U with 12x 3.5″ 12 Gbps SAS hot-swap HDD bays
- Five 40mm fan modules per motherboard module
- Supports two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
- HA Redundant Cluster-in-a-Box solution with PCIe NTB and GbE heartbeat
Model:
DSS212S-U5-2U-12-BAY-3-5-HDD-12G-SAS-REDUNDANT-NODE-SINGLE-XEON-SPCertifications:
![Intel Partner](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/IPA-Badge-Titanium-primary-rgb-DIGITAL-3000x3000_120x.png?v=1663868251)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/thomas-shield-tier-v-lg_120x.png?v=1638320912)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/fcc-logo_black-85w_120x.png?v=1586367868)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/ce-logo-85w_120x.png?v=1586367868)
Specification
System | |
---|---|
Processor | Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647 |
System Chipset | Intel C622 chipset |
System Memory | Each Node: Supports up to 6x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |
Driver Bays | 12 hot-swap 3.5" 12G/6G SAS/SATA drive bay; Each node: 2x internal 2.5" 7mm for OS drive bays |
Cooling | Each node: 5x 40 mm fans |
Expansion | Each Node: 1x PCI-E 3.0 x8; 2x PCI-E3.0 x16; 1x Broadcom LSI3008 (Optional) |
Environment | |
Operating Temperature | 0°C ~ 35°C |
Storage Temperature | -20°C ~ 70°C |
Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
HTS Code | 8473 30 5100 |
ECCN | 4A994 |
Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical | |
Dimensions (W x H x D) | System: 26.5"x19"x3.5" (LxWxH) Packaging: 37"x25.2"x13.8"(LxWxH |
Weights | Net Weight 50lbs w/o Hard Drives; Gross Weight: 68 |
Resources
AVL |
DSS212S-U5-AVL.pdf
|
BIOS |
X11SPW7_606.zip
|
Data Sheet |
DuraStreams-DSS212S-U5.pdf
|
Firmware |
SMT_X11AST2500_122.zip
|
Install Guide |
QG_DSS212S-U5.pdf
|
Product Brief |
PB_DuraStreams_Intel.pdf
|
