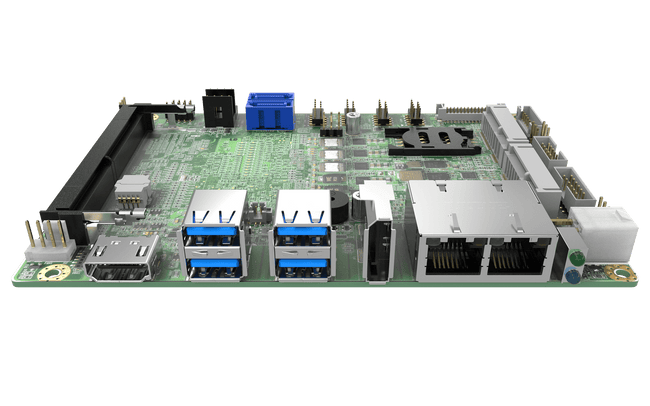

CT-DWL01 3.5" SBC Industrial Motherboard with 8th Gen. Intel® Core™ Processor
CT-MCL01 MicroATX Industrial Motherboard with LGA 1151 Socket supporting 8th/9th Gen Intel® Core™ i3/i5/i7 Processor, Q370

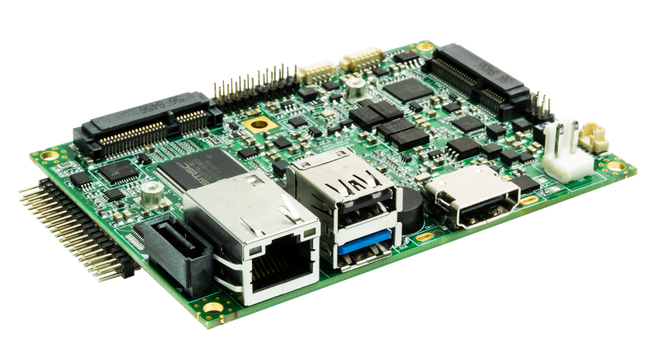

CT-PBT01 2.5" Pico-ITX Single Board Computer with Intel® Celeron® J1900
CT-MSL01 MicroATX Industrial Motherboard with LGA 1151 Socket for 6th Gen. Intel® Core™ Processor, Q170 PCH
CT-XSL01 Mini-ITX Industrial Motherboard with Q170 PCH For Intel® 6th Generation LGA 1151 Socket
CT-DBT0x 3.5" Single Board Computer with Intel® Celeron® J1900 Embedded Processor Onboard

CT-MSL01 MicroATX Industrial Motherboard with LGA 1151 Socket for 6th Gen. Intel® Core™ Processor, Q170 PCH

  • Supports Intel® 6th/7th Gen Intel Core™ processor (LGA1151) with Intel Q170 PCH
  • 4x DDR4 DIMM support total up to 64GB
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • DVI-D/DisplayPort//HDMI/VGA
  • 1x PCIe x16, 1x PCIe x4, 1x PCIe x1, 1x PCI, 1x Mini-PCIe
  • 1x M.2, and 4x SATA 6.0Gb/s
  • 6x COM port, 6x USB 3.0, 6x USB 2.0
  • 1x 8-bit GPIO
  • Supports Intel® AMT 11.0
  • Supports TPM 2.0 (optional)

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Regular price $362.00
Starting At: $362.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor LGA 1151 socket supporting 6th/7th Gen Intel Core i3/i5/i7 Pentium®, Celeron® Desktop Processor
System Chipset Q170
LAN Chipset 1x Intel® I219LM GbE PHY
1x Intel® I211AT GbE controller
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC892 HD Audio Codec
System Memory 4x 288-Pin DDR4 1866/2133MHz DIMM, Max. 64GB
Graphics Intel® 9th Gen Graphic
BIOS AMI UEFI 128MB SPI Flash
Watchdog Software Programmable Supports 1~255 sec.
System Reset
iAMT Intel AMT 11.0
TPM TPM 2.0 (optional)
Display
Multiple Display DVI-D/ DP/ HDMI / VGA
Storage
M.2 1x M.2 Type 2280 M Key
SATA 4x SATA III (6 Gb/s)
Expansion
Mini PCIe 1x Full-size Mini PCIe
PCI 1x PCI
PCIe 1x PCIe x16, 1x PCIe x4, 1x PCIe x1
I/O
Audio 1x Mic-in, 1x Line-in, 1x Line-out (rear)
COM 1x RS-232/422/485 (rear)

3x RS-232 (header)
LAN 2x GbE RJ45 (rear)
USB 6x USB 3.0 (4x rear/2x header)
6x USB 2.0 (6x rear)
Others 1x PS/2 Keyboard/Mouse (header)

1x LPC/1x SPI/1x 8-bit GPIO (header)

1x CPU Fan/2x System Fan (header)

1x Front Panel Audio (header)

1x Front Panel Connector (header)
Operating System
Windows Windows 10, Windows 8.1, WES8.1,
Windows 7, WES7
Linux Linux kernel 4.X
Power
Power Management ACPI 5.0 compliant
Power Mode ATX Power
Power Connector 2×12-pin and 2×2-pin power connector
Environment
Operating Temperature 0 °C ~ 60 °C (32 °F ~ 140 °F)
Storage Temperature -40 °C ~ 80 °C (-40 °F ~ 176 °F)
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Certification CE, FCC Class A
Physical
Dimensions (W x H x D) 244 x 244 mm ( 9.6" x 9.6")
