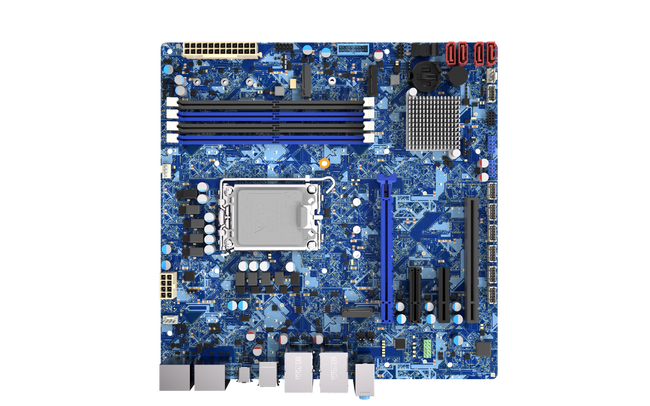

CT-MCL01 MicroATX Industrial Motherboard with LGA 1151 Socket supporting 8th/9th Gen Intel® Core™ i3/i5/i7 Processor, Q370

  • Support 8th/9th Gen. Intel® CFL-R S Processor (LGA 1151, 95W/65W/35W TDP)
  • Intel® Q370 chipset
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 2x Intel® GbE (Support Wake-on-LAN and PXE)
  • Triple independent display supported by 1x VGA, 1x DVI-D, and 2x DisplayPort (DP1.2)
  • 1x PCIe x16 (Gen3), 2x PCIe x4 (Gen3), 1x PCIe x1 (Gen3)
  • 1x M.2 (M Key, NVMe PCIe x4, SATA, 2242/2260/2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
  • 2x RS-232/422/485, 4x USB 3.1 Gen 1 Internal header: 1x USB 3.1 Gen 1, 7x USB 2.0, 4x RS-232
  • 6x SATA 6.0Gb/s
  • Intel® AMT 12.0 Supported
  • TPM 2.0 Supported

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Regular price $378.00
Starting At: $378.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor Support 8th/9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 95W/65W/35W TDP)

- Intel® Core™ i7-9700E, i7-9700TE, i7-8700T, i7-8700

- Intel® Core™ i5-9500E, i5-9500TE, i5-8500T, i5-8500

- Intel® Core™ i3-9100E, i3-9100TE, i3-8100T, i3-8100

- Intel® Pentium® G5400T, G5400

- Intel® Celeron® G4900T, G4900
System Chipset Intel® Q370 PCH
LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S HD Audio Codec
System Memory 4x 288-Pin DDR4 2133/2400/2666MHz DIMM. 128 GB Max
Memory Capacity 128GB
Graphics Intel® Integrated Graphics
BIOS AMI uEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec.
System Reset
iAMT Intel® AMT 12.0 supported
TPM TPM 2.0
Display
Display Port 2x DP (DP 1.2)
DVI 1x DVI
Multiple Display Triple Display
VGA 1x VGA
Storage
M.2 1x M.2 M / NVMe PCIe x 4 / SATA / 2242, 2260, 2280

1x M.2 E / PCIe x2 / USB 2.0 / 2230
SATA 6x SATA 6.0 Gb/s
Expansion
PCIe 1x PCIe x16 (Gen3)

2x PCIe x4 (Gen3)

1x PCIe x1 (Gen3)
I/O
Audio 1x Mic-in, 1x Line-in, 1x Line-out
COM 2x RS-232/422/485
LAN 2x RJ45
USB 4x USB 3.1 Gen 1 (5 Gbps)
Internal I/O
Audio 1x Front panel audio
COM 4x RS-232
DIO 1x 8-bit DIO (4-in/4-out)
SATA 6 x SATA 6.0Gb/s
USB 1x USB 3.1 Gen 1, 7x USB 2.0
Others 1x SPI header

1x LPC

1x Front panel

1x CPU fan

2x System fan
Operating System
Windows Windows 10
Linux Linux Kernel 5.X
Power
Power Management ACPI 5.0 compliant
Power Mode ATX Power
Power Connector 2x12-pin and 2x2-pin power connector
Mechanical & Environment
Form Factor MicroATX
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -40 °C ~ 85 °C
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Dimensions (W x H x D) 244mm x 244mm

Resources

Data Sheet DS_CT-MCL01_Premio.pdf
User's Manual UM_CT-MCL01_Generic.pdf
